Can you tell what these dishes are pointing at?

Status
Please reply by conversation.
glen4cindy

glen4cindy

Thread Starter
SatelliteGuys Pro
Sep 14, 2004
641
38
St. Louis MO, area

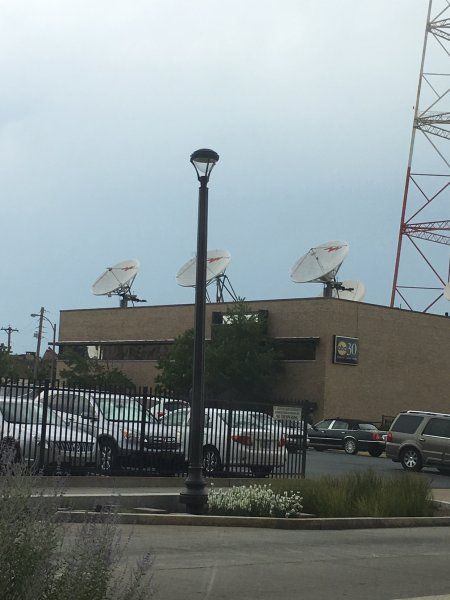

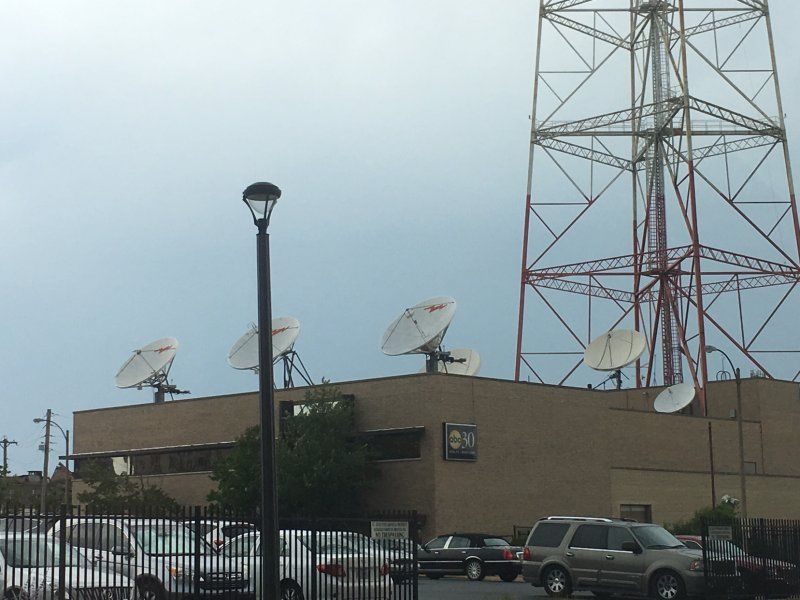

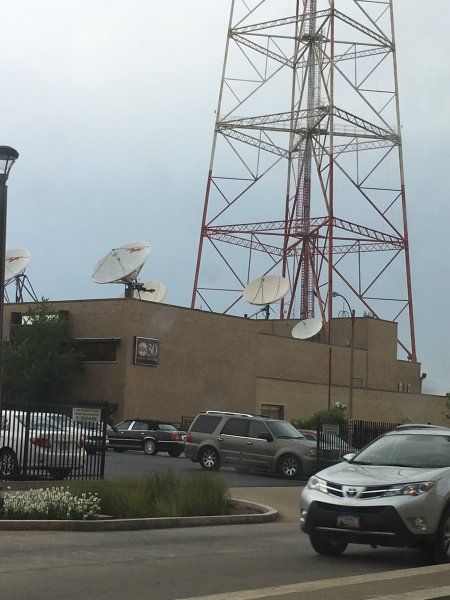

They are on the rooftop of my local KDNL ABC broadcaster.

But there are so many of them. Are some of them uplink dishes?

Thanks in advance.
IMG 1276
IMG 1277
IMG 1278

Pepper

Pepper

DVR Addict~Mad Scientist
Supporting Founder
Mar 16, 2004
8,191
1,058
Satsuma, AL
They are pointing at the sky.

Sorry, that's the best I can do, with no point of reference, i.e. what direction you were pointing the camera, or similar help.

  • Like
Reactions: TermiNader
glen4cindy

glen4cindy

Thread Starter
SatelliteGuys Pro
Sep 14, 2004
641
38
St. Louis MO, area
They are pointing at the sky.

Sorry, that's the best I can do, with no point of reference, i.e. what direction you were pointing the camera, or similar help.

I was driving North, they are obviously pointing st the Southern sky like most dishes.

If I can provide more details I will. Can't get close enough to determine elevation.

Thanks in advance.

lfp302

lfp302

SatelliteGuys Pro
Lifetime Supporter
May 28, 2012
734
329
Colorado
Try to see if they have waveguide connected to the feed horn. That would be an uplink setup.

spongella

spongella

SatelliteGuys Pro
May 12, 2012
1,625
1,231
Central NJ
If you can make out the logo on the dish it might give you a clue.

FTA4PA

FTA4PA

Satellite Guys Family
Lifetime Supporter
Nov 13, 2013
5,929
3,897
Central Pennsylvania
They are on the rooftop of my local KDNL ABC broadcaster.

But there are so many of them. Are some of them uplink dishes?

Thanks in advance. View attachment 127114 View attachment 127115 View attachment 127116
The three in the front are Andrew ESA's (Earth Station Antennas). Apparently Andrew is now owned by a company called Commscope. A quick search for their old website on the Wayback Machine from the mid 2000's yields this info about these or similiar dishes:

Earth Station Antennas (ESA) for C, X, Ku, Ka-Band systems, from 1.2 to 9.3 meters including transportable antenna systems

Scott Greczkowski

Scott Greczkowski

Welcome HOME to SatelliteGuys!
Staff member
HERE TO HELP YOU!
Sep 7, 2003
100,784
20,485
Newington, CT
Probably 105.

Most radio stuff just moved there from 139.

Bob Haller

Bob Haller

Supporting Founder
Supporting Founder
Sep 11, 2003
25,124
4,060
pittsburgh pa
why not call the station and ask? over the years i have talked to a bunch of station engineers, all were very friendly

i have also thalked with robert w dickey and his son who owns KQV radio station here in pittsburgh/

the last call was why do they advertise CICIs pizza, since there are no restaurants in their service area. its part of a network deal. i asked because i want to eat at cicis...its a pizza bufft


Attachments

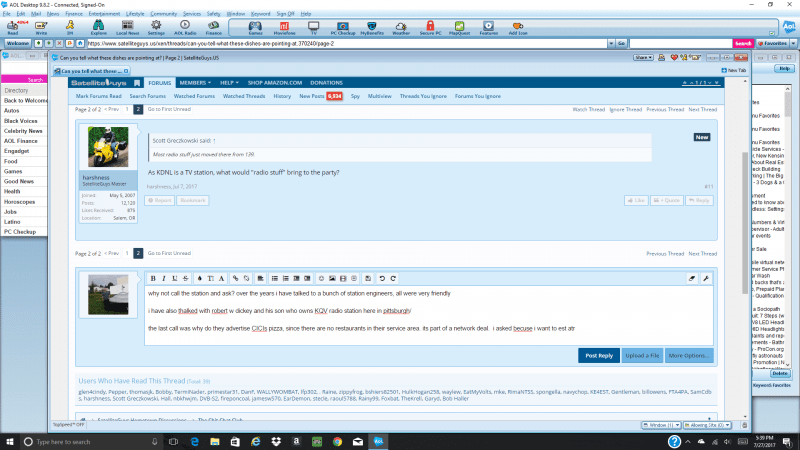

  • upload_2017-7-27_17-39-55.png
    51.1 KB · Views: 165
  • upload_2017-7-27_17-39-55.png
    51.1 KB · Views: 160
wvman

wvman

SatelliteGuys Pro
Lifetime Supporter
Sep 19, 2014
2,728
1,289
N. Central WV
What would a local affiliate need station-based uplink facilities for?

If they had a remote truck out in the boonies on a national interest breaking new story, they would need a way to keep in contact with their remote set up. The station based up-link could do that. Gives them 2 way communication links.

harshness

harshness

SatelliteGuys Master
May 5, 2007
17,220
3,142
Salem, OR
If they had a remote truck out in the boonies on a national interest breaking new story, they would need a way to keep in contact with their remote set up. The station based up-link could do that. Gives them 2 way communication links.
If a slot gets more audio-only downstream traffic, is that all that useful/helpful to a TV station? I recall that someone observed that the pictures don't tell whether uplink capability is present.

Most of the ENG stuff around my area has been terrestrial microwave for quite a while now. We're not "topographically challenged" here though.
