I have one of these telescoping masts coming and am trying to find out some information to plan my installation. I have a mast bracket at the end of my roof peak at 21ft. I ordered the 40ft mast but only plan to use about 32ft of it tops. I plan to guy it 3 ways at 30ft and have the antenna with rotor just above that.

Anyone know if there are predrilled holes for leaving sections not fully extended? I figure leaving some sections overlapped more could help the stability too.

  • Like
Reactions: c-spand
Jim5506

Jim5506

SatelliteGuys Master
Pub Member / Supporter
Lifetime Supporter
Oct 19, 2004
7,604
2,435
Lubbock, Texas
Predrilled holes are only near the bottom of each section (about 4 inches up) plus a notch on each side at the bottom for you to extend the mast to full height and drop the section into a bolt or pin through the section below. They do include a "J" bolt that can tighten anywhere on the mast to hold it there but that usually collapses the section a bit and makes further extension and adjustment problematic.

If you have a 4 section mast, why not just use the three top sections (~32 ft.) and store the bottom section for later. I would recommend guying the top of every section that is above the mounting point, you do not want high winds to snap a guy wire and destroy the entire setup.

Partially extending a section will introduce some wobble into the mast because the bottom is slightly flaired to fit inside the stop of the section below and so you cannot pull an upper section out of the top of the section below. This makes for a snugger fit as you raise the section.

It gets slightly smaller until the final crimp near the top of each section.

Captain Midnight

Captain Midnight

Thread Starter
SatelliteGuys Pro
Sep 16, 2019
475
310
Greers Ferry, Arkansas
Thanks for the info. I will try that method
Predrilled holes are only near the bottom of each section (about 4 inches up) plus a notch on each side at the bottom for you to extend the mast to full height and drop the section into a bolt or pin through the section below. They do include a "J" bolt that can tighten anywhere on the mast to hold it there but that usually collapses the section a bit and makes further extension and adjustment problematic.

If you have a 4 section mast, why not just use the three top sections (~32 ft.) and store the bottom section for later. I would recommend guying the top of every section that is above the mounting point, you do not want high winds to snap a guy wire and destroy the entire setup.

Partially extending a section will introduce some wobble into the mast because the bottom is slightly flaired to fit inside the stop of the section below and so you cannot pull an upper section out of the top of the section below. This makes for a snugger fit as you raise the section.

It gets slightly smaller until the final crimp near the top of each section.

primestar31

primestar31

SatelliteGuys Master
Lifetime Supporter
Mar 15, 2005
10,439
7,388
Beta Omicron Delta III
I would recommend guying the top of every section that is above the mounting point, you do not want high winds to snap a guy wire and destroy the entire setup.
Captain Midnight This is TRUE! Every 10ft (top of section) above a house or eve mount bracket, MUST be guyed with at least 3 guy wires around it.

Jim5506

Jim5506

SatelliteGuys Master
Pub Member / Supporter
Lifetime Supporter
Oct 19, 2004
7,604
2,435
Lubbock, Texas
So, You are mounting the pole at ground level beside the peak of your house?

Jim5506

Jim5506

SatelliteGuys Master
Pub Member / Supporter
Lifetime Supporter
Oct 19, 2004
7,604
2,435
Lubbock, Texas
What provision have you made to prevent the tower from rotating?

I have an old roof top antenna mount that I've surrounded by 4 cinder blocks. The first photo is of the base with one cinder block removed, the second the tower and Channel Master 4228 on top. Attached to the peak with a joist hanger spread out and attached with screws to the facia.

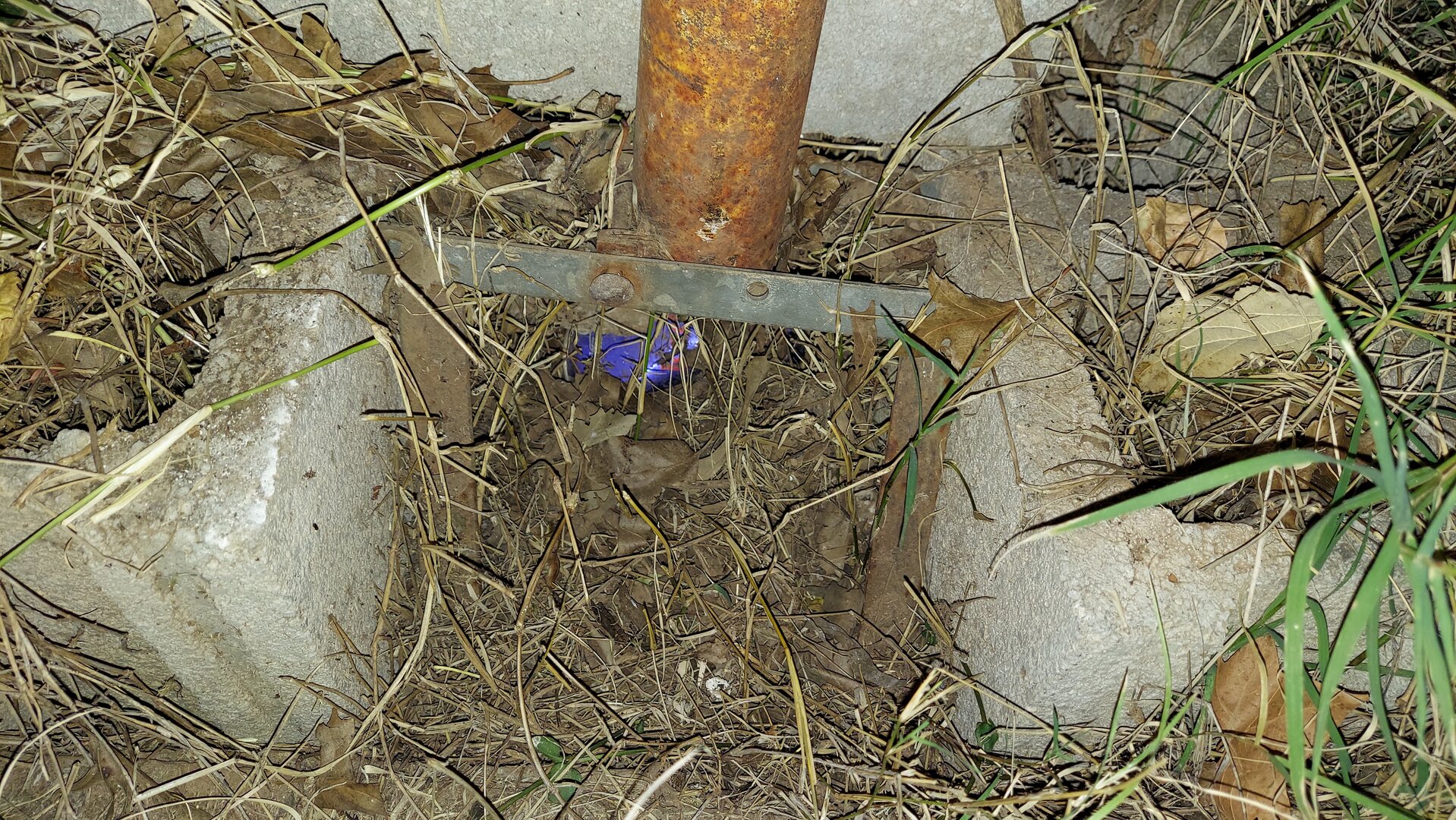

20211205 203847

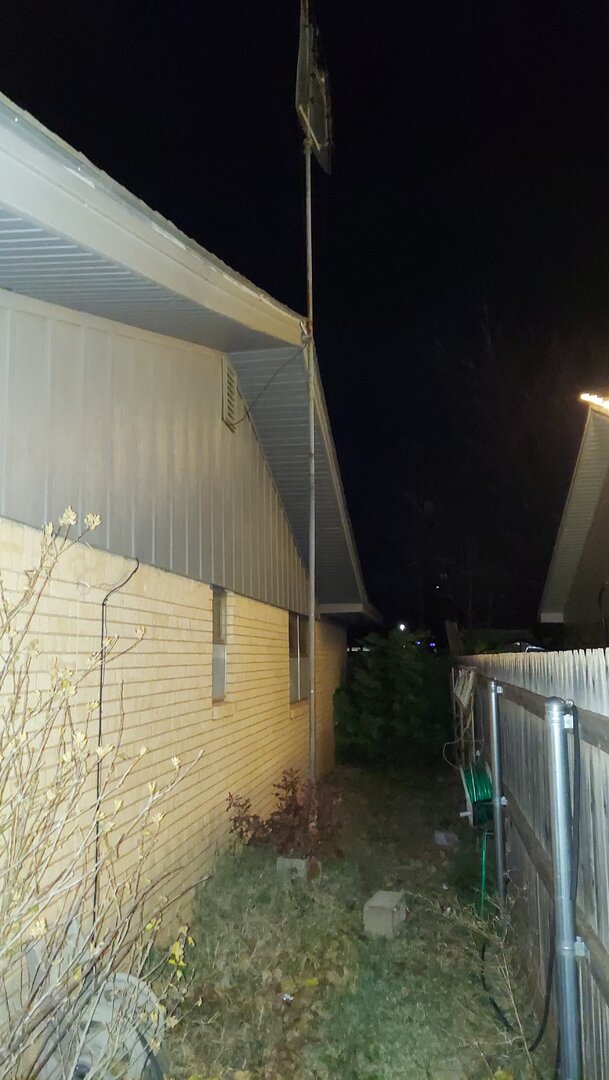

20211205 203930


Just above the base is a 2 ft long piece of drive shaft.

The mast is inserted inside the drive shaft, ancored by a long enough carriage bolt.

primestar31

primestar31

SatelliteGuys Master
Lifetime Supporter
Mar 15, 2005
10,439
7,388
Beta Omicron Delta III

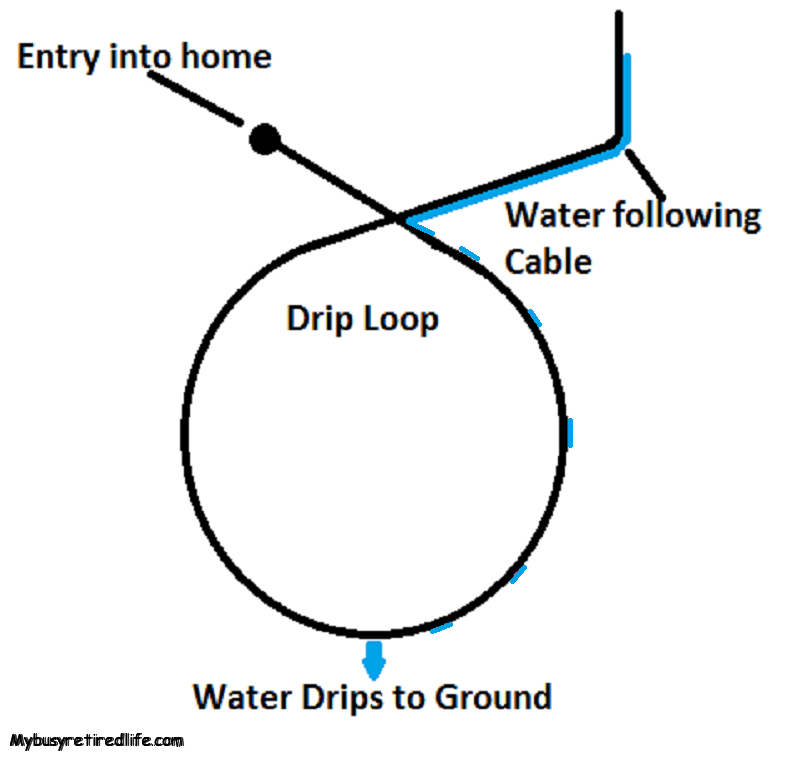

Jim5506 You need a drip loop where that coax goes into the bottom of that eve vent. Without it, I can almost guarantee you that you may have a lot of ROT there.

Rainwater will run down the coax, and right into that joint. IF you put a drip-loop right there (like an elbow) the rainwater will drip off the middle-bottom of that drip-loop, before it can run into/wick into the wood wall.

You just can't be too careful when it comes to water infiltration into a wall or roof.


  • Like
Reactions: TheKrell
Captain Midnight

Captain Midnight

Thread Starter
SatelliteGuys Pro
Sep 16, 2019
475
310
Greers Ferry, Arkansas
Is that just going to be just in dirt, or is there some cement involved? I highly recommend at least one 80lb bag of Quikrete. You should be a little concerned with wind load, even with tv antennas.
I am thinking it will be needed. I had my first storm front pass by over it and the 3 guys saved my butt. But my wind anemometer only registered a gust of 28mph. I definitely plan to concrete the base and switch to a 4 guy system for safe measure. The wind load is definitely higher with it up at 32-33ft.

Captain Midnight

Captain Midnight

Thread Starter
SatelliteGuys Pro
Sep 16, 2019
475
310
Greers Ferry, Arkansas

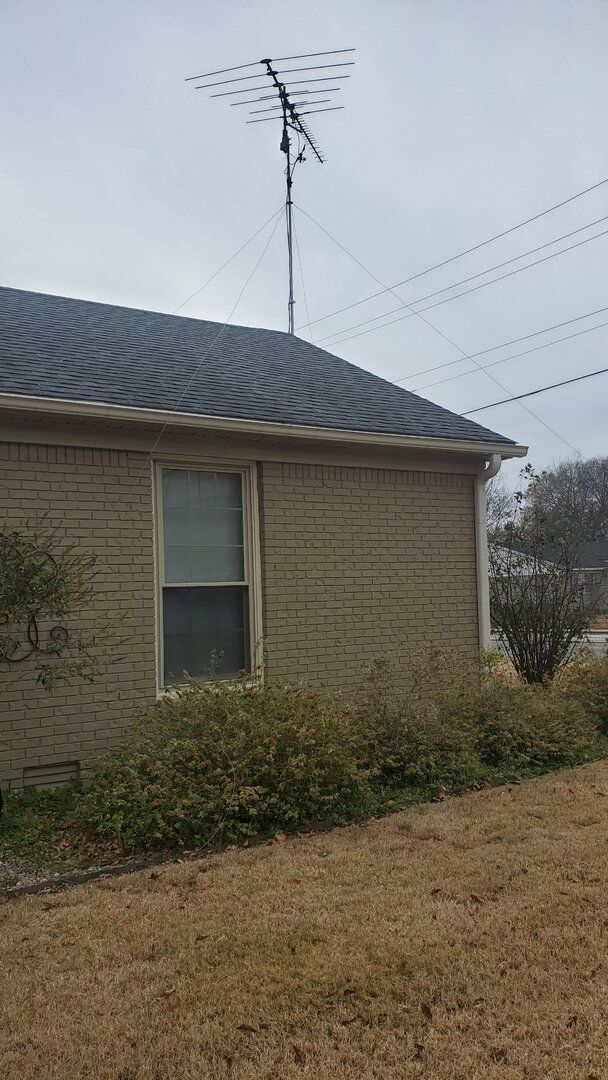

I think it looks pretty good. Hopefully the neighbors can handle it... someone reported my '89 Ford Van to code enforcement as a "non operational vehicle" Code officer came by and asked if it ran. I had driven it the day before... so I started it up and he tore up the ticket.


Attachments

  • 20211209_132651.jpg
    142.6 KB · Views: 66
Jim5506

Jim5506

SatelliteGuys Master
Pub Member / Supporter
Lifetime Supporter
Oct 19, 2004
7,604
2,435
Lubbock, Texas
Does the rotator have guy wire attachments, if so, I would have guyed to it.

Lots of weight and wind resistance above the top guy point.
