Connect OTA Antenna to Orby Receiver

Discussion in 'Orby TV - Support Forum' started by lamp, Sep 19, 2019.

  1. lamp

    lamp Topic Starter SatelliteGuys Family

    Joined:
    Apr 23, 2013
    Posts:
    71
    Likes Received:
    26
    Location:
    Tennessee
    I ordered an Orby DVR Receiver. I already have an FTA satellite dish. I have already tuned in the Orby satellite. My question is how do I connect my UHF Antenna to the Orby Receiver?

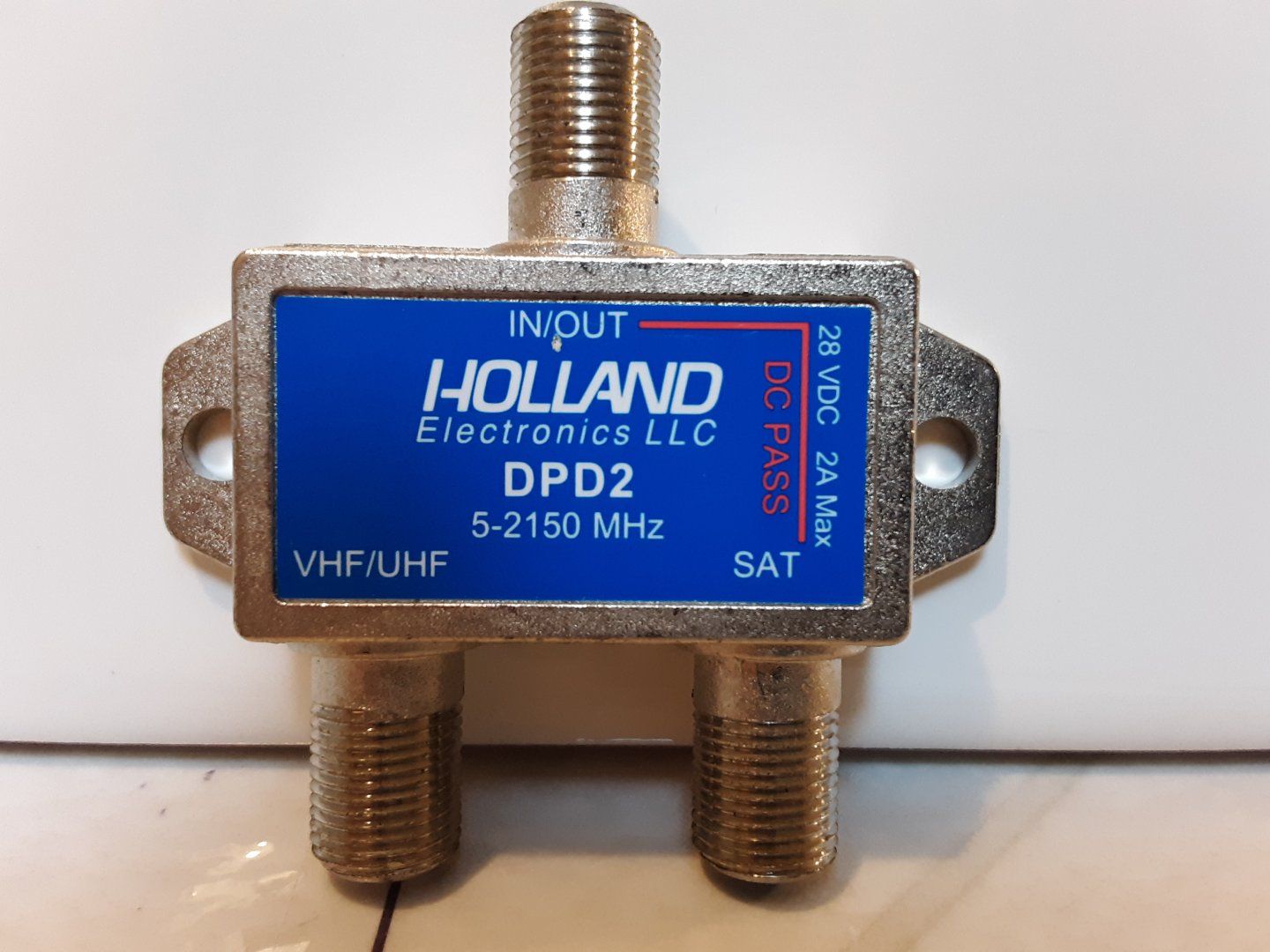

    I uploaded a picture of a switch that I have. Is this what is needed?
    Can someone please correct me if I am wrong. I am guessing that the
    IN/OUT goes to the receiver and the
    VHF/UHF goes to the UHF antenna and the
    SAT goes to the satellite dish.

  2. dishdude

    dishdude SatelliteGuys God Supporting Founder

    Joined:
    Sep 7, 2003
    Posts:
    14,680
    Likes Received:
    22,820
    Location:
    Phoenix, AZ
    You are correct.

  3. lamp

    lamp Topic Starter SatelliteGuys Family

    Joined:
    Apr 23, 2013
    Posts:
    71
    Likes Received:
    26
    Location:
    Tennessee
    Thank you.

  4. lamp

    lamp Topic Starter SatelliteGuys Family

    Joined:
    Apr 23, 2013
    Posts:
    71
    Likes Received:
    26
    Location:
    Tennessee
    I have another question. I hope someone can help me.
    I now know the little switch is called a diplexer. I will be hooking this up in the house just off the receiver. The UHF cable is already there behind the TV.
    I have a preamp on the UHF antenna. It has a 12 V DC power inserter. Is it ok to leave this power inserter on the VHF/UHF leg of the setup?

  5. Wescopc

    Wescopc SatelliteGuys Pro Pub Member / Supporter

    Joined:
    Sep 11, 2005
    Posts:
    1,842
    Likes Received:
    158
    Location:
    Canby, Oregon
    No, the diplexer passes voltage (13 volts) for the LNB, not for the OTA VHF Antenna. You would need a separate cable from the power inserter to the preamp/antenna.

  6. lamp

    lamp Topic Starter SatelliteGuys Family

    Joined:
    Apr 23, 2013
    Posts:
    71
    Likes Received:
    26
    Location:
    Tennessee
    Here is a diagram of how I thought to hook everything up


    I don't know why that picture came out sideways.

    truckracer, cee and primestar31 like this.
  7. lamp

    lamp Topic Starter SatelliteGuys Family

    Joined:
    Apr 23, 2013
    Posts:
    71
    Likes Received:
    26
    Location:
    Tennessee

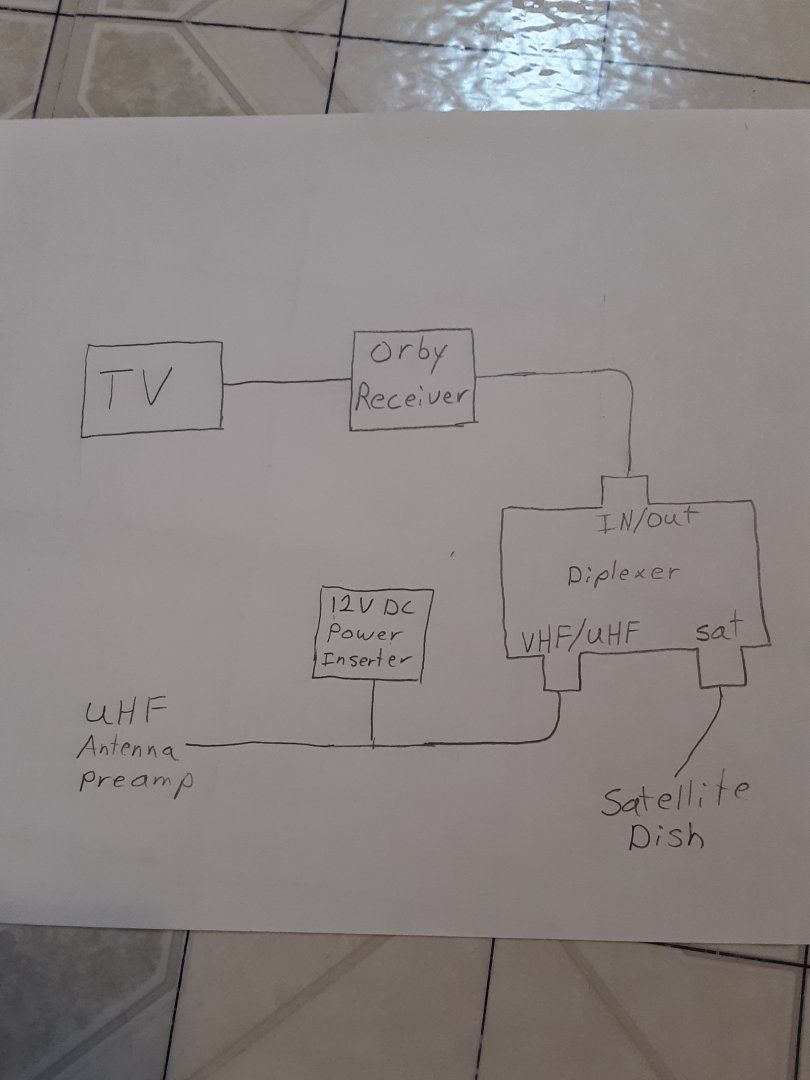

    Here is a diagram of what I thought to do in wiring my Orby setup. Can anyone tell me if this would work or not work?
