First Look: DirecTV SWM 32 Switch

Status
Please reply by conversation.

Scott Greczkowski

Welcome HOME to SatelliteGuys!
Staff member
HERE TO HELP YOU!
Sep 7, 2003
100,201
18,791
Newington, CT
DirecTV is currently testing a new SWM switch that is going to make retailers who do installs at commercial establishments very happy.

It is a SWM 32 switch.

It is basically four SWM 8 switches combined into a single housing using one set of satellite inputs and one power supply.

The SWM32 has a set of Cascade out ports for additional switches.

No word when these will hit the streets, but hopefully soon. I know a few retailers who could use these now.


Attachments

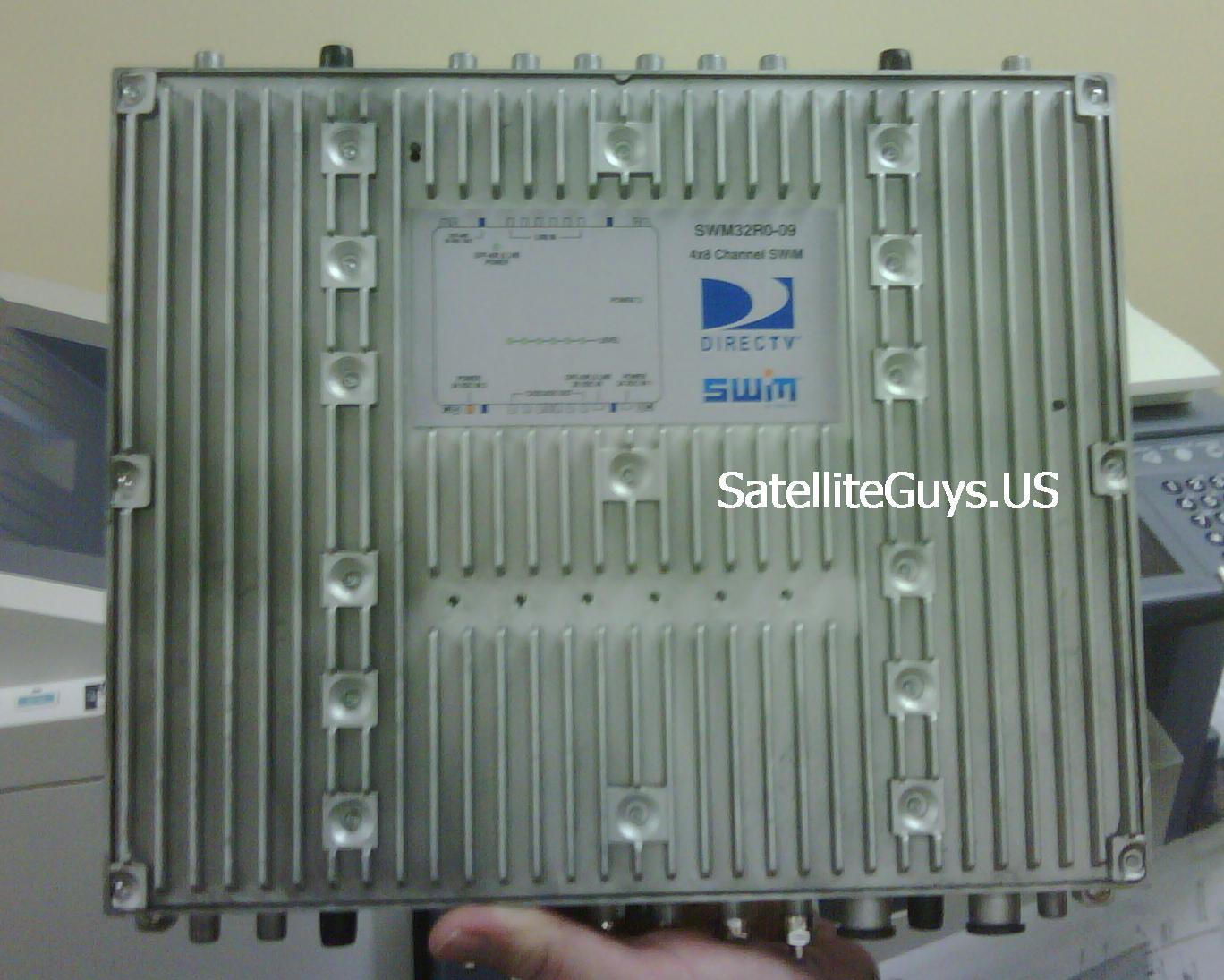

  • swm32-1.jpg
    136.4 KB · Views: 1,698

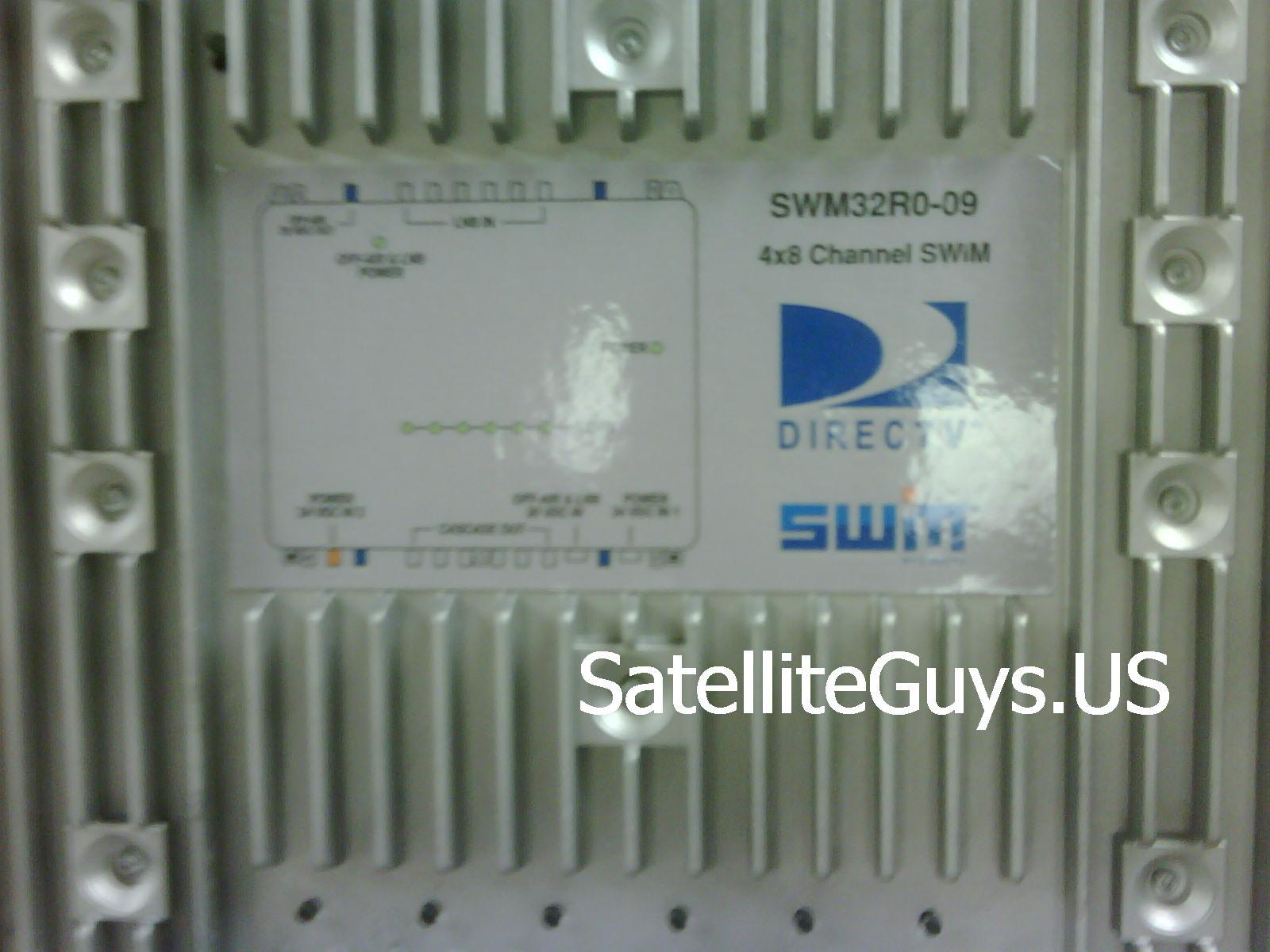

  • swm32-2.jpg
    134.2 KB · Views: 1,417
Last edited:

Bill 13

Member
Apr 24, 2008
14
0
DirecTV is currently testing a new SWM switch that is going to make retailers who do installs at commercial establishments very happy.

It is a SWM 32 switch.

It is basically four SWM 8 switches combined into a single housing using one set of satellite inputs and one power supply.

The SWM32 has a set of Cascade out ports for additional switches.

No word when these will hit the streets, but hopefully soon. I know a few retailers who could use these now.
Per chance do you have more pictures that show the entire switch front,
back, and all sides?


jcrandall

Proud Staff Member
Staff member
HERE TO HELP YOU!
Apr 3, 2005
10,910
378
Central Michigan
Nice technological improvement. A few of our users would salivate at those for their homes, though pushing 32 tuners would make one wonder if you home is indeed a sports bar.


DetFan

Pub Member / Supporter
Pub Member / Supporter
Feb 27, 2006
2,029
121
Livonia, Michigan
SO wouold that mean I can add more DVR's then the 4 I have now witout havingg to have D* come ourt for another sort of install?


jcrandall

Proud Staff Member
Staff member
HERE TO HELP YOU!
Apr 3, 2005
10,910
378
Central Michigan
It will probably be very expensive and targeted for MDU installs.

Detfan- you are probably best to look at two SWM8 modules if you want more than 4 DVRs.


pro96

You Member, Member ?
Supporting Founder
Jul 18, 2005
6,459
11
OC
Too big and too ugly .. my SWM5 is seamless


JosephB

SatelliteGuys Pro
Dec 21, 2004
1,234
145
Birmingham, Alabama
I wonder if you can split the signal two ways before these without locking it first...

It has cascade out ports, so you wouldn't need to. I am willing to bet it's just a set of high frequency splitters + power inserters + 4 swm-8s in one case. Nothing groundbreaking other than they crammed it all into one box.


AntAltMike

SatelliteGuys Pro
Aug 28, 2005
3,444
0
...I am willing to bet it's just a set of high frequency splitters + power inserters + 4 swm-8s in one case. Nothing groundbreaking other than they crammed it all into one box.

That is what it looks like to me, and if I were to use them, then I would have to inventory at least one of these monsters as a spare, and if it developed a problem and I replaced it, I might not be able to leave the site and call the job complete until I had checked the operation of all 32 tuners connected to it.

As I see it, the application where this will be golden is in flush-mounted 24" x 24" x 4" boxes, since none of the current SWM splitting chassis fit in them.

Last edited:

Satellite Rick

Active SatelliteGuys Member
Dec 22, 2009
19
0
Tampa, Fl
Updates??

I was wondering if there were any updates to this product. If it's less than $480.00 it might be worth it ...just to save some time.
