Help to ID this BUD Manufacturer and f/d ratio

Status
Please reply by conversation.
V

Vintagesports

Thread Starter
SatelliteGuys Pro
Nov 8, 2011
158
109
PR
Hi everyone,
I need to identify this satellite dish manufacturer. It is a 12 footer.
By chance any one has the specs?
I have it connected to HH mount with Ajak motor.
I have had it for quite a while but was not using it and now cannot move it not even with a Titanium. It is stuck.
Took the motor out and tested it. It is working properly and reed switch is also working.
Must be something in the gear mount. Would hate to take it apart to take to a shop. Any ideas on how and where to lubricate gear?
Thank you for keeping this forum still up. Have found very useful information through the years.

Merry Christmas to all!


Attachments

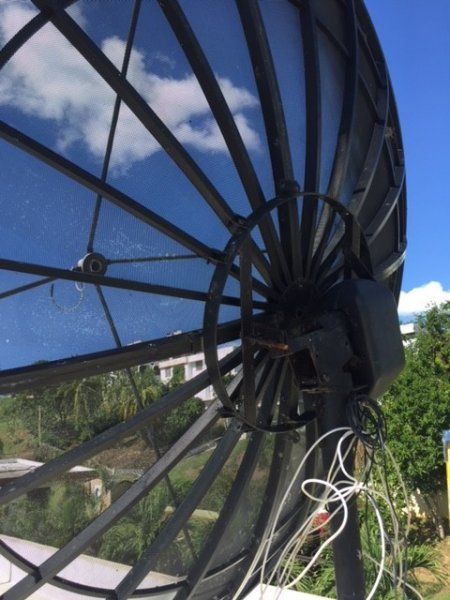

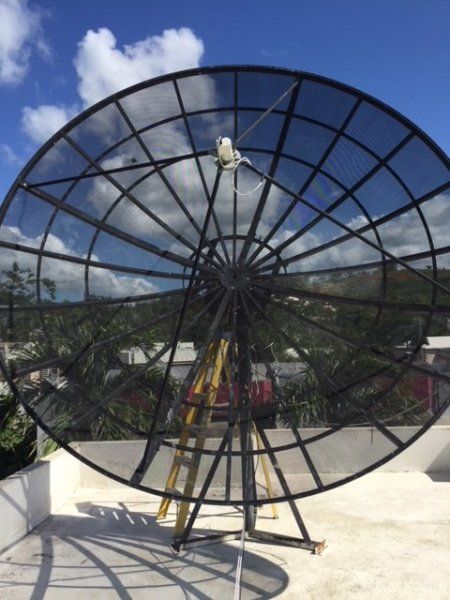

  • BUD1.jpg
    53.7 KB · Views: 257
  • BUD2.jpg
    54 KB · Views: 245
Magic Static

Magic Static

FTA Geek
Lifetime Supporter
Oct 12, 2010
7,489
4,837
Montana
The main shaft (polar axis) is probably rusted. You will need to pull it apart and clean and lubricate. It's not hard to do.
ajak2dis-002-jpg.88316

V

Vintagesports

Thread Starter
SatelliteGuys Pro
Nov 8, 2011
158
109
PR
Thank you Magic Static. I was reading your post from a year ago. Very helpful! I will start by taking dish down to disassemble shaft. It is a12 footer and I would need to take panels down by myself.
ajak2dis-002-jpg.88316
[/QUOTE]

Magic Static

Magic Static

FTA Geek
Lifetime Supporter
Oct 12, 2010
7,489
4,837
Montana
Glad to be of help. Lots of other helpful folks here too. I'm sure we can supply enough information to get you up and running. :)

  • Like
Reactions: KE4EST
V

Vintagesports

Thread Starter
SatelliteGuys Pro
Nov 8, 2011
158
109
PR
What type of lubricant should I use?

V

Vintagesports

Thread Starter
SatelliteGuys Pro
Nov 8, 2011
158
109
PR

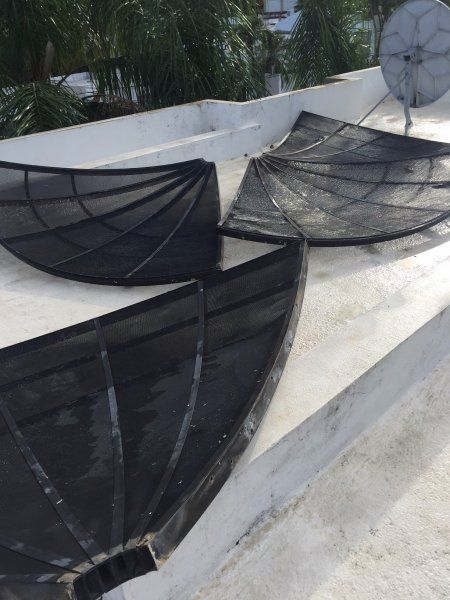

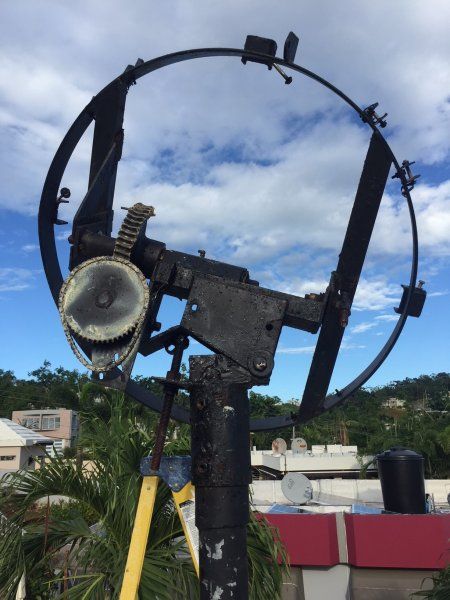

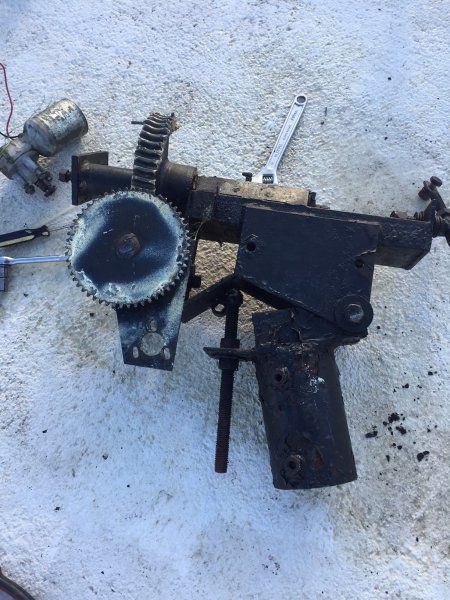

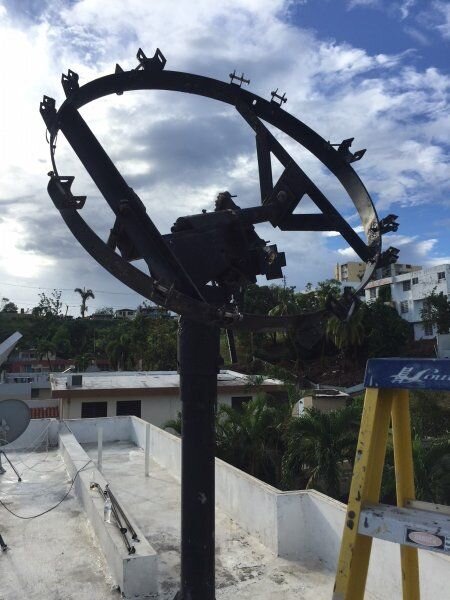

Was able to take the panels off today and took down the mount. Have never taken apart the half moon gear and worm. Don't know where to start. I will give it a shot as soon as I can. Getting this HH mount to work is worthwhile.


Attachments

  • nopanels1.jpg
    53.4 KB · Views: 179
  • panels.jpg
    51.7 KB · Views: 170
  • Like
Reactions: Magic Static
V

Vintagesports

Thread Starter
SatelliteGuys Pro
Nov 8, 2011
158
109
PR

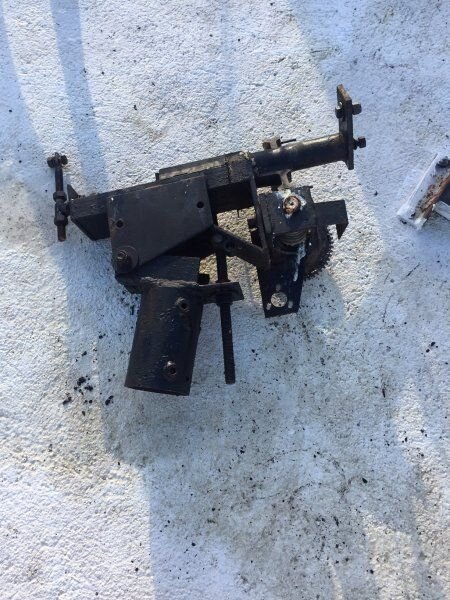

More pics


Attachments

  • nopanels.jpg
    54.8 KB · Views: 168

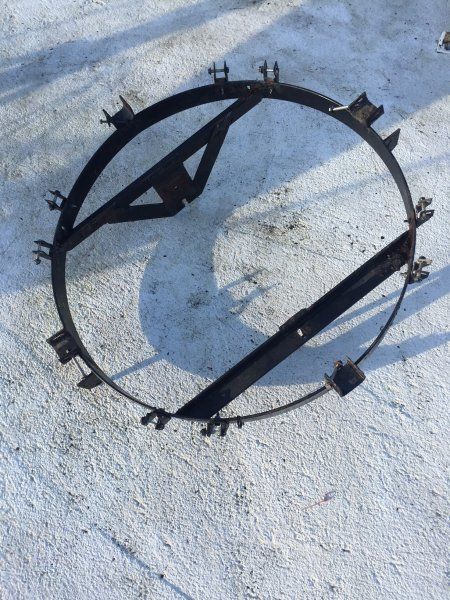

  • hh mount.jpg
    hh mount.jpg
    92 KB · Views: 188

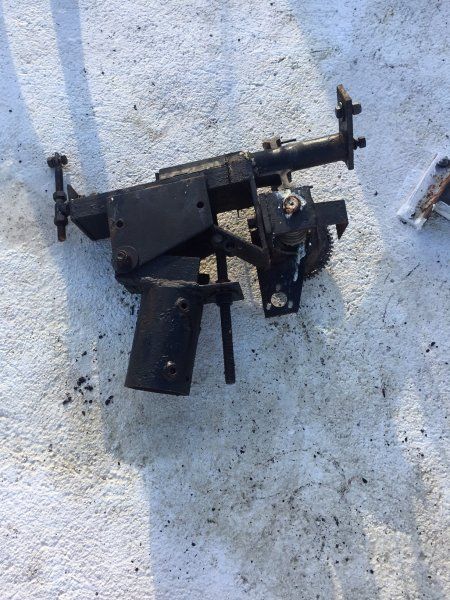

  • gearmount4.jpg
    81.4 KB · Views: 200
  • gearmount3.jpg
    71.3 KB · Views: 176
  • Like
Reactions: Magic Static
V

Vintagesports

Thread Starter
SatelliteGuys Pro
Nov 8, 2011
158
109
PR

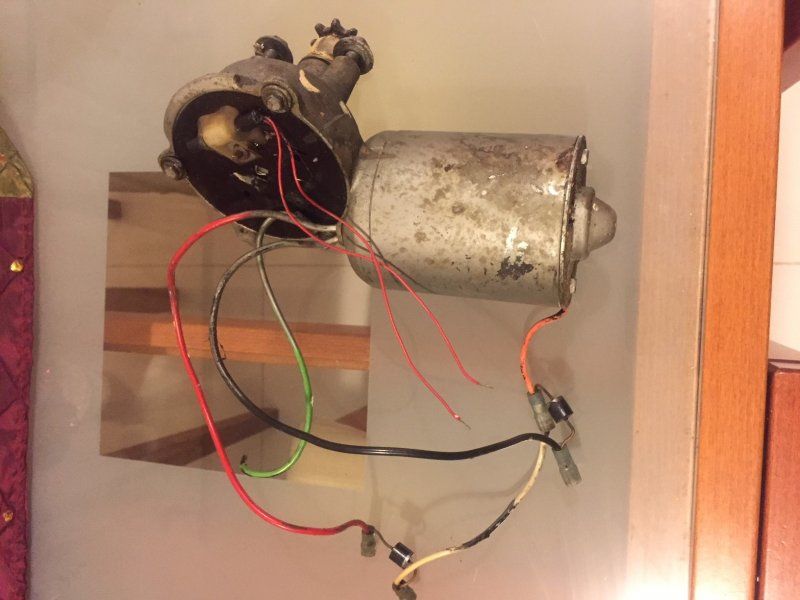

I have posted a picture of my Ajak motor. Found out that one of the diodes is not working. I was able to find a replacement online. Will replace as soon as it arrives. Anyone know how to check if the motor is operating at full force? These 12 footers are heavy so I guess the motor can worn down with time. Not sure


Attachments

  • Ajak motor2.jpg
    Ajak motor2.jpg
    57.8 KB · Views: 152
Magic Static

Magic Static

FTA Geek
Lifetime Supporter
Oct 12, 2010
7,489
4,837
Montana
The only place you might check for wear would be the motor brushes and commutator on the armature they ride on. Since the motor is not in constant service like a fan motor they don't usually wear out.

V

Vintagesports

Thread Starter
SatelliteGuys Pro
Nov 8, 2011
158
109
PR
Thank you Magic Static. That helps. Would not like to mess around with it if not necessary.

V

Vintagesports

Thread Starter
SatelliteGuys Pro
Nov 8, 2011
158
109
PR
Now going back to the original question. I would like to know by the pictures in the first post what model or make is the dish? I believe it is a Unimesh but not sure.

Magic Static

Magic Static

FTA Geek
Lifetime Supporter
Oct 12, 2010
7,489
4,837
Montana
12 footers are not very common around here and I'm not familiar with most. The biggest help in I'ding a dish is the factory made mount. Yours is on an AJAK which does not offer any clues as to the dish manufacturer. Many dishes were mounted to AJAKs BITD. So it may be difficult to determine the specs of the dish that way. The other way is to measure the diameter of the parabola and the depth of the dish. These two numbers determine the focal length and F/D ratio.

V

Vintagesports

Thread Starter
SatelliteGuys Pro
Nov 8, 2011
158
109
PR
Best way to go is to calulate it myself yes. Will do once I reassemble it.

V

Vintagesports

Thread Starter
SatelliteGuys Pro
Nov 8, 2011
158
109
PR

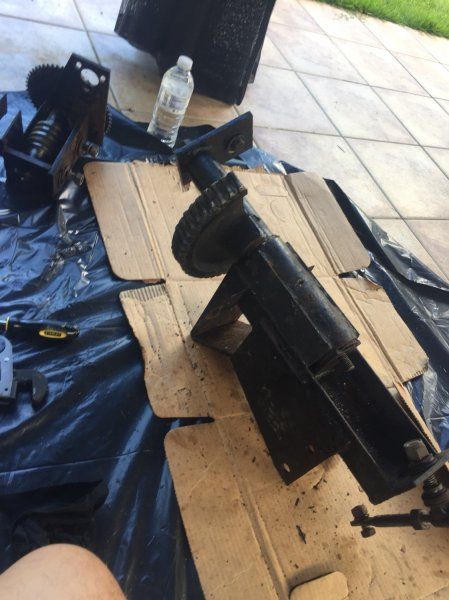

Reassembling the dish will be no problem. My problem is dissasembling the hh gears worm and half moon. Never done that before. That is why I had to take everything apart to clean it and grease it as the dish was not moving. Especially when it was in the lowest positions east and west.
I was having to assist it to help get it going.
Very frustrating. Hopefully once I clean and regrease it would travel the horizon without any push pull of the dish.

Titanium

Titanium

AI6US
Lifetime Supporter
May 23, 2013
7,369
8,498
Meadow Vista, Northern California
The motor might need attention if it loads up that easily at the ends of the arc. Did you put an amp meter inline to check the current draw when lifting off the horizon?

V

Vintagesports

Thread Starter
SatelliteGuys Pro
Nov 8, 2011
158
109
PR

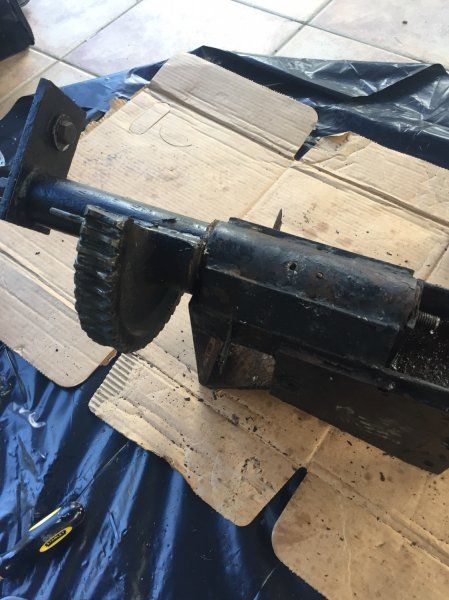

Do I need a puller to take this thing apart? Or can I soft hammer it out?
IMG 7299
IMG 7298
