HISPASAT 1C AT 30 W

Status
Please reply by conversation.

Beagle

SatelliteGuys Guru
Original poster
Jan 5, 2005
125
0
right now i am picking up hispasat 1c at 30 degress west.my prime star dish is elevated about 25 degress west,which almost pointing at the ground,but i have excelent signal and quality,i am watching several channels from CUBA,which are pretty interesting.has any body else picked up any other satellite that is more to the east than hispasat 1c at 30 w.
my location is about 35 miles north east of tampa florida.

You should be able to go lower than that. Hopefully someone that is in that area (or the southern US) can chime in

my prime star dish is elevated about 25 degress west,which almost pointing at the ground,

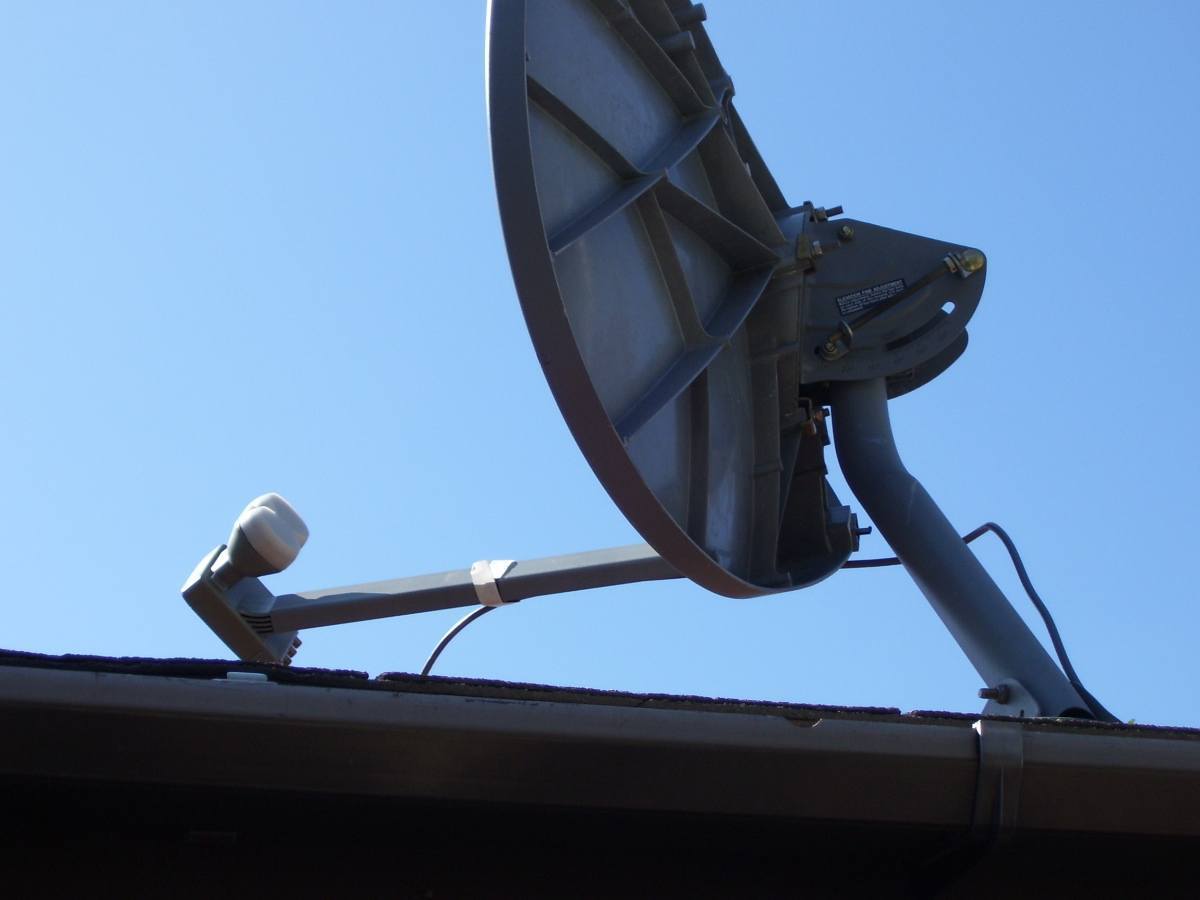

hee hee...try a 8 elevation as here in Minnesota ;)


Attachments

  • 000_0153.jpg
    41 KB · Views: 205
the problem is that when you start getting that far east there are not to many satellites with a beam pointed to north america,most of those satellites are pointed at europe.

actually just checking another site the next satellite with KU is 15W
15.0 West Telstar 12 Ku-Band 10750 MHz local oscillator

H-11916 03.256 4194 4195 RTN (Russian) U.S.
H-11963 14.710 0033 0034 TRACE TV France
0051 0052 TPA INTERNACIONAL Angola
1601 1602 SIC NOTICIAS
2002 2003 TV BULGARIA Bulgaria
H-12166 03.500 0033 0034 TV PAMPA Brazil
H-12173 03.500 4130 4131 TV RECORD Brazil
H-12189 06.666 0101 0102 RED URUGUAYA DE TV Uruguay
0201 0202 CANAL 10 Uruguay
V-11806 1056 3/4 07.595 0108 0208 AL-ALAM NEWS
0109 0209 INN-IRANIAN NEWS NETWORK
0110 0210 JAME-JAM 2 Iran
8191 0118 Audio: IRIB World Service Radio 2 Iran
8191 0119 Audio: IRIB Radio 1 Iran
8191 0120 Audio: Radio Quran
8191 0128 Audio: IRIB World Service Radio 4 Iran
8191 0129 Audio: Sedaye Ashena
8191 0130 Audio: Radio Maaref Iran
8191 0138 Audio: IRIB World Service Radio 5 Iran
V-11932 1182 3/4 03.333 0101 0102 CANAL 10 Uruguay
0201 0202 VTV URUGUAYA Uruguay
V-11974 1224 3/4 03.400 6690 6691 BVN-TV Netherlands
8191 4101 Audio: RNW 1 Netherlands Dutch
8191 4102 Audio: RNW 2 Netherlands English
8191 4103 Audio: RNW 3 Netherlands Spanish
8191 4104 Audio: RVI-1 Netherlands Dutch
8191 4105 Audio: Radio Nederland Netherlands Dutch - Left Channel
8191 4105 Audio: Radio Canada International Canada English - Right Channel

If you are going to dedicate this dish to birds close to the horizon, there is a small change you might want to make.
As is, when the rim of the dish is vertical , your dish looks up 24 degrees or so.
If it's difficult to get it to aim a lot lower, you can make a mod.

You rotate the dish and mount 180° on the pole, so the LNB arm is on top and the LNB hangs down.
(for most dishes, that would require disassembling the mount from the pole, rotate, and reattach)
Now, when the rim is vertical, the dish is actually looking 24° downward.
Obviously, you only have to tilt the dish back (up toward the sky) and capture all the low satellites.
Up to you to work out how the elevation reads, though. :cool:

edit: here's a very old thread on the subject, along with some pictures.

Last edited:
Thanks guys for bringing up the inverted dish topic. :)

I was trying to figure out a way to point that low with a fixed Ku dish.

Now that I've read the old threads, I want to try it for White Springs.
For me 129°W is around 16.8° elevation.
