Home built Non-Pen Mount

[Wescopc]

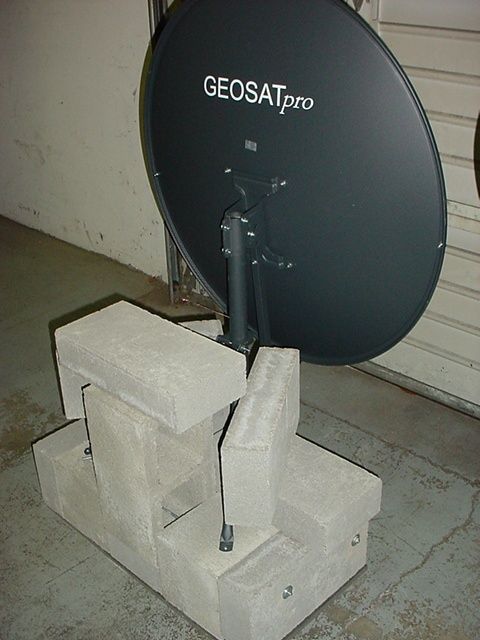

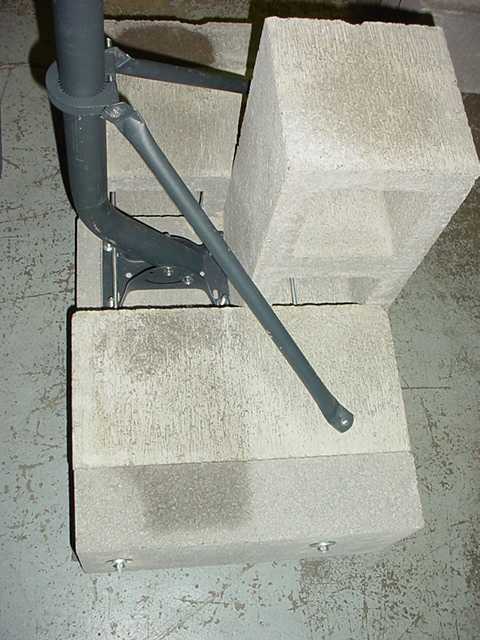

I built a Non-Penetrating mount using concrete blocks. You can make it with 200 pounds of blocks or optionally another 150 pounds for a 350 pound mount. You will need:

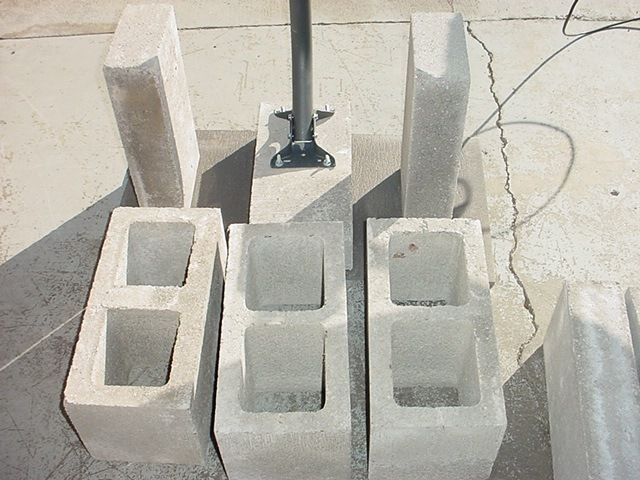

3 pcs - 8" X 8" X 16" Hollow concrete blocks
3 pcs - 4" X 8" X 16" Solid concrete blocks
2 pcs 1/4" X 36" All thread rods with washers and nuts

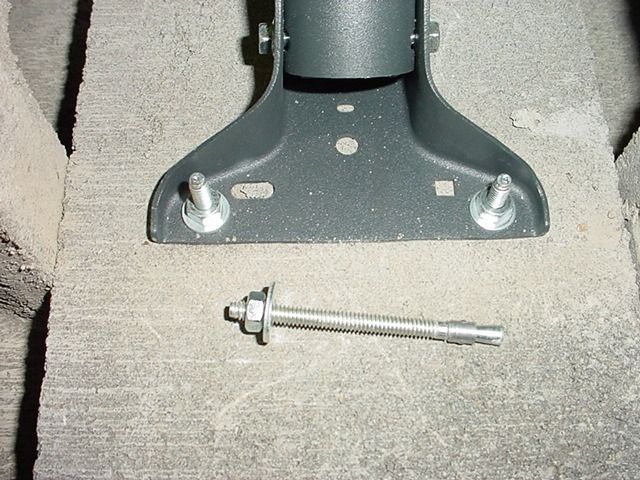

4 pcs 1/4" X 3 1/4" concrete anchors

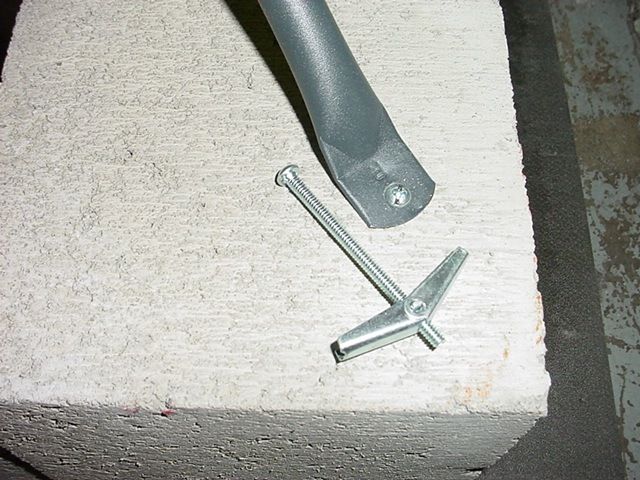

2 pcs 1/4" toggle bolts

Optional:
1 pc 16" X 30" Pad
5 Pcs 4" X 8" X 16" Solid concrete blocks (additional 150 pounds of ballast)

Tools:
1/4" concrete drill bit (with hammer drill if available)
Hack saw
open end wrenches

Assembly:

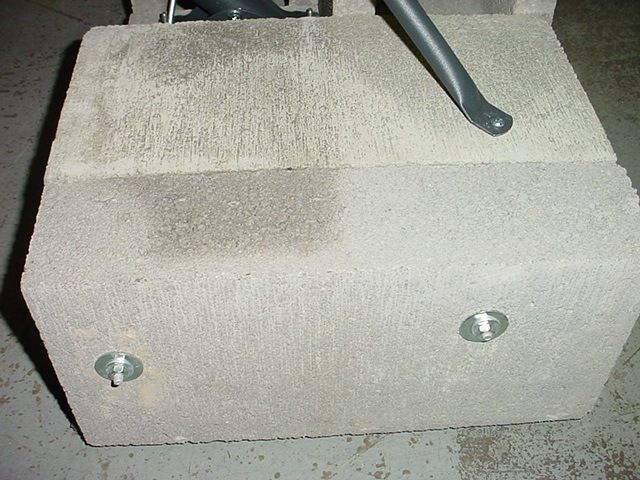

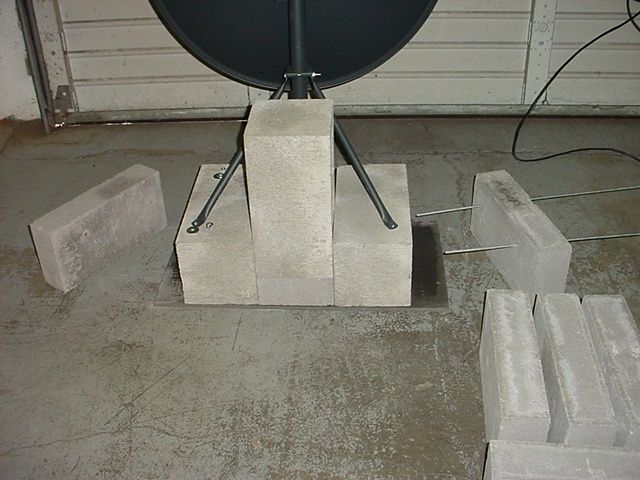

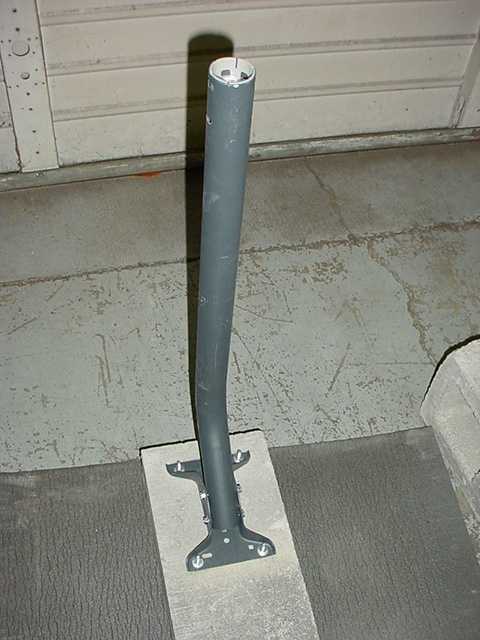

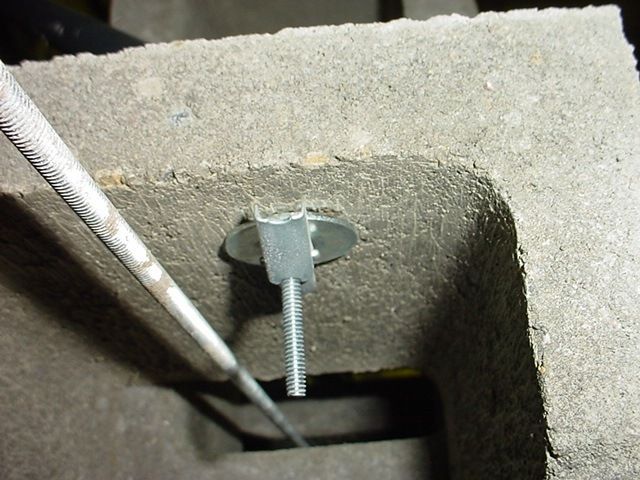

Drill the end caps (4 X 8 X 16 solid) with two holes each so that the all-thread will lay as low as possible and still clear the mast mount and just above the lower web of the vertical hollow block. Mount the mast on the remaining solid block with the concrete anchors. Attach the tripod mounts to the two horizontal hollow blocks with the tee bolts. Assemble with the end caps and all-thread rods. Cut off the excess length of the all-thread. Add additional ballast with the 5 remaining blocks if you need more weight.
Have fun!
Bob



[SatelliteAV]

Kudos to yet another incredible feat of engineering!



[phlatwound]

Wow, very creative. :up

I think I have all those materials on hand, but never would have thought to use them in that manner.



[pro96]

Very cool indeed,



[Mr Tony]

very cool



[wrdavis]

Looks good



[Cadsulfide]

Well thought out, and very well executed!



[GrumpyGuy]

Great idea ... very elegant.



[Tron]

Looks good, Wescopc... I don't think a Cat 5 hurricane would budge that.



[melgarga]

Looks good, Wescopc... I don't think a Cat 5 hurricane would budge that.

Maybe not, but he will need another 10-12' of pole to use it in New Orleans.....lol
Just ribbing ya a bit there neighbor......
Nice job Wes. Just a bit more and you'll be close to having a BUD capable NPM.
The key is to be sure to use real concrete not cider for the webbed/hollow blocks. Otherwise a hammer drill will break out a sizable chunk on the inside face of the penetration.



[TRG]

Careful, that 350 pounder might go right through the roof.

Great job!:up



[PopcornNMore]

Excellent work!



[Anole]

clever:

Yep, the wheels are sure grinding up there in Oregon.

Keep up the good work, Wescopc! - :up



[knowmiddlename]

That's very creative. Great idea.



[Wescopc]

Careful, that 350 pounder might go right through the roof.

Great job!:up

LOL
The 350 pound unit will work on a concrete patio or a wood deck where it might get bumped.
Bob
