Homemade OTA antenna

Discussion in 'Over the Air TV By RabbitEars.Info' started by NorthernOhioGuy, Sep 30, 2019.

  1. NorthernOhioGuy

    NorthernOhioGuy Topic Starter Member

    Joined:
    May 19, 2017
    Posts:
    11
    Likes Received:
    26
    Location:
    Ohio
    I am curious how many of you folks have used homemade antennas to receive your OTA channels? Also, how does performance of your homemade one compare to any commercially produced ones that you may use or have used?

    I made my own and set it up in my attic. I was surprised at how many channels I can pick up. I am directly in line between several stations about 10-11 miles to the southeast of me and several more about 48-50 miles to the northwest. I have my antenna pointed to the northwest and I get all the stations in both ways as well as one to the north-northwest about 30 miles and one to the north east about 30 miles. Then, at night I can usually pick up several stations to the south about 75 miles. Normally when I do a scan we pick up 50 something channels. It has been up in the 80s before when the weather was just right at night. I've considered buying a commercially made unit and a rotor, but have never pulled the trigger and spent the money. Anyhow I'm thinking I just happen to be in a good spot and everything somehow is cobbled together just right.

    dfergie and FTA4PA like this.
  2. NYDutch

    NYDutch SatelliteGuys Pro Pub Member / Supporter

    Joined:
    Dec 28, 2013
    Posts:
    1,929
    Likes Received:
    2,475
    Location:
    Where our wheels go
    I made a multi-element OTA antenna years ago from scrap 1/2" PVC pipe supporting bare copper wire. I cut it for the VHF high and low channels, and easily pulled in stations from 35-40 miles away. I also made a UHF double bow tie from small copper tubing mounted on PVC standoffs attached to an oven rack reflector that worked well with about the same range.

    dfergie, cee, FTA4PA and 2 others like this.
  3. Larry1

    Larry1 SatelliteGuys Pro

    Joined:
    Aug 24, 2005
    Posts:
    1,553
    Likes Received:
    97
    Location:
    Port Hope, ON Canada
    I made a VHF CH 10 antenna a few years ago. I cut and rolled aluminum flashing for the 10 elements. It was based on an old antenna that they posted the measurements on the digital home Canada forums. Works very well and still in use. It sits on top of my tower along with an antennas direct 91XG for the UHF band. The two antenna feed my channel master cm7777 pre-amplifier (the original, separate VHF and UHF input version).

    NYDutch, cee, pamajestic and 2 others like this.
  4. cee

    cee SatelliteGuys Family

    Joined:
    Jan 1, 2012
    Posts:
    66
    Likes Received:
    66
    Location:
    Hamden Ny

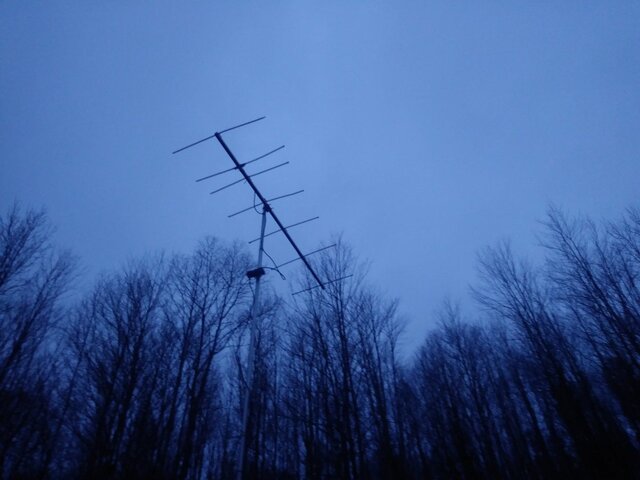

    I made a yagi VHF at 180 mhz for rf 7 and rf 8 for (wbng and wicz) from an old antenna i installed a preamp and it works really well. This antenna was an old combo vhf / uhf antenna and never got anything.


    Attached Files:

    Cham, pamajestic, NYDutch and 3 others like this.
  5. TheKrell

    TheKrell A mighty and noble race originating on Altair IV. Pub Member / Supporter

    Joined:
    Jan 4, 2007
    Posts:
    25,135
    Likes Received:
    17,939
    Location:
    Fairfax, VA
    I'm glad you guys have more pride in your workmanship than this guy!

    [​IMG]

  6. Cham

    Cham VE4GLS Pub Member / Supporter

    Joined:
    Dec 19, 2008
    Posts:
    2,183
    Likes Received:
    751
    Location:
    Boonies
    I built a Grey Hoverman antenna with no reflector. Located between two markets I would wear out the rotor going back and forth and this works well. Cheap RCA pre-amp at the antenna helps with the weaker stations.
    Can't seem to get the store-bought antennas to work very well anyway. Have a nice Winegard HD combo log-periodic up about 50' and it doesn't work nearly as well as the GH.
    Have two HDHomeRuns, one connected to the GH and the other to the Winegard. The GH picks up about 20 channels in both markets. The big Wingard picked up nothing this am on a scan pointed south to the farther market. I guess there is something seriously wrong with it considering there is a high power station only 15 miles away. I hope to take it down before winter and check it out.

    cee, FTA4PA and charlesrshell like this.
  7. Mister B

    Mister B SatelliteGuys Pro Pub Member / Supporter

    Joined:
    Jun 3, 2008
    Posts:
    278
    Likes Received:
    106
    Location:
    El Paso County Texas
    Have any members ever made a loop antenna for VHF and if so, what would be the dimensions of the loop for rf 13?

  8. NYDutch

    NYDutch SatelliteGuys Pro Pub Member / Supporter

    Joined:
    Dec 28, 2013
    Posts:
    1,929
    Likes Received:
    2,475
    Location:
    Where our wheels go
    The center frequency for TV RF channel 13 is 213 MHz (210-216 MHz). By "loop antenna" are you referring to a common folded dipole? If that's the case, the total length of a full wave element would be 55.4 inches, so the folded length would be about half of that, depending on the length of the bends.

    cee and charlesrshell like this.
  9. Trip

    Trip RabbitEars Webmaster Staff Member HERE TO HELP YOU!

    Joined:
    Jun 21, 2008
    Posts:
    1,162
    Likes Received:
    574
    Location:
    Alexandria, VA, US
    I tried it and found that it did not outperform my VHF bowtie. (Which I still use for certain things.) I don't have the dimensions handy.

    - Trip

  10. harshness

    harshness SatelliteGuys Master

    Joined:
    May 5, 2007
    Posts:
    15,625
    Likes Received:
    2,316
    Location:
    Salem, OR
    I was under the impression that loops and bowties were typically aimed at the UHF band.

  11. Wireless Engineer

    Wireless Engineer SatelliteGuys Family

    Joined:
    Mar 18, 2019
    Posts:
    52
    Likes Received:
    44
    Location:
    Ohio
    Commercial made antennas are designed for maximum profit and minimum size and weight which makes them a poor choice compared to a properly designed DIY antenna.
    One can easily make a 4 bay bowtie that will out perform the best UHF antennas on the market for under $10
    And by using quad elements, you can easily make a vhf yagi that will perform better than the commercial versions being sold.

    Cham and cee like this.
  12. navychop

    navychop Member of the Month - July 2014! Pub Member / Supporter Lifetime Supporter

    Joined:
    Jul 20, 2005
    Posts:
    47,735
    Likes Received:
    12,727
    Location:
    Northern VA
    Do you favor yagi over 8 bay?


    Sent from my iPhone using Tapatalk

  13. NorthernOhioGuy

    NorthernOhioGuy Topic Starter Member

    Joined:
    May 19, 2017
    Posts:
    11
    Likes Received:
    26
    Location:
    Ohio
    This is what I have suspected. I suppose it's the same as for any number of other mass produced items.

  14. harshness

    harshness SatelliteGuys Master

    Joined:
    May 5, 2007
    Posts:
    15,625
    Likes Received:
    2,316
    Location:
    Salem, OR
    That's a very loaded statement. "Properly designed" visits many different disciplines from antenna and structural design all the way to what happens when you mix dissimilar metals.

    Any antenna that doesn't address most of the disciplines may be doomed to failure.

    TheKrell and comfortably_numb like this.
  15. Cham

    Cham VE4GLS Pub Member / Supporter

    Joined:
    Dec 19, 2008
    Posts:
    2,183
    Likes Received:
    751
    Location:
    Boonies
    Very generally, a yagi is better for single channel weak signal reception, but a bow-tie is usually much more broadband and not as directional. There are variants like the log-periodic and grey-hoverman (the latter might be more of a fractal design?) It depends on your situation as to which one would work best for you. The bow-tie might be the easiest to build I suppose so it would make a good starting point for a do-it-yourself antenna. :)



    navychop likes this.
  16. TheKrell

    TheKrell A mighty and noble race originating on Altair IV. Pub Member / Supporter

    Joined:
    Jan 4, 2007
    Posts:
    25,135
    Likes Received:
    17,939
    Location:
    Fairfax, VA
    I see nothing "fractal" about that design. Just saying...

    [​IMG]

    Now here's a fractal antenna design:

    [​IMG]

  17. Cham

    Cham VE4GLS Pub Member / Supporter

    Joined:
    Dec 19, 2008
    Posts:
    2,183
    Likes Received:
    751
    Location:
    Boonies
    Lots of 90 deg angles made me think "fractal" I guess... :) Suppose if you combined enough of them.....

    TheKrell likes this.
  18. stogie5150

    stogie5150 Crazed Cajun Rebel

    Joined:
    Jan 7, 2007
    Posts:
    3,789
    Likes Received:
    16
    Location:
    Slidell,LA
    I make my own 8-Bay antennas from galvanized hurricane fence tie wire and 1/2 inch plastic conduit, a couple baluns, and a spliiter to combine the two bays. I have one made for each TV in my house, 5 total. They work about as well as my CM-4228 I bought in 2005ish. I've built multiple units for neighbors and they all are happy...where I am we are 50-70 miles from the transmitters...

    FTA4PA likes this.
  19. arlo

    arlo SatelliteGuys Family

    Joined:
    Dec 4, 2016
    Posts:
    40
    Likes Received:
    27
    Location:
    North Eastern

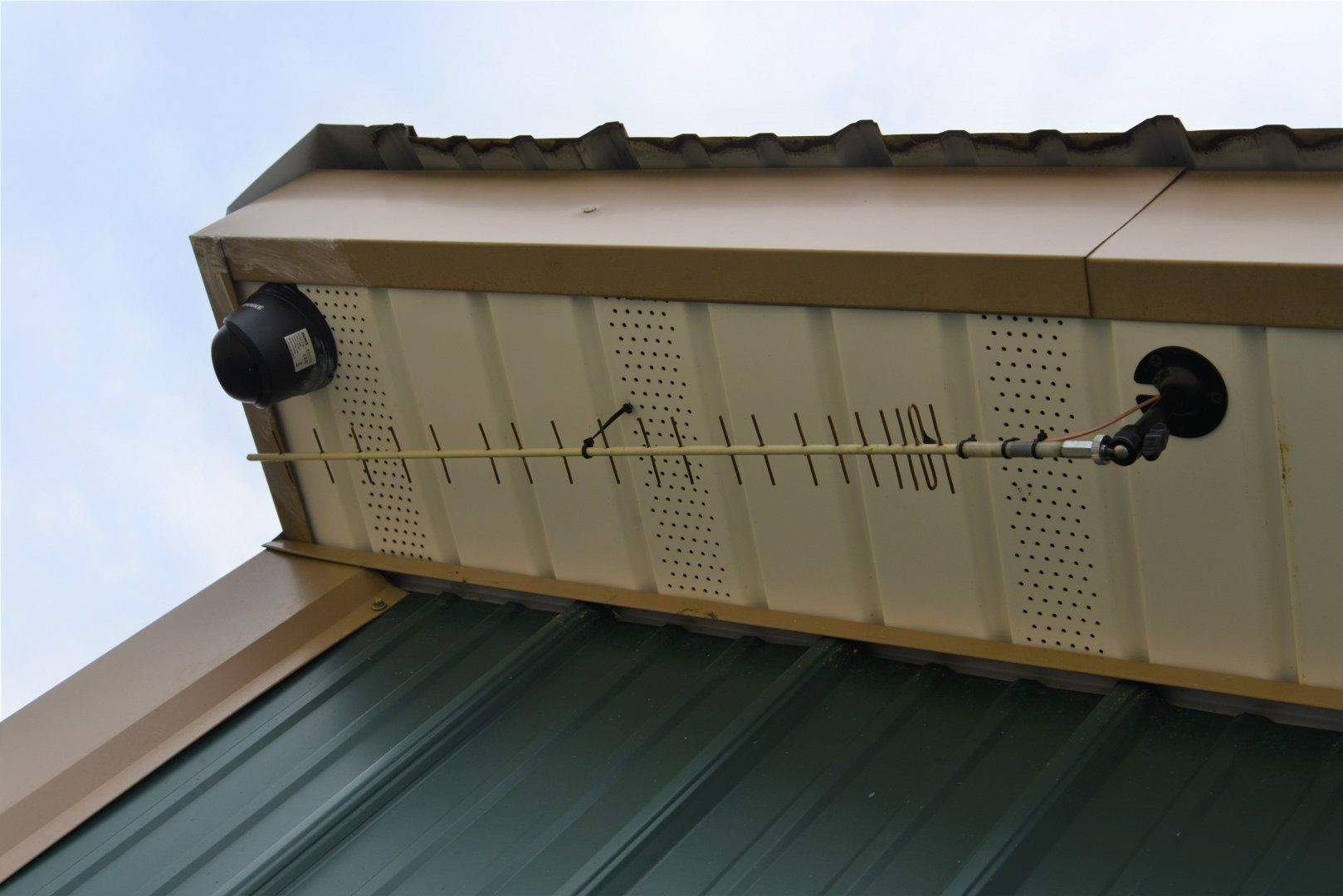

    A little off topic. Installed a DVR security system for a friends greenhouse. Linked wifi to his house some several hundred yards away with fantastic signal strength and maybe 3" v/h beam width. Used Yagi Calculator (free) to design it. Does Pluto TV count?

    went to a friends for the Bills game some years ago. the game was ota. there was a gutted box spring hanging from a tree. i asked ????
    "so the tv comes in"...was about time to change my pants!


    Attached Files:

    charlesrshell likes this.
  20. harshness

    harshness SatelliteGuys Master

    Joined:
    May 5, 2007
    Posts:
    15,625
    Likes Received:
    2,316
    Location:
    Salem, OR
    Pluto TV doesn't count because it isn't broadcast OTA. Of course neither is a Wi-fi connection between two highly directional antennas.

    Waaaaaay out in the weeds.

    arlo likes this.
