Just created my dish an offset

batzen1981

batzen1981

Thread Starter
Well-Known SatelliteGuys Member
Oct 27, 2021
31
31
Mission Viejo, california

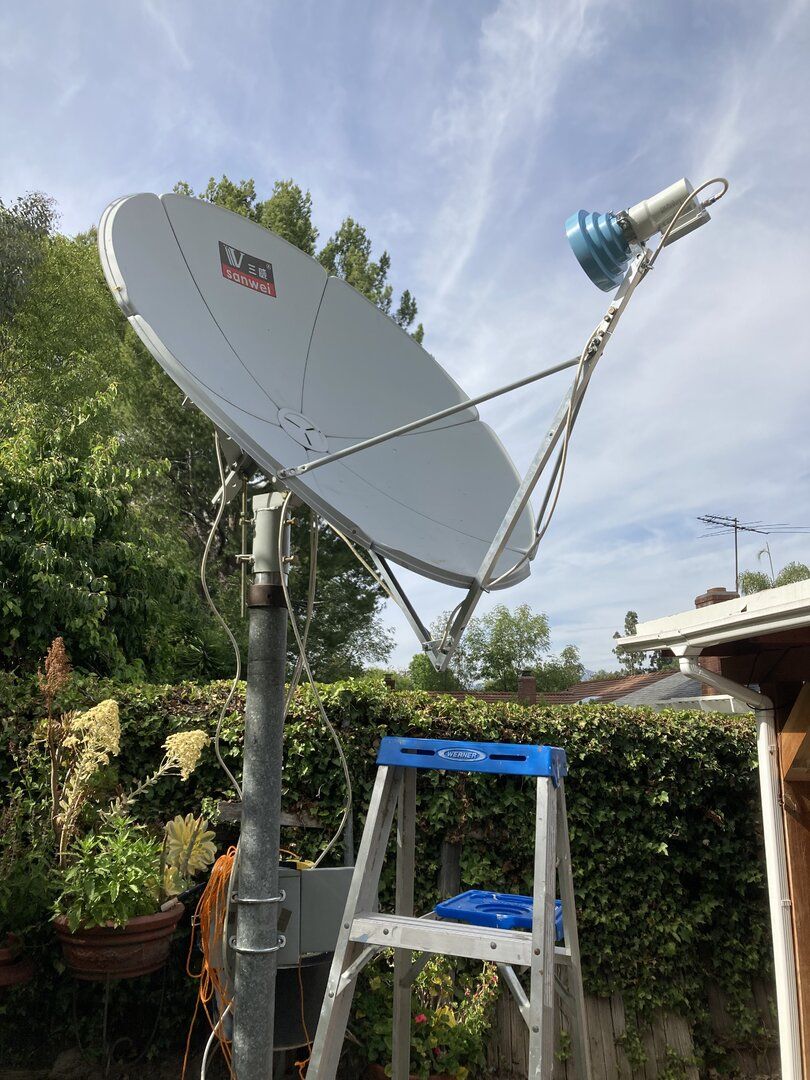

Tell me what u think


Attachments

  • A3ED0829-AC29-49F1-9261-53A0F51B765E.jpeg
    187.6 KB · Views: 81
A

arlo

SatelliteGuys Pro
Dec 4, 2016
775
470
North Eastern
I think it is a useless creation. I see no point to go this way.
why? less chance of signal loss due to a big obstruction (feed assy.). especially for a small reflector. si?
.....what happens when you stick a finger right in front of your pupil a foot or so out there versus below your eye lid?

RimaNTSS

RimaNTSS

SatelliteGuys Pro
Aug 9, 2013
865
911
Riga
Very simple...such a setup will diminish performance of the antenna at least 3-4 times. So, a simple 1.2m offset antenna will perform better than this one. That is why it is a useless creation, IMHO.

A

a33

SatelliteGuys Pro
Feb 4, 2015
635
420
netherlands europe
So, a simple 1.2m offset antenna will perform better than this one.

Most certainly.
As this prime focus dish itself is already no more than 1.22 meter (4 feet) :shh , I guess:

But indeed, I don't see much reason to put an LNB in such an offset position from the focal point (20 degrees or so?), unless it is in a multifeed setup where you have no alternative.

batzen1981 , what was your idea behind this setup?

Greetz,
A33

  • Like
Reactions: RimaNTSS
FTA4PA

FTA4PA

Satellite Guys Family
Lifetime Supporter
Nov 13, 2013
5,942
3,908
Central Pennsylvania
Very simple...such a setup will diminish performance of the antenna at least 3-4 times. So, a simple 1.2m offset antenna will perform better than this one. That is why it is a useless creation, IMHO.

Thank you for explaining it to the OP. I know from your posts that you have done extensive work with dishes and are very knowledgeable. Even as a relative newbie to this hobby (2013) I also knew from years of studying that this might work to some degree but would not be an optimal setup. My point, when I saw your post, was that perhaps the OP did not and it is always best to give reasons why rather than just knock someone's work. That is why Satellite Guys was created - to be a friendly site where we can all learn and share our knowledge. :)

Last edited:
  • Like
Reactions: iBoston
Radioguy41

Radioguy41

SatelliteGuys Pro
Aug 7, 2008
2,420
2,009
Lehighton, PA
When you take a shallow round dish like that and change it from prime to offset don't you risk degrading side-lobe rejection? In other words don't you risk increased interference from adjacent satellites? I also think the proper way would have been to run signal tests before and after in order to make comparisons, at least as far as gain goes.

  • Like
Reactions: FTA4PA
NYDutch

NYDutch

SatelliteGuys Pro
Pub Member / Supporter
Dec 28, 2013
4,844
7,356
Where our wheels go
Despite having owned large C-band dishes years ago, I claim no dish expertise. That said, does anyone have some insight as to why the DBS services, Dish, DTV, etc, chose to use offset LNBF's with their small reflectors if it diminishes performance?

A

a33

SatelliteGuys Pro
Feb 4, 2015
635
420
netherlands europe
why the DBS services, Dish, DTV, etc, chose to use offset LNBF's with their small reflectors

You mean that they have the LNBf in an offset position towards the dish? (I don't know anything about DBS services, Dish, DTV, etc.)

My guess: maybe because they are offset reflectors?

Greetz,
A33

W

wagonman76

SatelliteGuys Family
Nov 11, 2006
55
17
Northwest Lower Michigan
Nothing wrong with tinkering and experimenting. That’s what a lot of us do. If it works better then it’s a win. If not then it’s still a learning experience and it can always go back.

  • Like
Reactions: FTA4PA
waylew

waylew

SatelliteGuys Pro
Aug 23, 2010
2,771
1,116
northern WEST new york
Despite having owned large C-band dishes years ago, I claim no dish expertise. That said, does anyone have some insight as to why the DBS services, Dish, DTV, etc, chose to use offset LNBF's with their small reflectors if it diminishes performance?
Performance is not diminished because they are designed as offset dishes.The purpose of the offset is so the feed does not block the signal from getting to the reflector when dealing with the tiny ku/ka wavelenghts.

NYDutch

NYDutch

SatelliteGuys Pro
Pub Member / Supporter
Dec 28, 2013
4,844
7,356
Where our wheels go
Performance is not diminished because they are designed as offset dishes.The purpose of the offset is so the feed does not block the signal from getting to the reflector when dealing with the tiny ku/ka wavelenghts.
Ok, but the reflectors seem to be concentric, just as they would be for a prime focus LNB set. The smaller 10-12" dishes used in the Winegard and King auto aiming dishes use a double reflecting prime focus LNB. The design decisions must be interesting.

W

wagonman76

SatelliteGuys Family
Nov 11, 2006
55
17
Northwest Lower Michigan
Ok, but the reflectors seem to be concentric, just as they would be for a prime focus LNB set. The smaller 10-12" dishes used in the Winegard and King auto aiming dishes use a double reflecting prime focus LNB. The design decisions must be interesting.

With an offset feed, the signal comes in from a higher point. Therefore the dish does not need to be tipped up as far to get the same signal. I think this could be a design decision. This can be a big advantage for reliability, especially up north. Not having the dish fill up with heavy snow, wet leaves, etc. near as often. The customer base for small dish isn't tinkerers, they just need it to work without messing with it or even thinking about it. With an offset feed on a concentric dish, if the signal is less than optimal, it's still better than asking the customer to keep cleaning it out. The newer small dishes are probably optimized for the offset.

In the wintertime, especially when there's a storm coming, I typically park my big dish to a lower satellite when I'm not using it, so I don't have to go clean it out as often.

NYDutch

NYDutch

SatelliteGuys Pro
Pub Member / Supporter
Dec 28, 2013
4,844
7,356
Where our wheels go
With an offset feed, the signal comes in from a higher point. Therefore the dish does not need to be tipped up as far to get the same signal. I think this could be a design decision. This can be a big advantage for reliability, especially up north. Not having the dish fill up with heavy snow, wet leaves, etc. near as often. The customer base for small dish isn't tinkerers, they just need it to work without messing with it or even thinking about it. With an offset feed on a concentric dish, if the signal is less than optimal, it's still better than asking the customer to keep cleaning it out. The newer small dishes are probably optimized for the offset.

In the wintertime, especially when there's a storm coming, I typically park my big dish to a lower satellite when I'm not using it, so I don't have to go clean it out as often.
Ok, yeah, the snow consideration does make sense as a design decision factor. The small 10"-12" dishes used in the portable auto aiming setups are enclosed in typically round housings, so it's not a factor with them.

Back in my C-band days, our dish was located on a side hill that made cleaning off snow difficult, so I programmed a bogus satellite into the receiver that drove the dish to an almost complete flip that made reaching it with a standard broom easy from the uphill side. Sometimes just flipping it over was all it took to clear it.

  • Like
Reactions: wagonman76
A

a33

SatelliteGuys Pro
Feb 4, 2015
635
420
netherlands europe
With an offset feed on a concentric dish, if the signal is less than optimal

With a "concentric dish" you mean a perfectly round/circular dish?

That could still be an offset dish, but these then have a non-flat dish face.
Those round non-flat offset dishes exist (usually the dish rim on top and bottom then is higher than the rim at left and right),
though 'normal' offset dishes are elliptical (higher than wide) and have a flat dish face (measured on the working (paraboloid) area of the dish).

By the way. An offset dish can also be mounted upside down, or rotated 90 degrees (or at any angle you like). That is sometimes practical, when the dish is on a balcony or so...

Greetz,
A33

  • Like
Reactions: Captain Midnight
