Here we go... This is my current dish setup. It's a strange hodgepodge of mixed parts that came together quite nicely and now have nearly twice as many channels to watch.

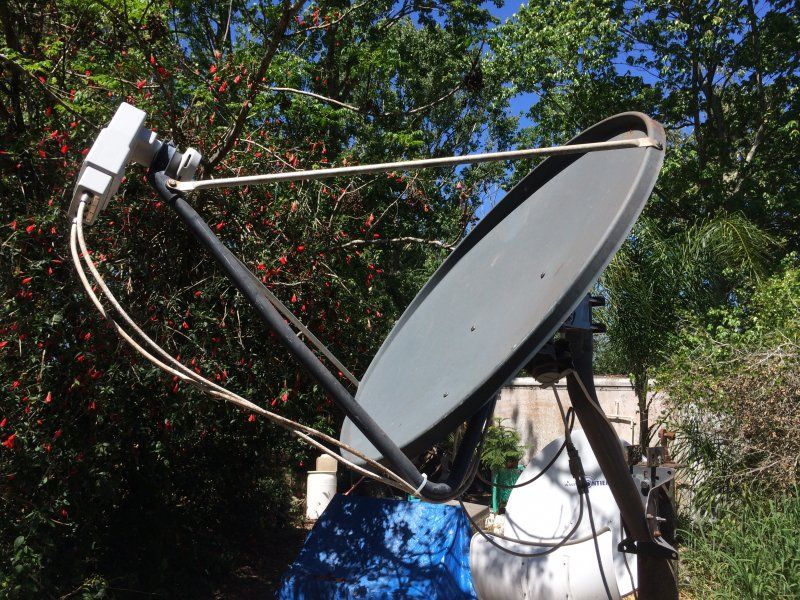

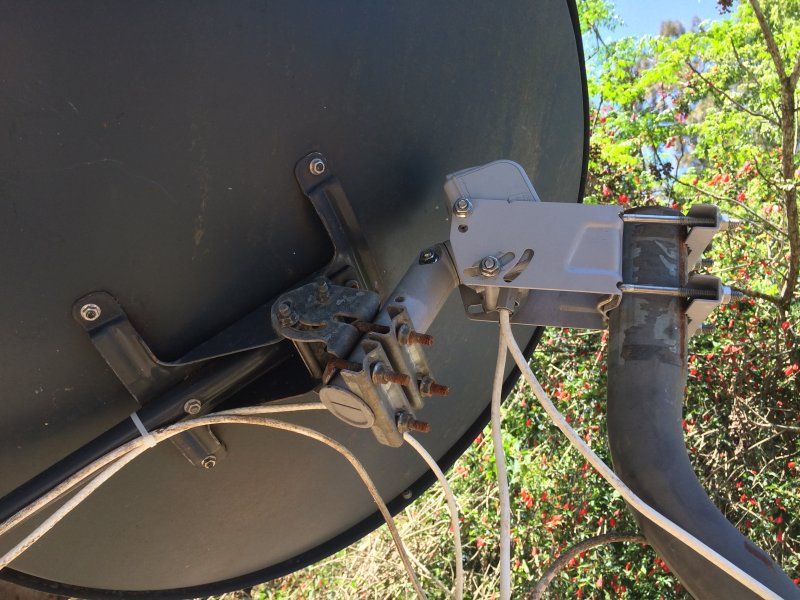

1st up is an old unbranded BJU (Bob Jones University) home schooling dish with a HH90 motor and an Invacom Quad QPH-031 Ku-band LNBF picking up channels from 58.0°W to 125.0°W.

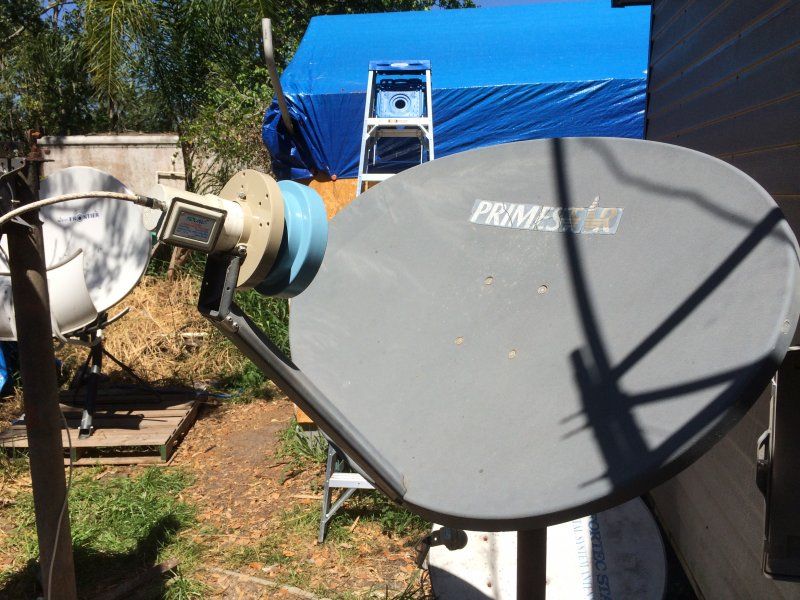

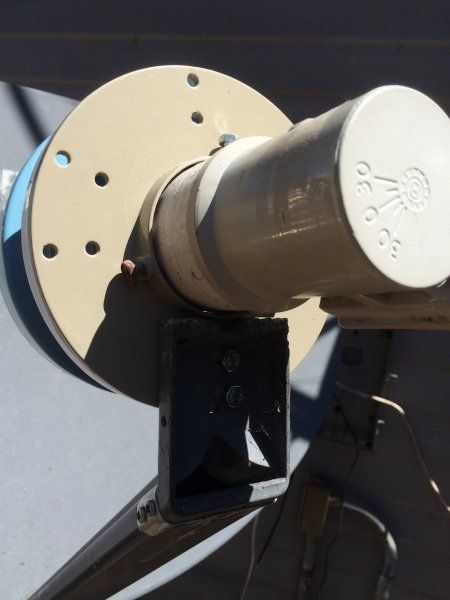

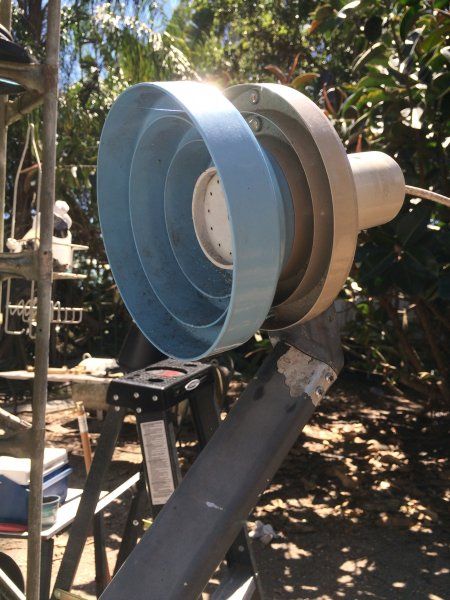

Next is my "MiniBUD" project, an old Primestar/ChannelMaster 84e dish with a Young YY-CD008 C-band LNBF, set to 97.0°W. I used a standard scaler as a mount by drilling holes into the original Ku-band LNB mount and bolting it on, then adjusted the C-band LNB for maximum strength before adding the conical scaler and further tweaking.

For some reason, this cheap $15 C-band LNB had the strongest signals compared to 3 different Titanium LNBs I tried (CK1S, which also has Ku-band, C1-PLL with WiMAX LTE WiFi Interference Filter, and C1W-PLL lite Wideband C-band LNBFs). I don't know why, I tried mounting them exactly the same way and moving them in and out but could not get the same signal quality. Seems strange to me since I thought the PLL ones would have worked better... but I'm sure I will be using them in future projects... I do have another ChannelMaster dish, so maybe a 2nd "MiniBUD"...

IMG 8076 IMG 8080 IMG 8075 IMG 8083 IMG 8084 IMG 8077

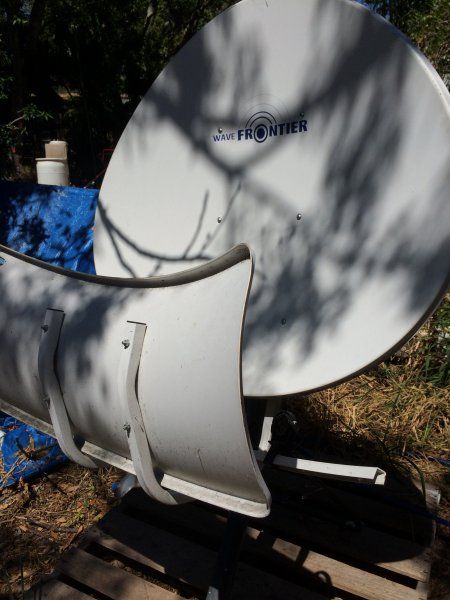

Also have a WaveFrontier T90 Toroidal dish that I'm planning on using with some old analog TV headend equipment I recently was able to get extremely cheap, and create a private use 36 channel cable TV network. Only have 10 satellite receivers for this project so far, and 6 TV digital to analog converter boxes to add OTA channels as well, but enough to get started and play around with. That way I can utilize the built in tuners and timers on older equipment (VCR, DVD Recorder, etc)

IMG 8082

danristheman

danristheman

SatelliteGuys Pro
Jan 25, 2011
3,146
1,135
85w
Good work there if you need advice on mini budding just let me know.

iBoston

iBoston

SatelliteGuys Pro
Jul 15, 2014
2,265
1,645
North Central
Very cool... Sounds like it will put a strain on your electric bill, but sounds awesome!

hank123

hank123

COLORADO CONNOISSEUR BUD HUNTER
Lifetime Supporter
May 8, 2016
543
288
N. Colorado
What area are you going to set the WaveFrontier to?

dsmith0429

dsmith0429

Thread Starter
SatelliteGuys Pro
Sep 12, 2013
470
195
Lake Placid, FL
What area are you going to set the WaveFrontier to?
For starters: 87°w, 91°w, 95°w, 97°w, 103°w, 105°w. The manual says you can't get closer than 3 degrees, and others I've chatted with said 4 degrees, but I've already had 95°w/97°w and 103°w/105°w set at 2 degrees on this dish, so I know it is possible, just a little tough to fit/set. I had this previously set up before I replaced my HH90 motor on my old dish, so I know I can get these satellites. I also had 85°w, 89°w, 93°w and 99°w on my old setup, but didn't leave them since they only had a few channels, and nothing that I watched. But I may try and add them back since I have enough mounts for 15 LNBs, but I don't think I'll be able to get 15 on here due to the space on the mounting rail and some of the satellites no longer have clear channels, so there's going to be gaps on the rail. But there is examples of custom mounts on the web, so I may experiment with some of my own after I get the ones I know I can setup working. I'm going to use mainly universal LNBs on here, since I have a bunch of them that I got with the dish when I picked it up, and a few I bought when I got started in FTA.

  • Like
Reactions: hank123
dsmith0429

dsmith0429

Thread Starter
SatelliteGuys Pro
Sep 12, 2013
470
195
Lake Placid, FL
Very cool... Sounds like it will put a strain on your electric bill, but sounds awesome!
Maybe not to bad, since all connections are 12 volts except for a couple switches. Going to post photos of the equipment later.

  • Like
Reactions: hank123
dsmith0429

dsmith0429

Thread Starter
SatelliteGuys Pro
Sep 12, 2013
470
195
Lake Placid, FL
Maybe not to bad, since all connections are 12 volts except for a couple switches. Going to post photos of the equipment later.
Here's the equipment list:

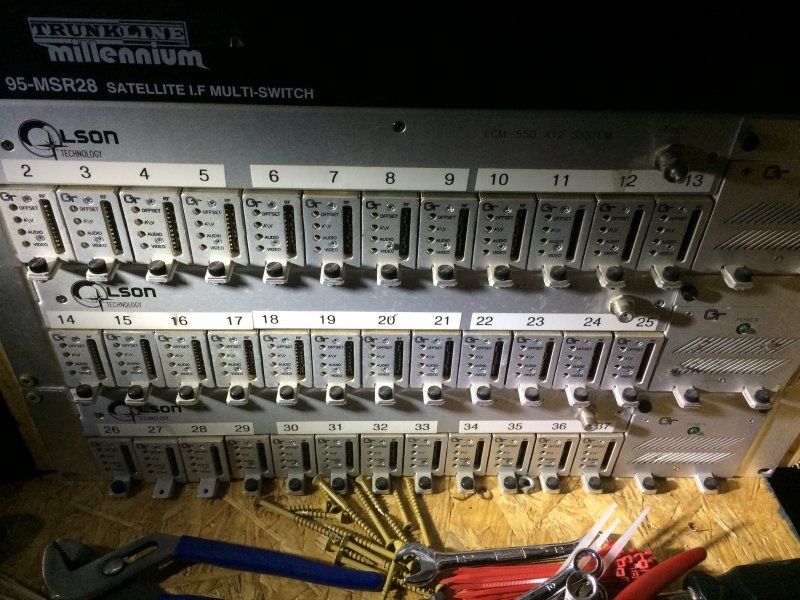

3@ Olson Technology LCM-550x12 - The LCM-550x12 System consists of a 3.5"H x 19"W rack mountable chassis, Model LCM-550-RKA, which houses a universal power supply module and wiring harness with 12 agile modulators (Model LCM-550x1), and mine also has the optional built-in 12-port combiner.
IMG 8087 copy

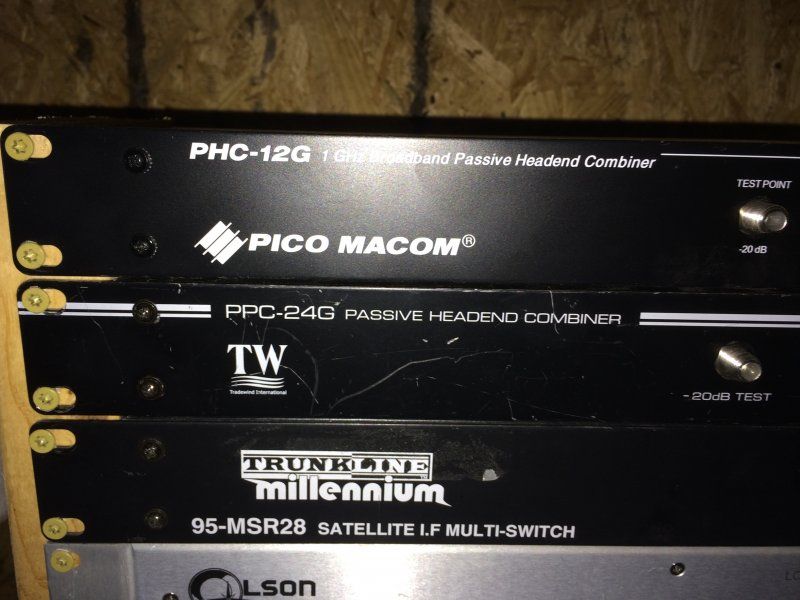

1@ Pico Macom PHC-12G: 1GHZ BROADBAND PASSIVE HEADEND 12 CHANNEL COMBINER (shouldn't need, since the Olson units have combiners built in)
1@ Tradewind International PPC-24G PASSIVE HEADEND 24 CHANNEL COMBINER (shouldn't need, since the Olson units have combiners built in)
1@ Trunkline Millennium 95-MSR28 Satellite I.F 2X16 Multi-Switch (going to use with Galaxy 19 with a twin LNBF, and it will allow me to eventually have 16 channels from that satellite once I purchase more receivers)
IMG 8085 copy

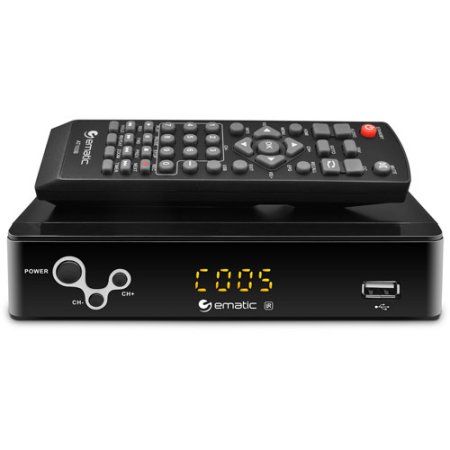

6@ Ematic AT103B Digital TV Converter box for OTA channels (less than $30 each)
Ematic

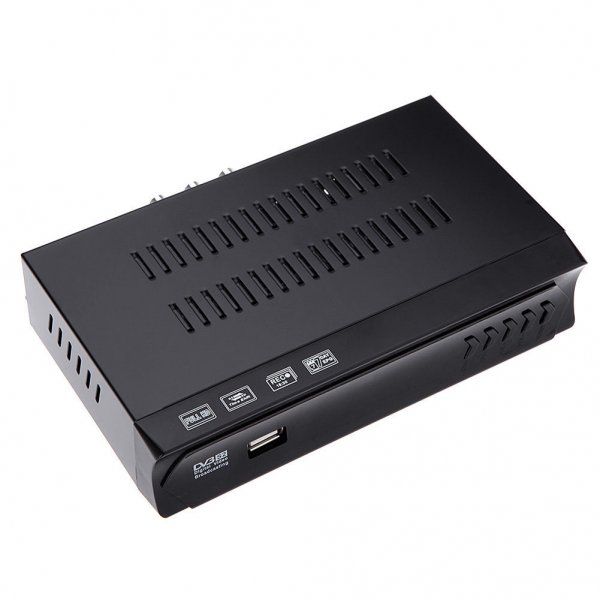

6@ Unbranded DVB/S2 Digital FTA Satellite Receivers (less than $30 each)
S l1600

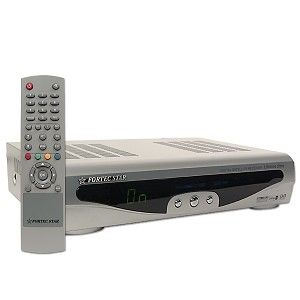

1@ Fortec Star Lifetime Ultra Digital FTA Satellite Receiver (DVB/S)
LIFETIME ULTRA unit

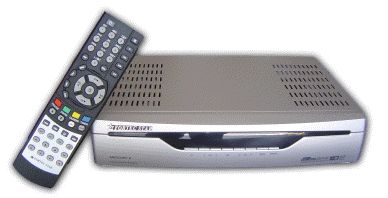

1@ Fortec Star Mercury II Digital FTA Satellite Receiver (DVB/S)
Merc2 w remote

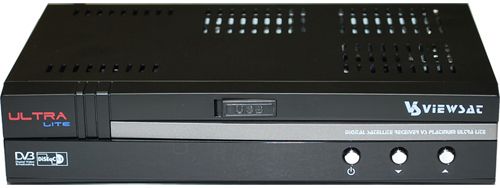

1@ Viewsat Ultra Lite Digital FTA Satellite Receiver (DVB/S)
Viwsat lite front
