new 1.2 meter dish and 12 footer

johnnynobody

Thread Starter
SatelliteGuys Pro
Pub Member / Supporter
Aug 2, 2009
2,950
409
42N 103W
I got my GeoSatPro 1.2 meter the other day. Looks OK. I didn't know that it came with a Ku LNBF. Anyway, my plan is to modify the Paraclipse polar mount so that I can put this dish on it. It took quite a bit of effort to fabricate something but I'm ready to mount the dish. I'm going to put a C-band LNBF on it and if it works out I'll be making it the wife's dish. If not, I'll be going to plan B and install the TEK 12 footer on that pole. Two of the 12 footer panels have damage but it's too late to get replacement panels since I didn't inspect and report right away. I "guess" the UPS guy didn't see the "Fragile" labels all over the box. My son said the UPS guy carried both boxes in by himself instead of getting help. I wasn't home at the time. The panels should've been packaged better anyway - there wasn't any kind of packaging to cushion the panels. I plan to put the dish up eventually but only if I can repair the damage to the panels. If I have to buy new panels it'll probably sit around collecting dust - because of CV-19 I might not be able to get replacement panels anyway. Anyway, I should have the 1.2 meter online tomorrow. The only question I have about it is the orientation of the elevation bracket for the antenna. The instructions says to attach it one of two ways depending on whether you use an HH motor. Since I'm going to be using an actuator should it be mounted as if I'm using an HH motor? I guess it doesn't matter as long as I can get the antenna on target.


waylew

SatelliteGuys Pro
Aug 23, 2010
2,584
951
northern WEST new york
As you're not doing a "normal" installation those instructions don't apply. Mount the bracket so you can adjust it to get the 27.2 degrees (or whatever it is) to compensate for the offset of the dish.
In other words adjust the dish 27.2 from the Paraclypse plate.

  • Like
Reactions: primestar31

johnnynobody

Thread Starter
SatelliteGuys Pro
Pub Member / Supporter
Aug 2, 2009
2,950
409
42N 103W
I guess I won't get this working on C-band today. The C-band LNBF clamp that I bought doesn't fit this LNBF arm. It fits the WS9036 though. I guess one can't expect things to be standardized. More money to spend and lost time.......


Attachments

johnnynobody

Thread Starter
SatelliteGuys Pro
Pub Member / Supporter
Aug 2, 2009
2,950
409
42N 103W
According to Amazon, there was a plastic clamp and a metallic clamp. If there was a metallic clamp in the box then I lost it.


comfortably_numb

Dogs have owners, cats have staff
Pub Member / Supporter
Nov 30, 2011
10,084
10,639
Missouri/Kansas
The bracket for the GSP 1.2m dish is available from SatelliteAV. I think it's $5. I don't remember it coming with the scaler kit- I had to order it from them.


johnnynobody

Thread Starter
SatelliteGuys Pro
Pub Member / Supporter
Aug 2, 2009
2,950
409
42N 103W
The bracket for the GSP 1.2m dish is available from SatelliteAV. I think it's $5. I don't remember it coming with the scaler kit- I had to order it from them.
It's $10 + $14.50 for shipping at SatelliteAV. I saved $7.50 by buying elsewhere. I probably won't get it until next Saturday (if I'm lucky). Anyway, the metallic bracket that is shown for the CS1 kit looks like the one I need but I can't remember if I ever got it. I did get the plastic bracket that's shown in the ad though. I assume that both styles of bracket were suppose to be included in the kit.


johnnynobody

Thread Starter
SatelliteGuys Pro
Pub Member / Supporter
Aug 2, 2009
2,950
409
42N 103W
OK. I guess Amazon doesn't have their info correct. I was going to show a link to the Amazon ad but I guess that's taboo here. But if you go to their ad for the CS1 and take a peek at the bottom 2 thumbnails you'll see that it's implied that it comes with the metallic bracket as well as the plastic bracket.


johnnynobody

Thread Starter
SatelliteGuys Pro
Pub Member / Supporter
Aug 2, 2009
2,950
409
42N 103W
While waiting for the LNB mount, I'm wondering if my math is correct. My polar mount main axis angle is 42.7, the declination is 5.8, and the offset dish angle is 27.3. If I understand correctly, the offset dish elevation scale should be set for 42.7+5.8-27.3 which is 21.2 degrees. If it's suppose to be set at 42.7-5.8-27.3 (9.6 degrees) then I have a problem since the scale only goes as low as 15 degrees which means I would need to add more declination? From additional reading, it's possible that I should set the offset dish elevation scale to 25.8 (90-42.7+5.8-27.3). The 90-42.7+5.8 seems to be what a crank arm would be on a HH motor (depending on how you measure the angle on the bent pipe). I'll need to do more research unless someone can clear this up for me.

If I'm correct, can the offset angle be measured with an inclinometer on the offset dish elevation bracket? Just trying to get it right or as close to right (ballpark) so I can get a satellite as quickly as possible. I'll have to figure out which transponders are the strongest on 103W C-band. I'm in the center of the footprint for most of the signals (40+ dBW).

Last edited:

johnnynobody

Thread Starter
SatelliteGuys Pro
Pub Member / Supporter
Aug 2, 2009
2,950
409
42N 103W
While waiting for the LNB mount, I'm wondering if my math is correct. My polar mount main axis angle is 42.7, the declination is 5.8, and the offset dish angle is 27.3. If I understand correctly, the offset dish elevation scale should be set for 42.7+5.8-27.3 which is 21.2 degrees. If it's suppose to be set at 42.7-5.8-27.3 (9.6 degrees) then I have a problem since the scale only goes as low as 15 degrees which means I would need to add more declination? From additional reading, it's possible that I should set the offset dish elevation scale to 25.8 (90-42.7+5.8-27.3). The 90-42.7+5.8 seems to be what a crank arm would be on a HH motor (depending on how you measure the angle on the bent pipe). I'll need to do more research unless someone can clear this up for me.

If I'm correct, can the offset angle be measured with an inclinometer on the offset dish elevation bracket? Just trying to get it right or as close to right (ballpark) so I can get a satellite as quickly as possible. I'll have to figure out which transponders are the strongest on 103W C-band. I'm in the center of the footprint for most of the signals (40+ dBW).
And there was some other info that says to put an inclinometer on the back of the offset dish and set the dish elevation to 14.3 degrees for 103W (41.6-27.3). 41.6 is the look angle for 103W where I'm located and then 27.3 is the dish offset angle. As previously mentioned, the elevation bracket only goes as low as 15 degrees. This info seems to be just for a fixed dish on a particular satellite but it still illustrates the problem with setting up the dish. Should I set the elevation for 25.8 or 14.3? Still researching......


waylew

SatelliteGuys Pro
Aug 23, 2010
2,584
951
northern WEST new york
You're overthinking again.
Think of the mount plate as 0,tilt dish out 27.3 from that.
Just an example,if the plate is 100 degrees make the dish 127.3.
If you have an electronic inclinometer,put it on the plate,zero it,move it to the dish mount and set dish to 27.3.

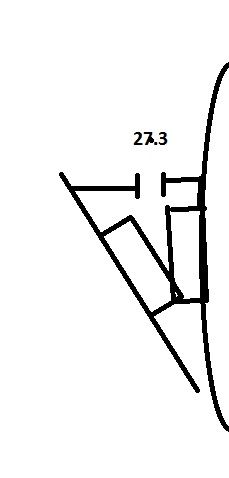

Okay really bad drawing,but,


a33

SatelliteGuys Pro
Feb 4, 2015
488
318
netherlands europe
While waiting for the LNB mount, I'm wondering if my math is correct. My polar mount main axis angle is 42.7, the declination is 5.8, and the offset dish angle is 27.3. If I understand correctly, the offset dish elevation scale should be set for 42.7+5.8-27.3 which is 21.2 degrees.
Do I understand right that you want to mount the dish bracket directly at the rotating axis?

When modified latitude is 42.7, modified axis elevation is 47.3 degrees.
Needed total elevation due south is 5.8 degrees lower, so 41.5 degrees. That would be the scale setting for a fixed pole (plumb).

Now the rotation axis has already an elevation angle of 47.3, as opposed to plumb. That means the elevation scale should read minus 5.8 degrees.
(Notice that that is logical: declination offset angle always means: needed dish aiming angle, measured from the rotation axis.)

Offset angle is and should always be incorporated in the scale values!....

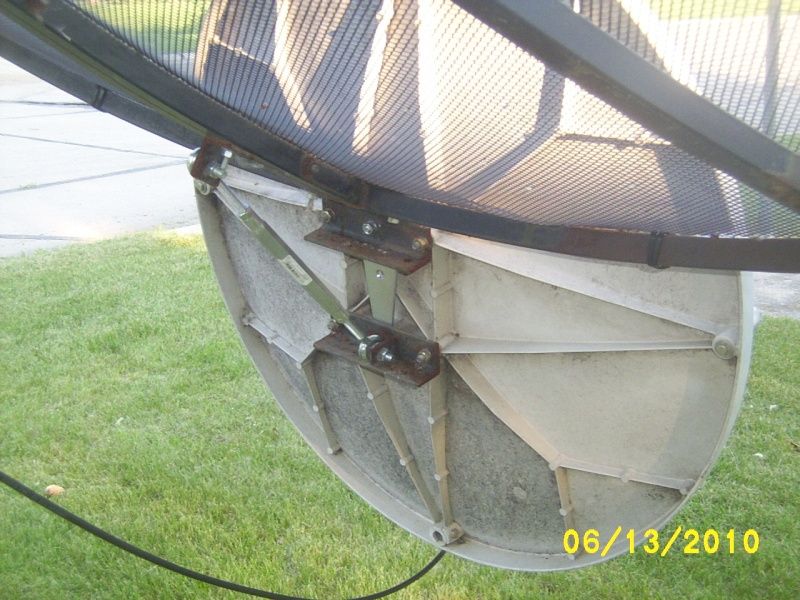

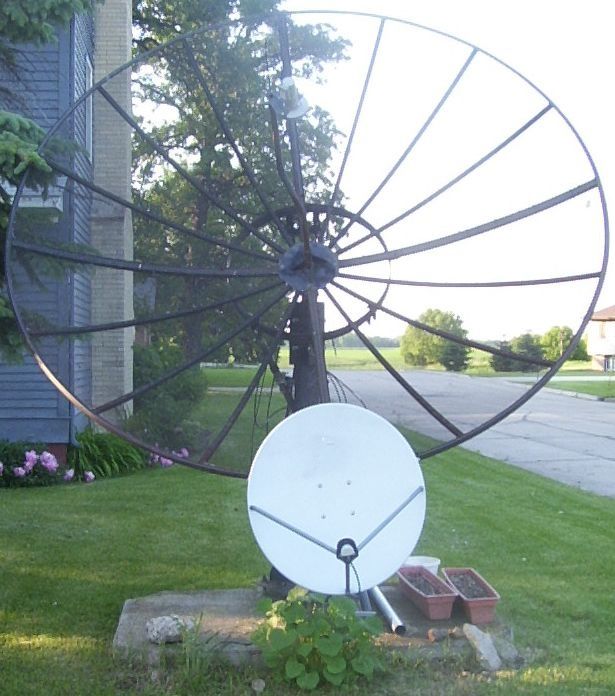

Didn't someone already mention, that you would probably need an "extra" declination construction, for putting an offset dish directly at a polar mount?
(I've lost the overview over your topics...)

Greetz,
A33


johnnynobody

Thread Starter
SatelliteGuys Pro
Pub Member / Supporter
Aug 2, 2009
2,950
409
42N 103W
Do I understand right that you want to mount the dish bracket directly at the rotating axis?

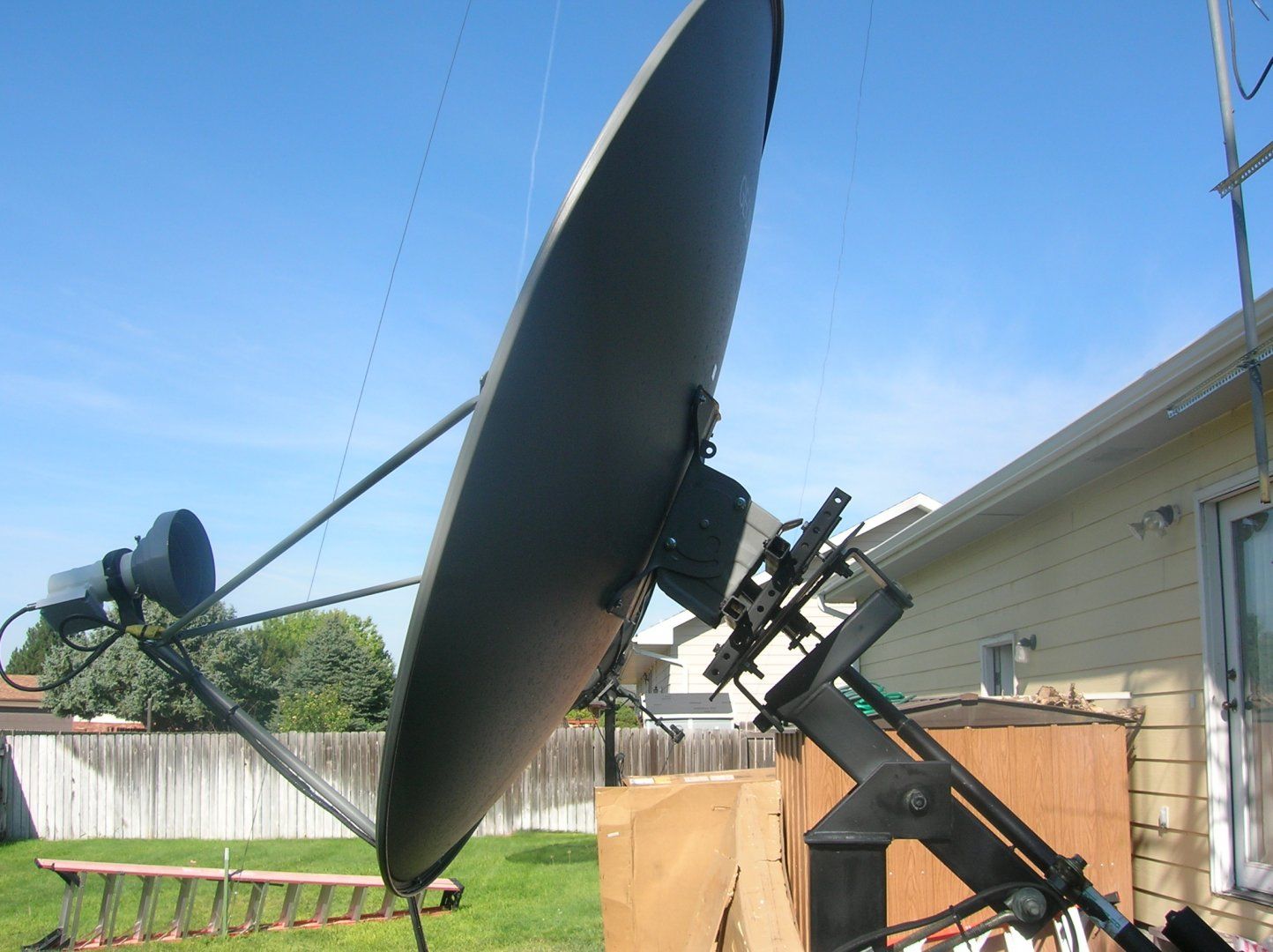

Yes. Well, not exactly directly since I used punched square tube to attach the dish elevation bracket to the polar mount (to use the existing holes in the polar mount). See attached photos.

When modified latitude is 42.7, modified axis elevation is 47.3 degrees.
Needed total elevation due south is 5.8 degrees lower, so 41.5 degrees. That would be the scale setting for a fixed pole (plumb).

Now the rotation axis has already an elevation angle of 47.3, as opposed to plumb. That means the elevation scale should read minus 5.8 degrees.
(Notice that that is logical: declination offset angle always means: needed dish aiming angle, measured from the rotation axis.)
The one on the elevation bracket? It would be impossible to get -5.8 degrees with this bracket.

Offset angle is and should always be incorporated in the scale values!....

Didn't someone already mention, that you would probably need an "extra" declination construction, for putting an offset dish directly at a polar mount?
(I've lost the overview over your topics...)

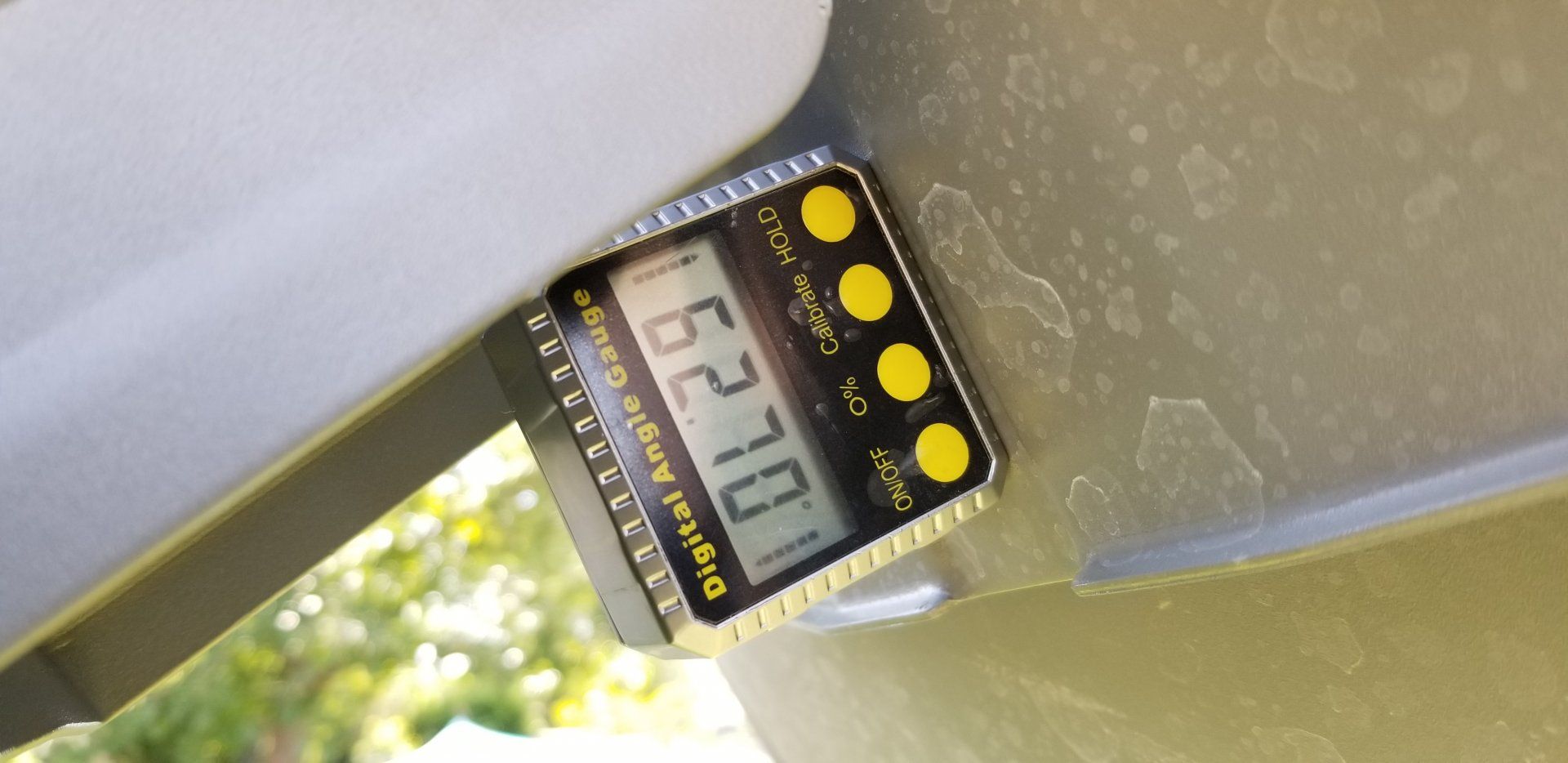

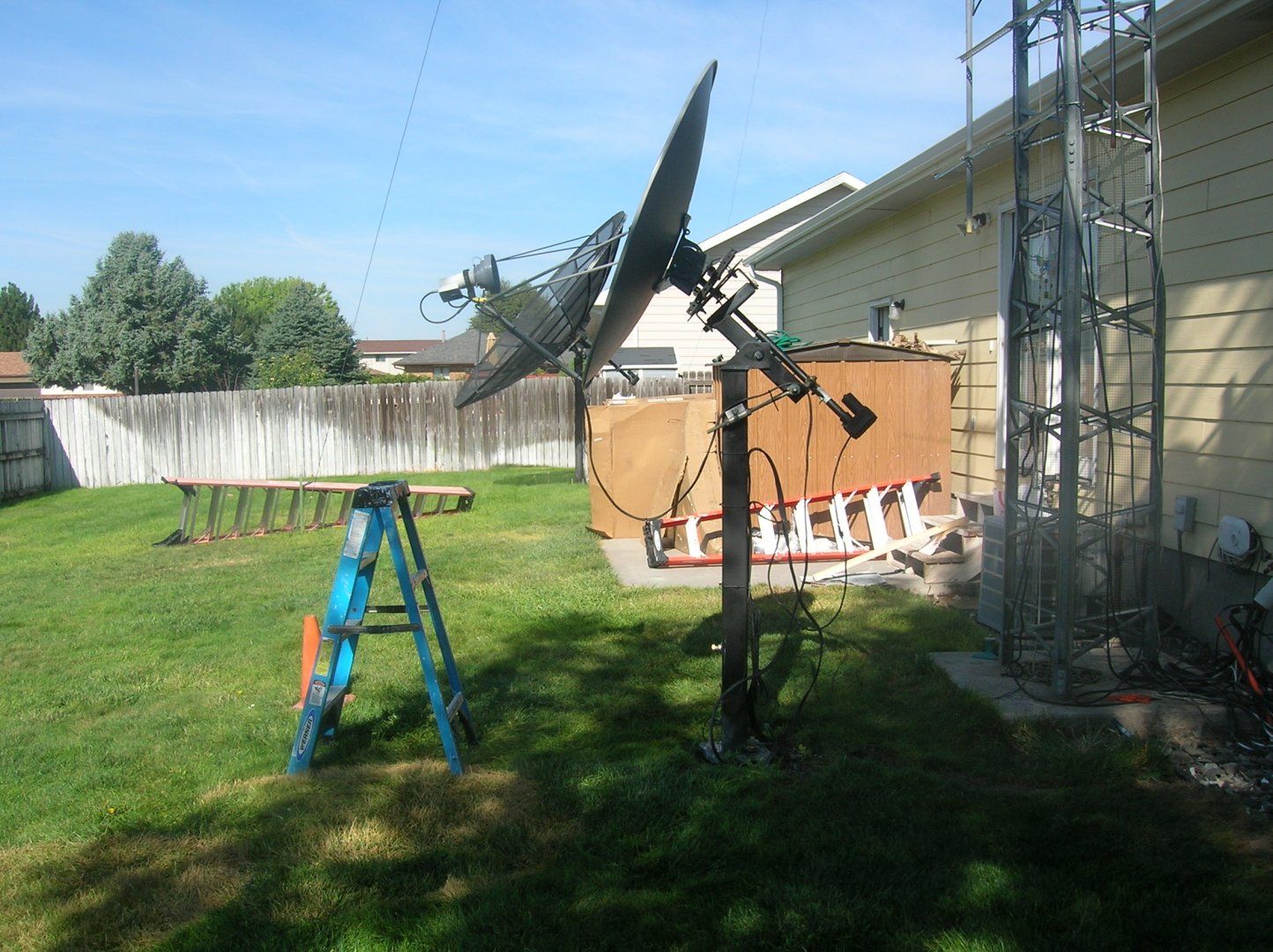

I was hoping that I could use the dish elevation bracket to get the declination that I need but I had to come up with another idea. See the attached photos of the installation. It's still a work in progress to get what I need and without resorting to welding and with minimal materials. I'm using methods that I'm familiar with. I did create a declination rod of sorts but you'll probably have to zoom in to see it. Anyway, the digital inclinometer is showing 62.7 degrees but I believe that has to be subtracted from 90 which results in an angle of 27.3 degrees. I'm assuming that the dish is aligned somewhere in the ballpark.


Attachments

a33

SatelliteGuys Pro
Feb 4, 2015
488
318
netherlands europe
Needed total elevation due south is 5.8 degrees lower, so 41.5 degrees.
So, when measured at the vertical dish face, subtract the offset angle of 27.3 (as per your information), to get the dish face elevation angle of 14.2 degrees (just 14.2 degrees from vertical).
So I guess the dish has to lean forward a little bit more.

Greetz,
A33
