Nimiq 82W contour map, a first take (1 Viewer)

Register Today to see less ads! It's Free!

alebowgm

SatelliteGuys Pro
Aug 29, 2004
347
0

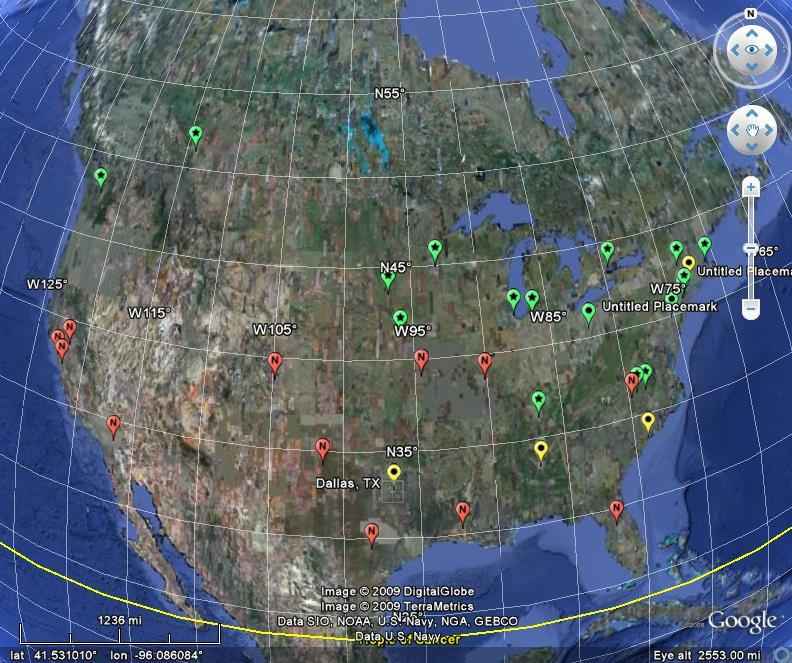

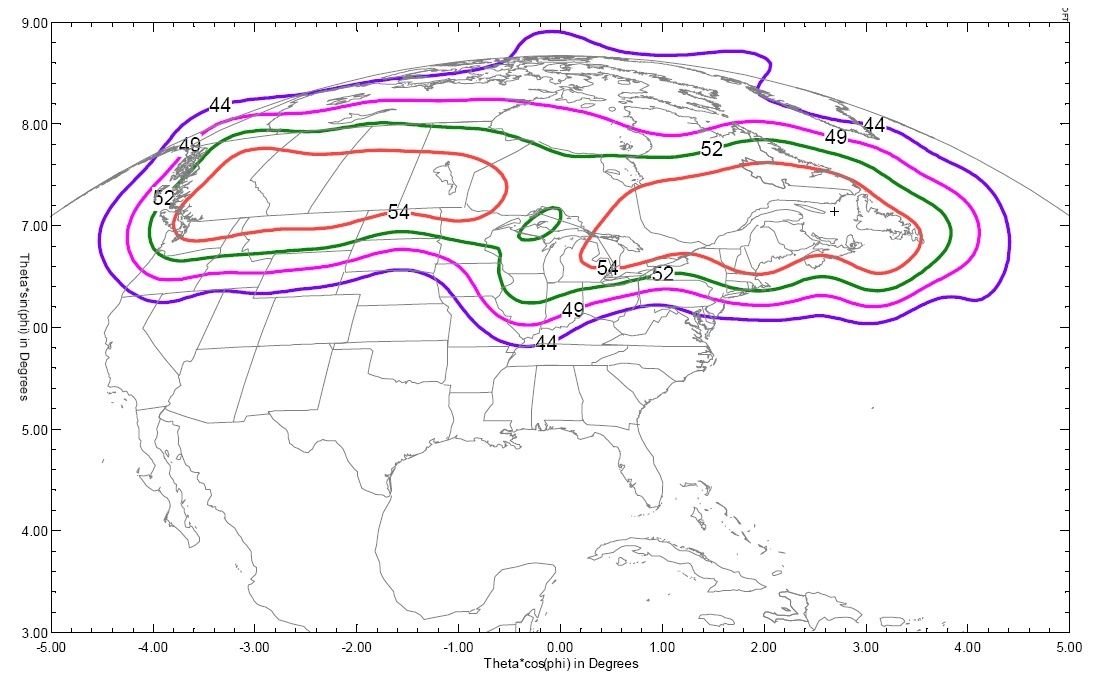

After a week of collecting data and working with nelson61 to try and reproduce the information, attached is a projected contour map of the Nimiq 4 satellite located at 82w.

Note that this map is based soley on user reports of reception (I collected over 70 different reception reports). If you have a reading for Nimiq 4 that you see is not placed on the map, please report it and hopefully nelson61 can find some time to make some additions. The elements that we looked at were satellite size, highest peaking TP (excluding TP 3 & 4 which may still be broadcasting from another Nimiq satellite) and lowest peaking TP, as well as location of the user.

Here is his notes in the last message he sent me on it...

Green = good
Red = none
Yellow = some

A definite footprint.

Hope this helps some out, and maybe we can slip this into the Uplink Report :rolleyes:


Attachments

  • nimiq 4 reception.jpg
    nimiq 4 reception.jpg
    116.3 KB · Views: 4,514
Register Today to see less ads! It's Free!

alebowgm

SatelliteGuys Pro
Aug 29, 2004
347
0
I believe it is SmithP who was saying in the Signal Strength Thread how there was no mention of Dish Size and such. So I figured I could post the raw data so people can get an idea of what size dish they need. Note that I skip the 2 TPs from the readings that are not from all accounts broadcasting from Nimiq 4.


Attachments

  • nimiq4publish.pdf
    62.5 KB · Views: 1,543

2k1Toaster

SatelliteGuys Family
Nov 25, 2007
78
0
Colorado Springs, CO
Can we get some more readings in from southern US folks.

In the raw data on the first page, there are 2 Dallas, TX, US locations. The 3m dish has no signal, and the 90cm dish has 50-60... That can't be right.


OnlineLC

SatelliteGuys Family
Mar 17, 2006
67
0
Nashville
Since 8PSK, I lost a couple of transponders on 82W with my 76 cm here in Nashville. I upgraded to a Fortec 100 cms and now get the following results in Nashville on my 9242.

All come in but I do lose a couple at night (TP's 22, 23, 26, 27, 30, 31 can sometimes not lock or take a few seconds).

TP Signal

1 71
2 58
3 65
4 65
5 67
6 56
7 62
8 65
9 68
10 53
11 57
12 63
13 66
14 53
15 64
16 65
17 64
18 52
19 58
20 61
21 64
22 52
23 54
24 62
25 61
26 51
27 53
28 64
29 62
30 53
31 55
32 66


bigrich

SatelliteGuys Guru
Dec 14, 2005
143
0
This is what I have in Indianapolis, IN with a 90cm Dish:

TP 1: 62
TP 2: 62
TP 3: 66
TP 4: 70
TP 5: 70
TP 6: 60
TP 7: 67
TP 8: 70
TP 9: 71
TP 10: 60
TP 11: 63
TP 12: 69
TP 13: 72
TP 14: 61
TP 15: 71
TP 16: 71
TP 17: 73
TP 18: 63
TP 19: 69
TP 20: 70
TP 21: 74
TP 22: 64
TP 23: 69
TP 24: 72
TP 25: 74
TP 26: 62
TP 27: 69
TP 28: 73
TP 29: 73
TP 30: 64
TP 31: 68
TP 32: 74


OnlineLC

SatelliteGuys Family
Mar 17, 2006
67
0
Nashville
I decided to go the 120 cm Fortec here in Nashville and now find I have pretty solid signals all round. Here are the results in signal strength on the 9242 for the 120 cms. (Note from all my experimentation I have concluded that each dB translates to approx 7 percentage points)

TP 120 cm
1 78
2 69
3 73
4 76
5 76
6 67
7 74
8 75
9 77
10 66
11 70
12 74
13 77
14 66
15 74
16 79
17 76
18 66
19 69
20 74
21 75
22 64
23 66
24 74
25 73
26 64
27 67
28 75
29 73
30 65
31 69
32 77


Smith P.

On Vacation
Oct 4, 2003
8,907
1
Bay Area, CA
I'm doubt in the relation '1 dB ~ 7 points' as receivers taking in account signal level and signal quality, we don't know what weight added to each one to get the Dish/Bell scale.


Mr Tony

SatelliteGuys Pro
Supporting Founder
Nov 17, 2003
295
43
Mankato, MN
yeah it looks pretty spot on

there is a pretty big cutoff near Minneapolis which is true. 20" dish has issues the 30" works fine


Freedom55

New Member
Feb 10, 2010
1
0
florida
no signal from 82W

I am spending my winter in Florida(32082) and while I can get a great signal strength on 91W I am getting no signal for 82W at all. I have a 20 inch Dish 500 with dishpro twin lnbf. I am assuming footprint does not come this far south since I have tried everything in fine tuning and tweaking dish.

If I'm wrong and it is a dish pointing issue let me know.


Trikeman

Member
Mar 13, 2010
8
0
ontario, Canada
Present Bell sub, vacationing long term (a few months) in Myrtle Beach, SC area in the coming fall/winter season.....So is it going to be possible to get 82w in South Carolina.... if possible what size dish??


QCK

SatelliteGuys Pro
Oct 27, 2008
723
5
Trikeman, not a chance for 82W in SC. Take a look at post #9. The good news is that 91W is still fine with a standard 20" Bell dish though.


jrn989

New Member
Apr 28, 2010
3
0
NE
Do you think the footprint would cover Philadelphia with a bigger dish? Obviously I'm guessing 18 wont work anymore on NIMIQ 4
