Setting Skew and Elevation on 1000.2 Dish?

[reubenray]

I got a 1000.2 dish with a Western LNB today from a neighbor to use with my tripod setup. I was looking at the bracket that has the settings for the skew and elevation. What do I set these points to on the brackets?



[HipKat]

I got a 1000.2 dish with a Western LNB today from a neighbor to use with my tripod setup. I was looking at the bracket that has the settings for the skew and elevation. What do I set these points to on the brackets?

ELEVATION SKEW AZIMUTH
40 130 228



[NYDutch]

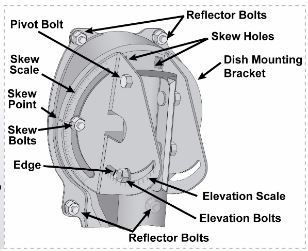

There's a small punched out triangle pointer for the skew, and the front edge of the elevation nut is the marker for that setting.

https://manuals.solidsignal.com/151255_01_text.pdf



[reubenray]

There's a small punched out triangle pointer for the skew, and the front edge of the elevation nut is the marker for that setting.

https://manuals.solidsignal.com/151255_01_text.pdf

View attachment 139691

OK, I will look for this tomorrow morning.



[reubenray]

I found it. It was covered by dirt. My neighbor had this in his barn for a while. It is a 1000.2 dish with a DPP LNB. I have cleaned the dirt off of the LNB covers and I will replace the short cable at Port 1. Do I need to put caps on the other three ports?



[NYDutch]

No caps or terminators are needed on the other ports.
