I don't see them here in the USA, but 0.2 dB typ NF LNBFs are relatively easy to get in Europe (at least based on Google,) and there are two (maybe 3 0.1 dB LNBFs advertised as 0.1 dB NF.

As the LNBF NF and dish size determine the system NF the most, optimizing them yields the best results.


Are these NF's real or are they inflated?

You'll pay dearly to get them here in the US. But if anyone has one, try comparing it with a 0.3 dB Invacom or Xtreme II and post the results here.

For now, my TechSAT 0.3 dB unit will do.

Register Today to see less ads! It's Free!

Mr Tony

SatelliteGuys Pro
Supporting Founder
Nov 17, 2003
291
39
Mankato, MN
Unless it truly has been tested, I question any "low noise" LNB

I tried a .3 a while back and my old ExpressVu .6 worked better


Tron

SatelliteGuys Master
May 6, 2005
6,599
33
Metro New Orleans, LA
dish_in_the_sky said:
I don't see them here in the USA, but 0.2 dB typ NF LNBFs are relatively easy to get in Europe (at least based on Google,) and there are two (maybe 3 0.1 dB LNBFs advertised as 0.1 dB NF.

As the LNBF NF and dish size determine the system NF the most, optimizing them yields the best results.


Are these NF's real or are they inflated?

You'll pay dearly to get them here in the US. But if anyone has one, try comparing it with a 0.3 dB Invacom or Xtreme II and post the results here.

For now, my TechSAT 0.3 dB unit will do.
LNBF noise figures aren't the only factor in determining an LNBF's ability to pull in a strong signal. LNBF L.O. stability is another very important factor that is all too often overlooked. For example, I have a .9 noise factor LNB :)eek:) that gives me the same performance for G-10R as my Invacom .3 LNBF. The reason for this is that it features an extremely stable local oscillator. It's a Norsat 11009LA...


dish_in_the_sky

Thread Starter
SatelliteGuys Family
May 18, 2006
91
0
Good points, all.

I did notice a lack of specs on the 0.1 dB LNBFs, and didn't 1ook hard at the 0.2 dB units.

The Invacom, TechSAT Tracker and Xtreme II LNBF's all apear to have similar LO stability of +/- 1 MHz short-term, +/- 3 MHz over temperature.

The best LO stability I've seen is +/- 500 kHz short-term, +/- 1 MHz over temperature.


Here is a suggestion for improving LO stability: Enclose the LNBF electronics and the feedhorn (except the entrance) in an insulated white plastic housing, then use a small heater (say, a 100W resistor) and thermostat to hold it at 80 deg F. It would regulate the temperature except on hot summer days (like a big "crystal oven.")

A Peltier cooler would be even better, run it at ~ 33 deg F (to minimize thermal noise and not allow freezing) but then special care will be required to prevent condensation, which is not good for electronics or for Ku band reception. A sealed enclosure and regenerateable dessicant are required.
If you have the condensation issue handled well, you could run at -30 deg F for even lower thermal noise by running a 2-stage Peltier cooler.

See the Audine/Genesis 16 CCD astronomical camera websites for some info on handling condensation/freezing on electronics.


Tron

SatelliteGuys Master
May 6, 2005
6,599
33
Metro New Orleans, LA
I think the Norsat 11009LA is rated at +/- 100khz, not the absolute lowest out there but still considerably better than most of the LNBFs floating around the market. The L.O. stability is definitely a factor, as much as noise. I was very surprised, since I was ready to ditch that .9 LNB :)


crawfrdb

SatelliteGuys Family
Jun 5, 2006
106
0
Has anyone any luck with Extreme IIs? My experience with them has been disappointing. My Invacom has proven much better.

I would like to try those 0.1 and 0.2dB NF feeds but avoid buying universal LNBFs as I don't want to deal with inadvertant LO switching on any configuration I might try in the future.


Mr Tony

SatelliteGuys Pro
Supporting Founder
Nov 17, 2003
291
39
Mankato, MN

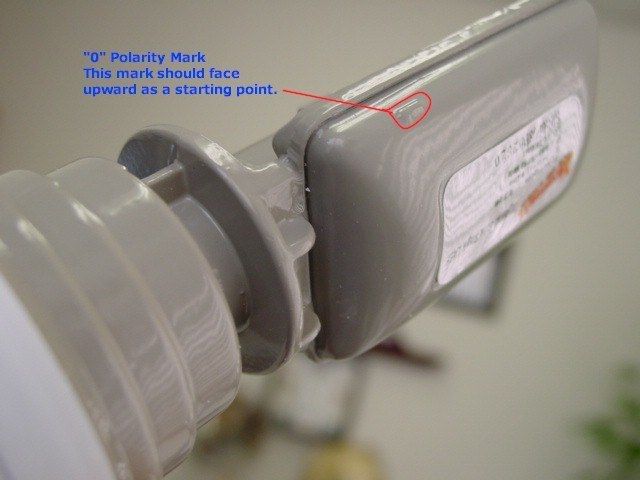

I use an Xtreme II with no issues. thing to remember on these is skew is not stright up and down, Its 90 degrees off (there is a little notch on the LNB and that is 0)
