For reference - I originally posted this which caused the 12 foot to go SPLAT.

http://www.satelliteguys.us/xen/threads/how-to-protect-your-dish-in-high-winds.358931/

A little history, i bought the piece of junk 12' tek2000 dish. It literally came crashing down as the mount was sheered from the winds and the thin junk metal they used. The winds were no means hurricane weather, but it was about 25 mph winds with gusts to 40+.

Over the summer, i landed an aluminum 12foot dish that 'FELL OFF THE TURNIP TRUCK' It was badly damaged. ( i got it for free) . But, it had a BEEFY mount.

Today, i took the mount off the Aluminum dish. (We will call that the new mount) The sleeve pipe was the wrong size, so i then took off the sleeve pipe.

I then also removed the junk mount sleeve pipe off the mesh dish. That was to be welded onto the new mount. Before that, i had to put on a bigger pad that the pipe sleeve sits on. So, i removed the old sleeve pad that held the pipe sleeve. I had a nice square thick steel pad laying around that i welded down into place, and then welded the correct size pipe sleeve from the mangled mount to the new mount.

So now i have the aluminum dish mount with a swapped out pipe sleeve that fits the pole i have in the ground.

Next, i had to weld on new cross beams onto the dish so that i could fit to the new mount. I basically had to build a mounting system so that the new attachment system would attach the mount to the mesh dish. Luckily i keep a nice stash of metal rods and angle rods and such, so i was able to build a nice setup. I had to make one trip to Fastenal to get some nice long bolts to be able to do declination adjustments.

I then used the tractor and lifted the dish and set it back down on the pole. It's been about 8 months since it sat on that pole, and not on the ground next to it... So, major accomplishment there.

I still have to fix the damage on the mesh dish itself, as one of the skeleton back bones holding the mesh on separated from another back bone. It will be easier for me to fix that on the pole then off, as its way to awkward on the ground.

I will also need to weld on the pipe sleeve the bracket to allow me to adjust the latitude..

After that, i will be ready to align the dish and do some testing.

It was an exciting day to get the progress done i got done and to see that it wasn't as bad of a project as it could have been. No major issues other then one misplaced weld. But, easy fix as i've learned over the years to do little tap welds at first to make sure all is in place before doing the long bead weld.

I am hoping within the next few days to have a working 12' footer again. I am keeping my fingers crossed. I already have a new venture maxi-ball actuator i ordered a couple months back.

:biggrin

Last edited:

KE4EST

SatelliteGuys Is My Second Home
Staff member
HERE TO HELP YOU!
Lifetime Supporter
Aug 9, 2004
25,924
6,176
EM75xb
Great to hear! Make sure to post lots and lots of photos. I would like to see photos now of the work in progress.

  • Like
Reactions: FTA4PA

iBoston

Thread Starter
SatelliteGuys Pro
Jul 15, 2014
2,033
1,291
North Central

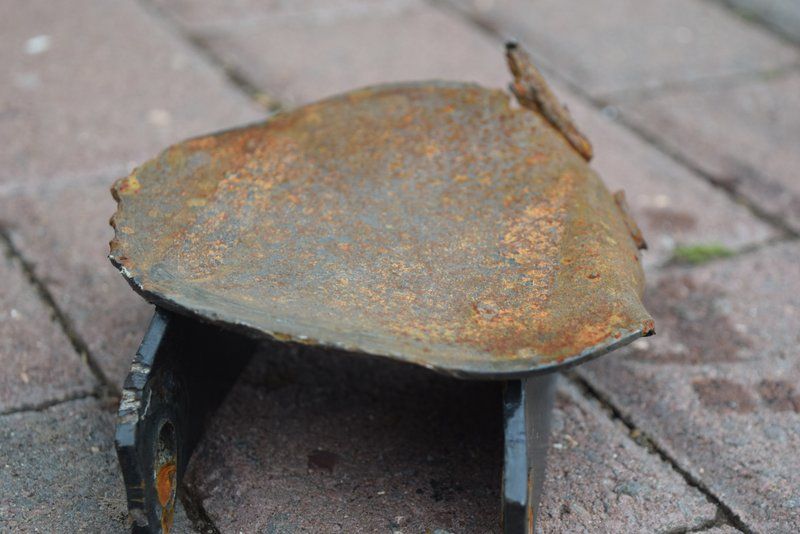

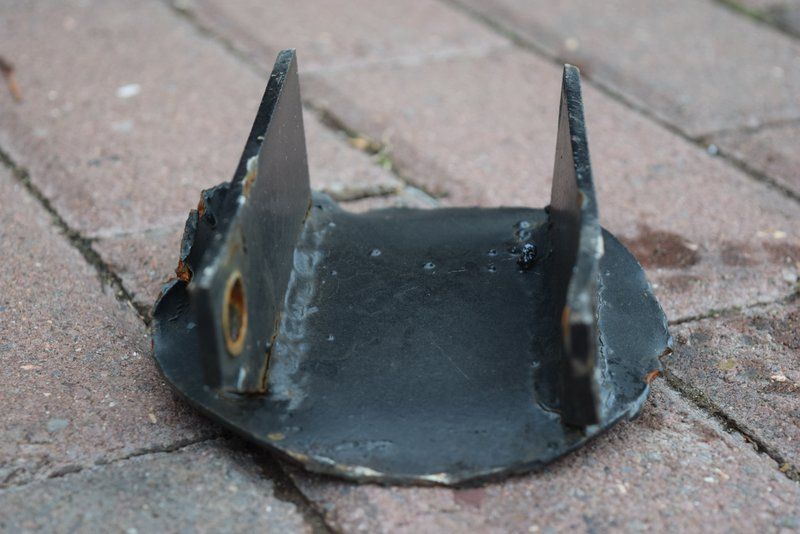

Here is the Tek2000 pipe sleeve cap. Look how thin the metal is. This was welded on the pipe sleeve and is what warped and tore apart during the wind storm

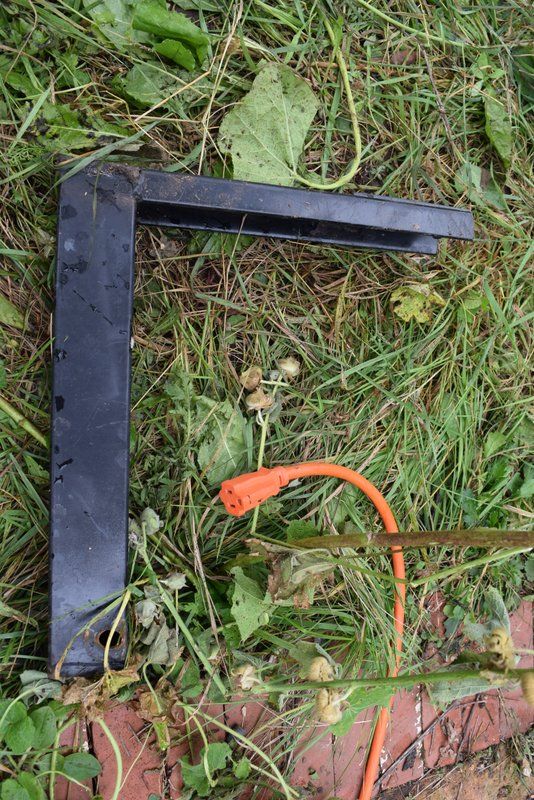

Here is the main pivot bar. The hole at the bottom had a bolt through it and the pipe cap (first picture) that tied this to the pipe cap.

Horribly under engineered!!


iBoston

Thread Starter
SatelliteGuys Pro
Jul 15, 2014
2,033
1,291
North Central

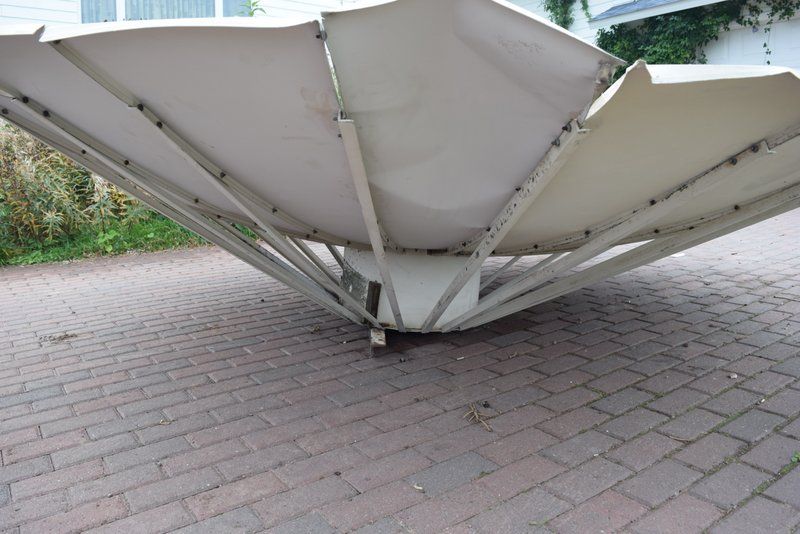

Here is the aluminum dish that i took the mount off from. This is showing the dish after the mount was removed. As you can see, this dish is warped and torn. The mount was in excellent condition.



iBoston

Thread Starter
SatelliteGuys Pro
Jul 15, 2014
2,033
1,291
North Central

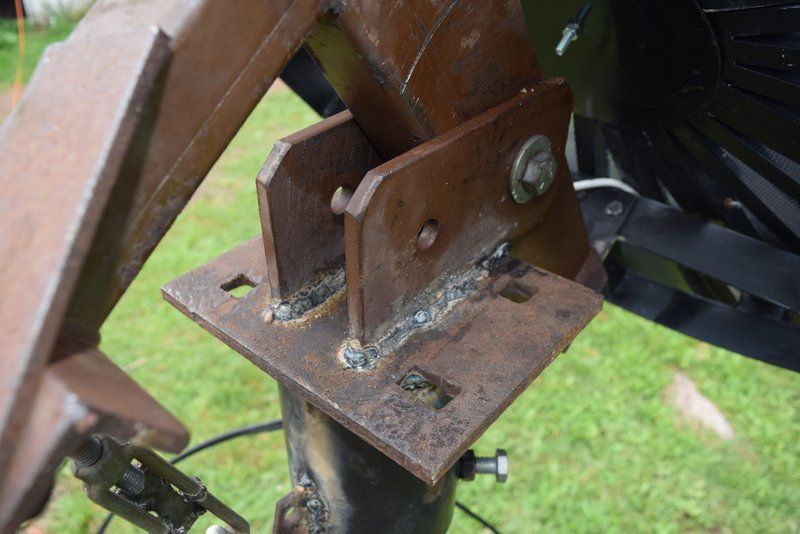

Okay, as you can see, i took the old pipe sleep off the old mount, and used it for the new mount. I welded a cap that you can see above the pipe sleeve. This square piece is like 1/4 inch thick! I notched it a bit on the edge so the dish could have more elevation control. Turns out i didn't need to as it was adjust above and no notch was needed, but no harm done being there.

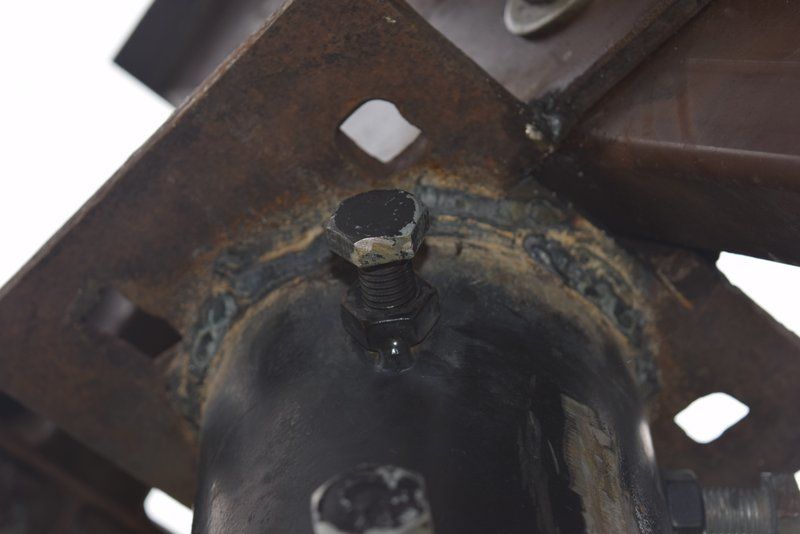

Below is the opposite side of the pipe sleeve. I welded the new mount onto that 1/4 square piece.

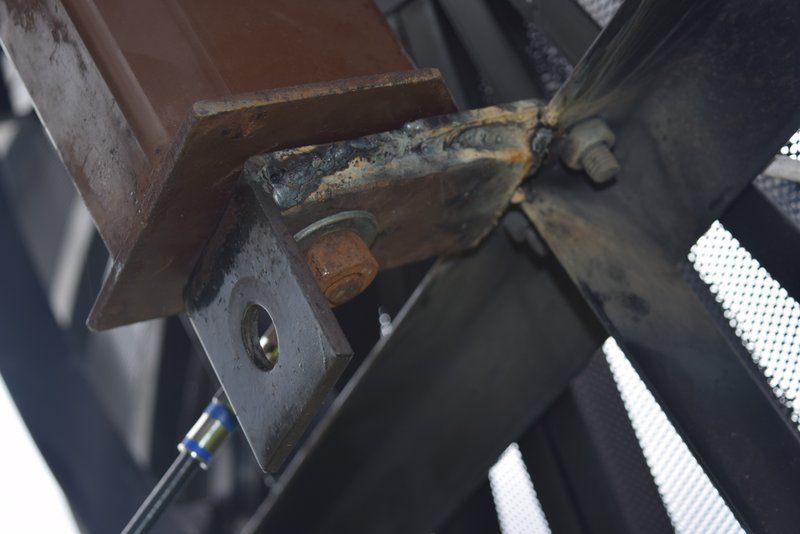

This is bottom edit of the main pivot arm attached to the dish. I double layered a brackets along with an angle iron to give it more strength. My plans are to add a couple of metal brackets to give additional strength once i have everything aligned.



This is the top side of the main pivot arm. That cross arm is about 1/4+ thick

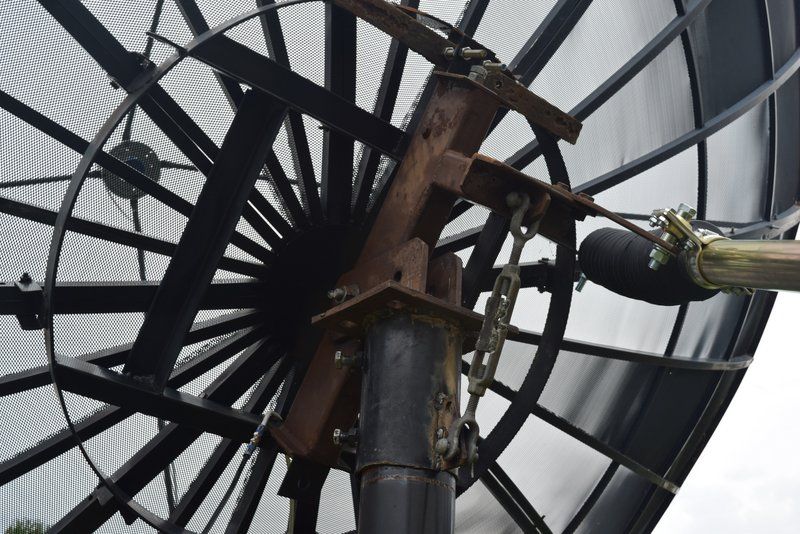

Here is a full picture of the new mount. Last part is the elevation control rod. Darn piece was too long. So, i cut out about 3 inches and then welded it back together, and just in case, then added an additional vertical piece welded together length wise to give it extra strength.


I have NOT tuned it as of yet, although i did align top of arc and captured 89w and after hooking up the actuator moved it over and successfully tuned in 91w. The quality db is pretty low, and i need to do true tuning. A few panels look a bit warped, and im sure the lnbf holder got off center, so i have a LOT of tuning to do.

I will follow up as i go....


KE4EST

SatelliteGuys Is My Second Home
Staff member
HERE TO HELP YOU!
Lifetime Supporter
Aug 9, 2004
25,924
6,176
EM75xb
Thanks for the updates and pictures. :)

  • Like
Reactions: iBoston

iBoston

Thread Starter
SatelliteGuys Pro
Jul 15, 2014
2,033
1,291
North Central
I am getting there. I am getting it well tuned. I believe i have the declination close to done. It's been slow because the weather has been wet and rainy. But, i can successfully track 89 top of arc to 139. I will do some more declination testing but its good for a couple days.

I also had some WINDY days, and the BUD held FIRM! :)


iBoston

Thread Starter
SatelliteGuys Pro
Jul 15, 2014
2,033
1,291
North Central
Okay, well, tuning it has been slow. Its too windy now for me to continue. I am happy to report i FINALLY got a stronger signal than on my 10 footer on one test satellite. I then moved to the other end of the arc and my signal strength was not as strong as on my 10 footer. So, it proves to me i have more tuning to do, but i am encouraged that i did get a signal strength higher than my 10 footer.


turbosat

SatelliteGuys Master
Dec 26, 2006
9,001
75
Oneonta,AL
Nice work iBoston, don't think you'll have to worry about that mount flying apart like the original. I envy you folks who have the equipment and know how to weld, it was something I never thought I'd need to learn, way back when. They are saying some hot signals on c-band on 72W lately if you're new motor moves it that far, may help your tuning process.

  • Like
Reactions: iBoston

iBoston

Thread Starter
SatelliteGuys Pro
Jul 15, 2014
2,033
1,291
North Central
Just an update.. We have been having 50-60 mph winds for two days now. The great news is the mount is holding firm. The bad news is this mount has swung on the pole about 30 degrees. I'd rather than happen than tearing apart. But, being we are expected to be in single digits this week, it looks like i've lost the dish for at least a few weeks.

Just very happy when i inspected the dish this morning, i was easily (via paint marks) able to see what had happened.

  • Like
Reactions: Shicks4 and FTA4PA

iBoston

Thread Starter
SatelliteGuys Pro
Jul 15, 2014
2,033
1,291
North Central
It's a secondary dish. I blew the driveway and 30 minutes later, it was like i never blew it. The wind is blowing so crazy, if i were to loosen the screws to rotate the mount on the pole, i think i would be asking for a world of hurt. That's OK! Ill wait until things calm down so I'm not cursing. I'd rather be whistling.
