After several days and inputting over 8,000 lines of code data
I was able to locate most of the guide data available.
There is still much more to do but this gives you an idea..,

Some new maps in testing phase and being offered to those who have already put in the new maps and have the new sat tiles.

If you have not done this then don't ask as the file will not do anyone else any good the way it is made up right now. Remember this is part of the testing phase.....

What it does....

1) Added guide info to many G7 channels

2) Added guide info to all the Spanish channels on S-3

3) Added TV guide channels to A2 * not real DC2 channels just to see what is actually on TV

4) Added TV guide channels to W7 & W8 * Not real DC2 channels just to use to see what is playing on TV

5) Added All the HBO and Cinemax guide channels to W5, G1 sat tiles

6) Added all but 1 Showtime channels to W5, C3, C4

7) Added Sports channels to W5 and some on G7

8) Added guide info for ABC, CBS & NBC on W5 *again for info only.

The time taken for find the guide data was immense and required over 8000 lines of entering code data.
as an example... in the text file....
015-G7,00114,0,0,0,0,02552
the 02552 is JCTV on G7 sat tile.
So you can begin to see the possibility of numbers it takes to input just to find one channel!


some of the channels listed below are currently placed on A2, W7 & W8 and W5 channels 1 thru 24.


A&E
ABC FAMILY EAST
AMC
ANIMAL PLANET
BET
BLACK BELT
Boomerang channel
C NESP
CANAL SUR
CBST
CH 1 RUSSIA
CHURCH
CMTV(Country Music TV )
CNB CALT
CNBC
CNN
CNN Espanol
CNNI
COM NET
COMEDY EAST
COUNTRY MUSIC TV WEST
CPC (community)
C-SPAN 2
C-SPAN
CSTV
DAYSTAR
DESP
DISCOVERY EAST
DISNEY EAST
Disney Jr.
DISNEY XD
DIY
E! EAST
ESPN
ESPN DP
ESPN Sports PPV 1
ESPN Sports PPV 2
ESPN Sports PPV 4
ESPN Sports PPV 5
ESPN Sports PPV3
ESPN Sports PPV6
FIESTA
FNC
FOOD
FOX BUSINESS NEWS
FOX ESP
FOX SDA
FOX SDC
FOX SDP
FOX SPORT SOUTH ALT
FOX SPORTS ROCKY MT
FOX SPORTS SOUTHWEST
FSM WEST
FSSWalt fox sports sw alt.
FSW 1
FSW 2
FX EAST
FX Espanol
GAC
HALLMARK
HDN HD
HEART AND SOUL ®
HISTORY Espanol
HITS NOW
HLN
home shopping network
INDI PLEX EAST
IONE
ISREAL+
JCTV
KULTURA
LATIN TV
LIFE EAST
Logo
MAYAK
MPLEX WEST
MSNBC
MTV EAST
MTV JAM
MTV S
MUN 2
MUSIC OF THE AMERICAS
NGC WEST (Nat Geo Ch.)
NICK EAST
O MAX
OXYGEN CHANNE
Playboy Latin America
ppv-1
ppv-2
ppv-3
ppv-4
ppv-5
ppv-6
ppv-7
PUMA
QVC
RAS russian audio service
REKA
Retro PLEX EAST
RIO
RTN
RTN+
RTR PLT
RU WORLD
SN SHN
SPIKE
SPIKE SPANISH
SPRT MAN
SUNDANCE EAST
SVOBODA
TBS
TBS Espanol
TELE(Galaxy-TV)
TLC EAST
TNT EAST
TNT Espanol
TMC WEST
TMC-2 EAST
TMC2 WEST
TOON
TRAVEL CHANNEL
TRU TV
TV CI
TV LAND
TWC
USA EAST
VARSITY TV
VESTI 24
VH1 EAST
VIDA VIS(CTV-24)
VIDEO ITALY
WAIQ- pbs alabama
WAKA WEATHER
WAKA DT
WBZ-cbs boston
WCOV-fox
WCVB- abc boston
WFOR cbs miami
WGN chicago
WNBC TV
WTVJ nbc florida
YOU TOO

If I know where the actual channels are located in DC2 then they have been placed on the proper sat tiles and DC2 channel like You TOO, JCTV, Church on G7
The HBO's, Showtimes, Cinemax, have been placed on G1, C3 & C4 where the actual DC2 channel is at.

All but 3 or 4 channels that are on W5 now have the correct guide data associated with those channels.

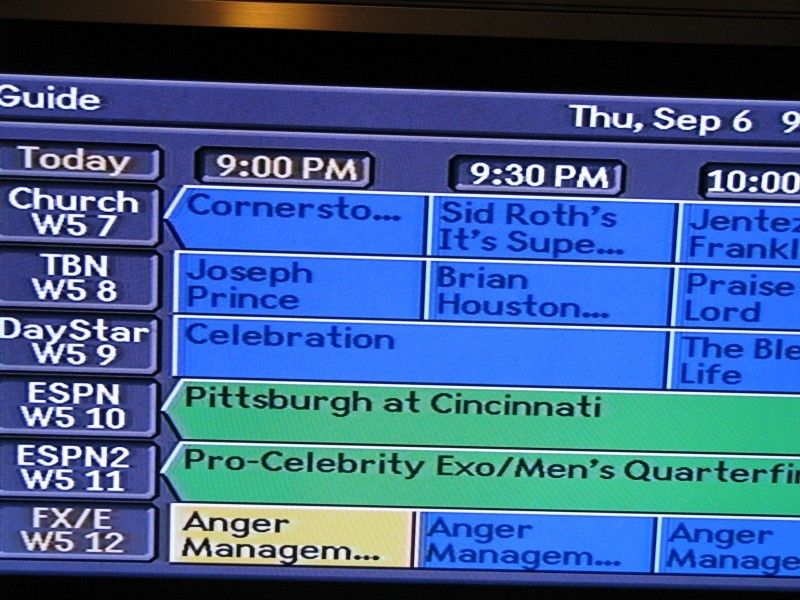

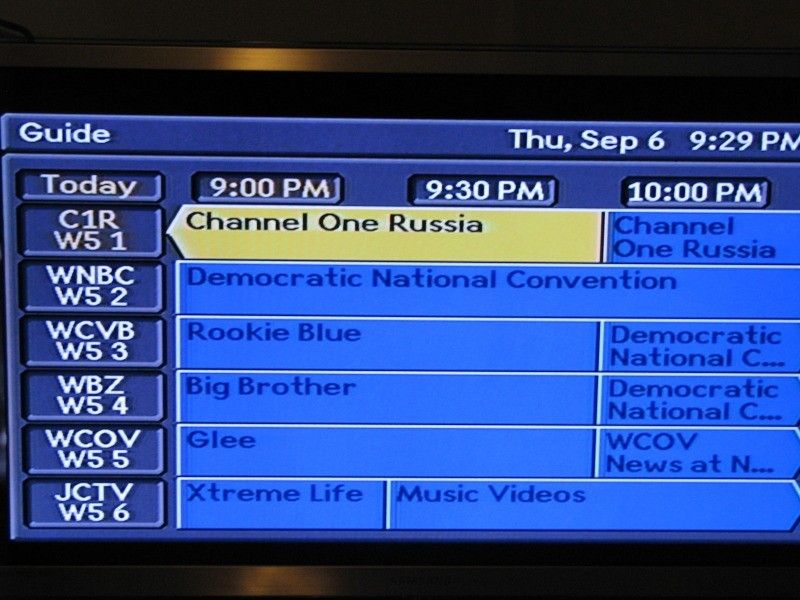

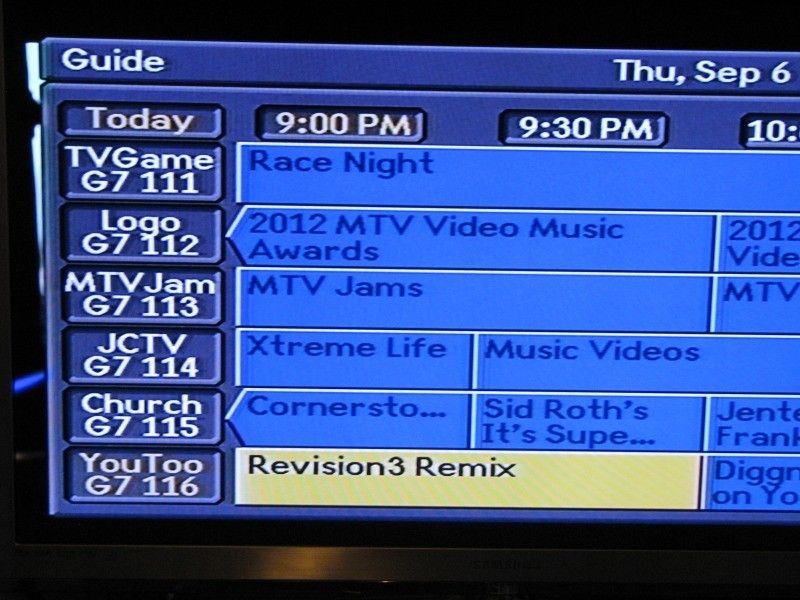

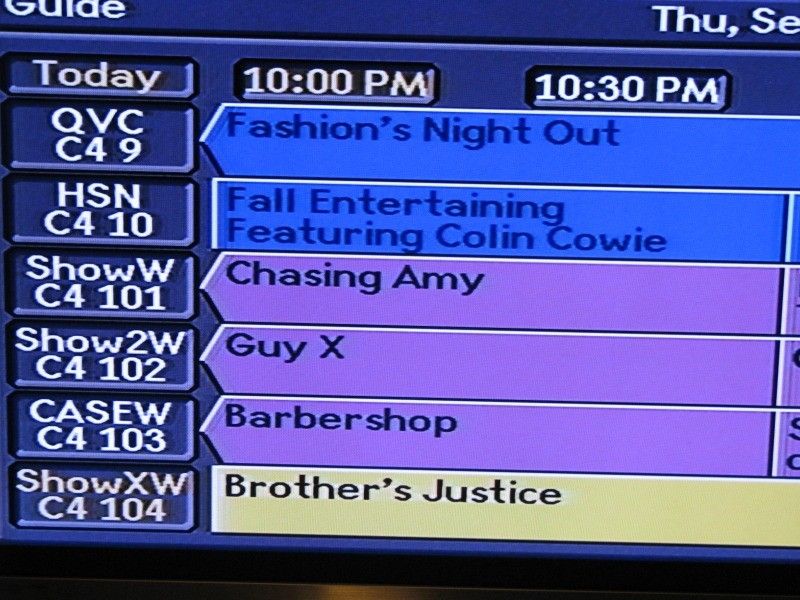

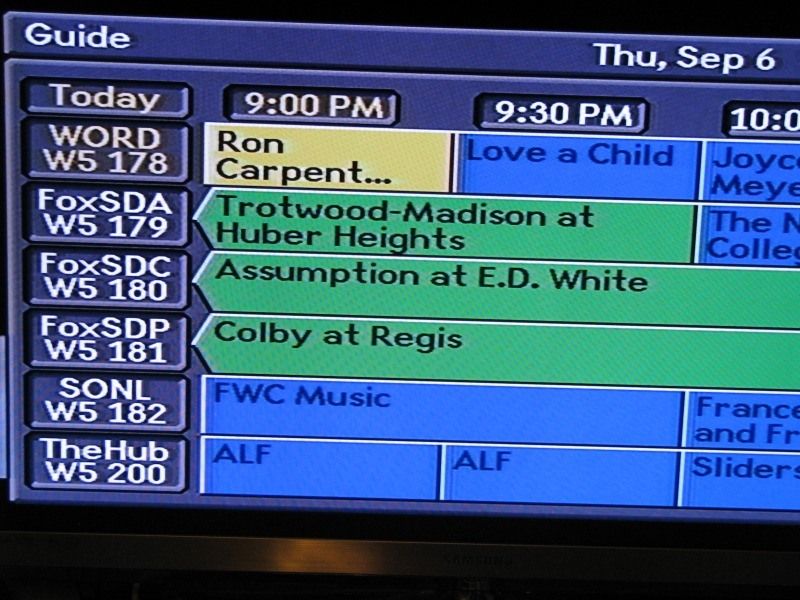

here is a SMALL sampling of what is in the maps so far...
I said SMALL since the actual photo's taken were over 36 megs in space....

IMG 0844

IMG 0851

IMG 0850

IMG 0845

IMG 0868

I have heard reports some other person was trying to figure out a way to charge people for all this info but since this is a hobby and those DIY'ers out there can now do it for FREE!

Scott Greczkowski

Scott Greczkowski

Welcome HOME to SatelliteGuys!
Staff member
HERE TO HELP YOU!
Sep 7, 2003
100,849
20,627
Newington, CT
Very cool, thank you guys for all your hard work on keeping Map Master Alive, and I am sure it make a lot of people happy that the real creators of the Map Master Program are still working hard to make it better for everyone for free!

Great job!!

stargaze

stargaze

Thread Starter
SatelliteGuys Pro
Jul 14, 2010
916
56
Out there somewhere
The first post was so long I needed to break it off just to see what I was saying... :)

If anyone wants to test out the new mappings the way they are....

You need to follow the following instructions:

Remember this is still so new and in the testing phase....
Even ATS is putting it into their personal receivers this weekend to test out.

1) You MUST have the NEW Maps already in your receivers.
if you do not then please don't even ask....

2) You will need to send me your nvram and make sure you note where you are taking it out from.
example... if your on X4-210 then you need to let me know you took it out while on that channel in the email.

3) You will need to put in your email the model number... 920 or 922 only at this time are being done.
and your unit ID number from .. options>6.5 line A.


When I send it back you will be ready to jtag it back into your receiver from the same place you took if out of.

Very simple.

The reason I am asking it this way is so that...
1) all your settings will remain just as you have them currently.
I am doing this in a way that only the guide is being put in for you on the channels I have already placed on a master list.
That list is not yet being released until I decide where many extra guide channels should go that are not on actual DC2 channels.
2) I no longer have to use the computer to see what is on TV on the channels I currently use since all that is needed is to press the guide button on my 4DTV receiver.

If you do not have the guide bit turned on please do not ask for this.

I would like feedback on where to place the finished guide channels that are not in DC2 up there.

stargaze

stargaze

Thread Starter
SatelliteGuys Pro
Jul 14, 2010
916
56
Out there somewhere
If anyone is interested in testing this out and you meet the requirements.... then

post a message in this thread and I will pm you with the email details on where to send your nvram.

If you decide to do it and send the nvram without your unit id and receiver model number
in the body of your email
....

I will NOT redo the nvram.

It is important as the files are made up at this time for the different 4d models.

T

trinidex

SatelliteGuys Pro
Lifetime Supporter
Jul 16, 2004
892
1
Amazing work thank you!

stargaze

stargaze

Thread Starter
SatelliteGuys Pro
Jul 14, 2010
916
56
Out there somewhere
Below are the numbers corresponding to each name for guide info that can be put into the 4DTV maps.
When looking at the text file of the maps the area it goes to is here: (highlighted in red).

003-G4,00001,0,1,1,0,06074,001,00000,0,80,H,1430000,0,1,1,0,1,6.20,6.80,NTSC,10,00

This is a 5 digit number and one must be careful to make sure the number goes in the text file correctly.

The example shown above is from sat tile G4 transponder 1

------------------------------------------------------------
guide # -- Name
05884-- BLANK
07058--5 MAX
00426--A&E
04580--A&E Biog
