Now with the new satellite up at 91W and its "different" coverage here are maps of both 91W & 82W

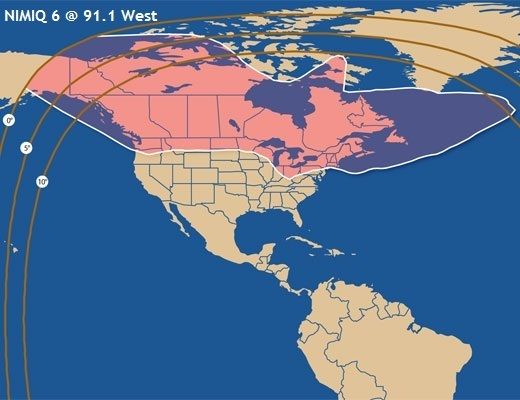

91W sat coverage is pretty simple
the red area you should be fine
If your near it a bigger dish MIGHT help
outside of that...sorry but no go

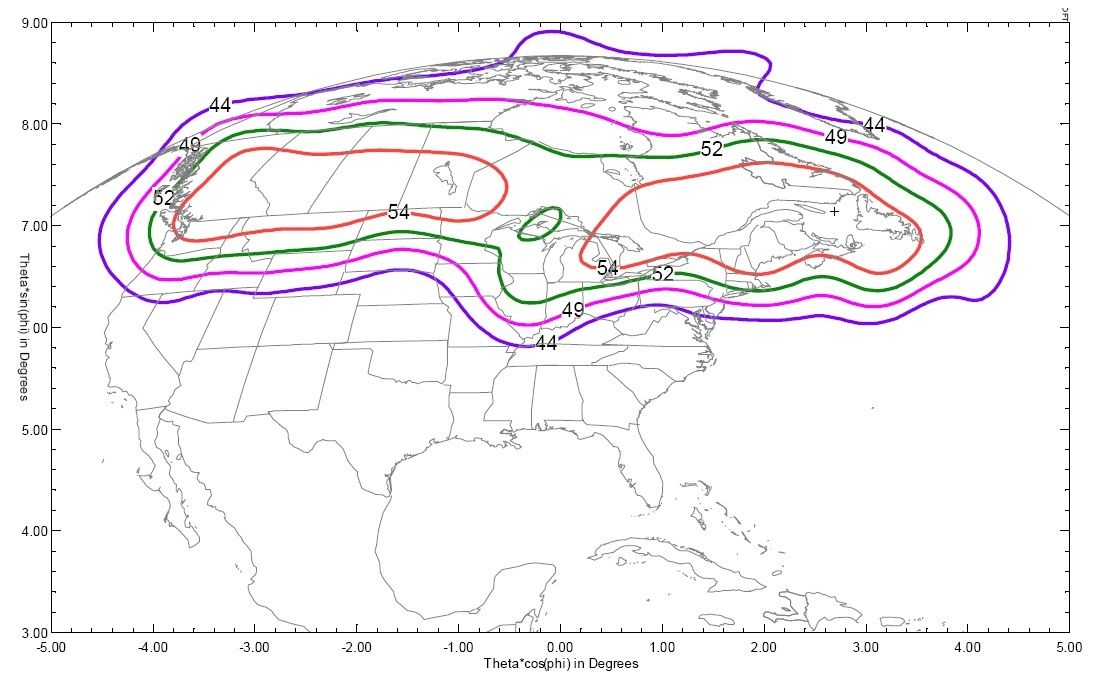

82W is a little different
within the 52 or 54 ring a 20" dish should be ok (but bigger is better)
49 would need probably a 30" or even a 36"
44 would be a 1 meter or 1.2 meter
outside of that is usually a no go

91 map


82 map


There is also a thread that helps with 82W a little more as the footprint isnt 100% correct as some folks can get signal outside of the outer ring with a larger dish
http://www.satelliteguys.us/canadian-satellite-services/166004-nimiq-82w-contour-map-first-take.html


Attachments

  • Nimiq4.jpg
    168.6 KB · Views: 4,980
  • nimiq6.jpg
    48.4 KB · Views: 6,456
