Techfizzle's Dish ID Thread (look here before posting a "what dish is this" thread)
One of these has been in order for a long time. This is handy for first timers on to this site. To confirm what type of dish they have, incase they dont know who made their dish, like the brand is gone, and will cut down on "What dish is this?" threads if the moderator can, i would like to have this as a sticky.
Reflector is the dish shaped part
Feedhorn is the eye of the dish, located in front of the reflector
Mount is the metal on the back of the dish
Actuator is the long metal tube on the back of the dish that moves it
H-H mount, has a long gear driven motor on it to turn the dish.
Birdview of Birdview Satellite Comunications Chanute,Kansas
Production Started 1981 ended????
What makes it a birdview?
1. White Solid Aluminum Reflector or one with holes in it? If holes, 2 peice design?
2. Is Dish NOT over 10.5 Foot?
3. 3 legs holding the feedhorn to the dish, with 2 legs on each point?
4. Mount on the back has a half circle on top or bottom?

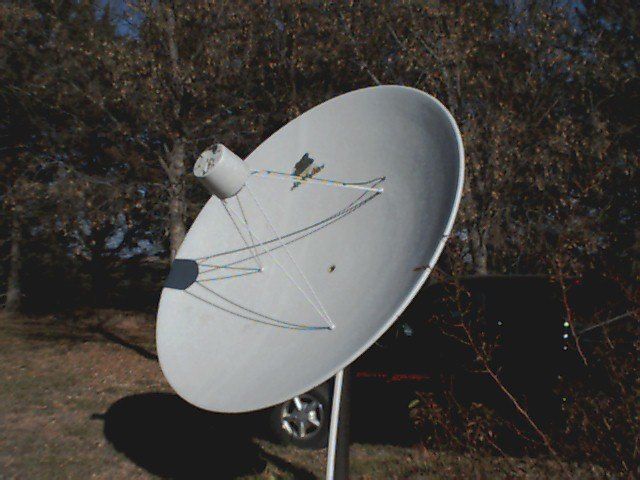

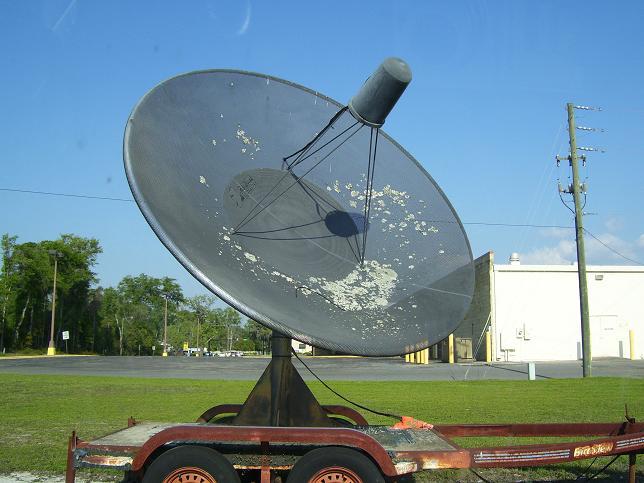

Dish one and two are birdviews
Perfect 10
Made 7.5 foot and 10 foot dishes and 12 foot (unconfirmed)
What makes it a perfect 10?
1. Is your dish grey? Most if not all perfect 10's were grey.
2. Does your dish have a circle rib on the back of your dish? although many other brands had a support circle
3. is you dish not solid?
4. does your feedhorn attach to support ribs, on the inside of the reflector, next to the edge?
5. Does your dish have 16 ribs, not counting where two ribs meet?
then it might be a perfect 10
sami/ KTI
made 6, 7.5, 10 and 12 foot antennas
1. is your dish mesh?
2.
more to come too tired
