Anyone ever played with a DVBS modulator? I was thinking of doing some tinkering.
I was thinking of taking a RCA signal and running it through a DVB modulator so that i could then pick up the video/audio feed on any DVBS satellite receiver.

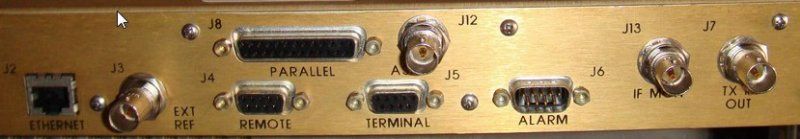

I included a picture of a DVB modulator (back panel) and was wondering how you would feed analog audio/video into it.. I assume the Video would go into one of the BNC connectors, would another BNC be for audio?

Has anyone done this before?


Attachments

  • screenshot.1490030302.jpg
    24.6 KB · Views: 137
  • Like
Reactions: k.r.
iBoston

iBoston

Thread Starter
SatelliteGuys Pro
Jul 15, 2014
2,265
1,645
North Central
Well, doing some research, it looks like you need an Encoder to work with the Modulator. Still researching...

  • Like
Reactions: k.r.
Titanium

Titanium

AI6US
Lifetime Supporter
May 23, 2013
7,427
8,637
Meadow Vista, Northern California
Correct, an encoder and modulator is needed to provide a transport stream of a live AV source to a DVBS receiver. Often use a Dektek DVBS2 modulator PCI card to play out TS files for STB testing.

  • Like
Reactions: iBoston
iBoston

iBoston

Thread Starter
SatelliteGuys Pro
Jul 15, 2014
2,265
1,645
North Central
More research leads me to believe, you need an encoder unless you have something that outputs in DVB-ASI. So, if my understanding is correct I could possibly use the DVB-ASI output on the DCII receiver into the ASI in-port of the modulator to then transfer a DCII signal to a DVBS signal. ??

Otherwise, i would need an encoder and input the analog video into the encoder which then sends the signal to the modulator into a DVBS signal.

Titanium

Titanium

AI6US
Lifetime Supporter
May 23, 2013
7,427
8,637
Meadow Vista, Northern California
Correct. If your source is already encoded, feed the modulator and output a DVB compliant carrier to be tuned with a DVB receiver. If a closed distribution system use LO: 0 and the IF between 950-2150MHz.

  • Like
Reactions: iBoston
iBoston

iBoston

Thread Starter
SatelliteGuys Pro
Jul 15, 2014
2,265
1,645
North Central
Correct. If your source is already encoded, feed the modulator and output a DVB compliant carrier to be tuned with a DVB receiver. If a closed distribution system use LO: 0 and the IF between 950-2150MHz.

Your IF between 950-2150 Mhz is an important point, as I see there are IF outputs which are 75-150 Mhz, and under this situation, i would need an L-band output.

Titanium

Titanium

AI6US
Lifetime Supporter
May 23, 2013
7,427
8,637
Meadow Vista, Northern California
A FTA DVBS receiver tuner IF range is 960-2150MHz. The modulator's RF output needs to be within this range. The modulator may have an IF output, but that would not be used with a DVBS STB.

iBoston

iBoston

Thread Starter
SatelliteGuys Pro
Jul 15, 2014
2,265
1,645
North Central
Well, it looks like that will just remain a fantasy thought. I cannot seem to find a modulator that i believe would do the trick for less than $200.oo and that's a bit too steep for Putz-in.
