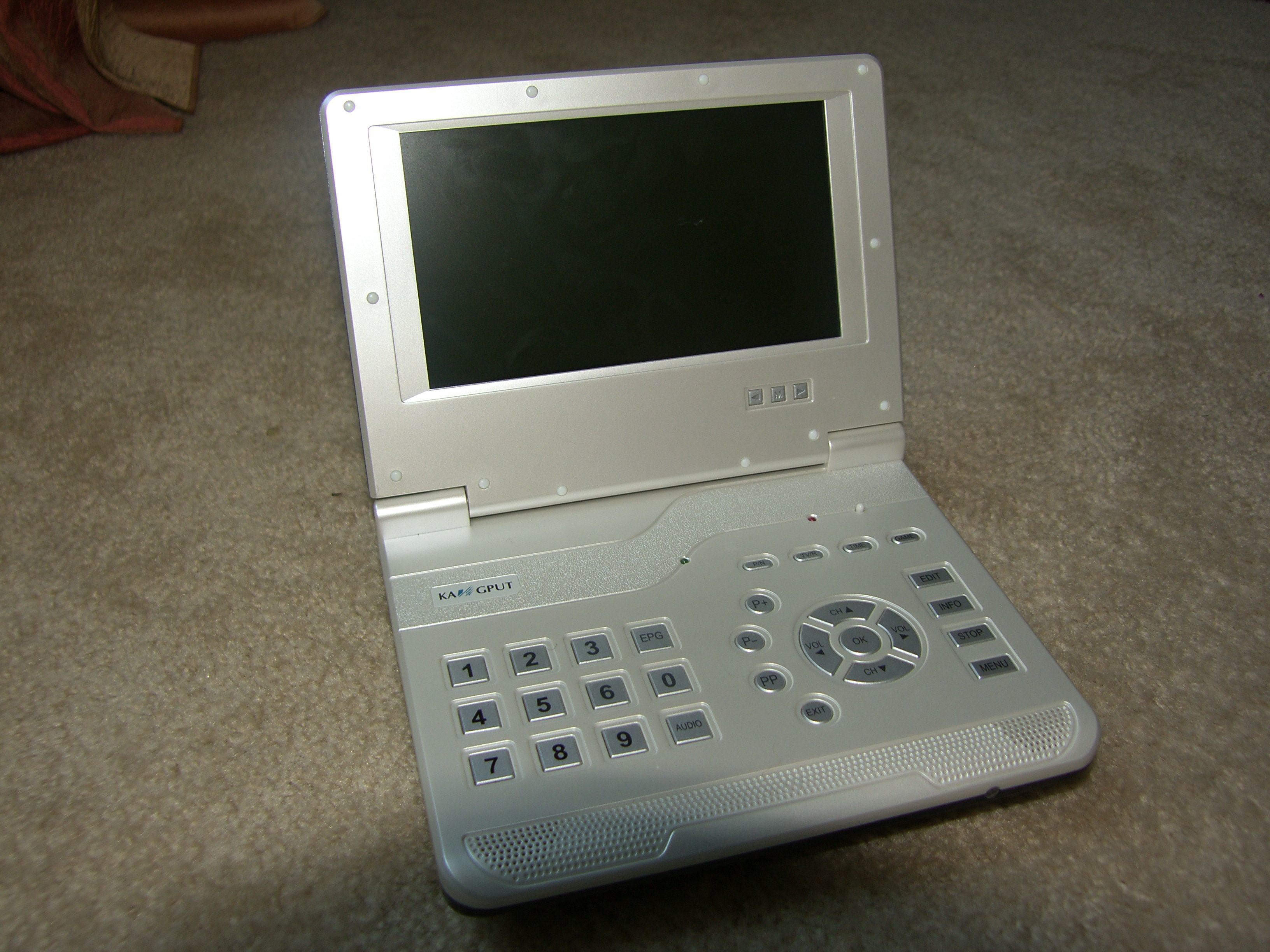

Laptop Stype Multi Function Digital Satellite Finder with Hardware Blind-Scan

Specification
TFT LED 7"(15: 9display)(178mm); Display size: 155*89mm;
Dots pixels: 800*480(1152000Pixes)

LNB input: F type female head. Input impedance: 75 ? (F)
Frequency range: 950MHz-2150MHz Signal level: -65dBm~-25dBmLNB Power supply: 13/18V, max400mA LNB Switch control: 22KHzDiSEqC: 1.2 edition Threshold: 4.1dB;
Demodulation chip: QPSK(SCPC and MCPC compatible)

Symbol rate: 2Mbps~45Mbps System processor: 32bit processor(200MHz) SDRAM: 16Mbyte FLASH: 4Mbyte Video: MPEG-2 Main Level Rate: Up to 15M bits/s Image analysis: 720*576, 720*480

Voice patterns: Dual channel Sampling rate: 32, 44.1 and 48KHz Lithium battery: DC 11.1V 2200mAh(built-in) Input voltage: DC12.5V 1.5A; Dimensions: 205*165*45mm Weight: 810g (including battery pack)

Accessories
1. 12.5V 1.5A DC adapter 1piece
2. Remote control 1piece
3. Bag 1piece
4. LNB(F Quick plug) 1piece
5. Car Power(optional) 1piece

PM me for price !

7inch-Portable-Multi-Function-Satellite-Finder-JTY-907-.jpg<img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit"><img class="previewthumbedit">


Attachments

  • SH104543.JPG
    843.8 KB · Views: 144
  • SH104544.JPG
    774.3 KB · Views: 125
  • SH104548.JPG
    674.6 KB · Views: 132
