LAST G19 KU Test - Ends 3/23/2010, 12 Noon, EST

Status
Please reply by conversation.
SatelliteAV

SatelliteAV

Thread Starter
SatelliteGuys Master
Lifetime Supporter
Sep 3, 2004
6,486
184
Roseville, CA
First, We wish to thank everyone who has assisted with signal reports over the past few weeks to assist with the launch of new transponders on Galaxy19 KU.

Intelsat and RRSat have graciously lit up TP13 (11960) for one last test and we have been asked to provide feedback between now and 12 Noon EST tomorrow, 3/23/2010. TP13 (11960) is fully loaded with active PIDs duplicating TP6. The Uplinker wishes to determine the SQ with all transponders fully loaded.

Downlink Location / Weather Condition / Temperature / Time of Day / Dish Size


  • Peak on TP6 (11842) then scan these three transponders and provide Quality readings.

TP6 - Frequency: 11842 Polarity: Horizontal Symbol Rate: 22000 - SQ
TP13 - Frequency: 11960 Polarity: Vertical Symbol Rate: 22000 - SQ
TP27 - Frequency: 12177 Polarity: Vertical Symbol Rate: 23000 - SQ
Is TP27 (12177) slower to lock or lower SQ?



  • Peak on TP13 (11960) then scan these three transponders and provide Quality readings.

TP6 - Frequency: 11842 Polarity: Horizontal Symbol Rate: 22000 - SQ
TP13 - Frequency: 11960 Polarity: Vertical Symbol Rate: 22000 - SQ
TP27 - Frequency: 12177 Polarity: Vertical Symbol Rate: 23000 - SQ
Is TP27 (12177) slower to lock or lower SQ?

Thanks again for your signal reports!

Last edited:
Keystone7

Keystone7

SatelliteGuys Pro
Oct 17, 2009
507
73
North Indiana
I am located in north central Indiana.

TP-11842 h 22000 95/95
TP-11929 v 22000 95/0
TP-11960 v 22000 90/0
TP-12146 v 22000 95/0

This the best I can do.

SatelliteAV

SatelliteAV

Thread Starter
SatelliteGuys Master
Lifetime Supporter
Sep 3, 2004
6,486
184
Roseville, CA
Sacramento, CA / Clear / 67F / 7.20pm PDT / 90cm Dish

* Peak on TP6 (11842) then scan these three transponders and provide Quality readings.


TP6 - Frequency: 11842 Polarity: Horizontal Symbol Rate: 22000 - SQ 86
TP13 - Frequency: 11960 Polarity: Vertical Symbol Rate: 22000 - SQ 66
TP27 - Frequency: 12177 Polarity: Vertical Symbol Rate: 23000 - SQ 79
Is TP27 (12177) slower to lock or lower SQ? Locks Quickly / Scans Clean.


* Peak on TP13 (11960) then scan these three transponders and provide Quality readings.


TP6 - Frequency: 11842 Polarity: Horizontal Symbol Rate: 22000 - SQ 62
TP13 - Frequency: 11960 Polarity: Vertical Symbol Rate: 22000 - SQ 80
TP27 - Frequency: 12177 Polarity: Vertical Symbol Rate: 23000 - SQ 75
Is TP27 (12177) slower to lock or lower SQ? Locks Quickly / Lower SQ / Scans Clean.

Note: Seems like TP13 is not as sensitive to dish movement as it was during last test. The SQ holds strong for several bumps off peak.

Last edited:
M

Musher

SatelliteGuys Family
Jul 10, 2007
101
0
Milwaukee - Madison WI

tp 6 11842 SS 99% SQ 53%
tp 13 11960 SS 99% SQ 82%
tp 27 12177 SS 99% SQ 78%

Can't peek on any tp's but dish is fix to G19.

Clear sky and Cool about mid 40's at 9:45pm CDT and dish size 90cm
11842 has good SS but the SQ has been in the low 50's since they turned it on.

Musher

Note turn off tp 6 and keep tp 13 on maybe give that I try?

Wescopc

Wescopc

SatelliteGuys Pro
Pub Member / Supporter
Lifetime Supporter
Sep 11, 2005
1,896
206
Canby, Oregon
Downlink Location - Canby, Oregon
Weather Condition - Partially cloudy
Temperature - 52°F
Time of Day 8:30 PM
Dish Size - 90CM

Peak on TP6 (11842) then scan these three transponders and provide Quality readings.

TP6 - Frequency: 11842 Polarity: Horizontal Symbol Rate: 22000 - SQ 78
TP13 - Frequency: 11960 Polarity: Vertical Symbol Rate: 22000 - SQ 64
TP27 - Frequency: 12177 Polarity: Vertical Symbol Rate: 23000 - SQ 72
Is TP27 (12177) slower to lock or lower SQ? No



Peak on TP13 (11960) then scan these three transponders and provide Quality readings.

TP6 - Frequency: 11842 Polarity: Horizontal Symbol Rate: 22000 - SQ 45
TP13 - Frequency: 11960 Polarity: Vertical Symbol Rate: 22000 - SQ 74
TP27 - Frequency: 12177 Polarity: Vertical Symbol Rate: 23000 - SQ 67
Is TP27 (12177) slower to lock or lower SQ? Lower SQ

Larobpra

Larobpra

Pub Member / Supporter
Feb 13, 2008
1,401
9
North of "Upstate NY"
Northern NY / Light rain / 38° / 11:25PM EDT / 90cm ChannelMaster/ MercuryII

  • Peak on TP6 (11842) then scan these three transponders and provide Quality readings

TP6 - Frequency: 11842 Polarity: Horizontal Symbol Rate: 22000 - 51%
TP13 - Frequency: 11960 Polarity: Vertical Symbol Rate: 22000 - 50%
TP27 - Frequency: 12177 Polarity: Vertical Symbol Rate: 23000 - 54%
Is TP27 (12177) slower to lock or lower SQ? No

  • Peak on TP13 (11960) then scan these three transponders and provide Quality readings.

TP6 - Frequency: 11842 Polarity: Horizontal Symbol Rate: 22000 - 45%
TP13 - Frequency: 11960 Polarity: Vertical Symbol Rate: 22000 - 60%
TP27 - Frequency: 12177 Polarity: Vertical Symbol Rate: 23000 - 59%
Is TP27 (12177) slower to lock or lower SQ? No

At my location, there are a few TPs that I have to adjust to get SQ, and when I do, it lowers it on others. Particularly 12115 V 22425 and 12122 H 22000 are 2 I have to fine tune in, and 11966 H 22000 I just can't get it good enough to watch, it seems to have a very narrow beam or something.

qwert1515

qwert1515

SatelliteGuys TheList
Sep 26, 2005
4,244
40
Los Angeles CA
Los Angeles, CA / Clear / 56F / 9.06pm PDT / 120cm Dish

11842 Peaked
TP6 - Frequency: 11842 Polarity: Horizontal Symbol Rate: 22000 - SQ 94%
TP13 - Frequency: 11960 Polarity: Vertical Symbol Rate: 22000 - SQ 94%
TP27 - Frequency: 12177 Polarity: Vertical Symbol Rate: 23000 - SQ 90%

11960 Peaked
TP6 - Frequency: 11842 Polarity: Horizontal Symbol Rate: 22000 - SQ 94%
TP13 - Frequency: 11960 Polarity: Vertical Symbol Rate: 22000 - SQ 94%
TP27 - Frequency: 12177 Polarity: Vertical Symbol Rate: 23000 - SQ 90%

Note: 11842 Peaks 0.2°W of 11960

meinename

meinename

SatelliteGuys Pro
Dec 9, 2008
584
0
Portland, OR
97222 / Cloudy Night / 46F / 23:40 PST / 90cm
(must be an odd night since SQ is up all across the arc)

  • Peak on TP6 (11842) then scan these three transponders and provide Quality readings.

TP6 - Frequency: 11842 Polarity: Horizontal Symbol Rate: 22000 - SQ 72-75
TP13 - Frequency: 11960 Polarity: Vertical Symbol Rate: 22000 - SQ 68-69
TP27 - Frequency: 12177 Polarity: Vertical Symbol Rate: 23000 - SQ 68-69
Is TP27 (12177) slower to lock or lower SQ? NO



  • Peak on TP13 (11960) then scan these three transponders and provide Quality readings.

TP6 - Frequency: 11842 Polarity: Horizontal Symbol Rate: 22000 - SQ 69-72 very bouncy
TP13 - Frequency: 11960 Polarity: Vertical Symbol Rate: 22000 - SQ 72
TP27 - Frequency: 12177 Polarity: Vertical Symbol Rate: 23000 - SQ 69
Is TP27 (12177) slower to lock or lower SQ? NO

11842 H peaks 3 clicks west of 11960 V peak

M

MoPrimo

New Member
Mar 19, 2010
3
0
South of Illinois
G-19 test of TR13

One of my engineers is in MI and reported the SQ from a 36" dish
Picked on TR06 11842
TR6 SQ 65
TR13 SQ 47
TR27 SQ 44
All transponder locked on channels

Picked on TR13 11960
TR6 SQ 59
TR13 SQ 74
TR27 SQ 59
All transonders locked on channels

G

Glorystar México

Member
Jul 23, 2007
8
0
Guadalajara, Jalisco
Clear / 79F / 11:00am CST / 90cm Dish / 1 LNBF placed in Center

* Peak on TP6 (11842) then scan these three transponders and provide Quality readings.


TP6 - Frequency: 11842 Polarity: Horizontal Symbol Rate: 22000 - SQ 62
TP13 - Frequency: 11960 Polarity: Vertical Symbol Rate: 22000 - SQ 62
TP27 - Frequency: 12177 Polarity: Vertical Symbol Rate: 23000 - SQ 53
Is TP27 (12177) slower to lock or lower SQ? Locks Quickly / Scans Clean.


* Peak on TP13 (11960) then scan these three transponders and provide Quality readings.


TP6 - Frequency: 11842 Polarity: Horizontal Symbol Rate: 22000 - SQ 59
TP13 - Frequency: 11960 Polarity: Vertical Symbol Rate: 22000 - SQ 65
TP27 - Frequency: 12177 Polarity: Vertical Symbol Rate: 23000 - SQ 55
Is TP27 (12177) slower to lock or lower SQ? Locks Quickly / Higher SQ / Scans Clean.


Note: TP13 SQ improves when bumped slightly to the east of TP6 peak, TP13 and TP27 both peak at same spot. TP13 SQ holds strong for several bumps off peak.

AcWxRadar

AcWxRadar

SatelliteGuys Pro
Apr 26, 2006
4,575
4
40 miles NW of Omaha. Omaha?
Omaha, NE / Thin Overcast / 46F / 1305 CDT / 1.2 M antenna / AZBox Premium


TP6 - Frequency: 11842 Polarity: Horizontal Symbol Rate: 22000 - SQ 67
TP13 - Frequency: 11960 Polarity: Vertical Symbol Rate: 22000 - SQ 67
TP27 - Frequency: 12177 Polarity: Vertical Symbol Rate: 23000 - SQ 60

TP27 (12177) locks just as quickly as the others, but is weaker. Scan is fine, no troubles. 60% quality for the AZBox is a reflection of a really good signal, 30-32% is borderline. A reading above 70% is just awesome for my AZBox. I have found one TP that showed 98% once. That was almost unbelievable for me.

I adjusted my azimuth by changing my longitude from 96.4°W to 96.1°W and 96.7°W to peak on both TPs. Both TPs were peaked when set to 96.4°W longitude (which is my most accurate entry reflecting my true position). Therefore, altering my longitude or the azimuth of my antenna did not improve my signal quality, rather it dropped by 1 to 2% by going in either direction off center.

I don't wish to adjust my antenna elevation at this time as my antenna is tracking the entire arc so well that I don't want to disturb it, sorry. I know that I can improve the signal quality this way from what I have now, but then I sacrifice the quality from certain other TPs on other satellites. My alignment isn't perfect according to theory, but it is perfect in real world application as I get the most satellites, transponders and channels as-is.

RADAR


Attachments

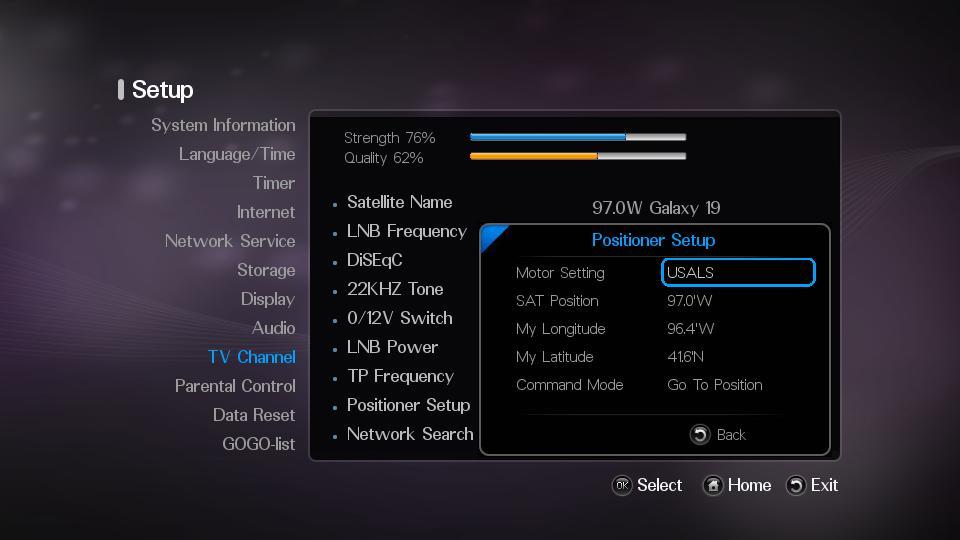

  • Positioner Setup.jpg
    Positioner Setup.jpg
    40.9 KB · Views: 165

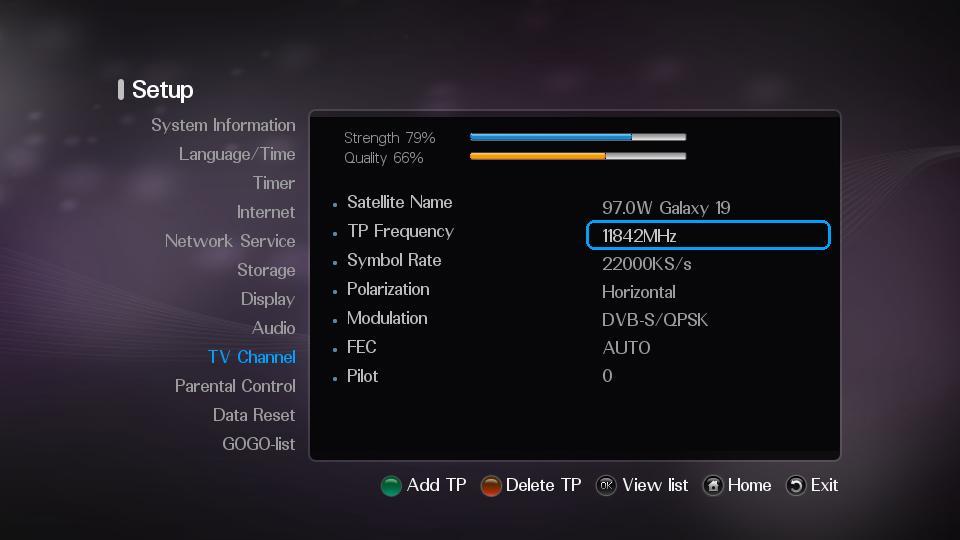

  • 11842 H 22000 Ms.jpg
    11842 H 22000 Ms.jpg
    33.8 KB · Views: 150

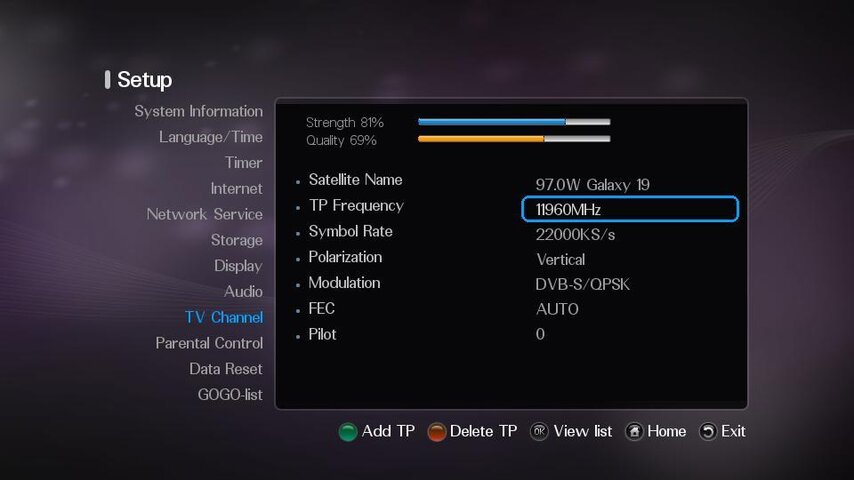

  • 11960 V 22000 Ms.jpg
    11960 V 22000 Ms.jpg
    33.7 KB · Views: 150
  • 12177 V 23000 Ms.jpg
    12177 V 23000 Ms.jpg
    33.5 KB · Views: 147
Last edited:
