OTHER LNB position

jessica6

jessica6

Thread Starter
SatelliteGuys Family
Nov 21, 2021
50
36
Tucson, AZ

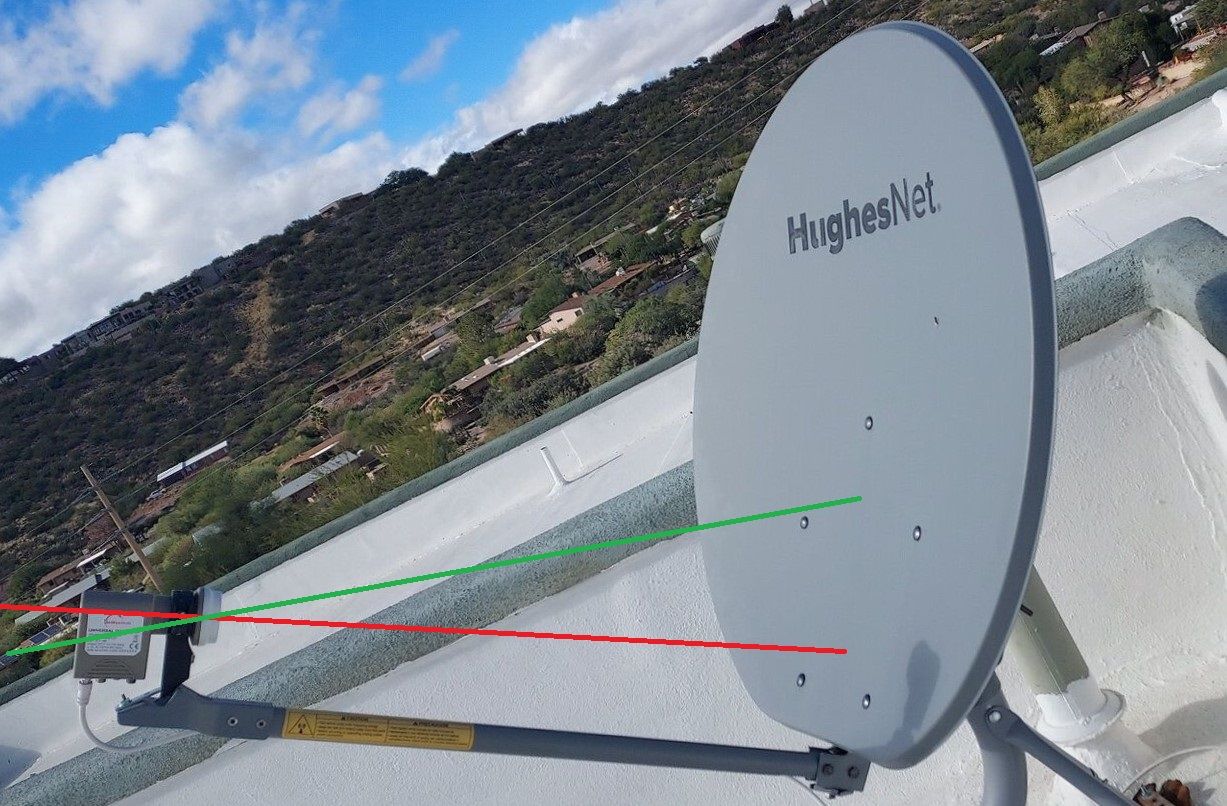

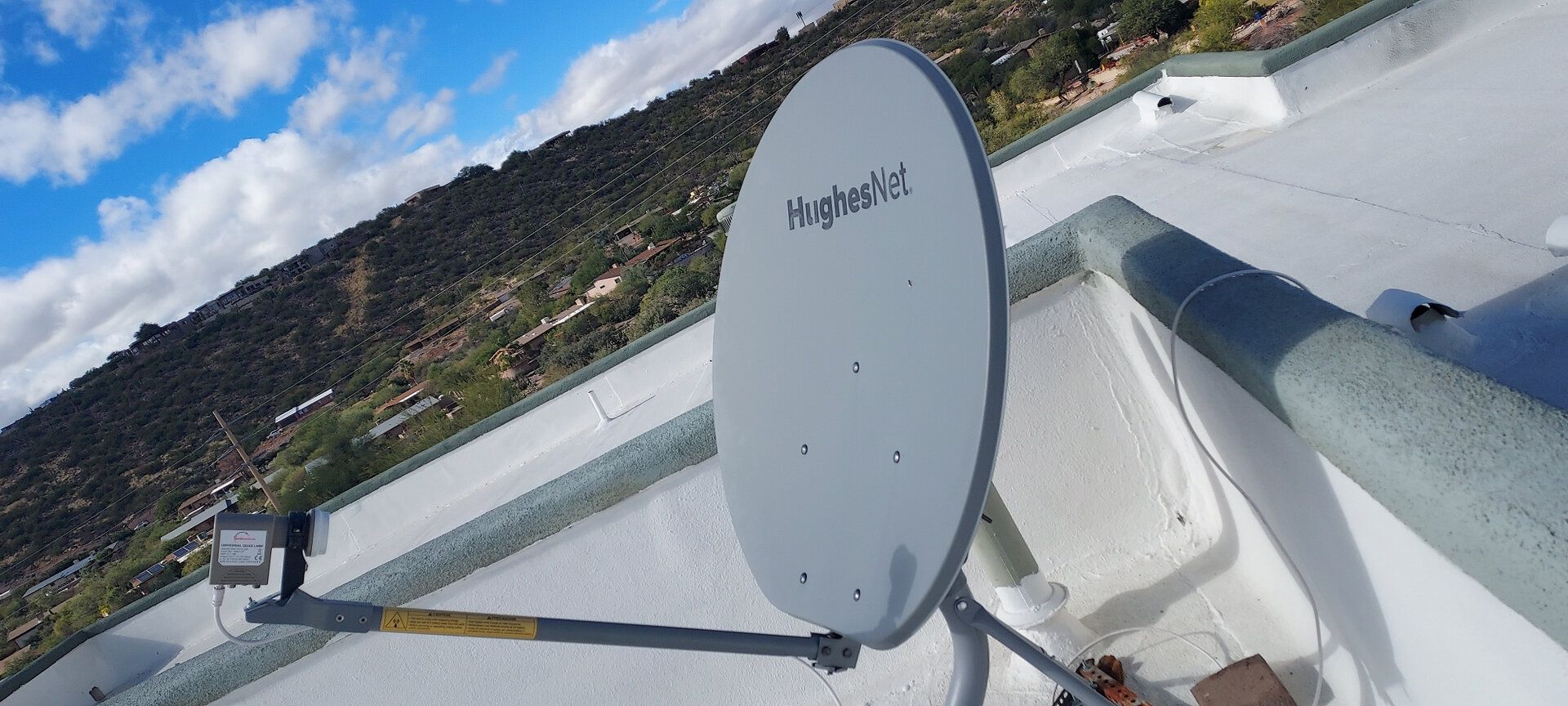

Hello, I know this has been brought up a couple times but I really want to be sure. I took a good solid picture of my dish and LNB. If this isn't positioned correctly, can someone photoshop (or Gimp, if you're like me :) ) the image with some lines indicating where you think it should be pointed?

Dish05


Thanks!

S

SDA_FL_USA

SatelliteGuys Pro
Jun 15, 2018
243
241
FL
I've tested that very dish and it is a poor performer for FTA Sat TV signals. An earlier version with a rectangular arm works Ok. Better to get a dish designed for TV signals.

  • Like
Reactions: comfortably_numb
A

arlo

SatelliteGuys Pro
Dec 4, 2016
757
451
North Eastern

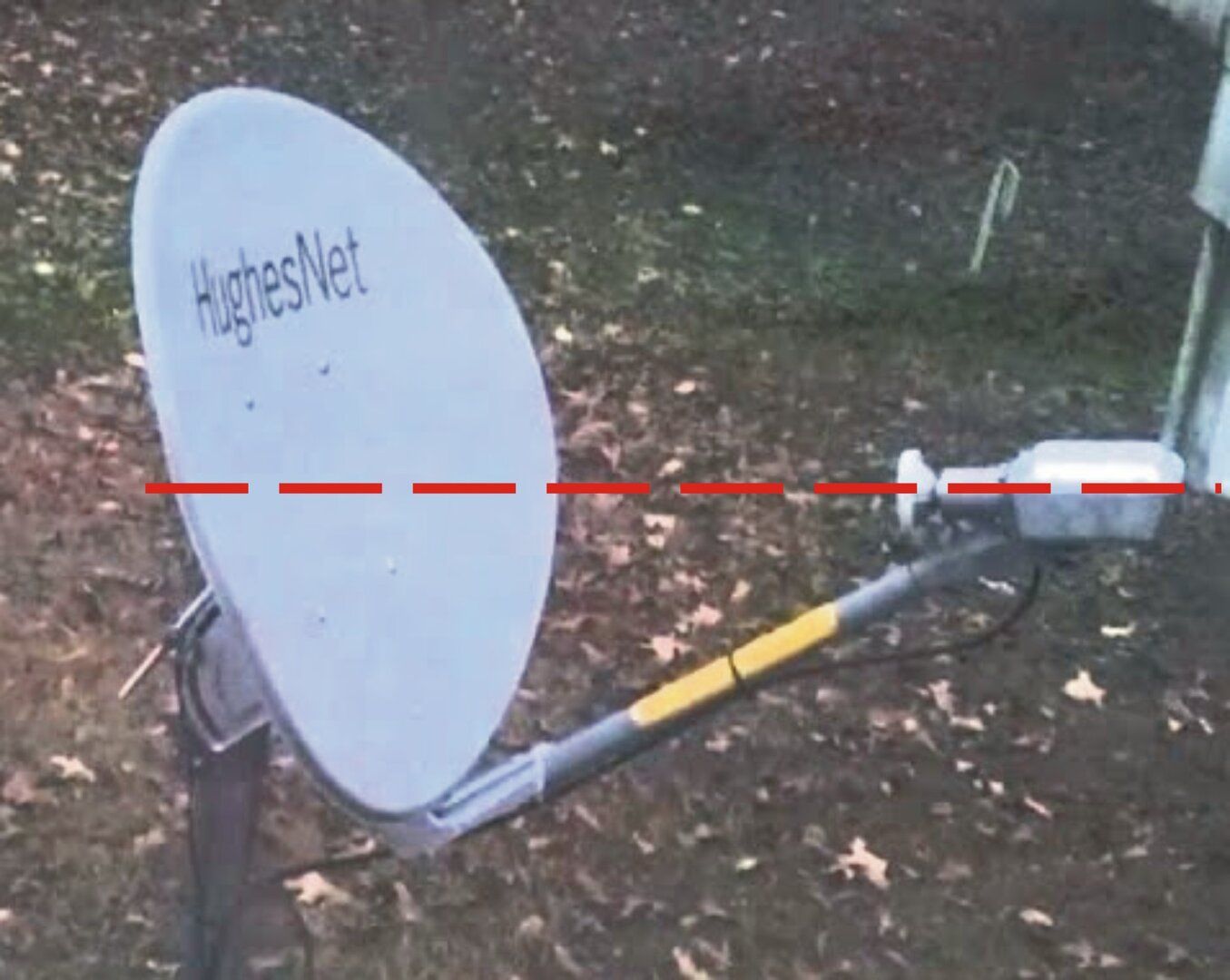

Close to this.
I would ask what is the dish elevation protractor reading versus what tables tell you it's supposed to be aimed at a particular sat. That's a good hint.


Attachments

  • HNet.JPG
    133.3 KB · Views: 49
  • Like
Reactions: jessica6
jessica6

jessica6

Thread Starter
SatelliteGuys Family
Nov 21, 2021
50
36
Tucson, AZ
Ok, looks like I'm a bit low. I'll inch it up. I was thinking maybe the center of the pentagon on my dish was the spot.
Thanks for the advice!

A

arlo

SatelliteGuys Pro
Dec 4, 2016
757
451
North Eastern

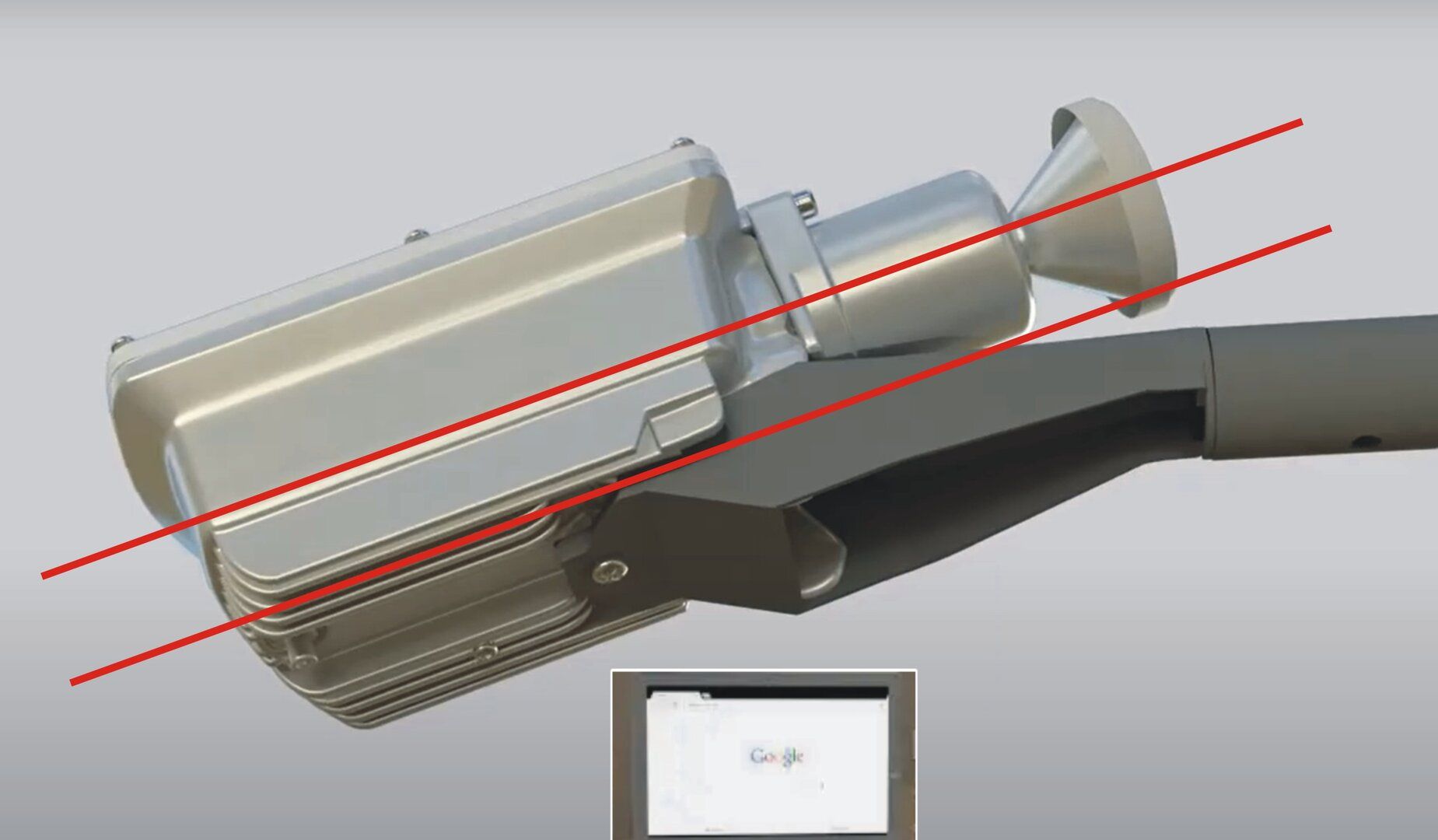

Helps? Look at where the TRIA points at.
Look at the flat mounting point on the bracket and how it points parallel to (along?) the TRIA throat.
I'm rootin' for ya'.


Attachments

  • TRIA.JPG
    105.7 KB · Views: 56
  • Like
Reactions: jessica6
jessica6

jessica6

Thread Starter
SatelliteGuys Family
Nov 21, 2021
50
36
Tucson, AZ
Helps? Look at where the TRIA points at.
Look at the flat mounting point on the bracket and how it points parallel to (along?) the TRIA throat.
I'm rootin' for ya'.
Is that a Red Green reference? We're all in this together! :)

  • Like
Reactions: FTA4PA
cyberham

cyberham

SatelliteGuys Pro
Jun 16, 2010
4,199
2,432
Nova Scotia
... If this isn't positioned correctly...
Necessity is the Mother of invention. Attached is an image of an LNB holder produced yesterday for my 87W fixed dish. It consists of a piece of LNB offset hardware plus a holder supplied by KE4EST that was designed for a GSP dish. I had to bend the holder's mounting tab to an appropriate angle.

To position the LNB, I adjusted and fussed with it until I got maximum receive signal. The holder's most important characteristic is to hold its position perfectly after I stop adjusting. It does that well and everything on 87W is being received well now.

jessica6: how's progress?


Sent from my SM-G950W using Tapatalk

A

a33

SatelliteGuys Pro
Feb 4, 2015
631
418
netherlands europe
To position the LNB, I adjusted and fussed with it until I got maximum receive signal.

Did you first adjust the dish's elevation to exactly the needed elevation-minus-offset angle (using the elevation angle of the dish face)?
Otherwise you might have landed at about the right focal distance, but not at the right offset angle towards the dish.

Greetz,
A33

cyberham

cyberham

SatelliteGuys Pro
Jun 16, 2010
4,199
2,432
Nova Scotia
Did you first adjust the dish's elevation to exactly the needed elevation-minus-offset angle (using the elevation angle of the dish face)?
In the -8C / +17F weather before adding wind chill factor, I quickly adjusted LNB angle and vertical/horizontal placement along with an elevation /azimuth check by tugging lightly on the top and sides of the dish.

The resulting receive levels are in line with previous installations of this dish for 87W. And receive levels range from 0.5 to 1 dB below my 1.2m dish. That was good enough for me and I then ran back into the warm house. All transponders on 87W are being received.


Sent from my SM-G950W using Tapatalk

  • Like
Reactions: a33
cyberham

cyberham

SatelliteGuys Pro
Jun 16, 2010
4,199
2,432
Nova Scotia

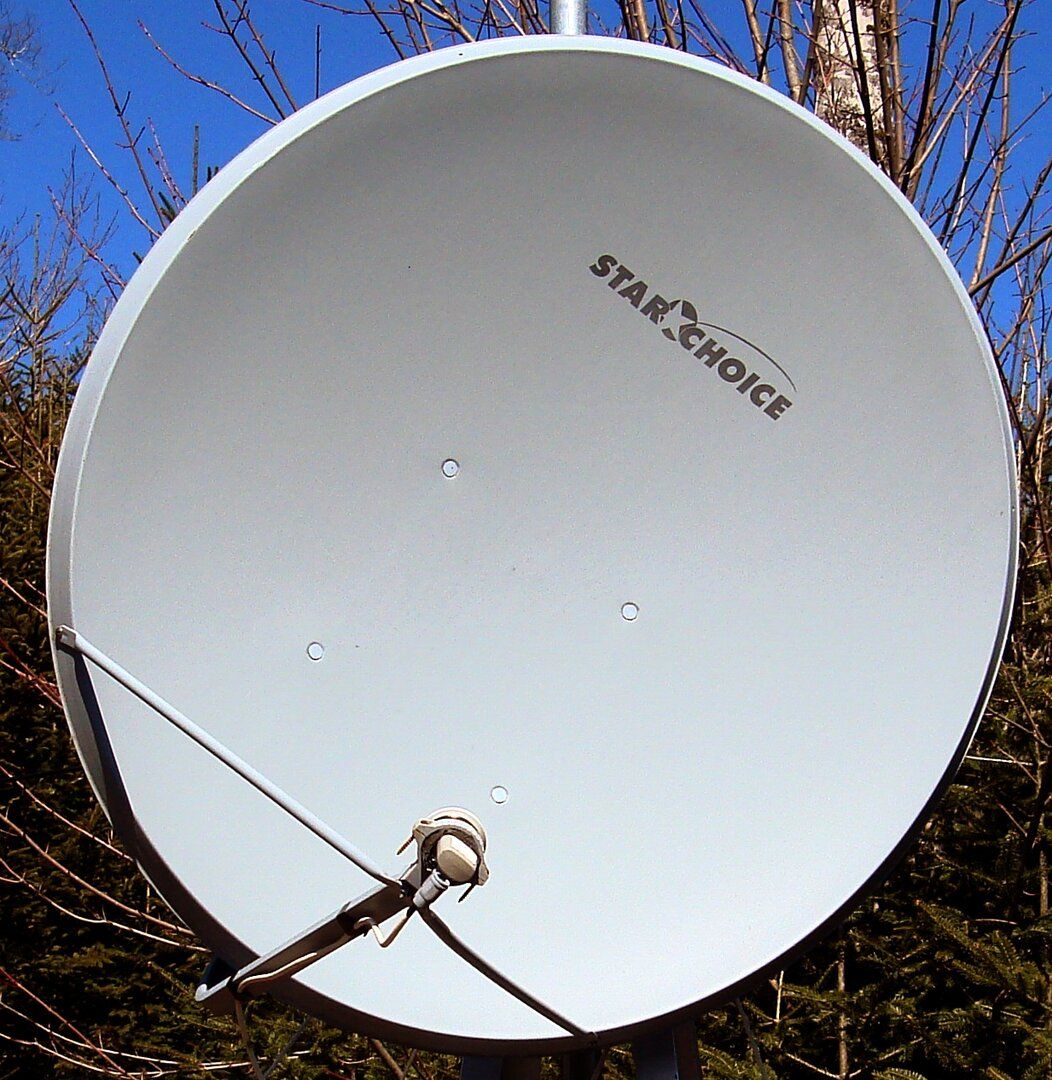

Here's an image from years ago that shows LNB alignment with respect to a dish. The dish motor was pointing to 15W at the time I took this photo. I got good results from this installation.

Star Choice 40x44in

  • Like
Reactions: jessica6
