This is probably a stupid question, but....
In doing some research I found out what the "F" in LNBF stands for. I had been wondering about this in the past and sort of forgot about it. F stands for feedhorn, which I'm sure that everyone but me knew. My question is this - don't all LNB's which are used in FTA have the feedhorn built in? When we use the term LNB do we really mean a LNBF? Were there LNB's that used a separate feedhorn at one time?
When I first started out (knowing even less than I do now), I remember wondering what the difference was between a LNB and a LNBF, and which I needed to buy.
I guess this grew from one stupid question to several stupid questions. I guess the world won't end if I don't get a reply right away



[Mr Tony]

Most FTA LNB’s (or I guess LNBF’s) have a feedhorn built in
The older C-band ones were LNB’s and you could take the back end of the unit off with 4 screws and swap it out with a lower noise figure and still keep the main part that aims at the dish.
Most people just use LNB as the name (even though it’s a LNBF) : )

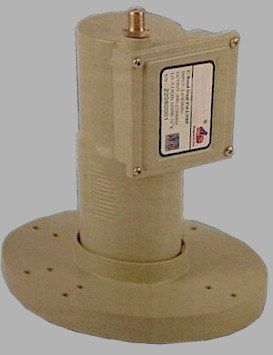

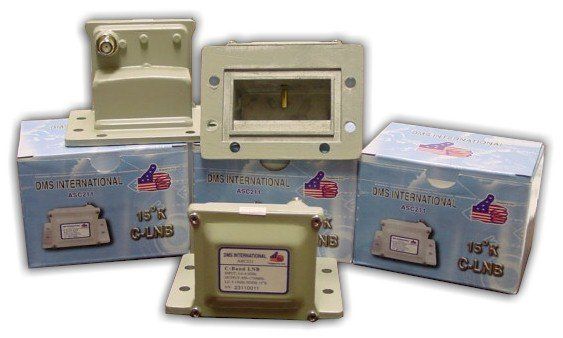

Below are the differences...the first is a LNB, the 2nd a LNBF (these are for C-Band)



[123tim]

Thanks Iceberg. Seems like I missed out on a lot of knowledge not being around when C-band was king. FTA must be getting more streamlined and and user friendly now. Not always a good thing



[voomvoom]

When I first started. I had a hand crank to move the dish. It had a rotor (like most people have to move there OTA antenna's with) to change the polarity. And, it had an LNA. Can you guess what it stood for?
Well, never mind, I'll tell you. Low Noise Amplifier....

Al



[ken2400]

Oh ya the old LNAs. I bought some used stuff back around and remember LNAs. Don't for forget the downconverter. LNB's have them build in. There was something about 70 that comes to mind. I forgot tho.

When I first started. I had a hand crank to move the dish. It had a rotor (like most people have to move there OTA antenna's with) to change the polarity. And, it had an LNA. Can you guess what it stood for?
Well, never mind, I'll tell you. Low Noise Amplifier....
Al



[voomvoom]

Darn, I had forgotten about the downconverter. The only thing 70 I can think of, would be maybe a 70 degree LNA. Seems like my first one might have been a 120 degree LNA.

Al



[123tim]

This is my thread, I can diverge it can't I?
Since it's cool to look back:
(A) What year did Neiman Marcus sell a satellite system for $36,000?
(B) Does anyone know who the name of the first individual to receive C-band satellite signals on a homebuilt satellite system?
(C) Do you know when the first Satellite TV transmission occurred?
(D) Do you remember your first system?



Not yet.
Not yet.
Not yet.





Ok. now.




A -1979
B- Taylor Howard (1976)
C-1962
D-
These answers were found here:
http://www.sbca.com/key_dates.html



[voomvoom]

a) Don't remember him, but I saw (but couldn't afford) a Zenith Satellite System for $6000. Ouch.... In the late 70's, I was making maybe twice that in a year's time.
b) Don't remember the name so I can't vouch for him (Taylor Howard), but I know I heard/read about somebody years ago.... (late 70's again)
c) I was thinking Sputnik was in the late 50's.... I may be wrong, but it's what I think. Ooops, you said TV didn't you. Nope, don't have a clue.
d) Not only do I remember it, I still have it, updated, modified, refitted, cussed at, but mostly appreciated.

Al



[123tim]

Al,

So when did you get your first system?
Neiman Marcus is a high-end catalog store sort of like.....well......really, I don't know.
I hope that I can always update, refit and modify my system. Brand new now, but not for long.
Take care.



[voomvoom]

Not totally sure, but it was either 78 or 79.

Al



[mbarnes]

Back in the old days, there were LNAs and downconverters. Microwave circuits were very expensive and very touchy. The circuitry common in todays wireless phones (800/900/1200MHz) cost thousands of dollars and would be fairly large and cumbersome. So, early satellite systems used a 70 MHz If frequency. The receiver sent a signal to the downconverter to switch between transponders.

Today's technology is much better. Now there are LNBs which have a preamplifier and a block converter all in one package, and use a much higher IF frequency, typically L-band or 970-1250 MHz. With this wide range, the entire satellite bandwidth is available to the receiver with no external switching.

There are many types of dishes and feed systems available. Some feedhorns are capable of holding several LNBs. Mostly the advent of DBS/DSS systems made it much cheaper and easier for installations to have a combined LNB and feedhorn, hence the LNBF. But there are still many applications using separate LNBs and feedhorns.

I've got a few old Ku band LNBs kicking around that are as big as typical C-band LNBs. The newest ones are 1/4 the size.

BTW, the RF package on our uplink system still uses an LNA and downconverter feeding the indoor package with a 70 MHz IF.



[Tron]

I've got a Unimesh buttonhook and LNA sitting in my shed Well, the LNA isn't Unimesh, but the buttonhook is. The LNA has a large (N-type?) connector on it, and there's a cable that goes from it to another unit which is attached to the LNA with electrical tape (the downconverter?) I got these when a neighbor threw his BUD out a few years ago (before I got into Ku FTA). The mesh dish was hopelessly bent and corroded, but the buttonhook and LNA where in fine shape. There's also a polarotor... Might come in handy someday



[bruce005714]

Linear and Circular LNB

I am new to FTA world. I still did not get good information about linear and circular LNB. Generally people said, linear LNB for FTA , circular LNB for dish netwrok. Can I use Linear LNB for dish network? Also, circular LNB can be used for FTA?
I'm a little bit dull.



[PSB]

No! You will need a linear LNBF for 95% of KU signals FTA
And a Circular LNBF for the very few FTA channels on Dishnetwork.

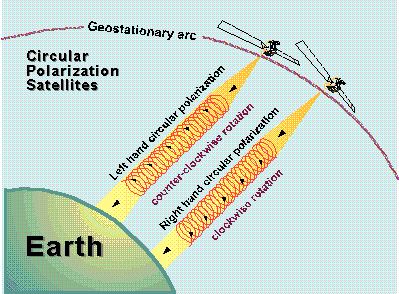

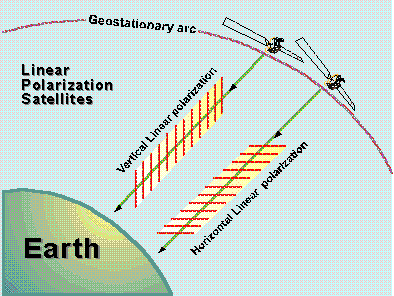

Have a look at the below pictures.......
