MoCA errors and 1305 pop-ups (1 Viewer)

Register Today to see less ads! It's Free!

pjsjeep

SatelliteGuys Guru
Pub Member / Supporter
Oct 22, 2008
131
27
Tuscaloosa AL
That would prove it's the internet. BTW, who is your provider and what do you connect the Hopper to (Router, Gateway, etc?)
I have Spectrum via a router to modem. But my connection hopper to router is via a wall plug Ethernet hub. If it turns out looks like internet connect I going to run a cable direct to router. Can I use the button Ethernet jack instead of top?

Register Today to see less ads! It's Free!

TheKrell

A mighty and noble race originating on Altair IV.
Pub Member / Supporter
Jan 4, 2007
31,618
26,385
Fairfax, VA
I have only used the bottom Ethernet jack on my H3. Others will tell you it's reserved for a WJ access point. I don't have such, so I plugged in the only jack I thought was GigE.


charlesrshell

SatelliteGuys Crazy
Pub Member / Supporter
Lifetime Supporter
Jan 14, 2006
9,338
4,046
O'Fallon, IL
I have only used the bottom Ethernet jack on my H3. Others will tell you it's reserved for a WJ access point. I don't have such, so I plugged in the only jack I thought was GigE.

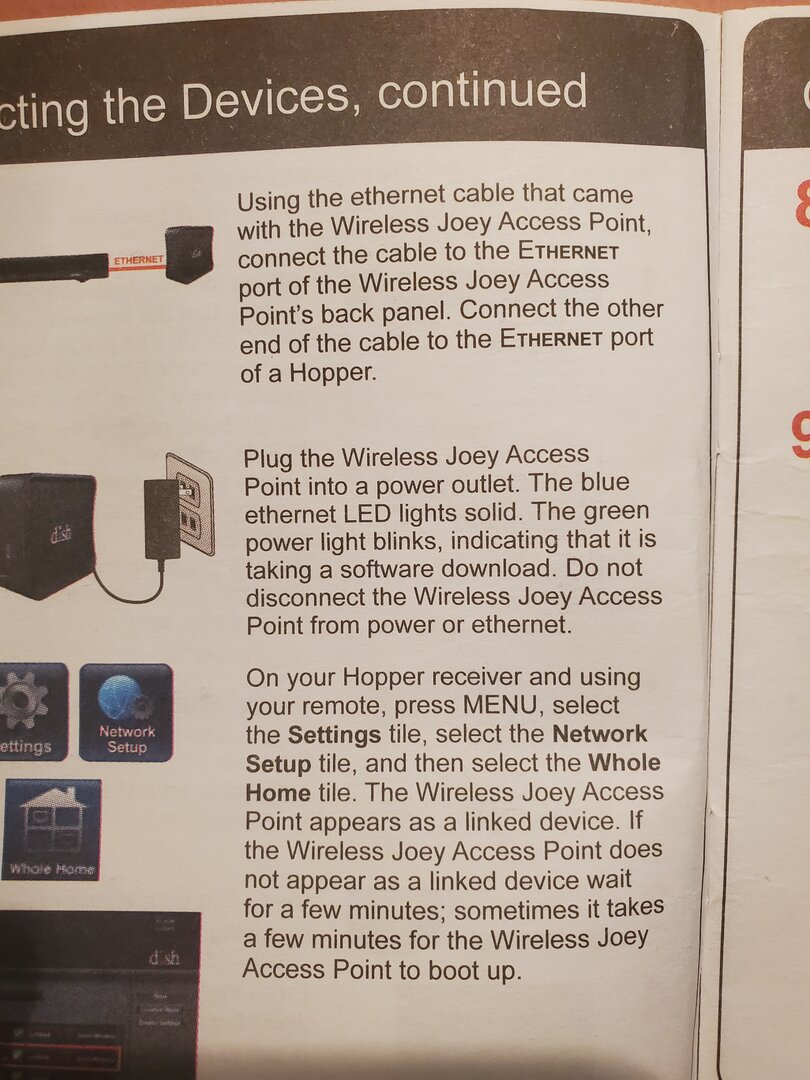

The WAP instructions I got when it first came out says to just connect the cable to the Ethernet port of the Hopper. Doesn't state which port to use. I have my H3 Internet connected to the bottom Ethernet port and my WAP to the upper. I think both upper and lower Ethernet ports are GigE but not sure.


Attachments

  • WAP Instructions.jpg
    WAP Instructions.jpg
    170 KB · Views: 20
  • Like
Reactions: TheKrell

ethanlerma

SatelliteGuys Pro
Jul 1, 2021
205
288
Texas
I think both upper and lower Ethernet ports are GigE but not sure.
They both are. And the WAP is also GigE, given the fact that it needs the bandwidth when running multiple WJ. It has a 802.11AC 4x4 chip, for a maximum PHY of 1.7Gbps, and each WJ is 3x3 equipped for a PHY of 1.2Gbps, although I believe only one link is actually running since the maximum recommended WJ are 4 per AP.


charlesrshell

SatelliteGuys Crazy
Pub Member / Supporter
Lifetime Supporter
Jan 14, 2006
9,338
4,046
O'Fallon, IL
They both are. And the WAP is also GigE, given the fact that it needs the bandwidth when running multiple WJ. It has a 802.11AC 4x4 chip, for a maximum PHY of 1.7Gbps, and each WJ is 3x3 equipped for a PHY of 1.2Gbps, although I believe only one link is actually running since the maximum recommended WJ are 4 per AP.
Thanks ethanlerma. Good info

  • Like
Reactions: ethanlerma

olds403

SatelliteGuys Pro
Feb 3, 2009
453
380
michigan
I checked the Whole Home screen from the H3 for my Joey 3 that is hardwired and I get 1305 errors on. Here are the numbers

639 Receive Mbps 639
639 Send Mbps 639
0 Running Receive Error 0
0 Running Send Error 0
-8 Receive Signal Strength -12
39 Signal-To-Noise-Ratio 40

Do these indicate any issues? I thought the negative numbers for Signal Strength looked odd but don't know what they are supposed to be. I also get stuttering audio when I skip forward and have to either skip back or skip ahead again to get the audio right again.


ethanlerma

SatelliteGuys Pro
Jul 1, 2021
205
288
Texas
I checked the Whole Home screen from the H3 for my Joey 3 that is hardwired and I get 1305 errors on. Here are the numbers

639 Receive Mbps 639
639 Send Mbps 639
0 Running Receive Error 0
0 Running Send Error 0
-8 Receive Signal Strength -12
39 Signal-To-Noise-Ratio 40

Do these indicate any issues? I thought the negative numbers for Signal Strength looked odd but don't know what they are supposed to be. I also get stuttering audio when I skip forward and have to either skip back or skip ahead again to get the audio right again.
Those all look solid to me, the max link is 639Mbps, no errors, the negative numbers are signal strength in dBm, which means the closer to 0 the better. SNR or signal to noise ratio, as the name implies, is the amount of dBm between the noise floor and signal strength, so higher is better (the receiver will only show up to 40).

My numbers from my primary Hopper to my 4K Joey are 639, 0, 0, -14, 39 and to my secondary Hopper are 639, 0, 0, -19, 39. In both cases my signal is lower than yours (the numbers might be bigger, but remember, they are negative so closer to 0 is better) and I have not gotten complaints from the family.

  • Like
Reactions: charlesrshell

olds403

SatelliteGuys Pro
Feb 3, 2009
453
380
michigan
So if my signal strength to my hardwired Joey 3 looks good, what is the explanation for the 1305 errors and stuttering audio? I know all the hoops that you have to jump through to get a tech out and if they don't see anything concerning by checking remotely what do I tell them to get the issue taken care of?


ethanlerma

SatelliteGuys Pro
Jul 1, 2021
205
288
Texas
So if my signal strength to my hardwired Joey 3 looks good, what is the explanation for the 1305 errors and stuttering audio?
I would probably guess the Joey itself, especially if you have a separate Joey that works perfectly fine. Could also be the wiring even though the signal looks fine.

I know all the hoops that you have to jump through to get a tech out and if they don't see anything concerning by checking remotely what do I tell them to get the issue taken care of?
What I would probably do (unless you want to be one of those guys that scream at the rep until they get what they want) is call in, let tech support know that this is a sporadic issue, not one currently occurring (make sure they are aware of this, since it will make it clear that it is something that most likely will need a tech visit). Let them do whatever troubleshooting they want, and once they have "depleted all options" or whatever have a tech scheduled.
When you have the tech at your home, this part is depending on how experienced of a tech you get so YMMV. Most should have the tools to make sure the coax run is fine (called a continuity tester I think?) among other things he can check, if nothing comes up I would just politely ask the tech to replace the Joey and/or the Solo Hub (a little orange splitter mounted somewhere in your home) for good measure. They tend to be more reasonable then phone reps so that should not pose an issue (at least in my experience).


HipKat

SatelliteGuys Master
Pub Member / Supporter
Aug 25, 2017
9,306
14,955
Pekin, IL
So if my signal strength to my hardwired Joey 3 looks good, what is the explanation for the 1305 errors and stuttering audio? I know all the hoops that you have to jump through to get a tech out and if they don't see anything concerning by checking remotely what do I tell them to get the issue taken care of?
If you have a Joey that works fine, swap locations and see if the problem moves with the Joey or stays with the room it was in.


Bobby

Publican
Supporting Founder
Lifetime Supporter
Sep 7, 2003
62,411
15,309
Rohnert Park, CA
If you have a Joey that works fine, swap locations and see if the problem moves with the Joey or stays with the room it was in.
Yes, this will prove the Joey part of it. If the trouble follows then the Joey is at fault. If the trouble continues, this time with the other Joey, it will be something with the wiring or perhaps a splitter, hub.


HipKat

SatelliteGuys Master
Pub Member / Supporter
Aug 25, 2017
9,306
14,955
Pekin, IL
How about an SWR or TDR?
I use this, but a good toner, like a Fluke, which I also carry, can really let you know if there are issues with the cabling.




olds403

SatelliteGuys Pro
Feb 3, 2009
453
380
michigan
If you have a Joey that works fine, swap locations and see if the problem moves with the Joey or stays with the room it was in.
The other Joeys are wireless and I got the wired Joey 3 in the master bedroom because of all the issues I had with the wireless one that was there. That room is the farthest from the AP and has the most walls for the signal to pass through to get there. I will take your advice about calling ahead and letting them know it is an intermittent issue. Thanks for your suggestions, you have always been a lot of help here and I appreciate it.


HipKat

SatelliteGuys Master
Pub Member / Supporter
Aug 25, 2017
9,306
14,955
Pekin, IL
The other Joeys are wireless and I got the wired Joey 3 in the master bedroom because of all the issues I had with the wireless one that was there. That room is the farthest from the AP and has the most walls for the signal to pass through to get there. I will take your advice about calling ahead and letting them know it is an intermittent issue. Thanks for your suggestions, you have always been a lot of help here and I appreciate it.
Ahhh, OK. Man I thought there was good thing going there


pjsjeep

SatelliteGuys Guru
Pub Member / Supporter
Oct 22, 2008
131
27
Tuscaloosa AL
Well after disconnecting my Ethernet from hopper, I had no problems with 1305 error for a week. I then reconnected and boom got the error. I am now using wifi to connect hopper and see if problems occur. I believe my problems are with my outlet hubs.

  • Like
Reactions: charlesrshell

HipKat

SatelliteGuys Master
Pub Member / Supporter
Aug 25, 2017
9,306
14,955
Pekin, IL
Well after disconnecting my Ethernet from hopper, I had no problems with 1305 error for a week. I then reconnected and boom got the error. I am now using wifi to connect hopper and see if problems occur. I believe my problems are with my outlet hubs.
Outlet hubs?? If you're using any kind've extenders for your Internet, that is probably the problem

  • Like
Reactions: charlesrshell
