have anyone here have been able to use one of these modded Russian LNB, are they really worth it?, I can bearly speak english so I know nothing about russian, can someone explain more about them?




Thanks.

  • Like
Reactions: danristheman

Magic Static

FTA Geek
Staff member
HERE TO HELP YOU!
Lifetime Supporter
Oct 12, 2010
7,419
4,743
Montana
Because those are C-Band LNBFs used on a small offset dish, the angle they need to be at makes them fill with water. So there are some homemade caps to keep the water out. I would also locate and drill a drain hole on those LNBFs.

  • Like
Reactions: iBoston

. Raine

SatelliteGuys Pro
Pub Member / Supporter
Aug 6, 2013
2,690
946
North America, CT.
The LNBF's themselves don't look like anything special, you should be able to do the same type of mods to LNBF's available here in the states.

The first piece they insert in the LNBF throat looks like a dialectric plate to get circular signals, pretty much useless for most FTA over here. The other two there's no way to tell how good they're without knowing about the TP's they're aiming at.


danristheman

SatelliteGuys Pro
Jan 25, 2011
3,145
1,134
85w
In way a reverse conical scaler i wish who posted the video to youtube give details. What satellite, power levels i would like some info.


danristheman

SatelliteGuys Pro
Jan 25, 2011
3,145
1,134
85w
He has plenty of videos up there on youtube manly he is working on ku band but I would like to hear from Brian or Mike Kohl on this one. SuperAlyno


Borisov-54

SatelliteGuys Guru
Jan 4, 2013
146
85
Minsk Belarus
Good afternoon. Happy New Year.
Thanks danristheman and KE4EST that helped to find this topic.
This LNB, the range C. With its depolymer I experienced.At us, this LNB works well with frequencies, circular polarization-R and L.
And you have all satellites, C range, linear-V and H.

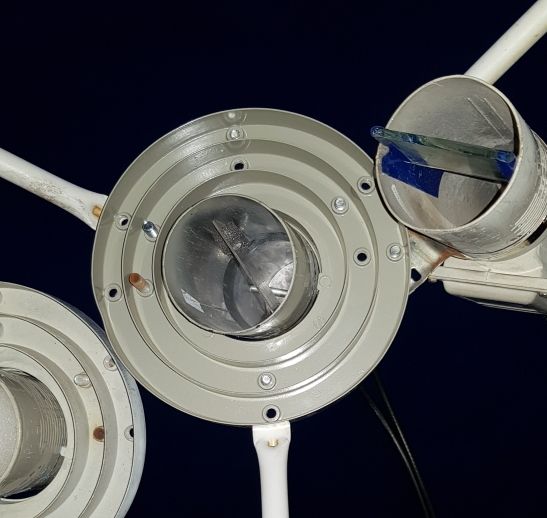

Inside the LNB, Alyano depolarizer shtirevoy.Stoyat rivets iron.

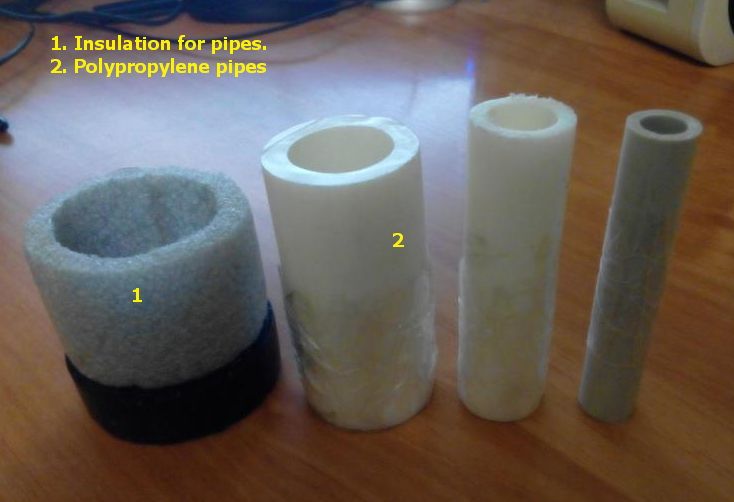

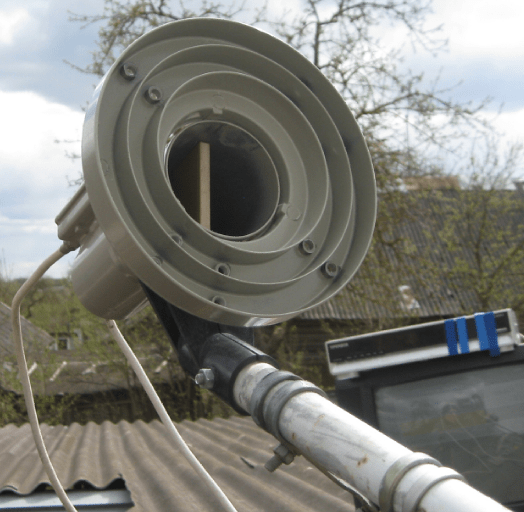

My friend from Western Ukraine designed better LNB than Yaliano. With water pipes and a plate-cross.

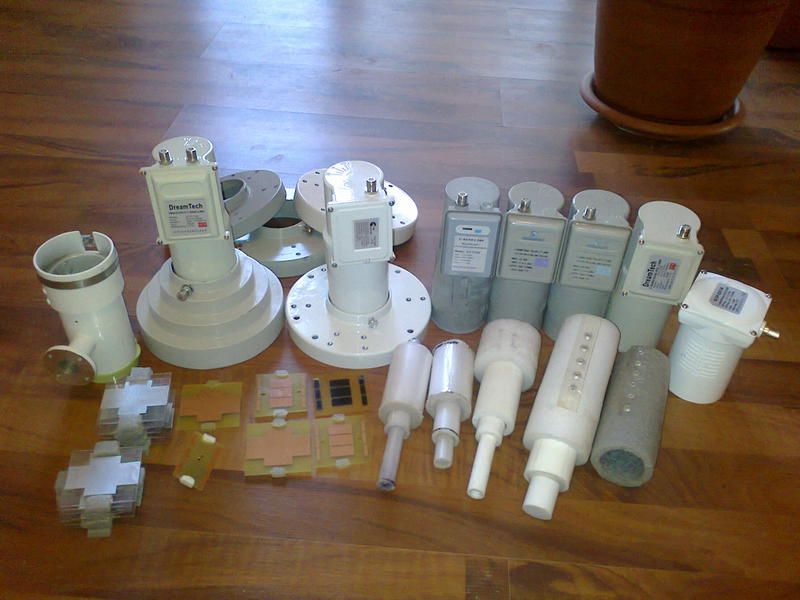

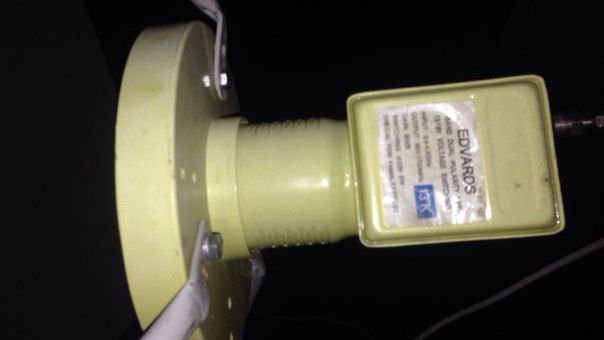

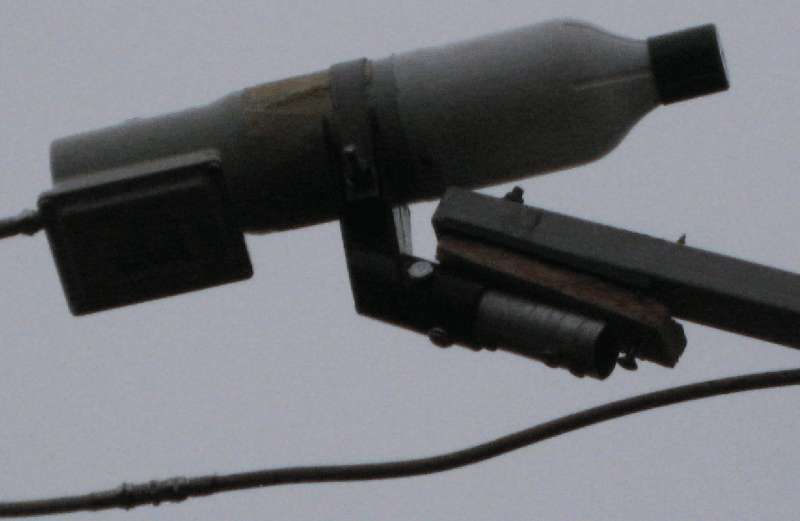

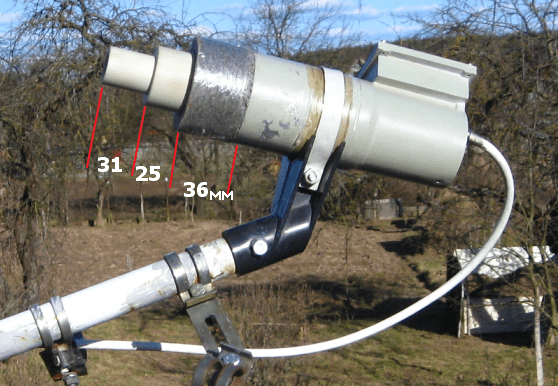

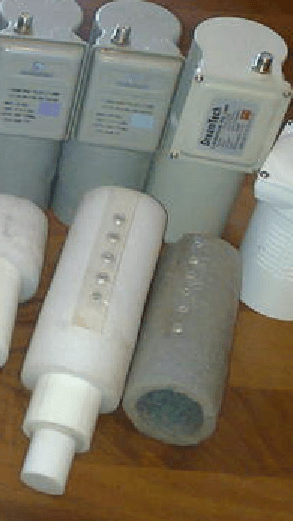

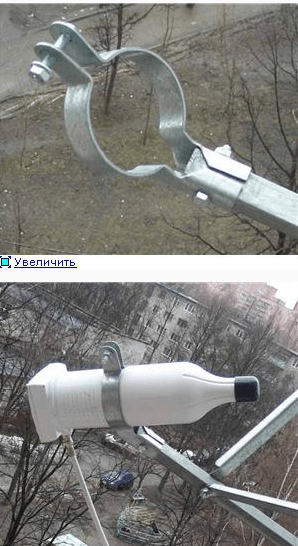

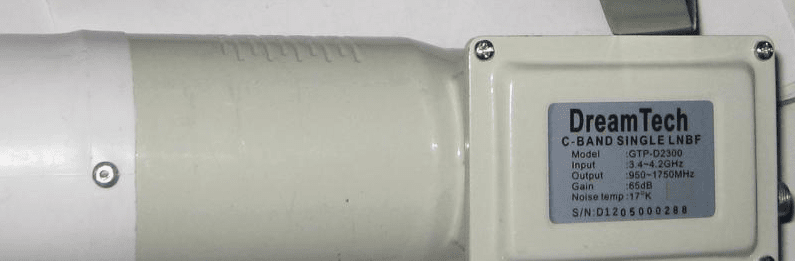

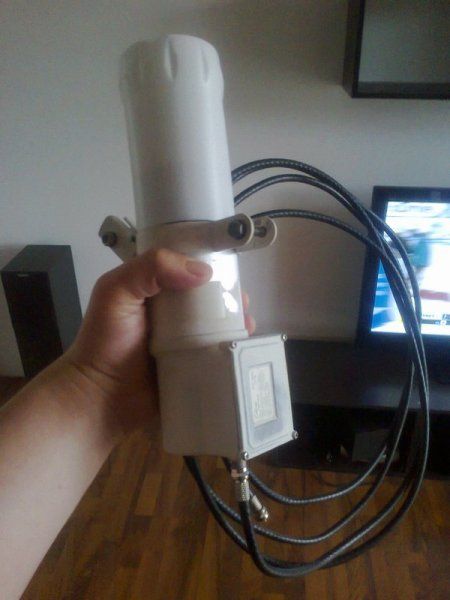

First a few photos of the LNB Alyno.

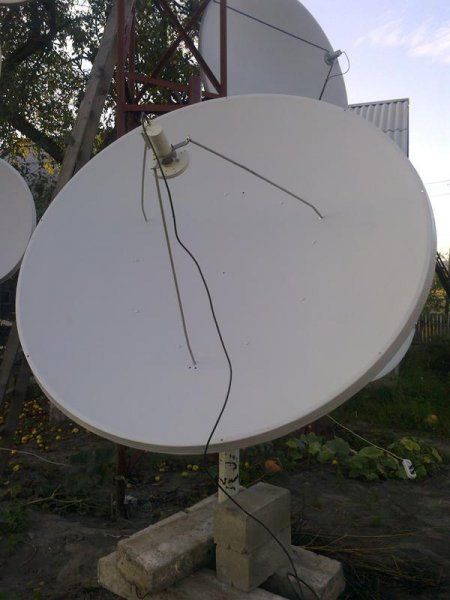

This modified LNB works on small Dish, 0.6-1.2 m, the opening angle is 70-90 degrees.

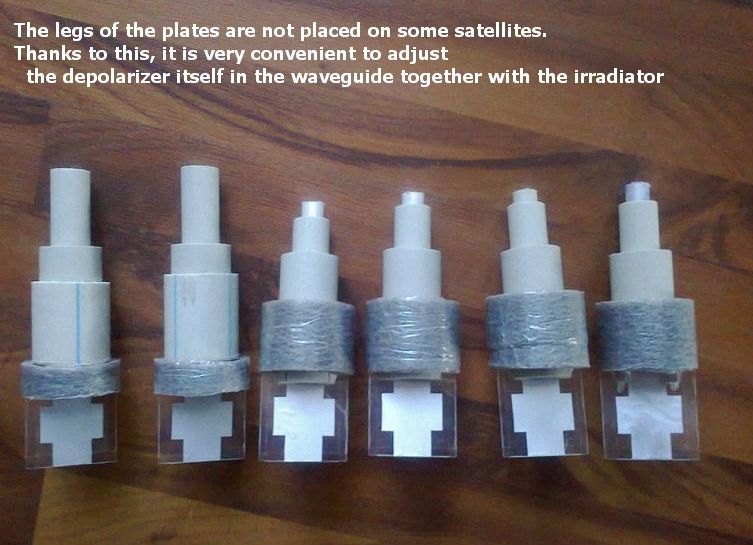

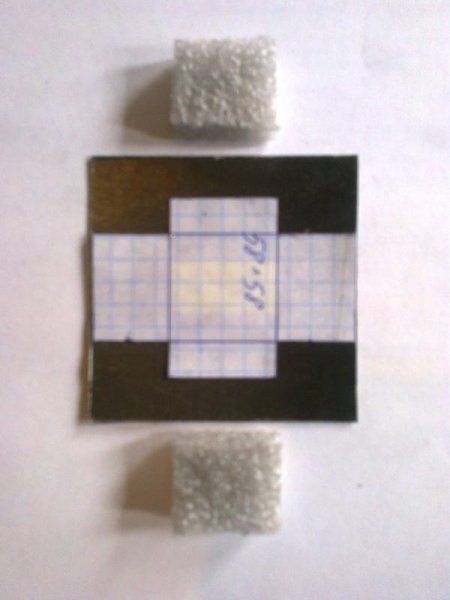

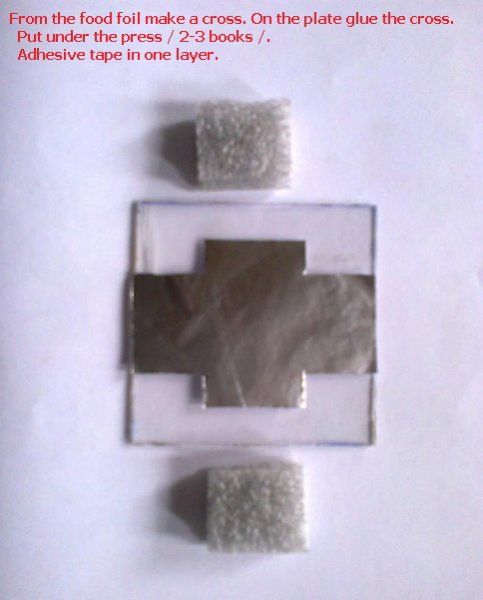

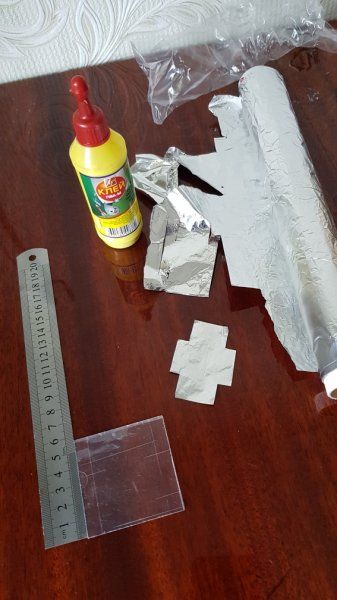

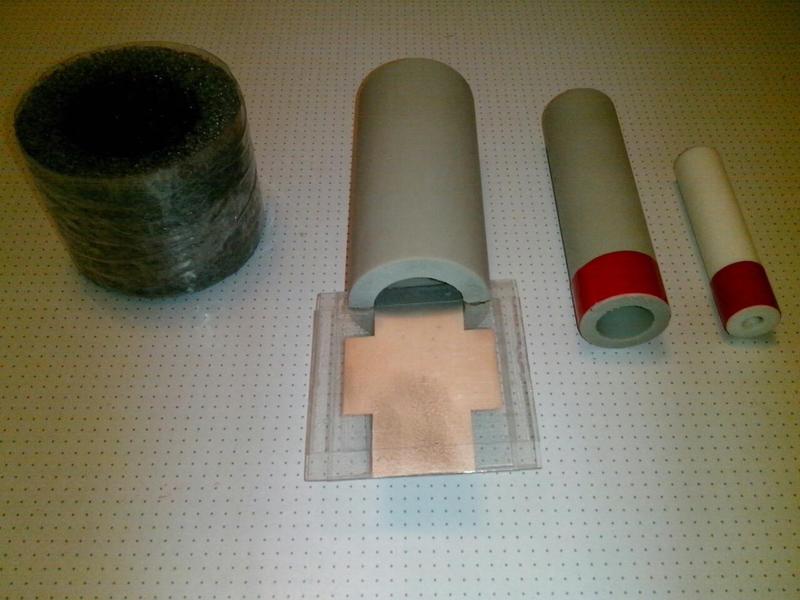

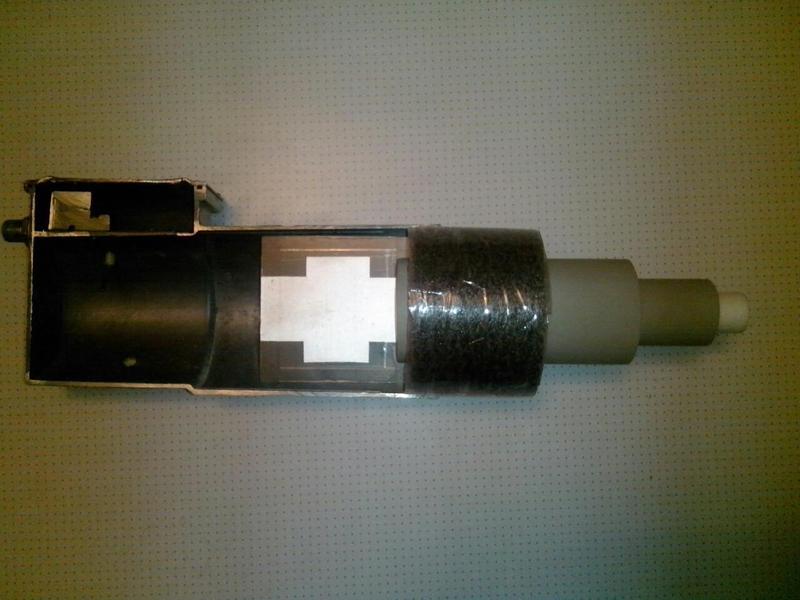

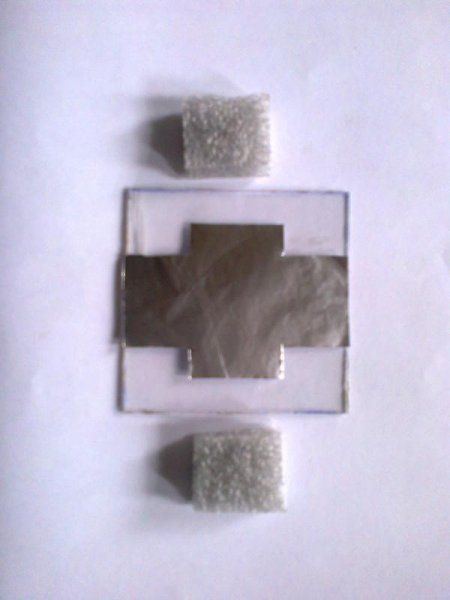

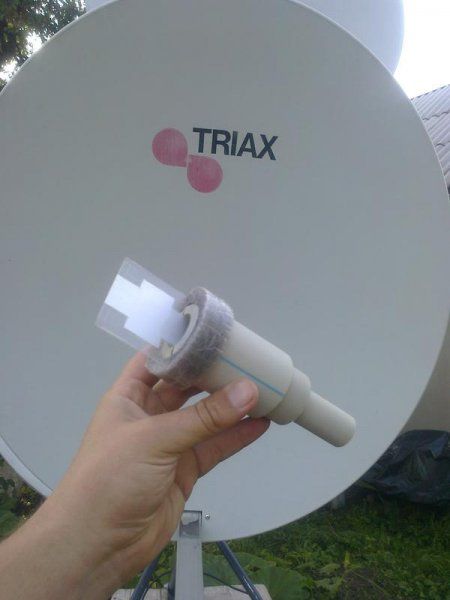

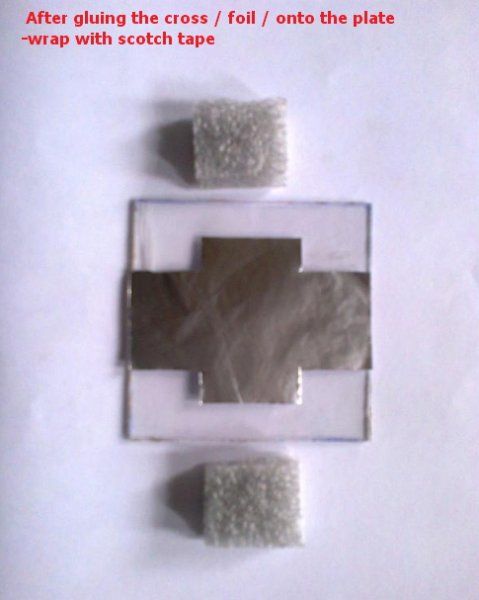

My friend Vitaly from Western Ukraine has passed here such a modified LNB. This plate is a cross, you can test it at yourself. To do it, I'll write below. With LNB, take out your native plate and put a new one. The result is excellent. Started with 5 photos.

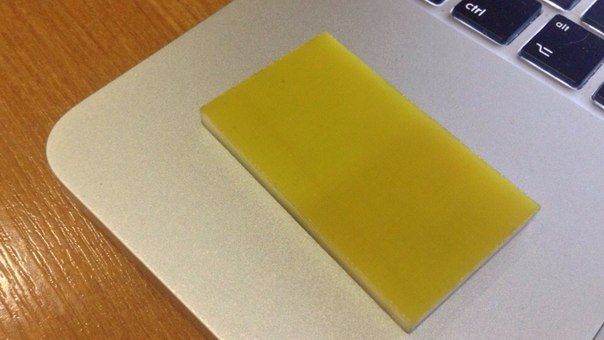

The guys from Siberia, instead of the native plate, put glass. The thickness of the glass is 4 mm, the signal is slightly growing.Photo-11

To be continued.


Attachments

  • ?-??????-?????.png
    82.2 KB · Views: 159
  • ?-?-??-1.jpg
    26.1 KB · Views: 143
  • ?-??????.png
    58.8 KB · Views: 139
  • ????.? ???.png
    ????.? ???.png
    116.9 KB · Views: 143
  • ??.????.jpg
    31.7 KB · Views: 142
  • ?????.jpg
    23.3 KB · Views: 150
  • ?-?.jpg
    17.7 KB · Views: 141
  • ???-1.8?-40?.jpg
    38.3 KB · Views: 140

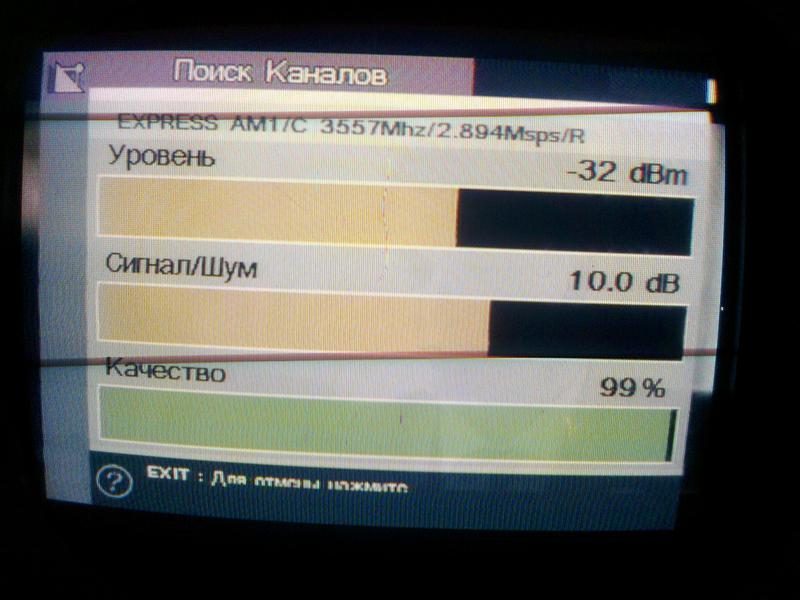

  • ???-40?-3557-????-51%.jpg
    46.6 KB · Views: 138
  • ???-40?-3557-?????-99%.jpg
    56.8 KB · Views: 136
  • ?-???-????-??-??.jpg
    39.9 KB · Views: 125
Last edited by a moderator:

Borisov-54

SatelliteGuys Guru
Jan 4, 2013
146
85
Minsk Belarus
All the sizes and his photos, Vitali-allowed.

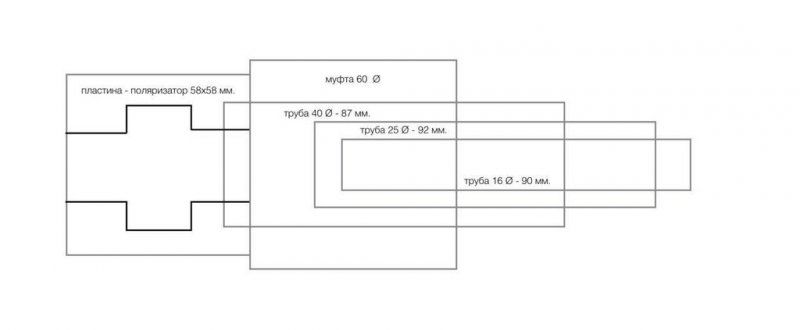

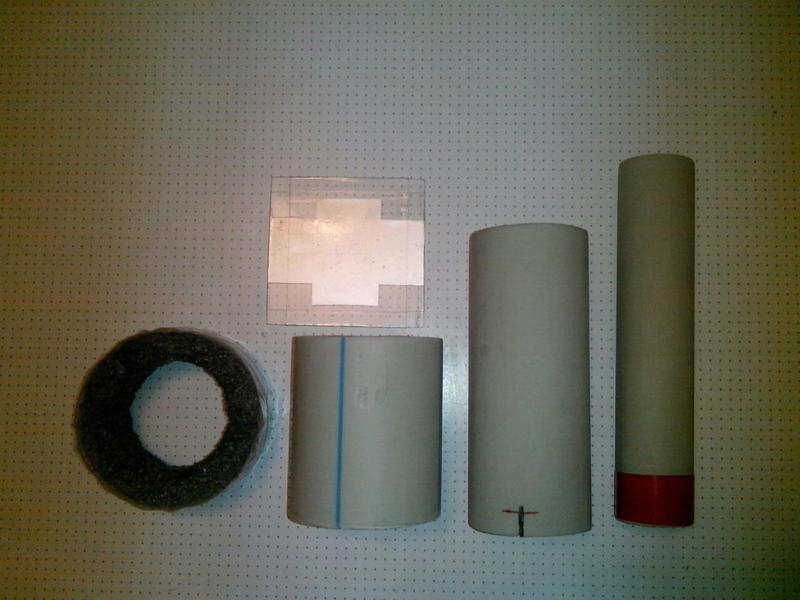

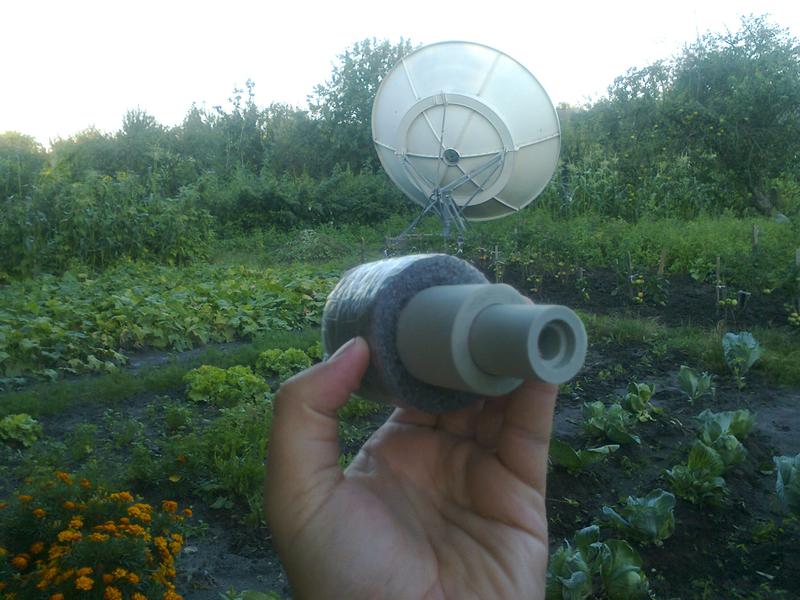

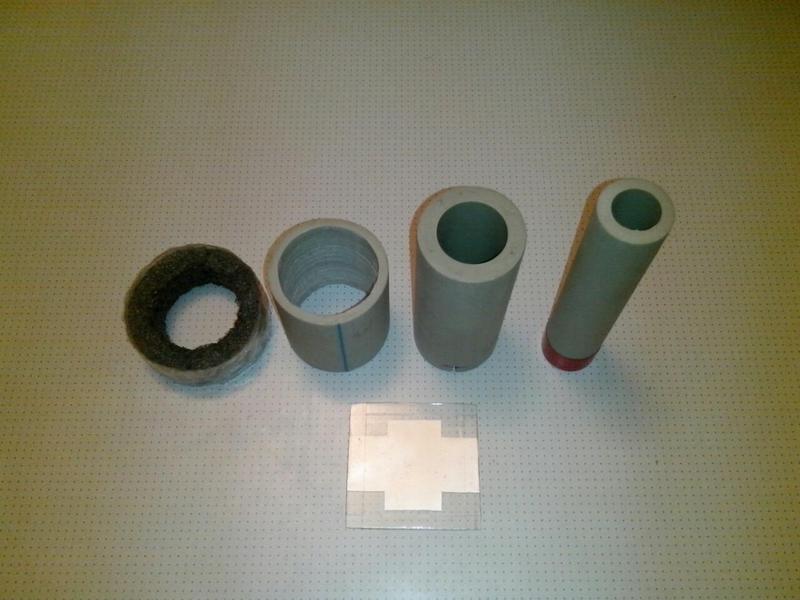

The irradiator from Vitaliya.Ugol opening 80-90 degrees.Dish 1,0 m and more
The irradiator from Vitaliya.Ugol opening 70 degrees.Dish 0,6-1,0 m and more

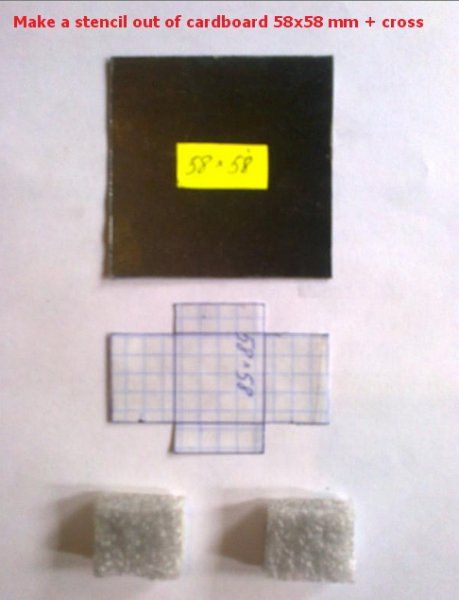

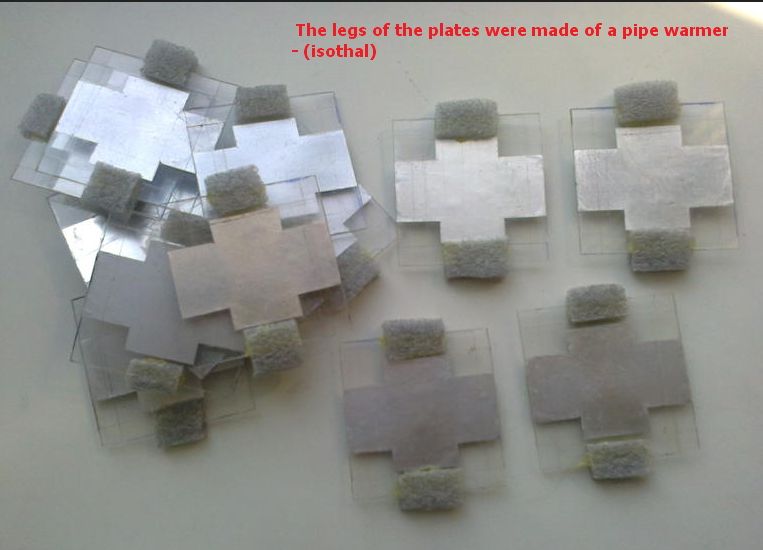

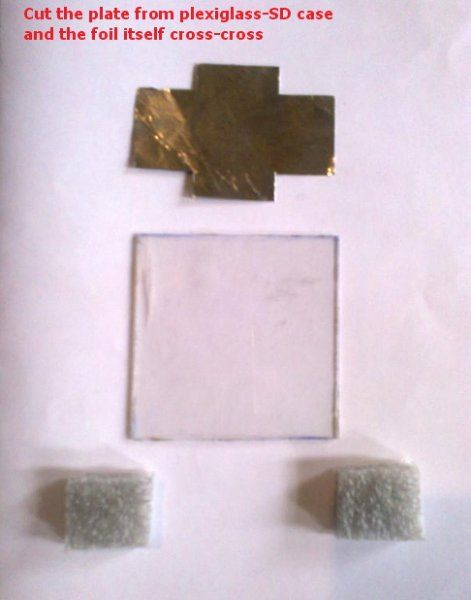

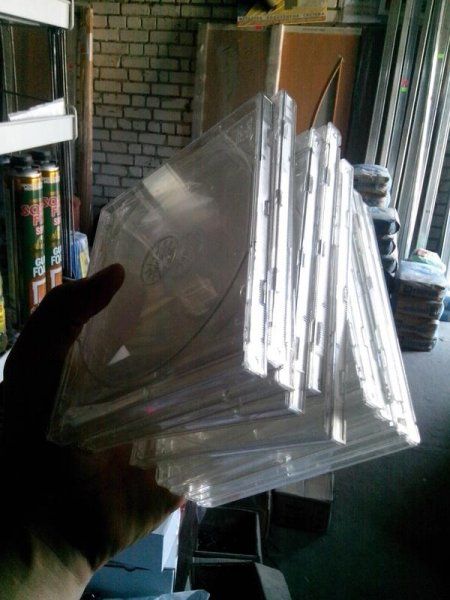

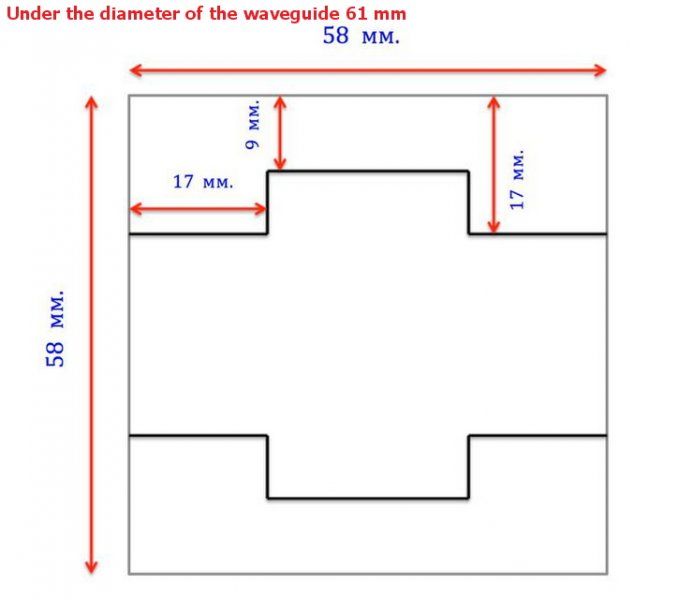

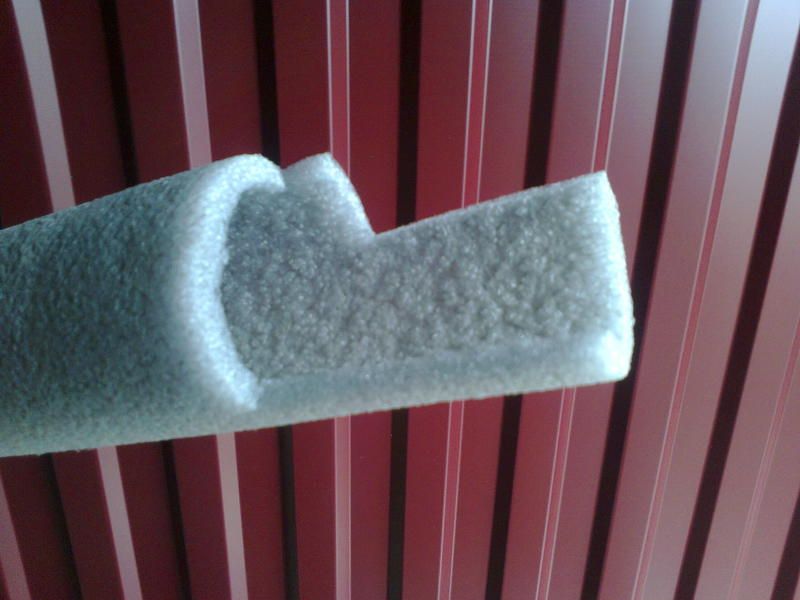

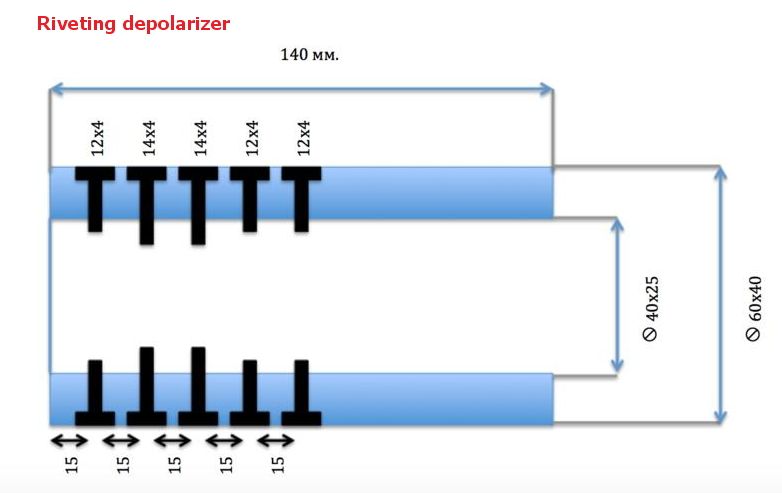

Homemade depolarizers.


Attachments

  • C-1-.jpg
    63.5 KB · Views: 159
  • ?-???-61-??-1.jpg
    28.1 KB · Views: 123
  • ?-???-61-??-3.jpg
    28.2 KB · Views: 110
  • ?-???-63??.jpg
    20.1 KB · Views: 123
  • ?-???-??-2.jpg
    24.6 KB · Views: 130
  • ?-???-??-4-.jpg
    28.1 KB · Views: 111
  • ?-???-??-5.jpg
    53 KB · Views: 133
  • ?-???-??-6.jpg
    39.4 KB · Views: 132
  • ?-???-??-??-??-1.jpg
    30.6 KB · Views: 112
  • ?-???-??-???.?????.jpg
    38.6 KB · Views: 113
  • ?-???-??-???.??.jpg
    49.7 KB · Views: 130
  • ?-???-??-10.jpg
    65.8 KB · Views: 122
  • ?-?????-61??.jpg
    22.6 KB · Views: 108
  • Like
Reactions: Titanium

Borisov-54

SatelliteGuys Guru
Jan 4, 2013
146
85
Minsk Belarus

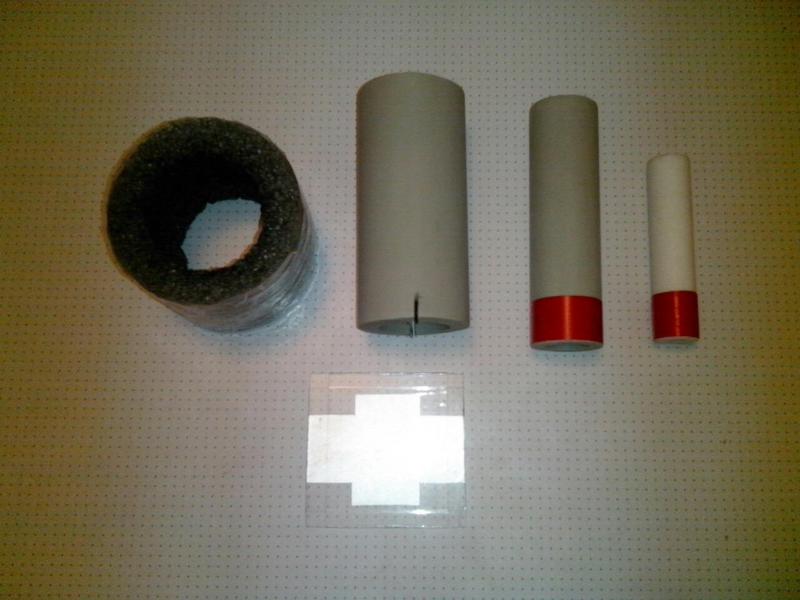

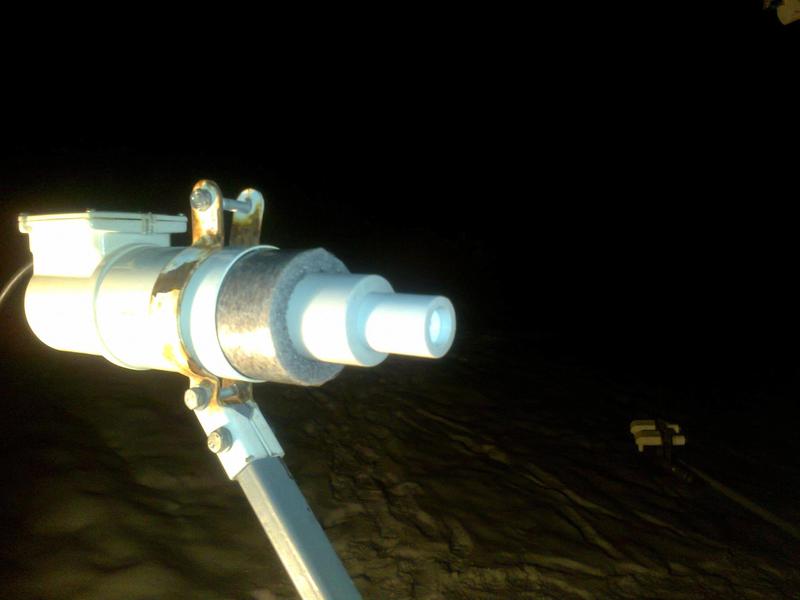

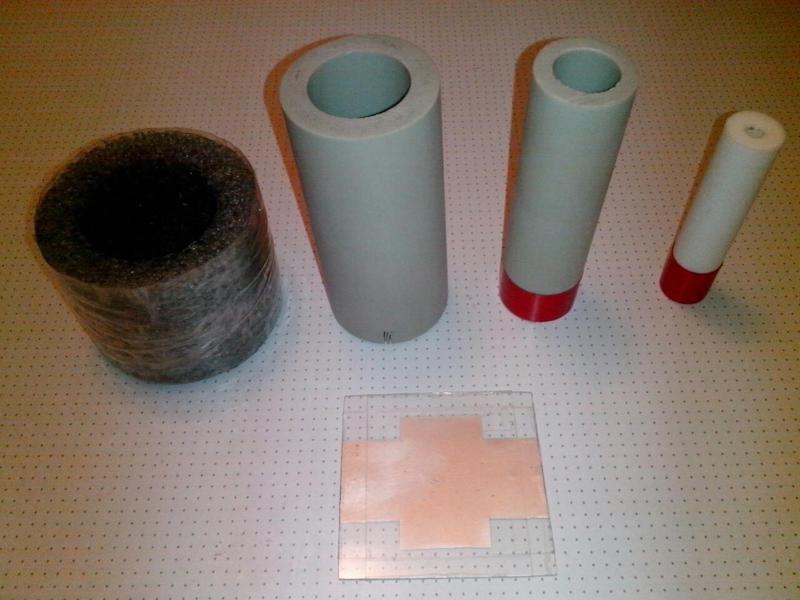

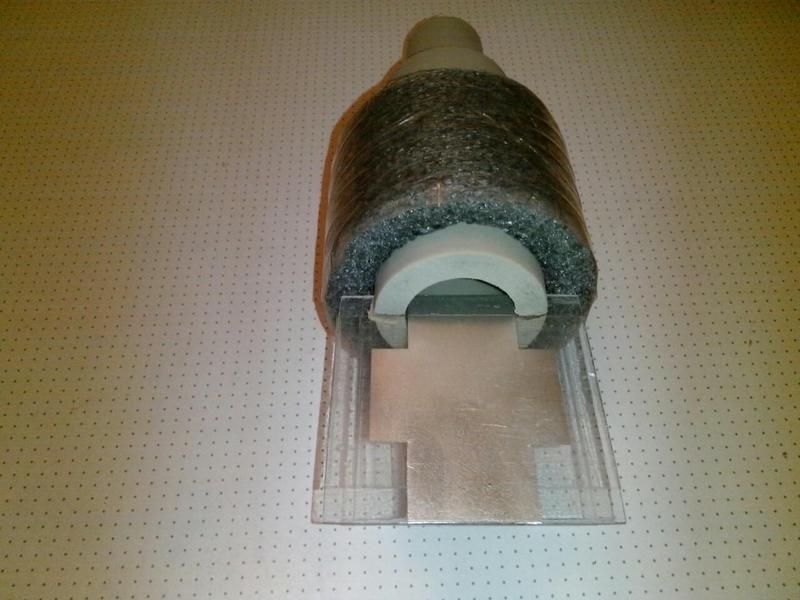

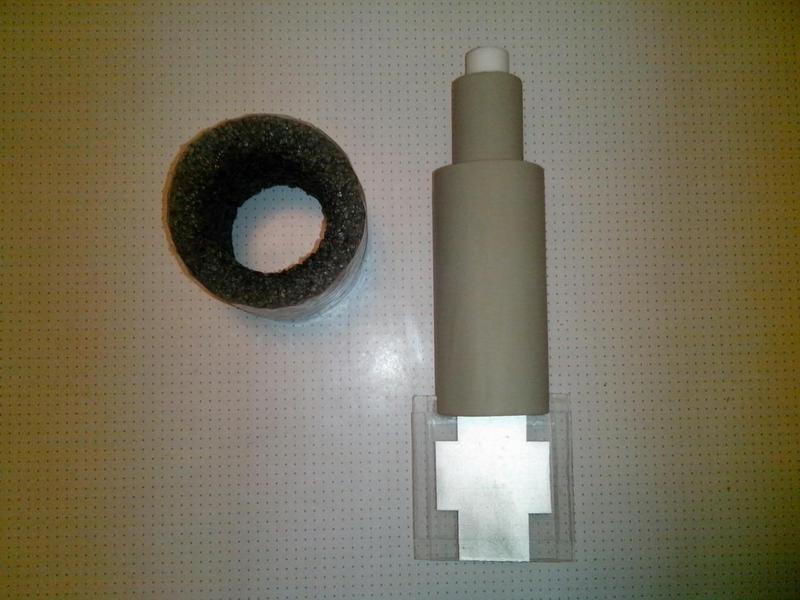

Irradiator With bands for antennas 80-90 degrees.Dish 1,0 m and more.( 1-1,7 m.)

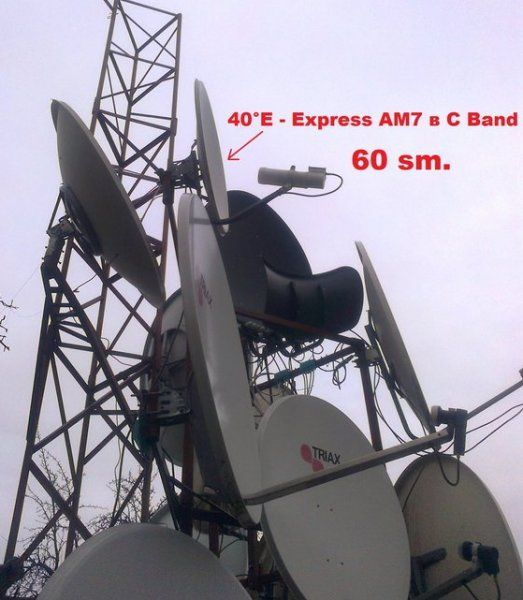

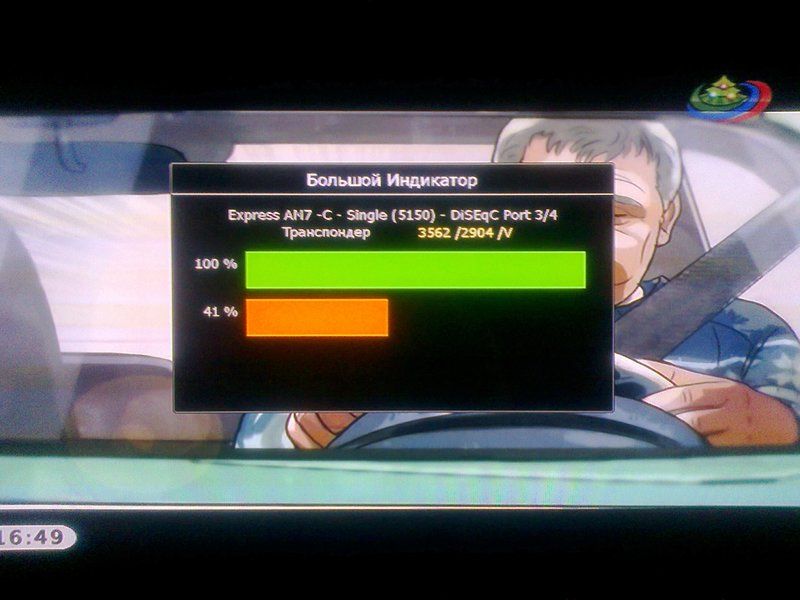

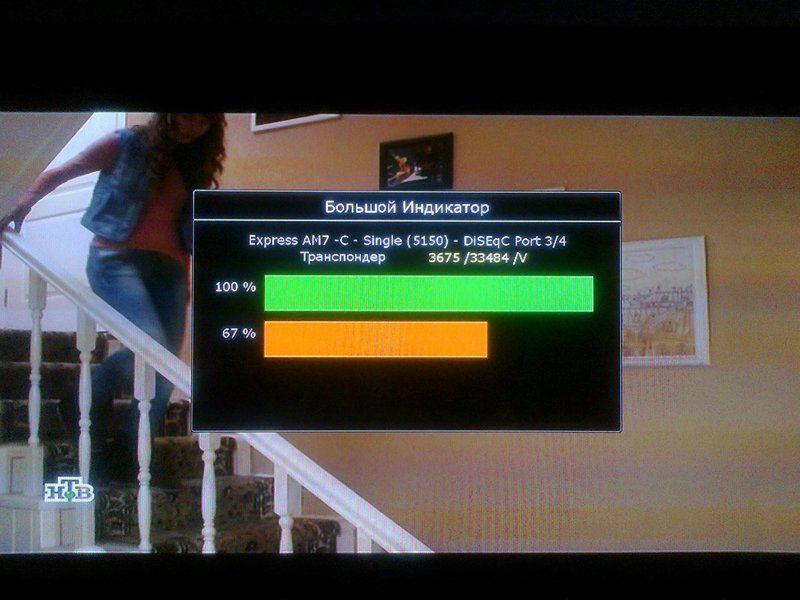

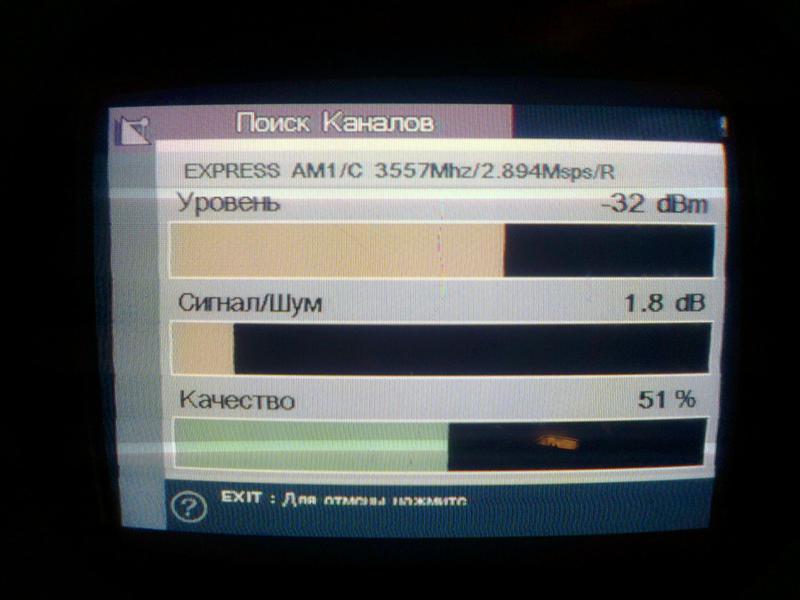

The last two photos, this is a great signal from Dish 0.6 m.
And with Desh 1-1.2 m- and under 90-100% the signal was


Attachments

  • C-80-90?-1.jpg
    12.6 KB · Views: 121
  • ?-80-90?-2.jpg
    17.8 KB · Views: 125
  • ?-80-90?-3.jpg
    60.4 KB · Views: 121
  • ?-80-90?-9.jpg
    51.6 KB · Views: 127
  • ?-80-90?-4.jpg
    54.7 KB · Views: 114
  • ?-80-90?-5.jpg
    49.4 KB · Views: 106
  • ?-80-90?-6.jpg
    54.7 KB · Views: 108
  • ?-80-90?-7.jpg
    58.6 KB · Views: 124
  • ?-80-90?-8.jpg
    57.5 KB · Views: 108
  • ??.?????..jpg
    34 KB · Views: 124
  • ?-80-90??-0.jpg
    75.5 KB · Views: 121
  • C-LNB+ ????-???.jpg
    C-LNB+ ????-???.jpg
    32.4 KB · Views: 137
  • ?-80-90-1-3 ??? ????.png
    ?-80-90-1-3 ??? ????.png
    123.6 KB · Views: 124
  • ?-80-90?-1,1m-1.jpg
    31.1 KB · Views: 130
  • ?-80-90?-1,1m-2.jpg
    28.5 KB · Views: 123
  • ?-80?-40?-0,6m-1.jpg
    53.1 KB · Views: 131
  • ?-80?-40?-3562-41%-0,6m-2.jpg
    64.8 KB · Views: 118
  • ?-80?-40?-3675-67%--0,6m.jpg
    71.1 KB · Views: 93
  • Like
Reactions: Titanium

Borisov-54

SatelliteGuys Guru
Jan 4, 2013
146
85
Minsk Belarus

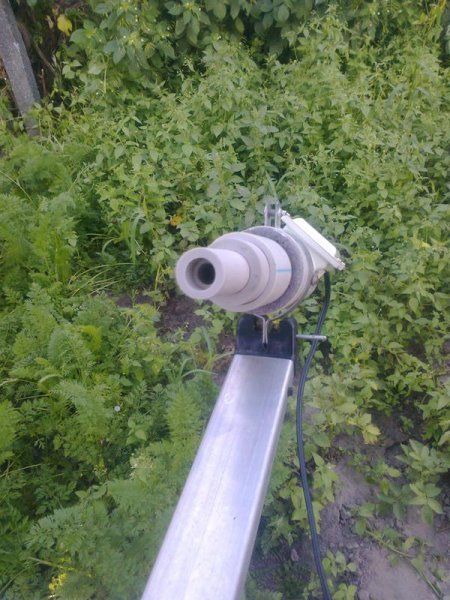

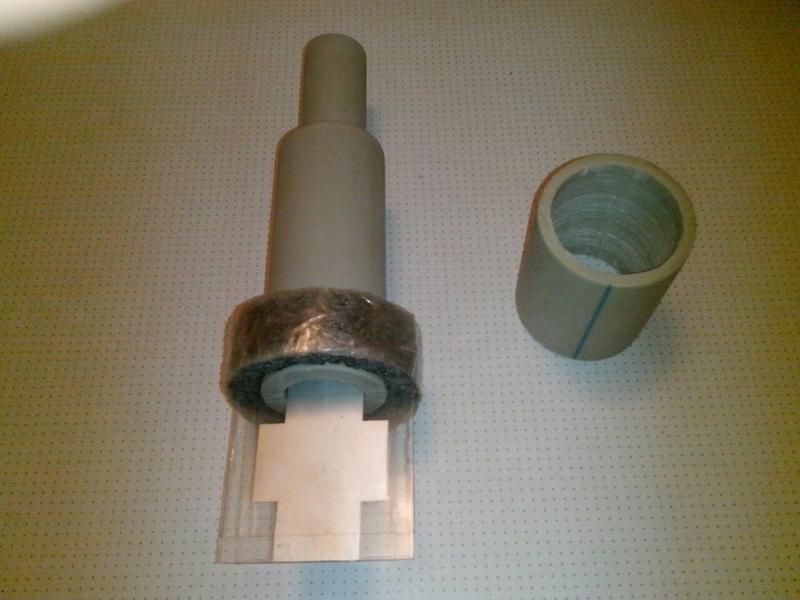

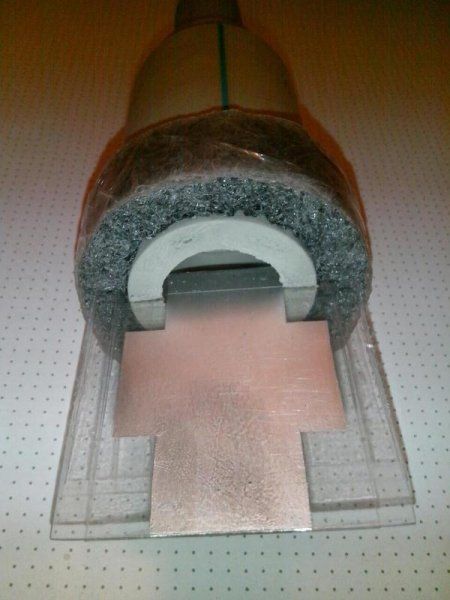

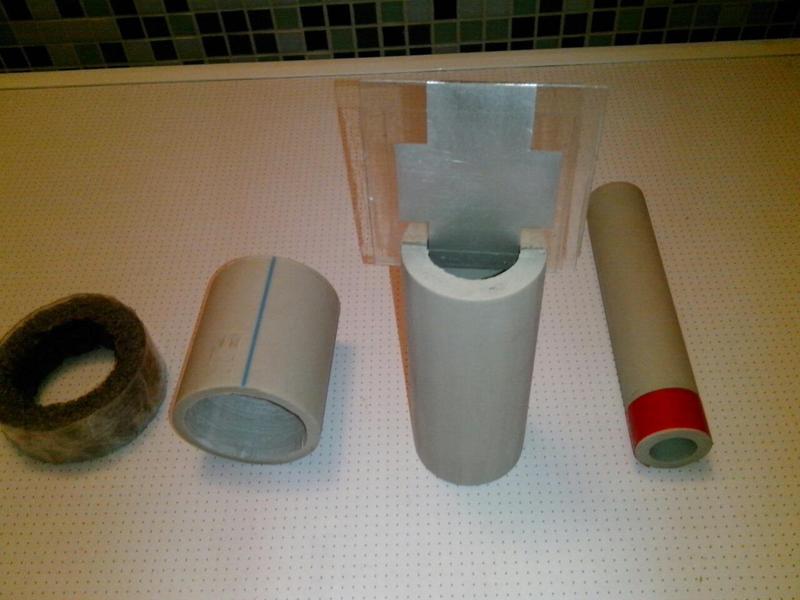

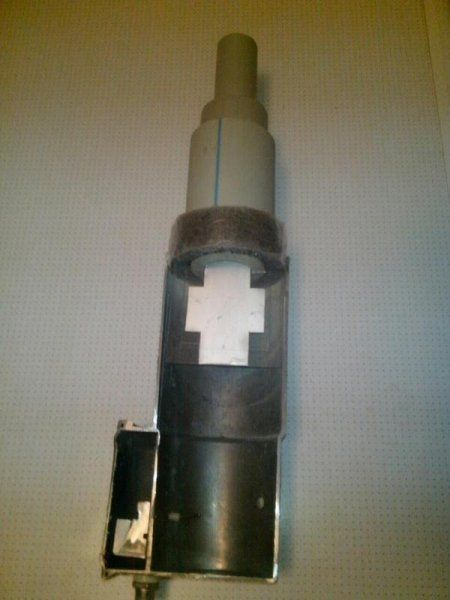

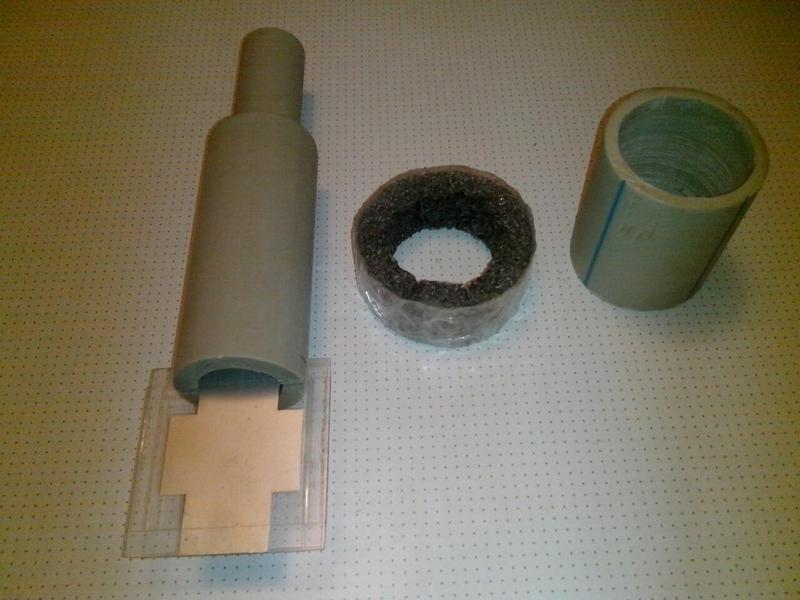

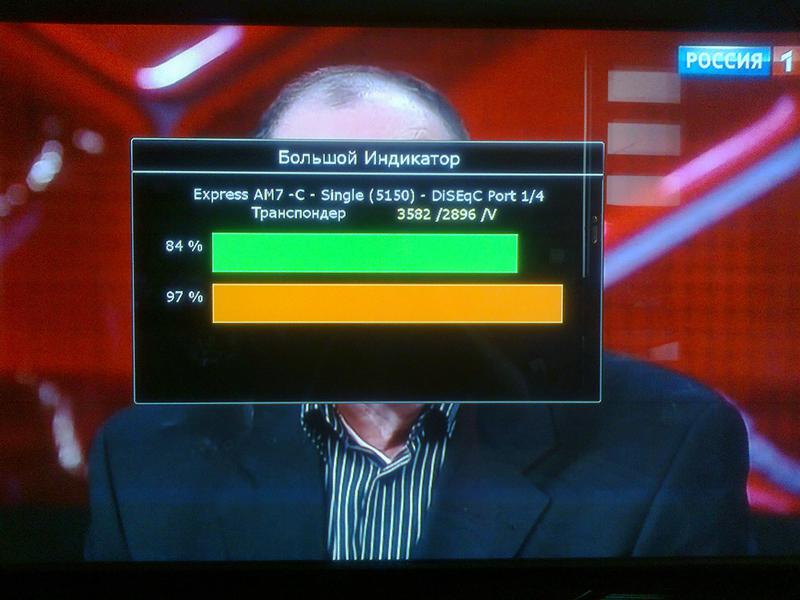

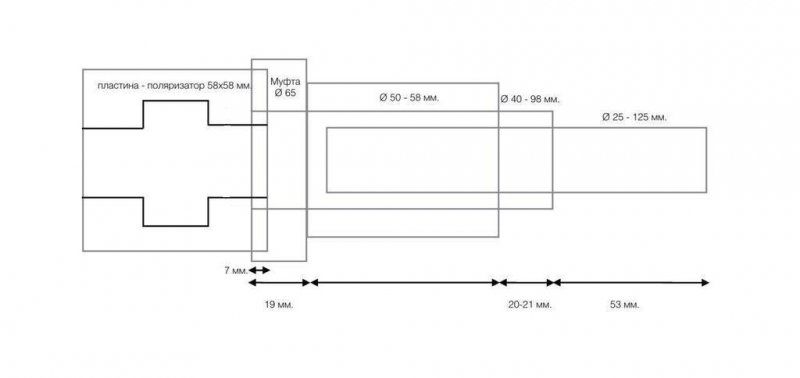

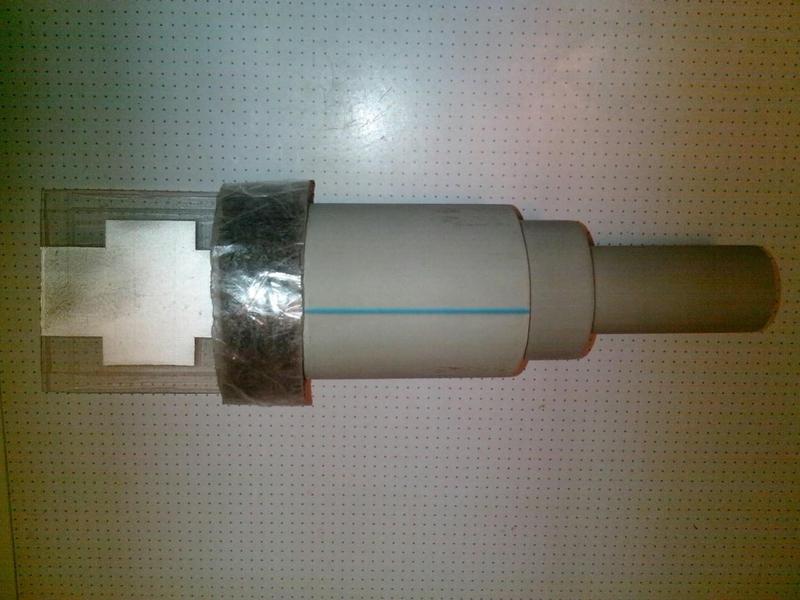

Irradiator With bands for antennas 70 degrees.Dish 0,6 m and more.( 0,6-1,0 m.)

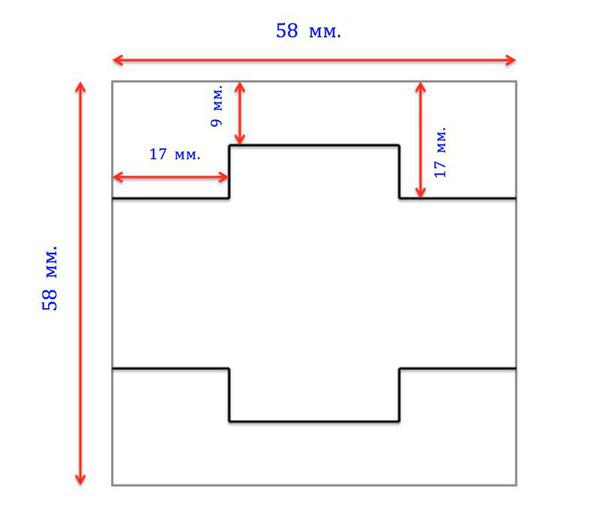

The dimensions are slightly different.


Attachments

  • ?-70?-1.jpg
    15.2 KB · Views: 117
  • ?-70?-2.jpg
    17.8 KB · Views: 110
  • ?-70?-3.jpg
    59.8 KB · Views: 100
  • ?-70?-4.jpg
    48.5 KB · Views: 110
  • ?-70?-5.jpg
    32.5 KB · Views: 105
  • ?-70?-6.jpg
    33.2 KB · Views: 106
  • ?-70?-7.jpg
    53.4 KB · Views: 108
  • ?-70?-8.jpg
    53.5 KB · Views: 100
  • ?-70?-9.jpg
    49.5 KB · Views: 104
  • ?-70?-10.jpg
    54.9 KB · Views: 102
  • ?-70?-11.jpg
    52.3 KB · Views: 131
  • ?-70?-12.jpg
    54.8 KB · Views: 118
  • ?-70?-13.jpg
    39.8 KB · Views: 112
  • ??.?????..jpg
    34 KB · Views: 108
  • ?-70?-1m-4.jpg
    22.8 KB · Views: 110
  • ?-70?-1m-2.jpg
    96.9 KB · Views: 108
  • ?-70?-40?-1m-3582-97%.jpg
    56.8 KB · Views: 103
  • ?-70?- 1m-3.jpg
    ?-70?- 1m-3.jpg
    70.6 KB · Views: 98
  • Like
Reactions: Titanium

Borisov-54

SatelliteGuys Guru
Jan 4, 2013
146
85
Minsk Belarus
My measurements.
Gave me Vitaly 2 irradiator. One already did it myself, not difficult.

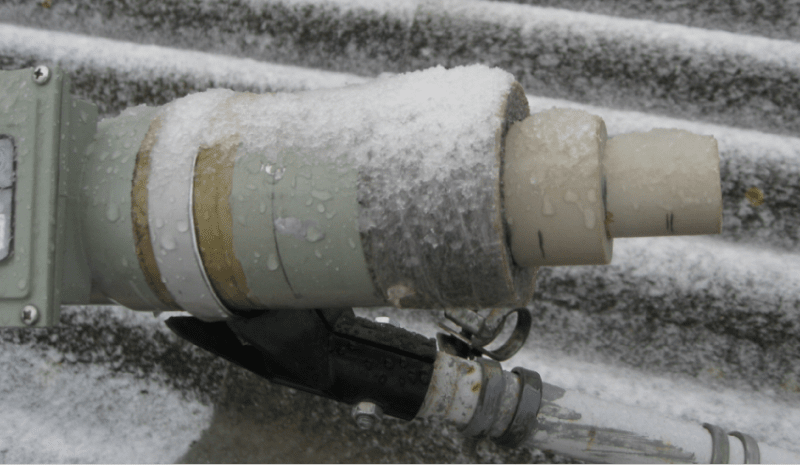

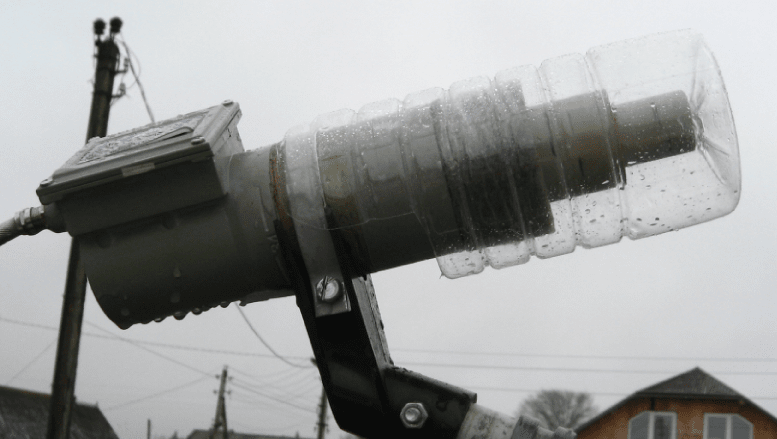

I fixed the signal on my antenna. I measured the signal. I removed the standard plate and the pancake. I tested a new modified LNB. I had excellent indicators, almost twice the signal was stronger. It only bothers with snow and some water. It is necessary to put a plastic case.

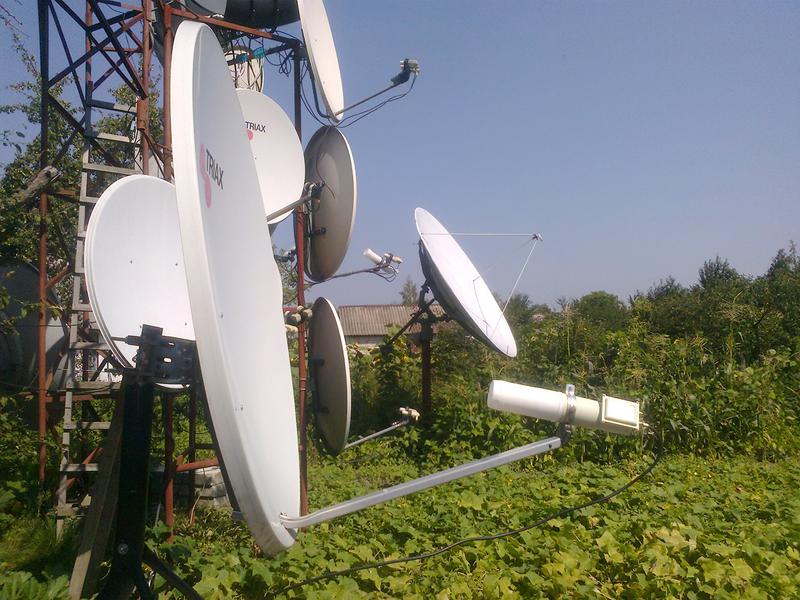

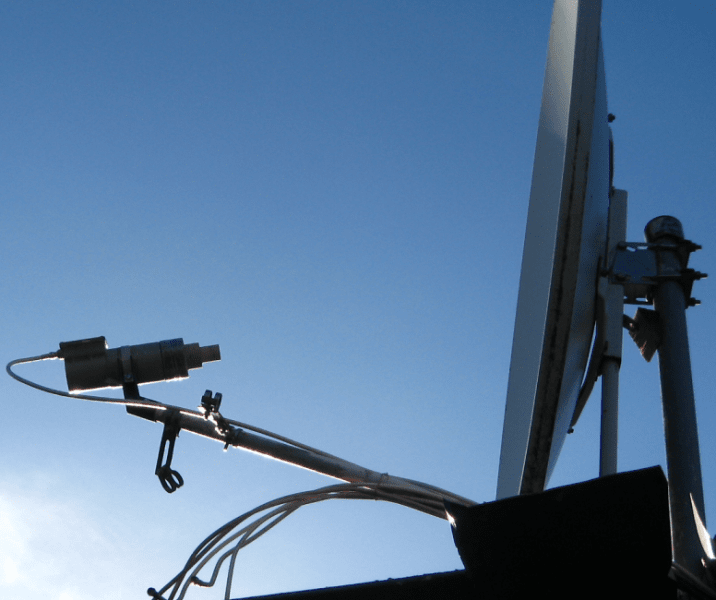

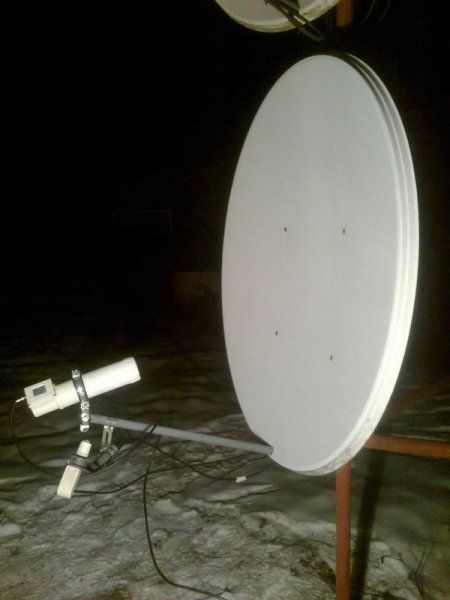

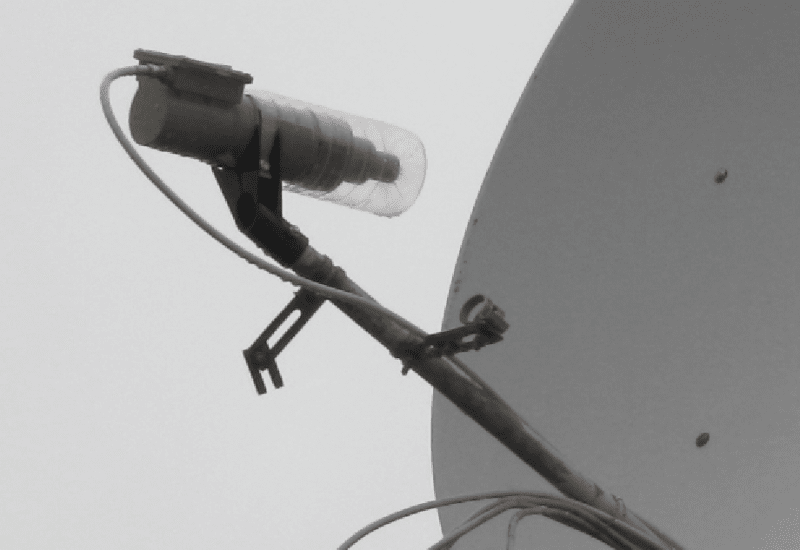

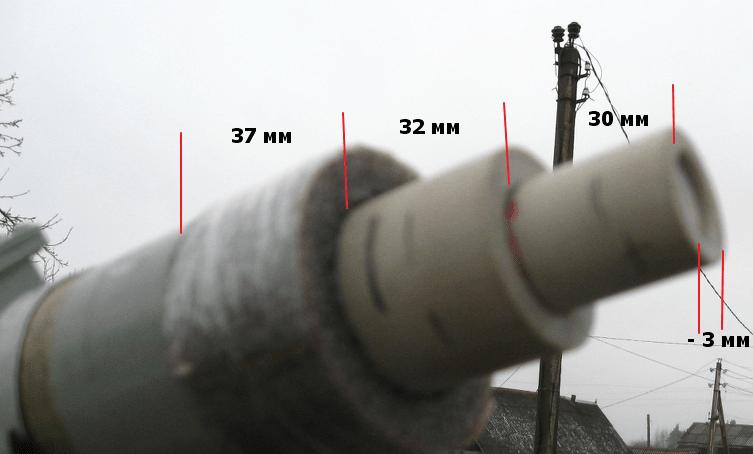

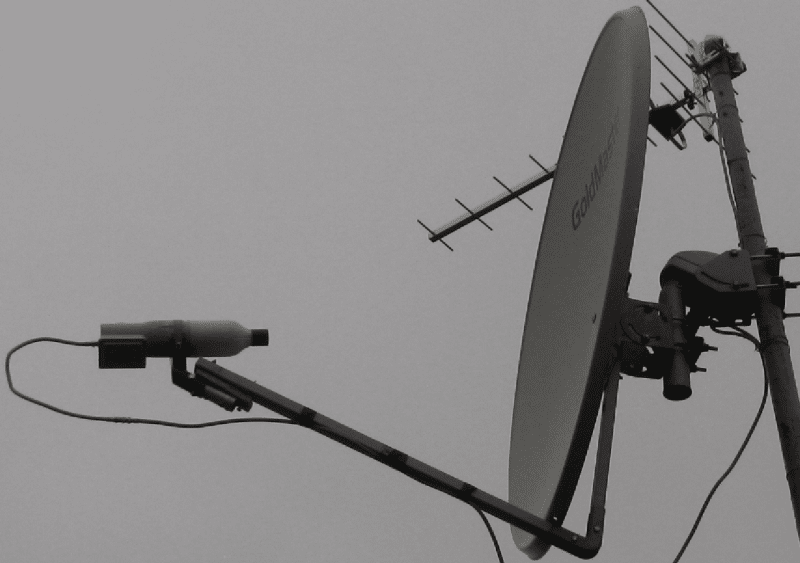

Has fixed LNB and on the motor, the aerial 1,1m. Almost all satellites have caught in With gangs.2 photos of the last.
