New 722 Internals Pictures !

[ralfyguy]

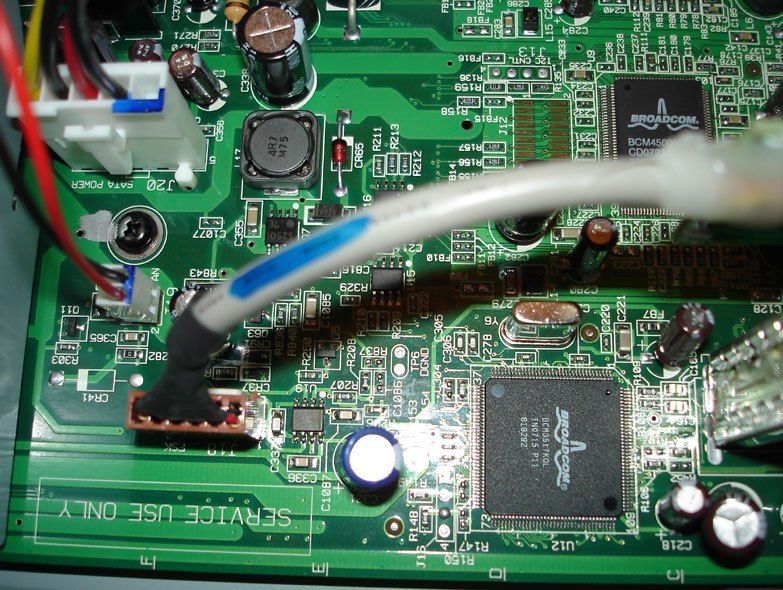

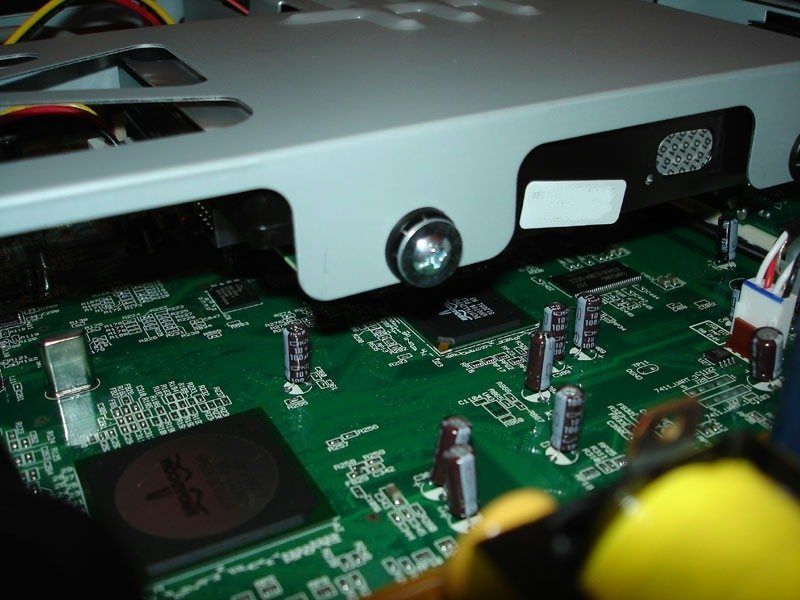

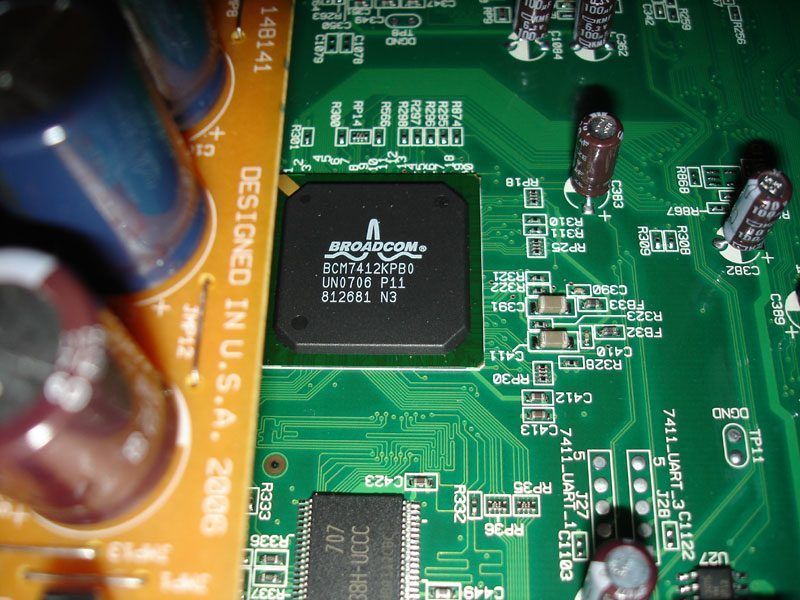

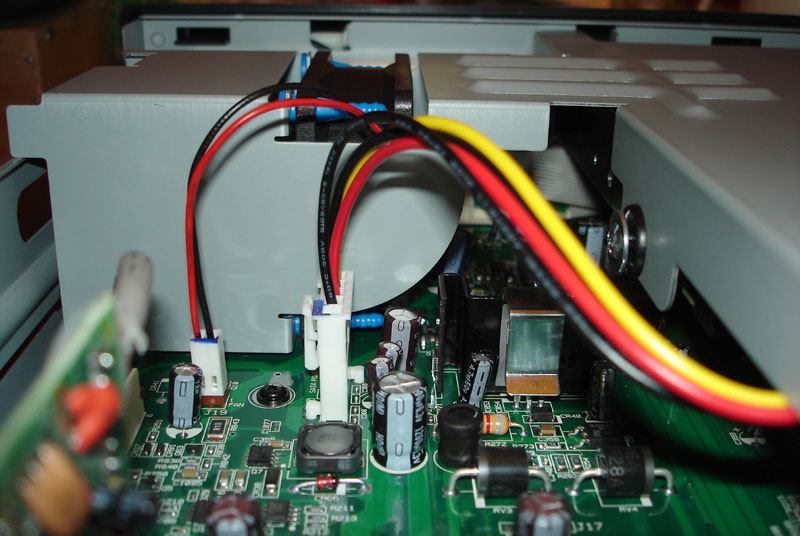

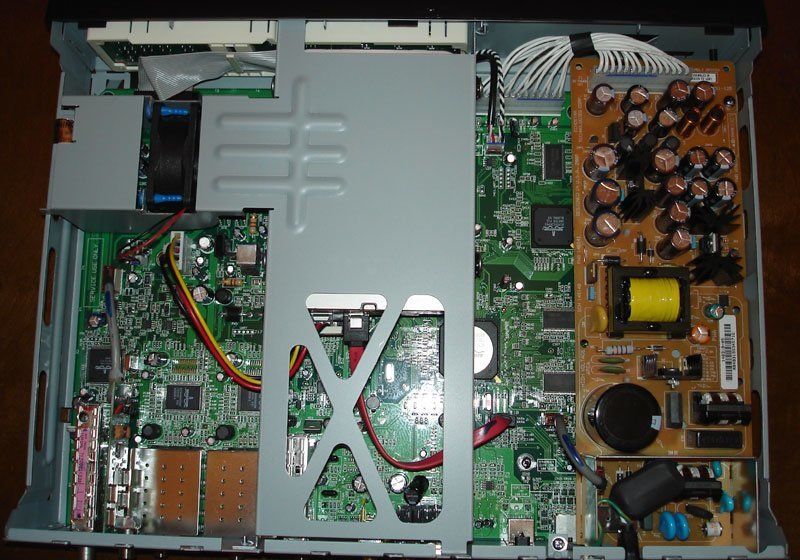

Here you go guys. That's how the 722 looks from inside. Notice the new ducting, new BCM chip and the new HDMI connector.



[ralfyguy]

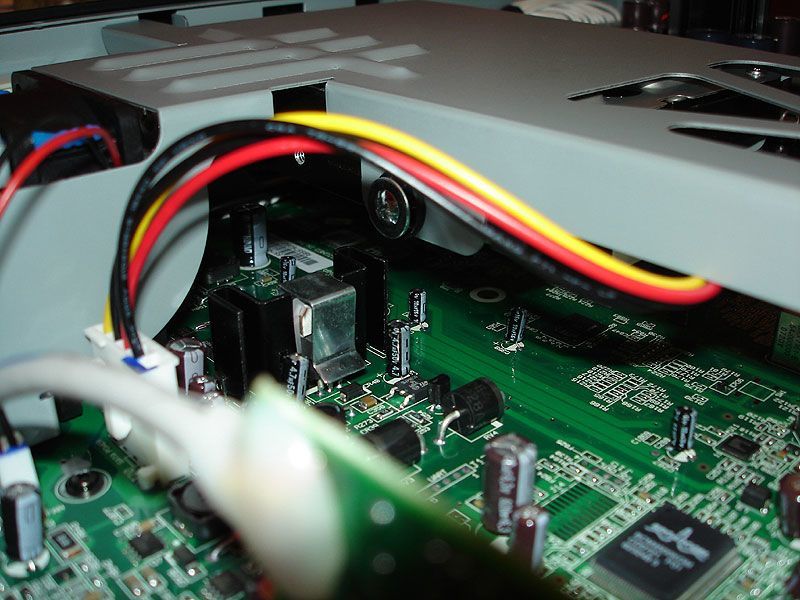

One more...



[Pepper]

What new ducting? It's been a while since I looked but I think my 622 looks exactly the same with the exception of the BCM7412 chip.



[ralfyguy]

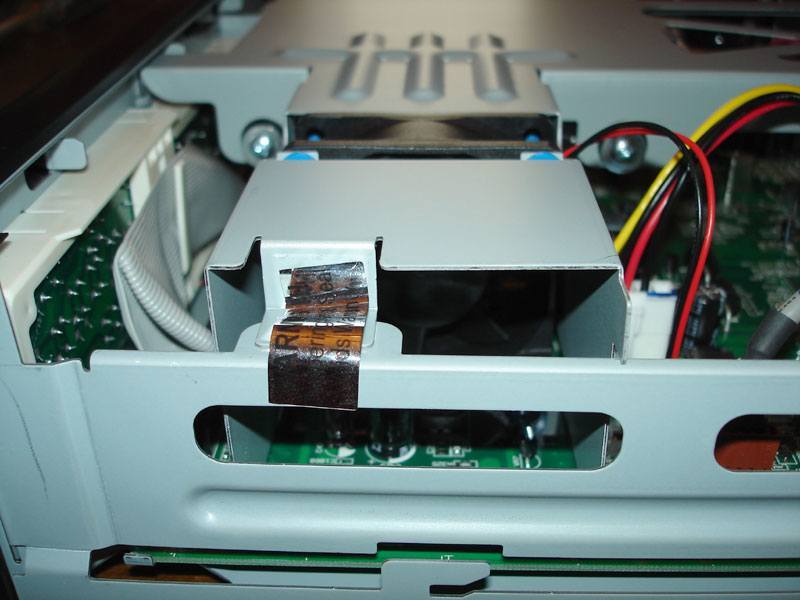

I think the ducting in the 622 was more enclosed. This seems to be more open. The HDD is just hanging in that frame, but it's completely open at the bottom. I can't find those pictures of the 622 anymore. Maybe I'm just wrong..

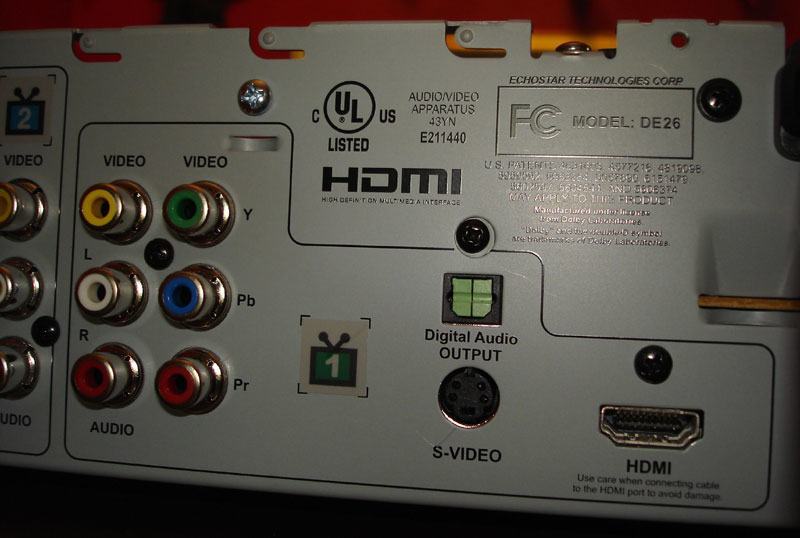

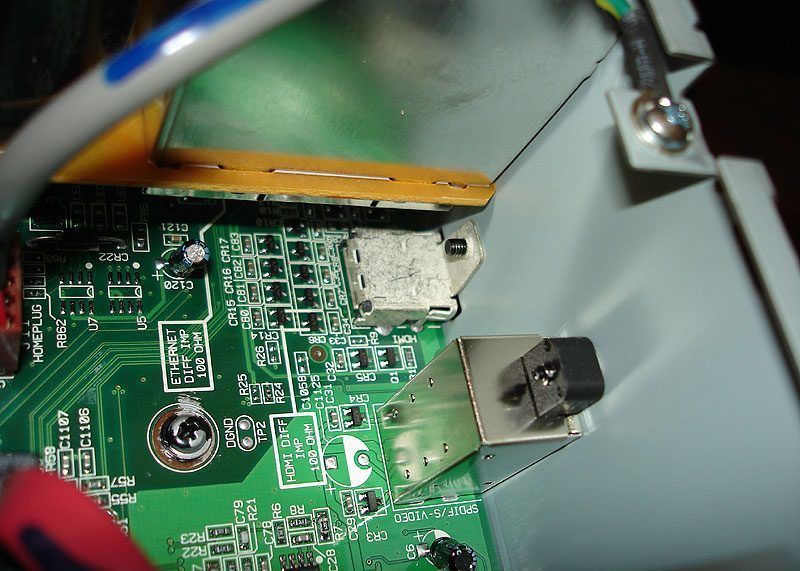

And at least the fragile HDMI connector is now taken care of.



[Smith P.]

Duct is the same.

I reported the HDMI connector with a screw was in rev E; so what disk installed there ?
Your DVR board have Rev G.

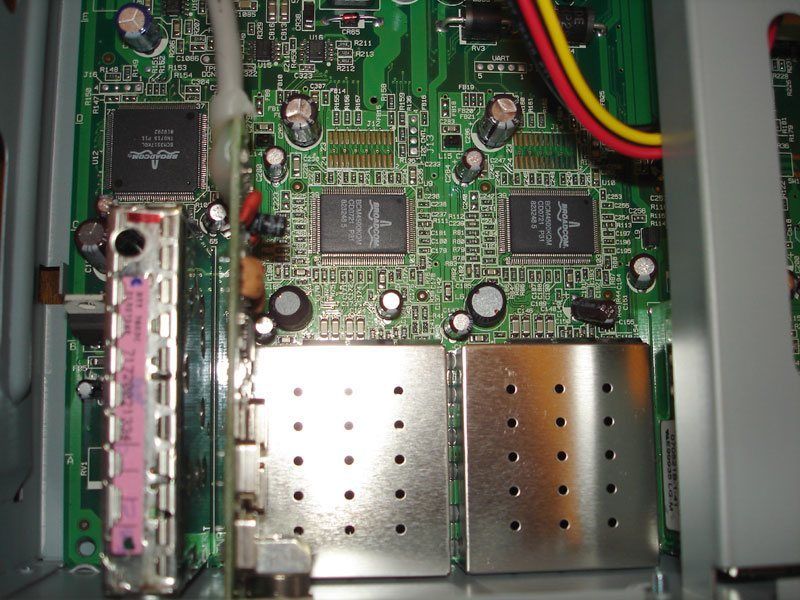

BTW, the 8 digits on HDD label is your R00xxxxxxx number (second picture) .



[rockymtnhigh]

How does the temp of the 722 compare with the 622? Any differences?



[ralfyguy]

Can a mod then please remove the picture?

I'm still installing the 722, so I don't know about temperatures yet. It's trying to acquire satellite signal after SW download, but seems to be stuck there for some reason. Not activated yet.



[Smith P.]

Oops. Ralf - you forgot to tell what HDD model you got in the 722 !



[ralfyguy]

Smith I didn't wanna mess with that. I am just afraid to mess it up. I am hoping that the fourth 622/722 is now free of those damn reboots. I am sick of it.
BTW can't activate it right now, their damn system is down. Have to wait several hours they said!



[rockymtnhigh]

Can a mod then please remove the picture?

I'm still installing the 722, so I don't know about temperatures yet. It's trying to acquire satellite signal after SW download, but seems to be stuck there for some reason. Not activated yet.

Which one do you want removed?



[dfergie]

#2 , I was going to blurout the numbers on the tag,and repost but couldn't on this pc...



[dfergie]

Got it, trying to edit #2 and will repost...



[dfergie]

unknown file format...



[ralfyguy]

Which one do you want removed?

Pic #2 that has the receiver serial on the HDD please.



[ralfyguy]

Sorry I'm slow...staring at the screen where it says to activate the receiver...screen is fixing to get a hole...



[ralfyguy]

This sux!



[ralfyguy]

I'm also worried about the external HDD still working, which I acitvated with the old 622...



[dfergie]

Restored HDD shot...



[ralfyguy]

Restored HDD shot...

Thank you Sir!



[dfergie]

Your Welcome!
