Share your Dish Network Wiring diagrams!
- Thread starter OoTLink
- Start date
- Latest activity Latest activity:
- Replies 12
- Views 36K

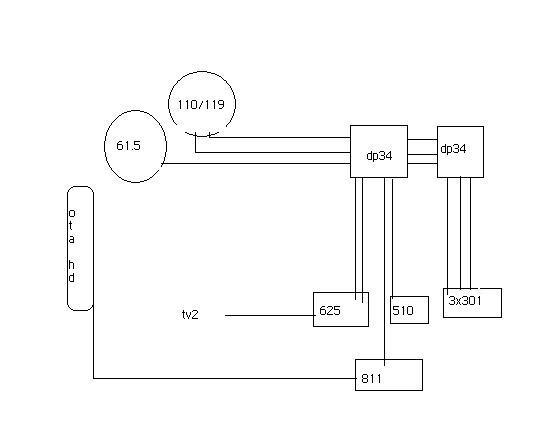

Looking good so far
I was tempted to make it a diagram/setups thread, but I was kinda lazy to take pics of all the said TVs. Might be notable that the first 322 has a pretty bright blue LED and the 2nd has a pretty but darker LED heheh.
If ya feel like posting your "setup" as well as your diagram, feel free to
I was tempted to make it a diagram/setups thread, but I was kinda lazy to take pics of all the said TVs. Might be notable that the first 322 has a pretty bright blue LED and the 2nd has a pretty but darker LED heheh.
If ya feel like posting your "setup" as well as your diagram, feel free to
A Picture is worth 1000 wires

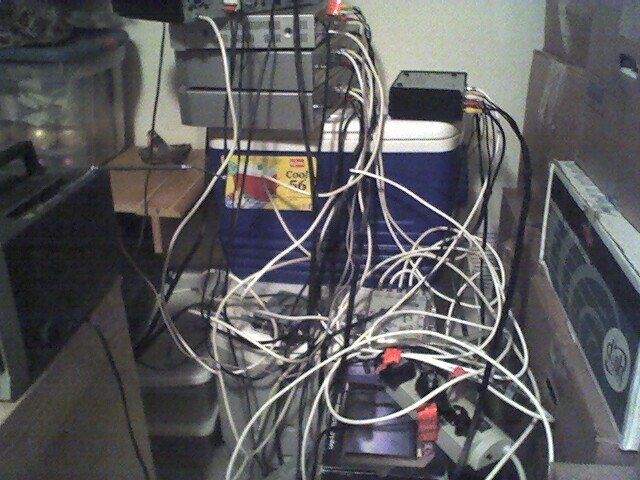

I'm waiting for my house to be built. In the meantime, I'm in a rental. I buried an old spool from RG6 cable in the ground, mounted the dish onto it then ran the cable to the garage through a vent. The mount has sustained winds of 30 mph without budging. I backfeed the receivers into the house to two tvs with a UHF modulator. I have a UHF transmitter for my daughter's 721 and a RatShack 2.4 GHZ Video Sender for my boy's 508. Not pretty, but, no holes drilled and...it works...
From Dish 500 to DP34
DP 34 Feeds 2 721s and cascades to another DP34
DP 34 Feeds 508, 811 and 510
UHF Mod Broadcasts 721, 811, 510
UHF Transmitter Broadcasts 721
Video Sender for 508.
I'm waiting for my house to be built. In the meantime, I'm in a rental. I buried an old spool from RG6 cable in the ground, mounted the dish onto it then ran the cable to the garage through a vent. The mount has sustained winds of 30 mph without budging. I backfeed the receivers into the house to two tvs with a UHF modulator. I have a UHF transmitter for my daughter's 721 and a RatShack 2.4 GHZ Video Sender for my boy's 508. Not pretty, but, no holes drilled and...it works...
From Dish 500 to DP34
DP 34 Feeds 2 721s and cascades to another DP34
DP 34 Feeds 508, 811 and 510
UHF Mod Broadcasts 721, 811, 510
UHF Transmitter Broadcasts 721
Video Sender for 508.
Attachments
Eh I might draw up a diagram in a bit although it's nothing fancy. Just a pair of dishes hooked into a DP34 which is then routed to a pair of 510s. My PC network would be a far more impressive diagram. Three Windows XP clients, Xbox & PS2 wired in, one Linux print/fileserver (for HP laser printer), one Windows 2000 Primary Domain Controller, 3 routers (2 wired one for VoIP & 1 wireless) and a 16 port 10/100 switch.

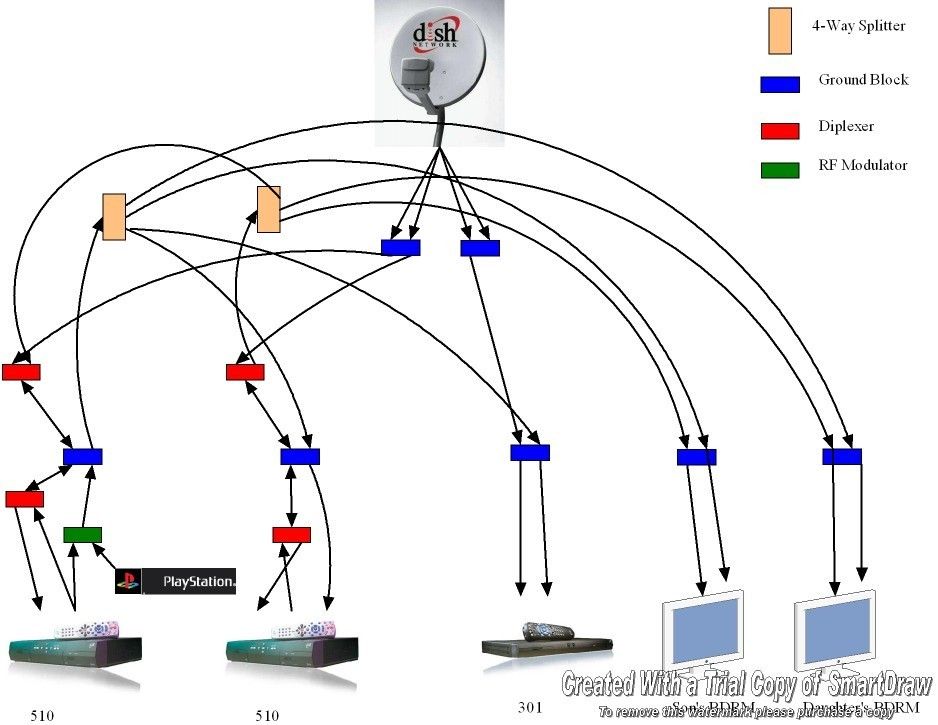

The timing of this thread was too coincidental to pass up! Just two weeks ago I spent the entire weekend rewiring my house. By doing so I was able to drop a 301 off my acct to save $5/mo. But the REAL reason is that since I have 2 510's, the wife and I are getting frustrated with the separation of the 510 hard drives. You dual-tuner DVR owners have it nice! I know I could lease a 522, and save $10 by doing so, but I'm kinda waiting to see what Dish is doing w/ MPEG4 before I get yet ANOTHER new receiver from them. So, without having to spend ANY money, the diagram represents my new setup.
I remembered a program I used to use called Smart Draw, and downloaded a trial copy of the current version to help make sense of it all. Ended up making and/or borrowing the images, instead of using the TONS of images that came with that program. By the way, Smart Draw is a very powerful tool!
Before you look at the diagram, I have to say that the setup does in fact work! Need to do something about a couple of the splitter-fed TV's though, a little grainy, but I'll work on that another day!
I remembered a program I used to use called Smart Draw, and downloaded a trial copy of the current version to help make sense of it all. Ended up making and/or borrowing the images, instead of using the TONS of images that came with that program. By the way, Smart Draw is a very powerful tool!
Before you look at the diagram, I have to say that the setup does in fact work! Need to do something about a couple of the splitter-fed TV's though, a little grainy, but I'll work on that another day!
Attachments

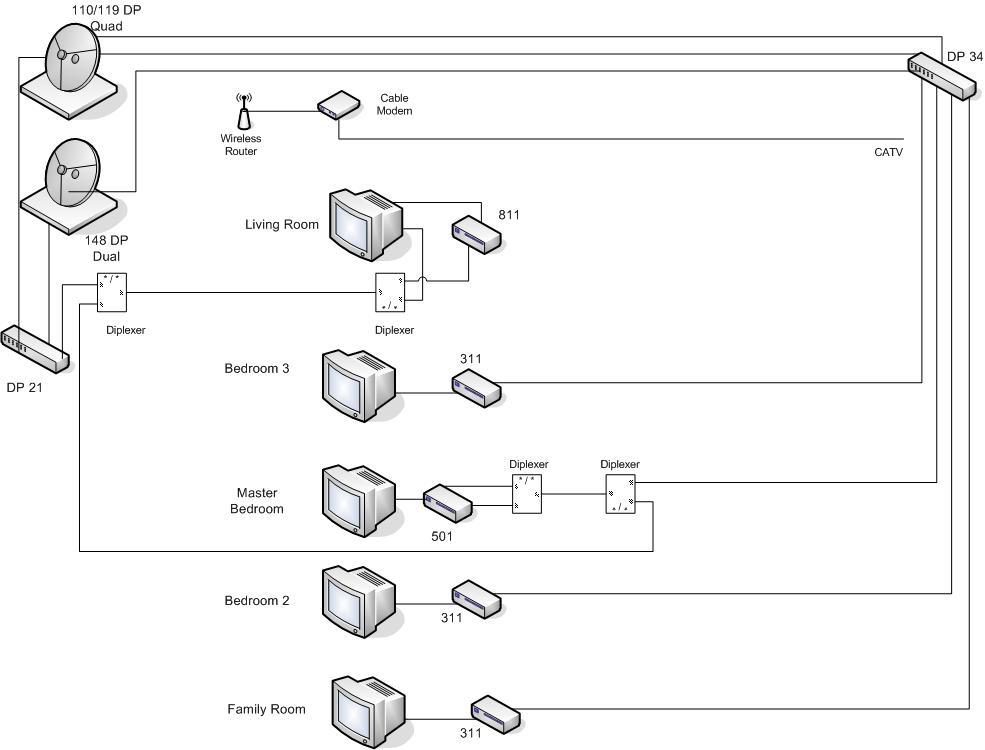

Here's the setup I have in the new house I just renovated. Dropped new RG-6 runs to everyroom. Now I just need more reciever's and TV's for each room
I can't draw like you guys, so picture this:
4 security cams into combiner #1
ota antenna and combiner #1 into combiner #2
105 super into 2 dp 34's for 1 522, 2 510's, 1 322, and 1 311
output from combiner #2 into an amp, then into 8 way splitter
outputs from splitter diplexed into lines to receivers
tv2 from 322 is also diplexed back out and combined with security cams and antenna to feed tv2
This was NOT my own house unfortunately. Took me 8 hours to get this done last year, think it exceeded the free standard installation? It was worth it though, 200 dollar tip! The customer calls me directly anytime he needs anything and kicks me a Franklin whenever I need to go back and do anything, move a box, reprogram a remote etc.
4 security cams into combiner #1
ota antenna and combiner #1 into combiner #2
105 super into 2 dp 34's for 1 522, 2 510's, 1 322, and 1 311
output from combiner #2 into an amp, then into 8 way splitter
outputs from splitter diplexed into lines to receivers
tv2 from 322 is also diplexed back out and combined with security cams and antenna to feed tv2
This was NOT my own house unfortunately. Took me 8 hours to get this done last year, think it exceeded the free standard installation? It was worth it though, 200 dollar tip! The customer calls me directly anytime he needs anything and kicks me a Franklin whenever I need to go back and do anything, move a box, reprogram a remote etc.
bweiteka, here's my shot at the diagram Took me ages in photoshop lol.
(click to enlarge)
Admittedly it was .. well... at least you can have fun showing that off
Hope it's right lol.
Took me ages in photoshop lol.
(click to enlarge)
Admittedly it was .. well... at least you can have fun showing that off
Hope it's right lol.
WOW! Awesome job there OotLink. Looks good, except no 2nd diplexor on 522, and 2nd line on 322 should actually be reversed 2-way splitter instead of diplexor. But thanks tons for that diagram. Still makes my head spin looking at it!
Oops, 2 diplexors AND reversed 2way splitter on that 322 tv 2 line. See? I told you my head still spins!
