Lubrikator PM'd me and asked for some dimensions on a Ten Foot Unimesh Support Arms.

I have taken a couple of pictures, and done some measuring and am going to post it all here in the event someone in the future may need this information.

I have also included the spec sheet for the dish that Corado or TVRopro gave me a couple of years ago which includes the Focal Length, or distance from the back of the dish to a point 1/8" inside the LNB.

Here are the pics:

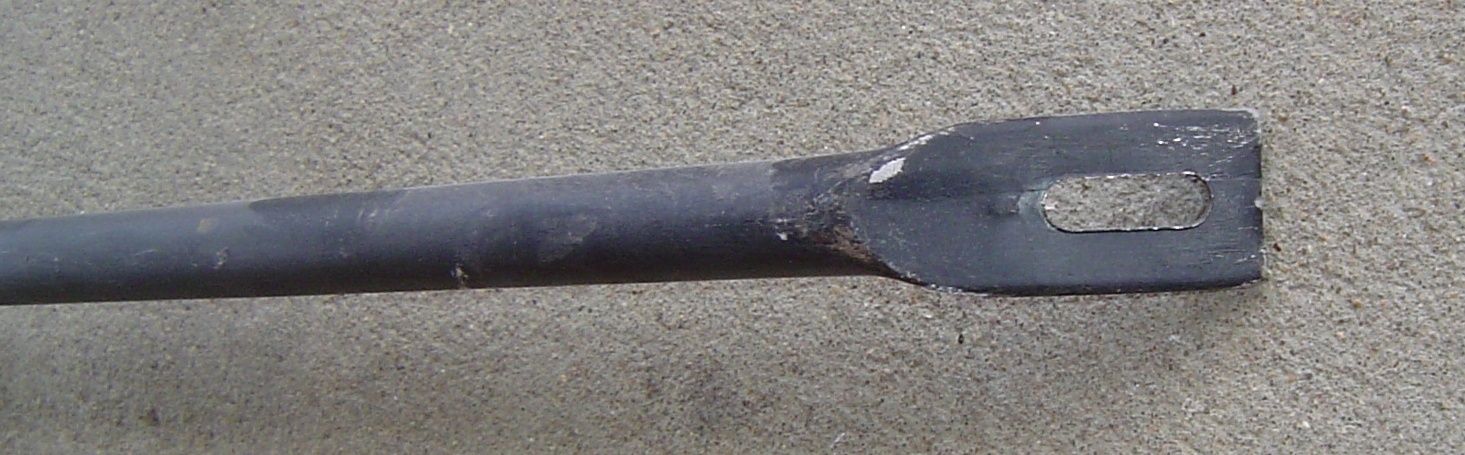

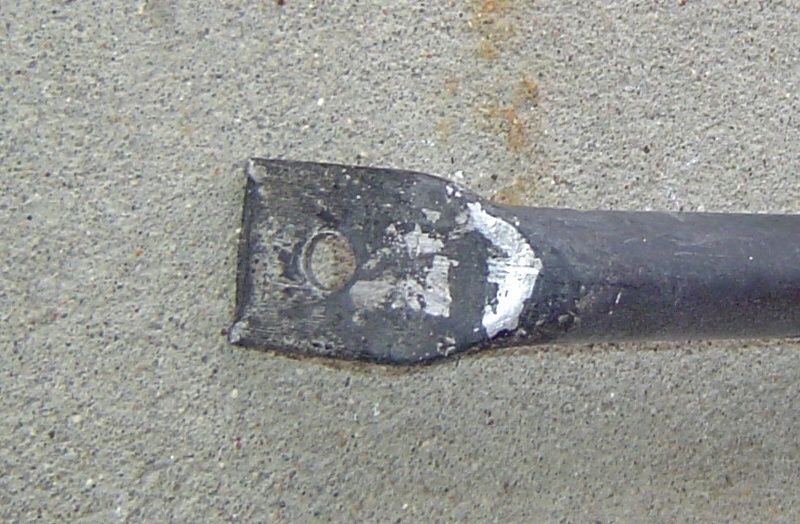

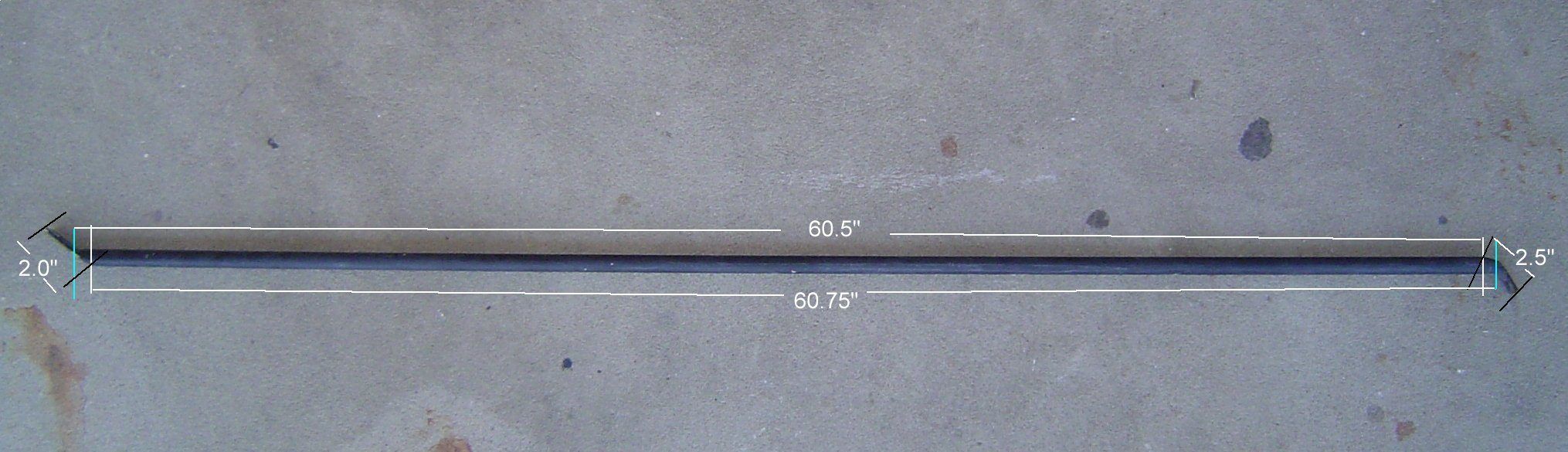

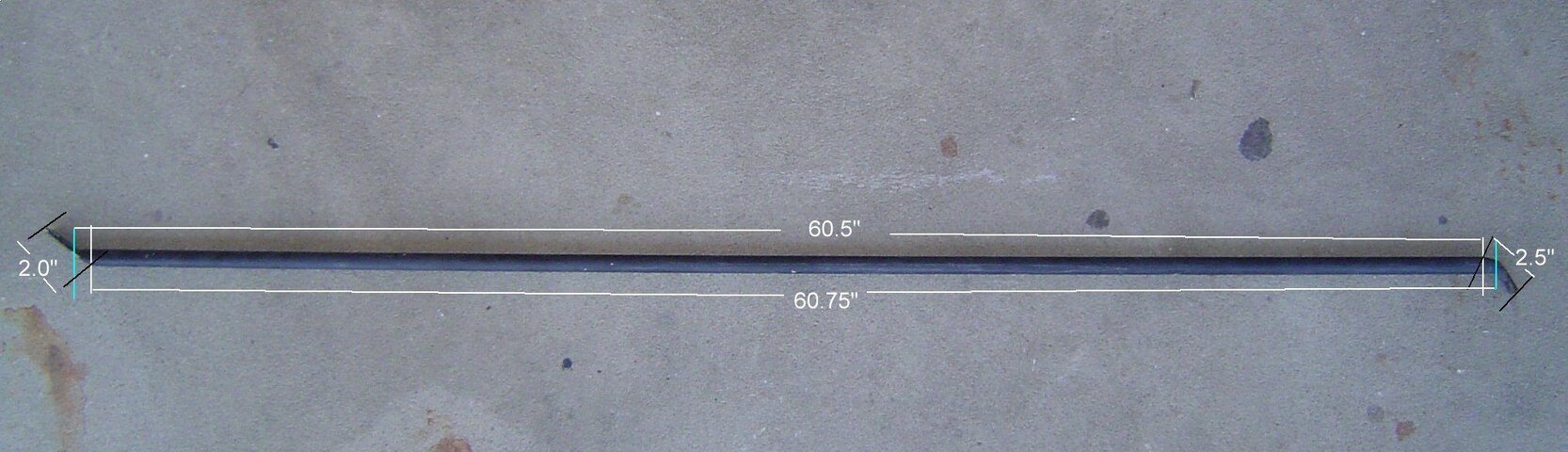

Unimesh 10 footer support arms measured Unimesh 10 footer scalar end Unimesh 10 footer dish surface end

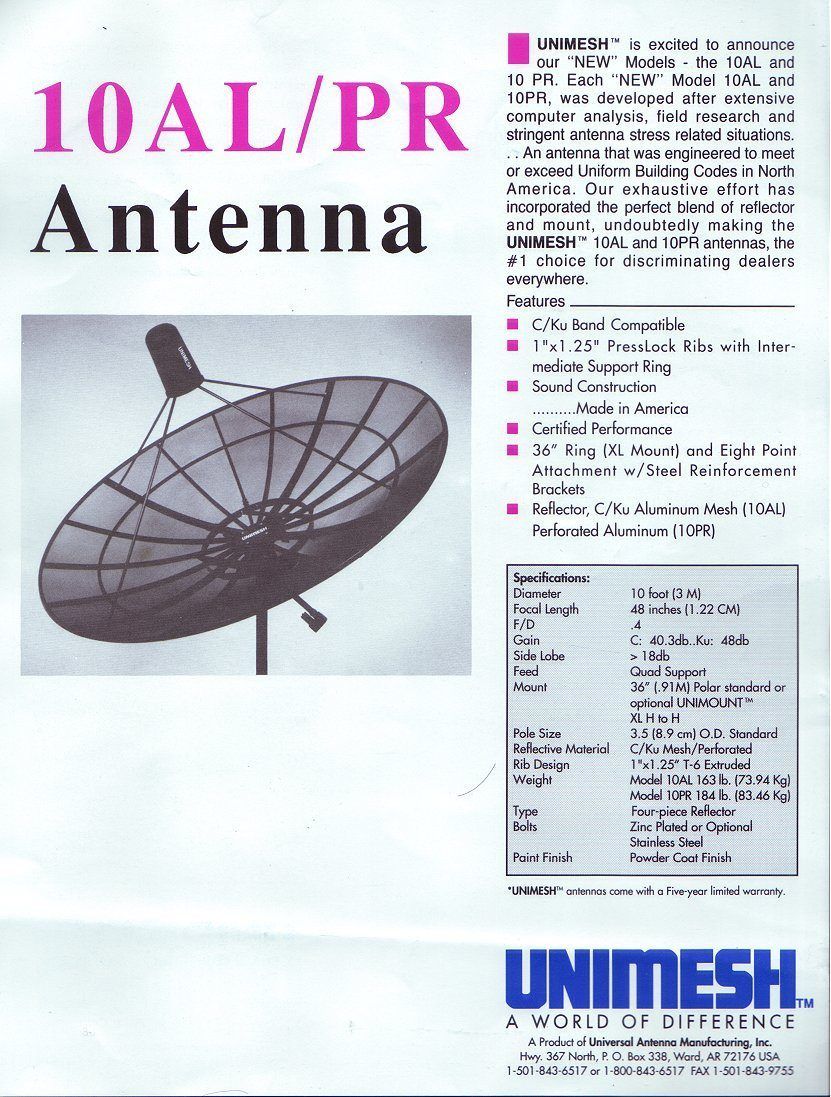

10foot unimesh specs

If you look closely with the pics blown up, you will see that the angle on the scaler end is about 30 degrees while the angle on the dish surface end is about 45 degrees.

Hope that helps. :)

T

tvropro

On Vacation
Mar 9, 2007
6,872
0
That would be me that gave you the spec sheet Fred :)

Corrado

Corrado

SatelliteGuys Pro
Apr 2, 2007
2,402
284
Hudson Valley Region, NY
I still have my little booklet that came with the dish. I've been enjoying my Unimesh every day since it's install 23+ years ago.

T

tvropro

On Vacation
Mar 9, 2007
6,872
0
I still have my little booklet that came with the dish. I've been enjoying my Unimesh every day since it's install 23+ years ago.

I have the book that came with my 12XL too, 21 years for me. :)

L

lubrikator

Member
Nov 5, 2005
13
0
Yes, now that I think about it, it was you.

I used the sheet to great benefit, and hope someone else will too! :)

BTW, both of my 10 foot Unimesh dishes work very well. :D

thanks a lot linuxman.

Comptech

Comptech

SatelliteGuys Pro
Jun 26, 2006
3,146
2,333
Travelers Rest SC
TvPro, any chance of scanning the manual and posting or e-mailing it? I would love to have a copy for my 12XL. Thanks, Comp.

L

lubrikator

Member
Nov 5, 2005
13
0
.....thanks to linuxman and lak7, this is the result.



Last edited by a moderator:
L

lubrikator

Member
Nov 5, 2005
13
0
You're welcome!

Looks very nice, but I would like to see some close-ups of the end product. :D

Maybe some others would like to see how you manufactured the arms.

...i will do so tomorrow, thanks.
