Universal Noise Source Generator

  • Thread starter Thread starter spongella
  • Start date Start date
  • Replies Replies 0
  • Views Views 1K

spongella

SatelliteGuys Pro
Original poster
May 12, 2012
1,625
1,236
Central NJ
This source generates a noise signal from 0.2 - 2000 mHz, some purport it's use if you don't have a tracking generator. It works pretty well for testing out RF filters. Not a substitute for a TG but it has it's uses for the hobbyist. The noise source's signal is linear all depending on the voltage source. I found a 12V gel cell works best.


Attachments

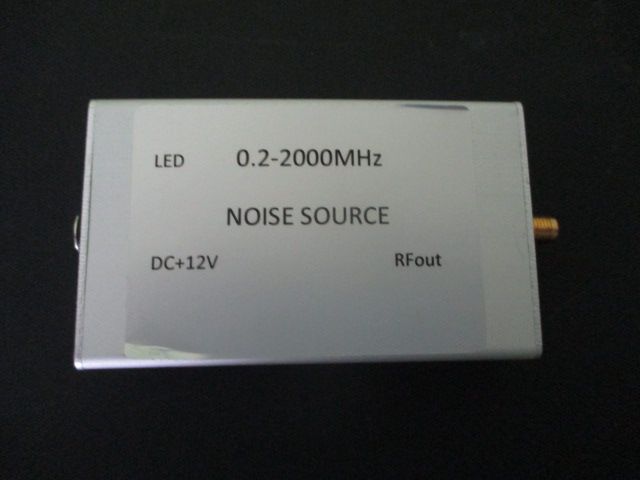

  • IMG_1486.JPG
    54 KB · Views: 203
