Using depart feed horn and LNB (1 Viewer)

miguelaqui

Thread Starter
SatelliteGuys Pro
Oct 14, 2004
1,002
26
582C75D8-5262-4078-9AEB-038AD36CDF0D.jpeg I have a Prodelin / General Dynamics 2.4 satellite dish.

I have been using a standard LNB for my satellite receiver. I have been using a standard cheap LNBF with a cheap bracket bent to use with this particular antenna.

When I purchased this dish, I did not fully understand that, in order to get the most signal out of it, I would need to use a special feed horn and LNB.

I have purchased the feed horn and the LNB is on the way, but I have some questions pertaining to how to connect the LNB to the feed horn.

First, since the end of the feed horn is circular, and the end of the LNB is rectangular, can I connect it directly or do I need some type of waveguide?

Second, since I will need a separate LNB for horizontal and vertical polarities. What do I need to connect 2 LNBs to one feed horn?
t


RimaNTSS

SatelliteGuys Pro
Aug 9, 2013
836
873
Riga
In my opinion you have at least 3 options. I will list them in my preference sequence.
1- make ne holder and install LNBF like Inverto Black Ultra (IBU);
2- adjust IBU to original Prodelin feedhorn;
3- mess around flange LNB connected to original Prodelin feedhorn, polarizer and other expensive stuff..


Magic Static

FTA Geek
Staff member
HERE TO HELP YOU!
Lifetime Supporter
Oct 12, 2010
7,350
4,650
Montana
The Inverto Black flange LNBs are very good for this application.

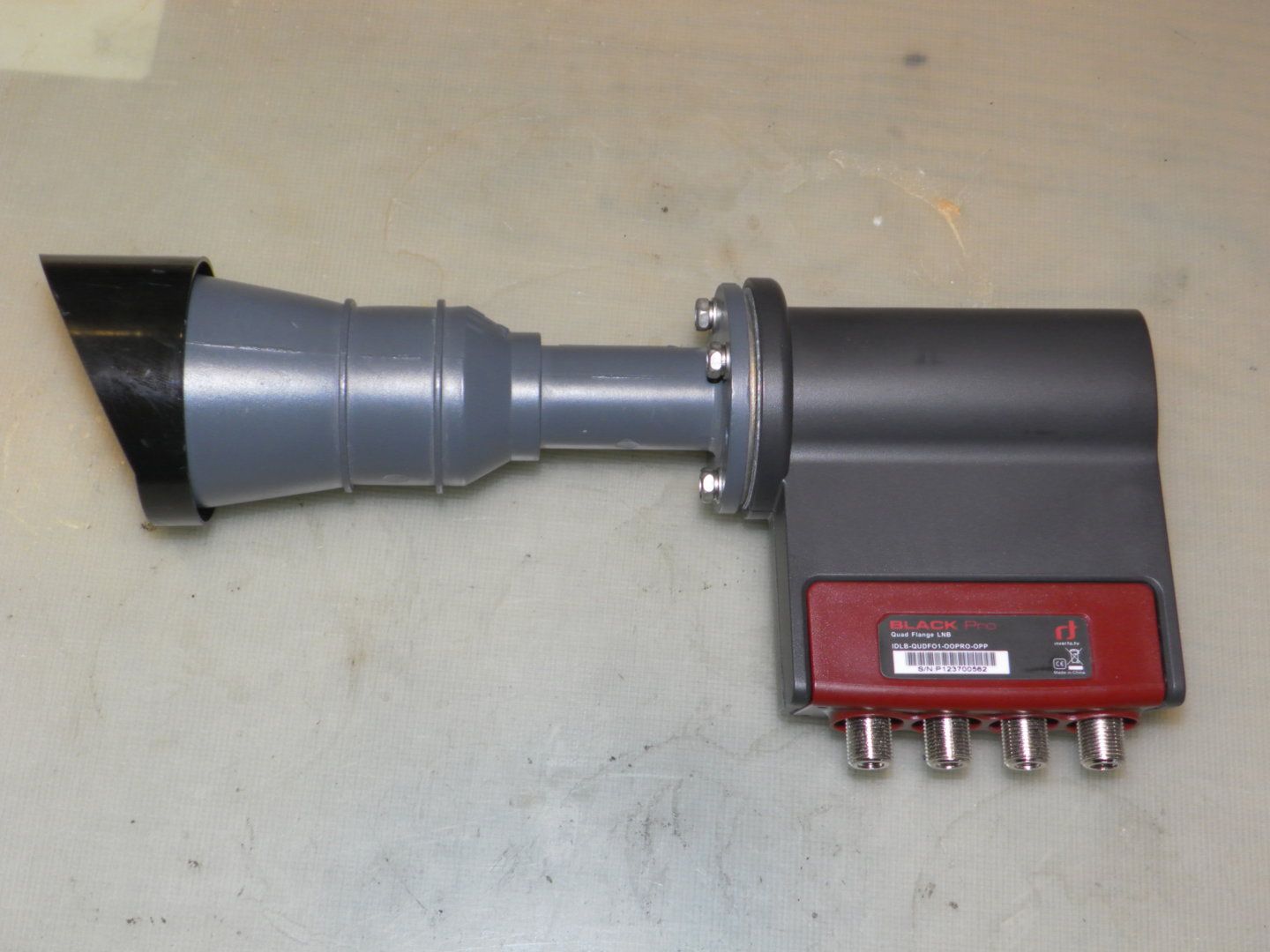

PSTARmount 007.JPG

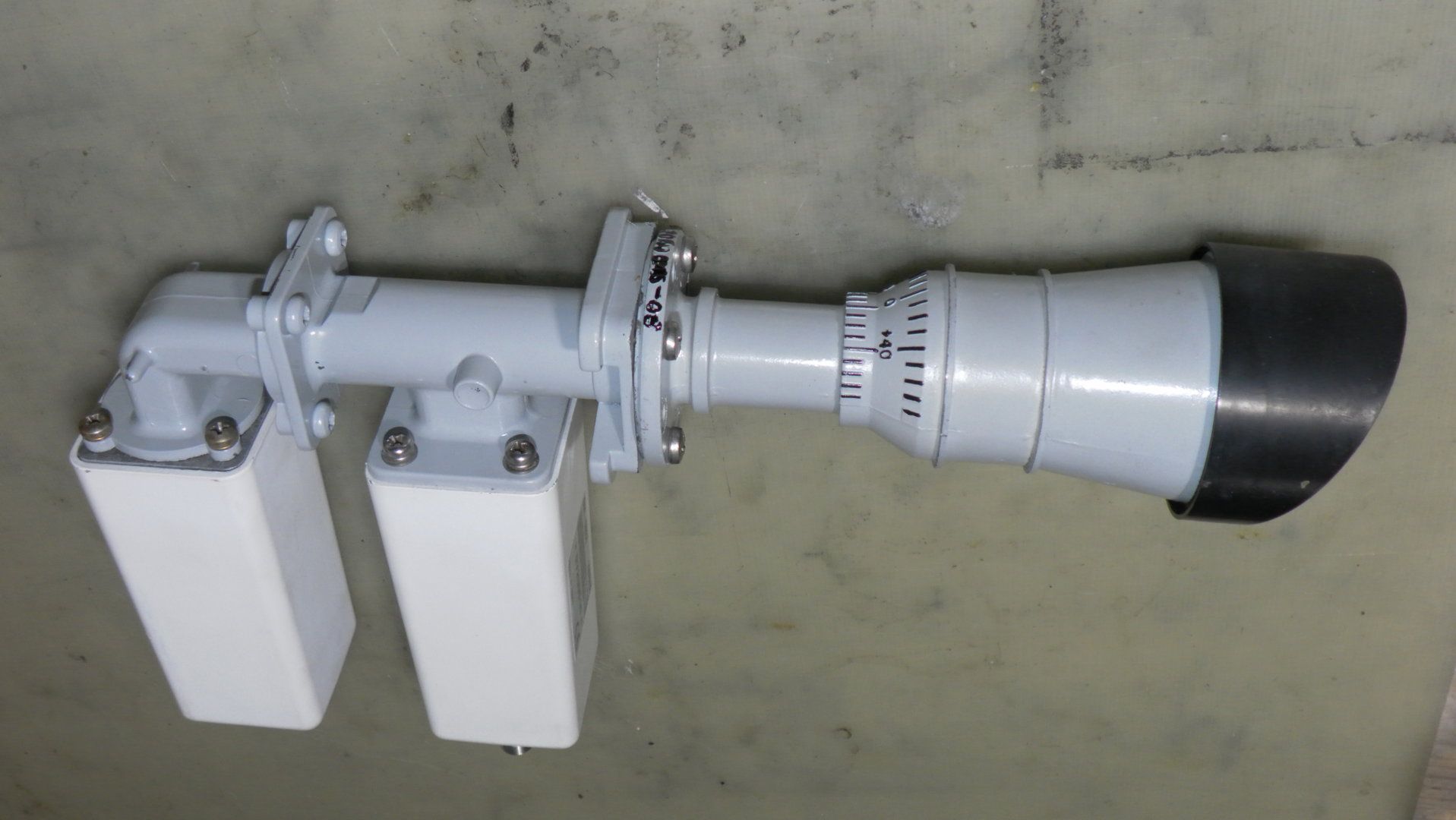

But I also have PLL lnbs on an orthomode transducer.


Attachments

  • omt-ku-ver2.pdf
    194 KB · Views: 96
  • Like
Reactions: EmCommSat

Hoops ❁

Member
May 8, 2020
11
0
Lekki, Nigeria

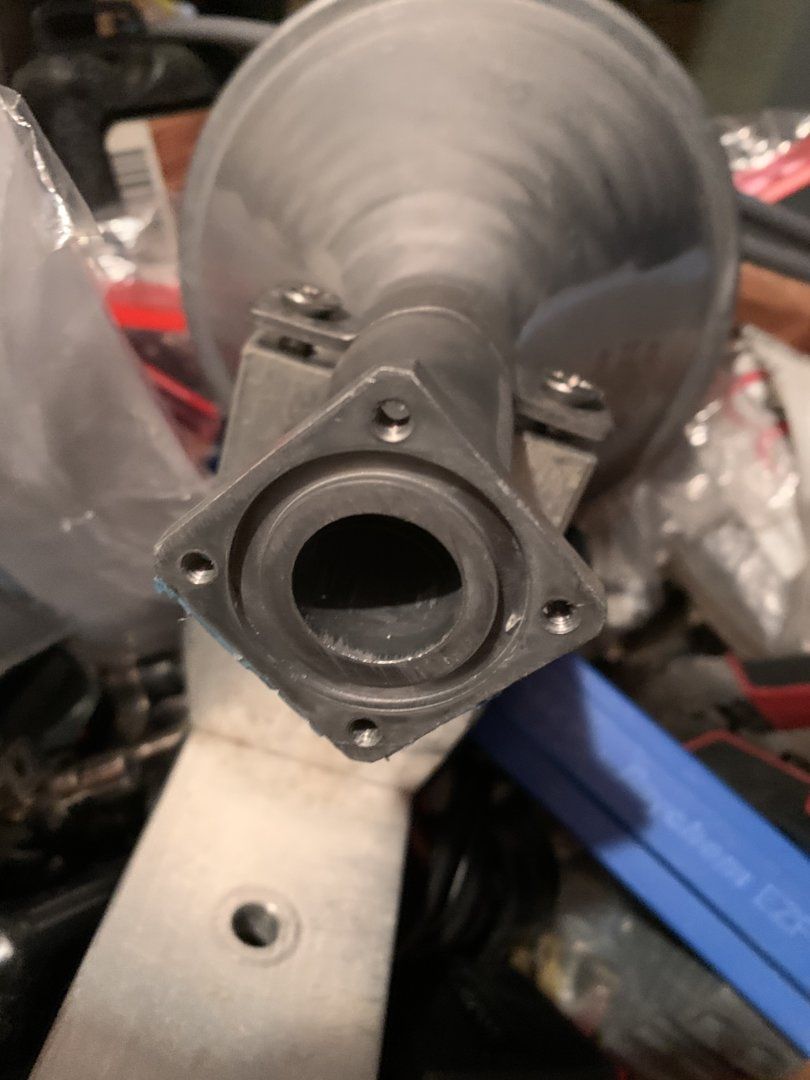

View attachment 142646 View attachment 142646 I have a Prodelin / General Dynamics 2.4 satellite dish.

I have been using a standard LNB for my satellite receiver. I have been using a standard cheap LNBF with a cheap bracket bent to use with this particular antenna.

When I purchased this dish, I did not fully understand that, in order to get the most signal out of it, I would need to use a special feed horn and LNB.

I have purchased the feed horn and the LNB is on the way, but I have some questions pertaining to how to connect the LNB to the feed horn.

First, since the end of the feed horn is circular, and the end of the LNB is rectangular, can I connect it directly or do I need some type of waveguide?

Second, since I will need a separate LNB for horizontal and vertical polarities. What do I need to connect 2 LNBs to one feed horn? View attachment 142645 t View attachment 142645
Hi can you help me with length of the the 3 rods holding your lnd, i got this same dish without any rods, just reflector only. I will be glad if you can get me the lengths si i fabricate mine. Thanks
