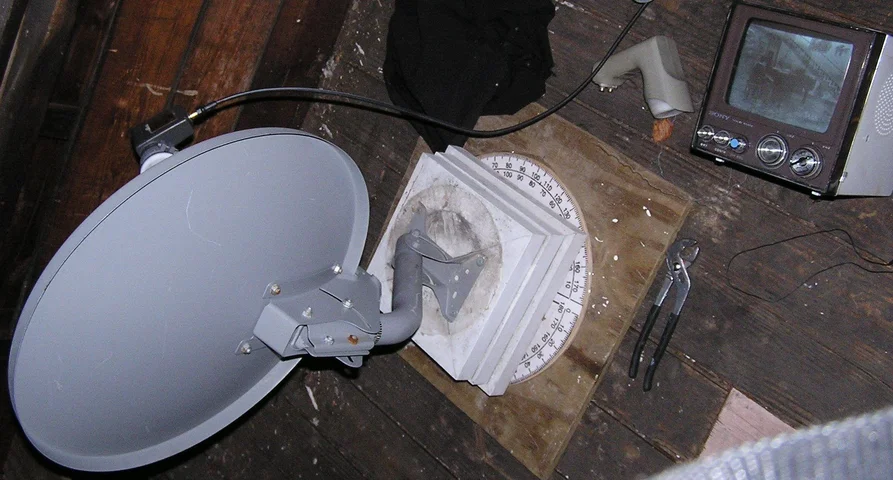

Last night after messing around with a 18" dish I was able to receive
3ABN, 3ABN lat, 3ABN radio and 76radio on 11811 V 5700
I also was able to scan the following transponders.
11922 H 500
11857 H 3617
11959 H 4000
But did not get any programing on them.
I hope to mess around with this more soon.
3ABN, 3ABN lat, 3ABN radio and 76radio on 11811 V 5700
I also was able to scan the following transponders.
11922 H 500
11857 H 3617
11959 H 4000
But did not get any programing on them.
I hope to mess around with this more soon.
47 Replies
·
7920 views
S

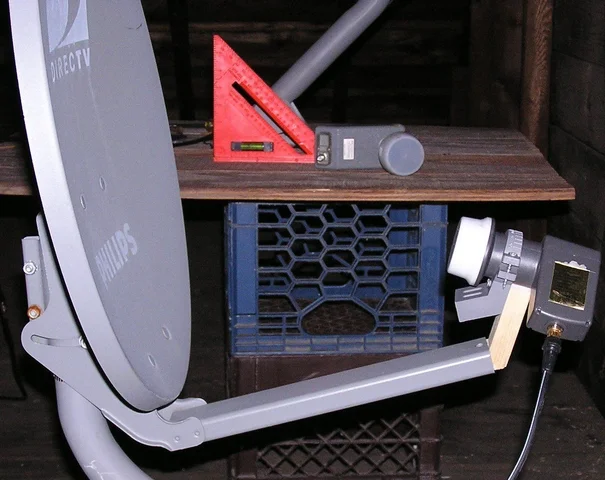

You have a rare lnbf with the Teflon wedge, or did you remove a strip of cast metal? On my first lnbf experiment I lowered the DRO by using the adjustment screw. That allowed me to capture the upper transponder of A5. I was able to turn the screw more and scan in an additional transponder, but the signal (not quality) level fell dramatically. The oscillator was loading down heavily. That's one reason why it's necessary to modify the DRO. I connected a signal meter in series with the lnbf to monitor the signal level while turning the adjustment screw. The more I adjusted down the DRO in frequency, the weaker the output signal became. But once the DRO was properly modded, the signal level was comparable to my Primestar lnb. And, as I mentioned before, the performance is about the same.
For you, the LO might be running somewhere out of band below 11.250 and you don't have a clue. I didn't toy with mine until a blind search receiver became my test instrument. It's easy to verify oscillation by using a radar detector when the DRO is exposed, but that's not getting closer to using it for this application. You really need a frequency counter or at least a blind search receiver to get results and have fun at the same time. Consider also, are the two monopole antennas fully 90 degrees apart and positioned H/V? I've found design variations between lnbfs. Not all are 90 degrees, more like 70, and I avoid them if I want usable voltage switched polarities.
You are in fact doing a blind search in the broadest definition of the term. For this project a blind search feature is priceless. BTW, you won't need to process all the variables to succeed at a manual blind search. Set the SR for a known transponder and key-in frequencies beginning at 12.200, 12.198, 12.196, ect, until you see a quality reading. If possible, try to pick an SR common to multiple transponders -- the more targets the better. And if choice is an option, choose a well lit bird with lots of active transponders. You may want to work down from 12.200 and then up from 11.700 (in .002 or .003 increments -- depending upon how broad your card/sw auto-fine-tune lock works.). If the shifted LO generates an IF range containing any transponders at all, they will be unevenly distributed, located mostly toward the upper or lower IF extreme within the limits of the receiver's tuning range. I assume your 18" dish is secure and pointed at the AMC-4 / DTV orbital slot, targeted by using a stock DSS lnbf and DTV IRD, or a signal meter. Are you confident that the dish position isn't another variable to add to your blind search definitions?
I hope you're surprised by positive results soon. Success was easy for me from the start. Good-luck!
-sidha
PS. Thinking about converting an analogue camera to a digital camera for taking those pictures you promised?
CharredPC said:Sidha:
I performed the mods you described (pretty well, I think). I added about 30% more ceramic to the "puck," and removed the wedge from the feed horn. It actually was pretty easy!
I fired up ProgDVB, and got the proof; signal is pretty miserable (39%) on 12676; setting it to 10959 gives 66% signal. Here's where the problem comes in...
I use a Twinhan 102g. So no blind scan. The modification (obviously) uncalibrated the lnb, so now frequencies are a bit off (I assume). So I'm sitting here with a modded DTV dish, and no way to use it... except maybe try every single possible combination of frequency/polarization/symbol rate while pointed at this bird I'm aimed at now. Blast, why haven't they made a blind search app for these cards? Maybe I can make a fake sat transponder set that has EVERY combination in it, as a very crude blind search. Would only take a few weeks to run through it..
Any advice? If I ever get this working, I'll use my digital camera and do a step-by-step guide on my ghetto mod. It'd be kinda fun
You have a rare lnbf with the Teflon wedge, or did you remove a strip of cast metal? On my first lnbf experiment I lowered the DRO by using the adjustment screw. That allowed me to capture the upper transponder of A5. I was able to turn the screw more and scan in an additional transponder, but the signal (not quality) level fell dramatically. The oscillator was loading down heavily. That's one reason why it's necessary to modify the DRO. I connected a signal meter in series with the lnbf to monitor the signal level while turning the adjustment screw. The more I adjusted down the DRO in frequency, the weaker the output signal became. But once the DRO was properly modded, the signal level was comparable to my Primestar lnb. And, as I mentioned before, the performance is about the same.
For you, the LO might be running somewhere out of band below 11.250 and you don't have a clue. I didn't toy with mine until a blind search receiver became my test instrument. It's easy to verify oscillation by using a radar detector when the DRO is exposed, but that's not getting closer to using it for this application. You really need a frequency counter or at least a blind search receiver to get results and have fun at the same time. Consider also, are the two monopole antennas fully 90 degrees apart and positioned H/V? I've found design variations between lnbfs. Not all are 90 degrees, more like 70, and I avoid them if I want usable voltage switched polarities.
You are in fact doing a blind search in the broadest definition of the term. For this project a blind search feature is priceless. BTW, you won't need to process all the variables to succeed at a manual blind search. Set the SR for a known transponder and key-in frequencies beginning at 12.200, 12.198, 12.196, ect, until you see a quality reading. If possible, try to pick an SR common to multiple transponders -- the more targets the better. And if choice is an option, choose a well lit bird with lots of active transponders. You may want to work down from 12.200 and then up from 11.700 (in .002 or .003 increments -- depending upon how broad your card/sw auto-fine-tune lock works.). If the shifted LO generates an IF range containing any transponders at all, they will be unevenly distributed, located mostly toward the upper or lower IF extreme within the limits of the receiver's tuning range. I assume your 18" dish is secure and pointed at the AMC-4 / DTV orbital slot, targeted by using a stock DSS lnbf and DTV IRD, or a signal meter. Are you confident that the dish position isn't another variable to add to your blind search definitions?
I hope you're surprised by positive results soon. Success was easy for me from the start. Good-luck!
-sidha
PS. Thinking about converting an analogue camera to a digital camera for taking those pictures you promised?
This is GREAT stuff. I have not had too much time lately BUT I did find
HDTV - Spanish
HDTV - English
on a transponder that was 5000 SR , ?, ?????
I think it is east of 95W ?
Any ideas?
Thanks
HDTV - Spanish
HDTV - English
on a transponder that was 5000 SR , ?, ?????
I think it is east of 95W ?
Any ideas?
Thanks
CharredPC said:Sidha:
I performed the mods you described (pretty well, I think). I added about 30% more ceramic to the "puck," and removed the wedge from the feed horn. It actually was pretty easy!
I fired up ProgDVB, and got the proof; signal is pretty miserable (39%) on 12676; setting it to 10959 gives 66% signal. Here's where the problem comes in...
I use a Twinhan 102g. So no blind scan. The modification (obviously) uncalibrated the lnb, so now frequencies are a bit off (I assume). So I'm sitting here with a modded DTV dish, and no way to use it... except maybe try every single possible combination of frequency/polarization/symbol rate while pointed at this bird I'm aimed at now. Blast, why haven't they made a blind search app for these cards? Maybe I can make a fake sat transponder set that has EVERY combination in it, as a very crude blind search. Would only take a few weeks to run through it..
Any advice? If I ever get this working, I'll use my digital camera and do a step-by-step guide on my ghetto mod. It'd be kinda fun
sidha said:
I'm very lucky and have one with your initial easy-to-work-with teflon wedge design.
sidha said:
This is one of the reasons why (though I have no blind scan) I decided to call my mod a success. Reception (purely signal-wise, not quality) was MUCH better in the lower frequencies after the mod, as compared to before.
sidha said:
Yep, 90 degrees apart. Though positioned cockeyed, of course; like, 10 and 2 instead of 12 and 3, so to speak.
sidha said:
Sort of. As a semi-test, I locked the dish onto Echo7 while doing the mod. When the mod was complete (as long as the wedge was inserted, and after some fine tuning with the set screw) I could still recieve Echo7; but only up to the 12224.00 mhz transponder. That was my apparent new top-limit (unless the skew was out of whack, causing transponders to be too off frequency from there on to lock in). The problem is, Echo7 is a circular-polarized-only bird AFAIK, and set to DBS. So I couldn't test my new setup with that. I had to leave the bird and scan for another; between not having blind scan and not knowing what bird I was hitting (same thing, I guess, in a way) I couldn't lock onto a V/H polarized true Ku bird.
sidha said:PS. Thinking about converting an analogue camera to a digital camera for taking those pictures you promised?
I'm writing up a guide this minute, complete with digital pictures. Expect it posted within the next hour. (EDIT: Will post it in a new thread to avoid confusion
) While I couldn't 100% verify my results by locking onto a Ku bird, I feel it was only due to the limitations of my owning a Twinhan instead of a set-top blind scanning reciever. Seeing as I'm in the minority there, the guide will probably help many others get some use out of the "junk" DTV setups we see litterring porches, roofs, and garbage bins across the land CharredPC
PS. (Edit) Part One of the guide has now been posted.
PPS. My Winegard 31" / SG2100 / Universal LNB / Heavy duty universal wall/roof mount package was ordered yesterday!! w00t! For those in the market, it was a mere $164.95, shipping included. I'll have it in under a week!
