Just curious how far off true south people are able to go with their setup? I'm guessing different mounts have different capabilities but what sort of range, ie how many degrees east or west are you able to go with your C band setup?


Magic Static

FTA Geek
Staff member
HERE TO HELP YOU!
Lifetime Supporter
Oct 12, 2010
7,356
4,668
Montana
True south for me is 114.0w and I drop down to 55.5W on the east. I could go more but have mountains in the way ;)


norman881

SatelliteGuys Pro
Pub Member / Supporter
Lifetime Supporter
Jul 26, 2009
695
198
Washington State
Just curious how far off true south people are able to go with their setup? I'm guessing different mounts have different capabilities but what sort of range, ie how many degrees east or west are you able to go with your C band setup?
True south for me is 117.65w. 58W is my max east.


FTA4PA

Satellite Guys Family
Lifetime Supporter
Nov 13, 2013
4,627
2,498
Central Pennsylvania
True south here is 77W. Using an 18" actuator. On the western end I go to 125W (can actually reach a bit further without dish flop but neighbors trees block anything past 125W). On the eastern side 55.5w is as far as I go. Might be able to get further east but haven't tried.


FaT Air

HOA Free Zone
Feb 27, 2010
6,668
913
97W 48N
Satellite: 139W AMC-8 (GE-8)
Elevation: 21.7°
Azimuth (true): 230.3°
Azimuth (magn.): 227.4°

Satellite: 55.5W GALAXY 11 (G-11) | INTELSAT 805 (IS-805)
Elevation: 21.8°
Azimuth (true): 130.0°
Azimuth (magn.): 127.1°

227.4° - 127.1° = 100.3° azimuth deviation to cover 55W -139W.
Actual 'capable' is maybe 10° more So max ~55° E or W from 97W.

TRUE:
different mounts have different capabilities
Mount geometry limits me to this 'range' on each side. Not any obstructions like trees or mountains.


armadillo_115

SatelliteGuys Pro
Jun 10, 2015
1,244
951
Virginia
My true South is 80W.I get from 125W to 55W with my 10 ft'er if the actuator clamp is adjusted precisely. (ATM I'm 2 clicks away from tuning 125W in entirely) I can't go further due to only having an 18 inch actuator.I had to choose which part of the arc best met my needs.

A longer actuator would allow me to drop down to 139W and still reach 55W...BUT to go further east than 55W I need to overcome the 'flop over' effect on the eastern side.

Just my own unique situation.Different dishes have different geometries.


waylew

SatelliteGuys Pro
Aug 23, 2010
2,629
1,004
northern WEST new york

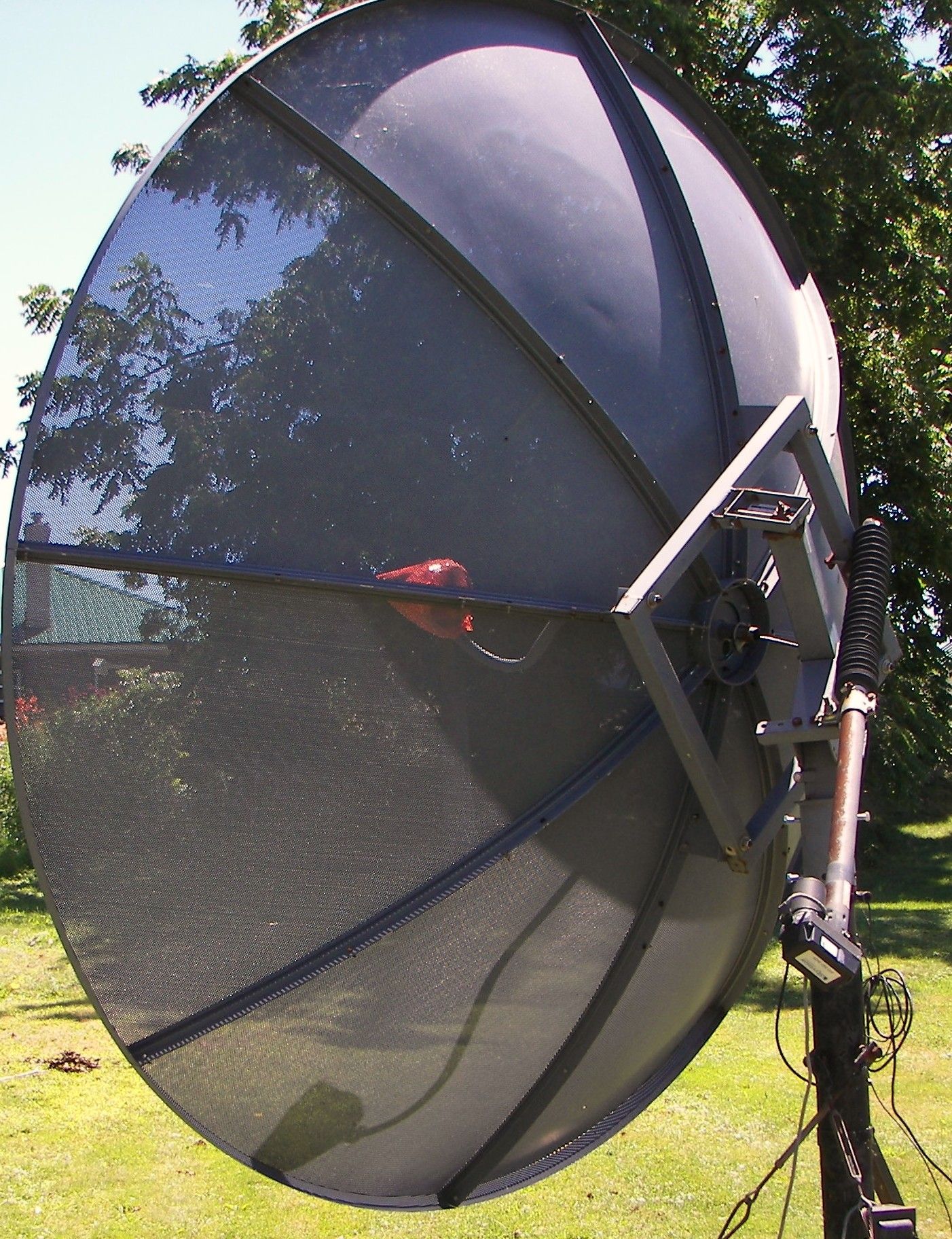

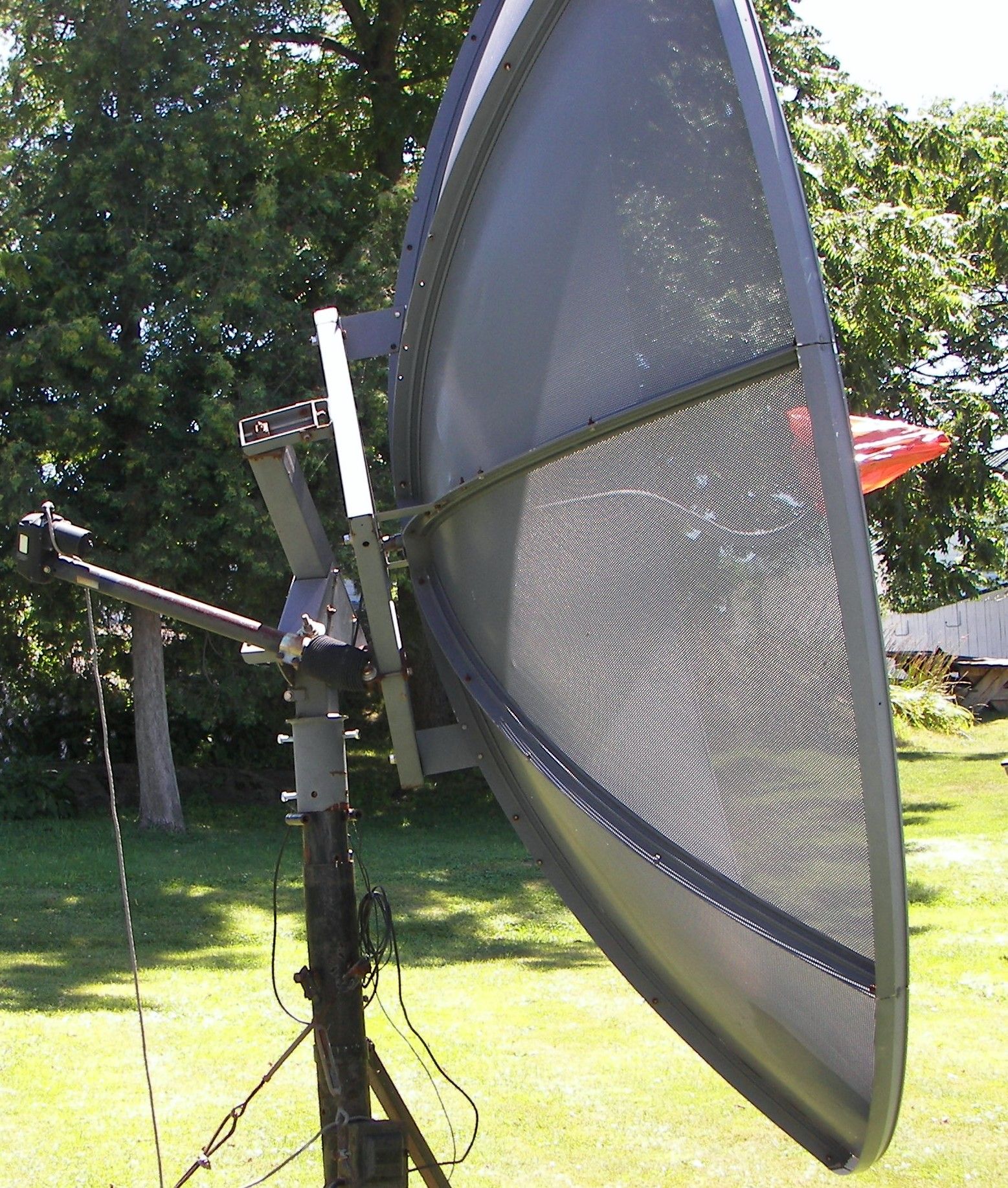

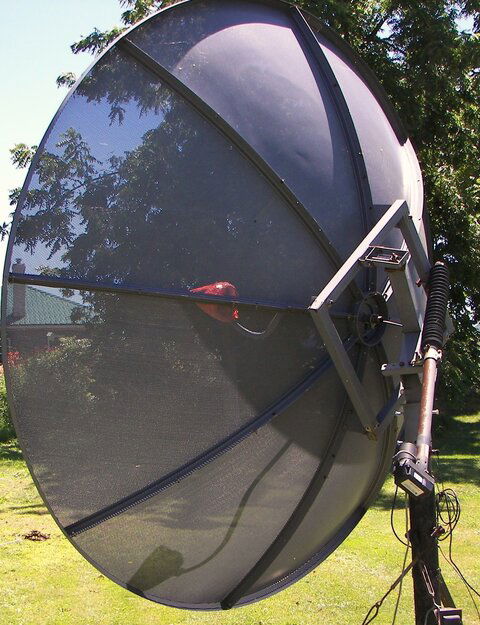

How far?10' Winegard Pinnacle with 24" actuator;
100_0471.JPG 100_0472.JPG

  • Like
Reactions: mr3p

Lone Gunman

SatelliteGuys Pro
Mar 19, 2010
3,057
749
southeast
True South here is 78* and I'm looking at 139w to 34w on two systems and can get back further East than that on that temp/trailer mounted Raydx. Don't know exactly how far East I can go with that Raydx because of some trees on that side of my property.

All these use 24" Von Weise movers.


lost_mesa

SatelliteGuys Pro
Oct 18, 2010
513
396
New Mexico
Southern most satellite here is 107.3°. My 10 footer with a 36" actuator can go from 34.5° to 139°, so a range of 104.5°. It's a little scary going to the western end of the arc though. Almost on the verge of flopping over, so I don't go there often with this dish.


mr3p

Thread Starter
SatelliteGuys Pro
Pub Member / Supporter
Jan 1, 2010
1,142
152
West
Technical question/advice: I'm in process of repositing my dish and have a potential site where my LOS arc is 55°W-166°E although is it even possible to setup an actuator to cover this entire range without dish flopping? Not even sure the mount has that much range but looking at my options.

Last edited:

mr3p

Thread Starter
SatelliteGuys Pro
Pub Member / Supporter
Jan 1, 2010
1,142
152
West
Thanks guys. I figured that was the answer unless there was some weird way of using 2 actuators. Guess I'll have to get another dish ;)


mr3p

Thread Starter
SatelliteGuys Pro
Pub Member / Supporter
Jan 1, 2010
1,142
152
West

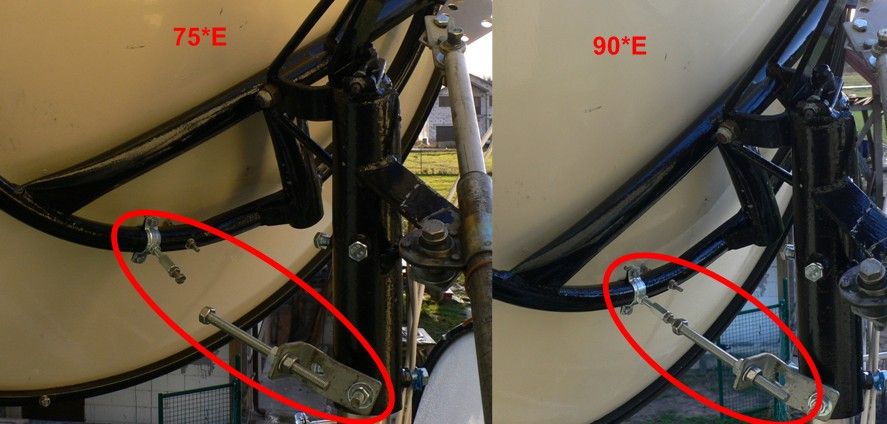

Sounds interesting. I understand theory of using a counterweight but I'm trying to picture where it would attach to the polar mount and not interfere with the movement. Any chance you have any pictures of counterweight setup? I'm guessing it would require a lot of cinder blocks. Anyway to have the dish pole be the counterweight? My other thought was some sort of a mechanical stop like this one posted by RimaNTSS on uk sat forum although I"m guessing over time it would fail so counterweight seems like better option


Attachments

  • ScreenHunter_115 Jan. 07 20.17.jpg
    ScreenHunter_115 Jan. 07 20.17.jpg
    91.2 KB · Views: 74
Last edited:

Titanium

AI6US
Lifetime Supporter
May 23, 2013
7,141
8,028
Meadow Vista, Northern California
Sorry, no photos. This attached photo looks like a mechanical stop. Not sure how it is a counterweight...

Could be a 3-4' length of thick wall pipe attached to the mount with ballast (weight plates). Or attach a stranded wire, pulley and weight plates that engage before the flop point.


mr3p

Thread Starter
SatelliteGuys Pro
Pub Member / Supporter
Jan 1, 2010
1,142
152
West
Yes, picture is a mechanical stop posted by RimaNTSS on UK forum. I like your idea about counterweight. I'll have to chew on it and see if I can figure something out. There isn't much that far out west worth seeing but I figured if I have the LOS might as well take advantage.
