Bird View dish? (1 Viewer)

Cham

Thread Starter
VE4GLS
Pub Member / Supporter
Dec 19, 2008
2,318
891
Boonies

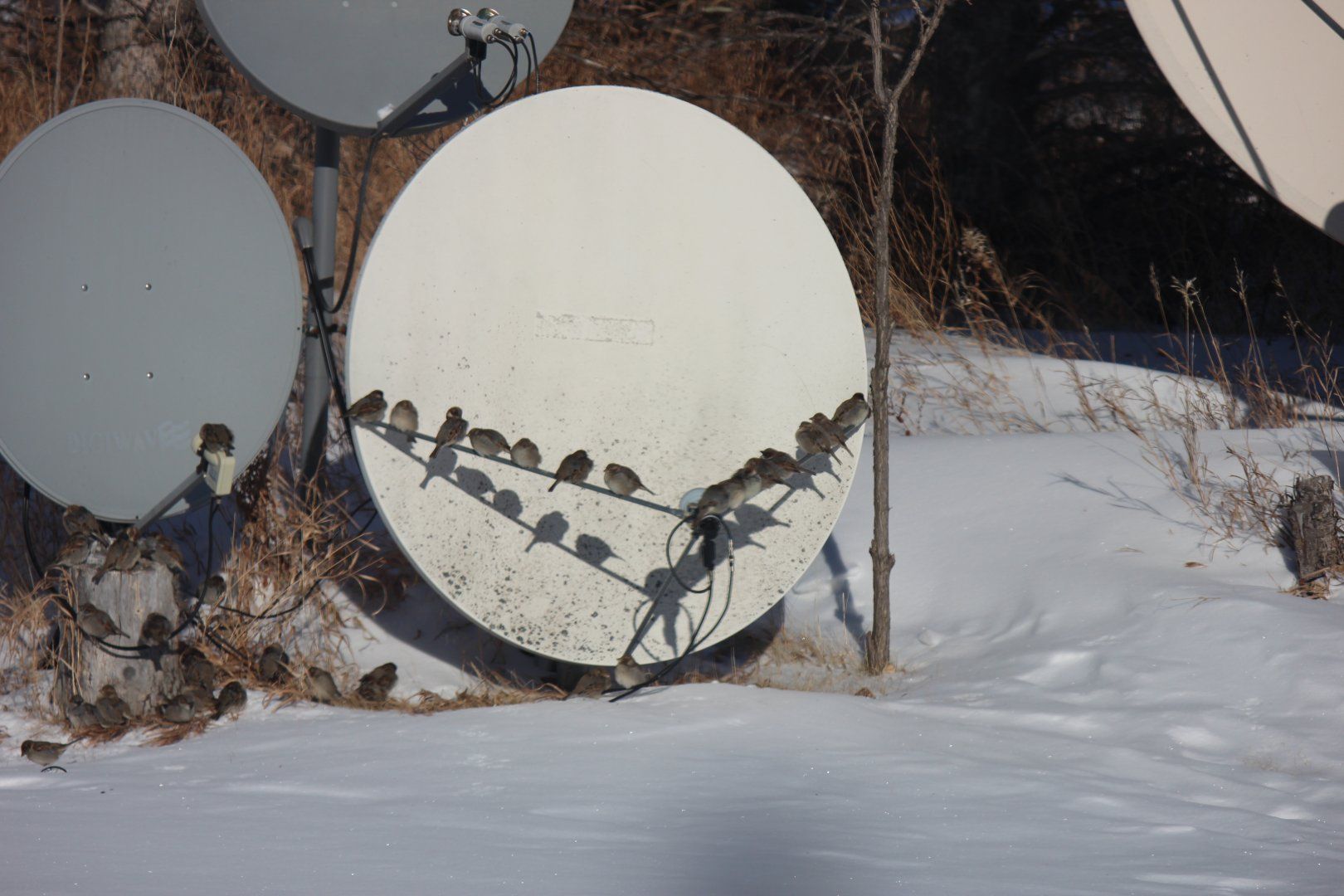

Just happened to look outside and saw this... It's actually a Channelmaster 1.2m pointed at 103w :)


Attachments

  • Bird-View_1.JPG
    191.6 KB · Views: 63

RimaNTSS

SatelliteGuys Pro
Aug 9, 2013
839
873
Riga

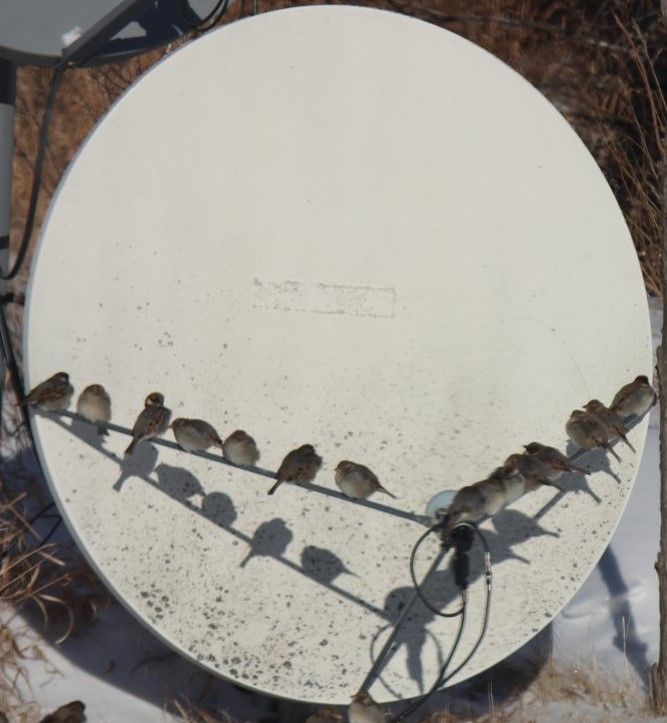

Do you mean this one? It does not look like Channel Master antenna to me. Perhaps Prodelin.


Attachments

  • Bird-View_1.JPG
    88.9 KB · Views: 29

Cham

Thread Starter
VE4GLS
Pub Member / Supporter
Dec 19, 2008
2,318
891
Boonies
Pretty sure it says Channel Master on the back... I actually have two of them, identical. I switched out the single polarity LNBs for dual (dual polarity) Inverto Black LNBs.

  • Like
Reactions: RimaNTSS

ancient

SatelliteGuys Pro
May 12, 2014
347
151
USA
Do you mean this one? It does not look like Channel Master antenna to me. Perhaps Prodelin.
I think you are wrong about that. I have two of those and the Channel Master brand is embossed on the back. Those are old PrimeStar dishes and they are great for Ku reception.


Magic Static

FTA Geek
Staff member
HERE TO HELP YOU!
Lifetime Supporter
Oct 12, 2010
7,373
4,696
Montana

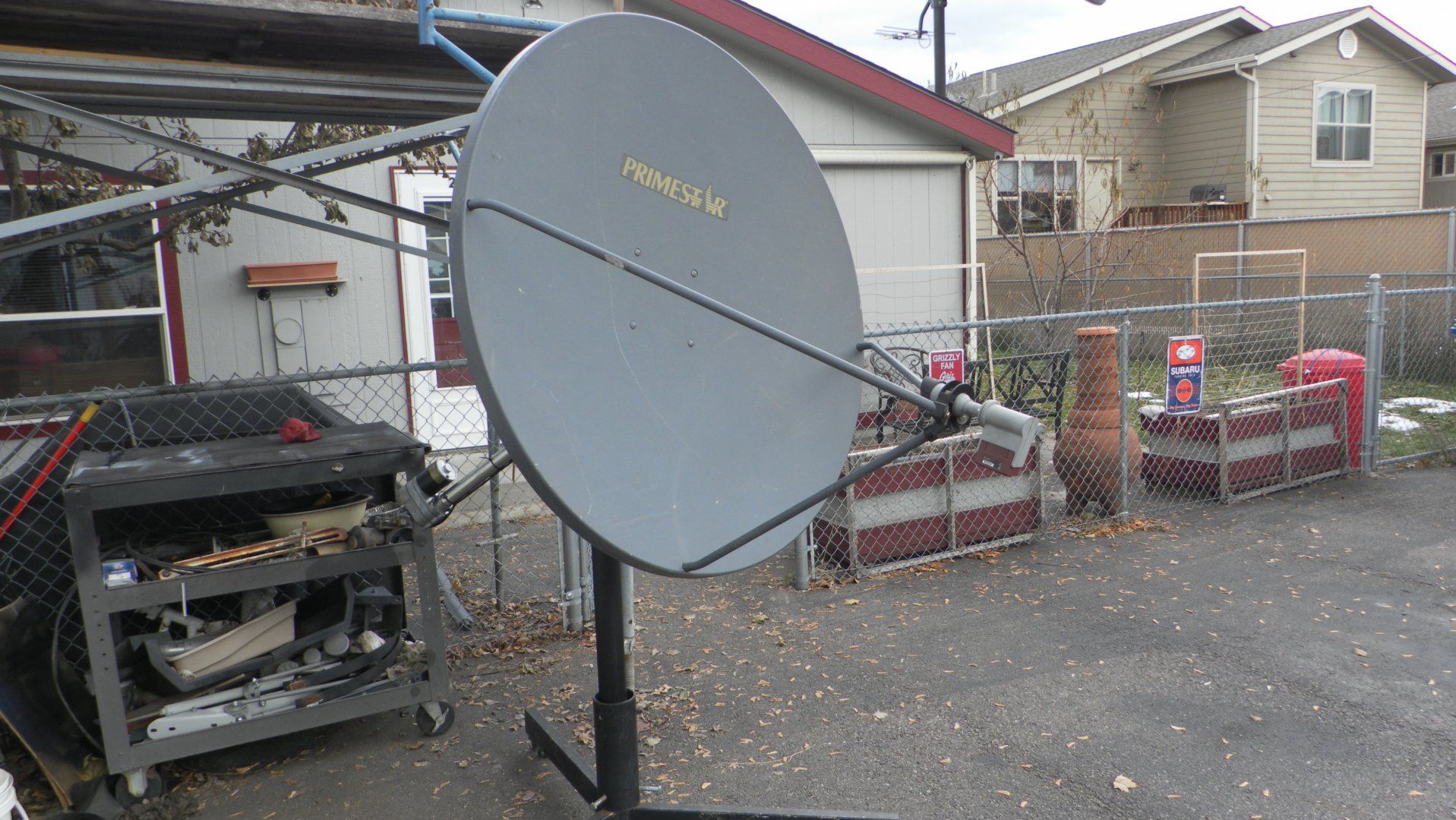

A PrimeStar dish made by CM has many differences to that picture. The LNB arms and holder are different. The CM dish has a 7" square bolt pattern holding the dish to the mount. A prodelin has a larger bolt pattern.

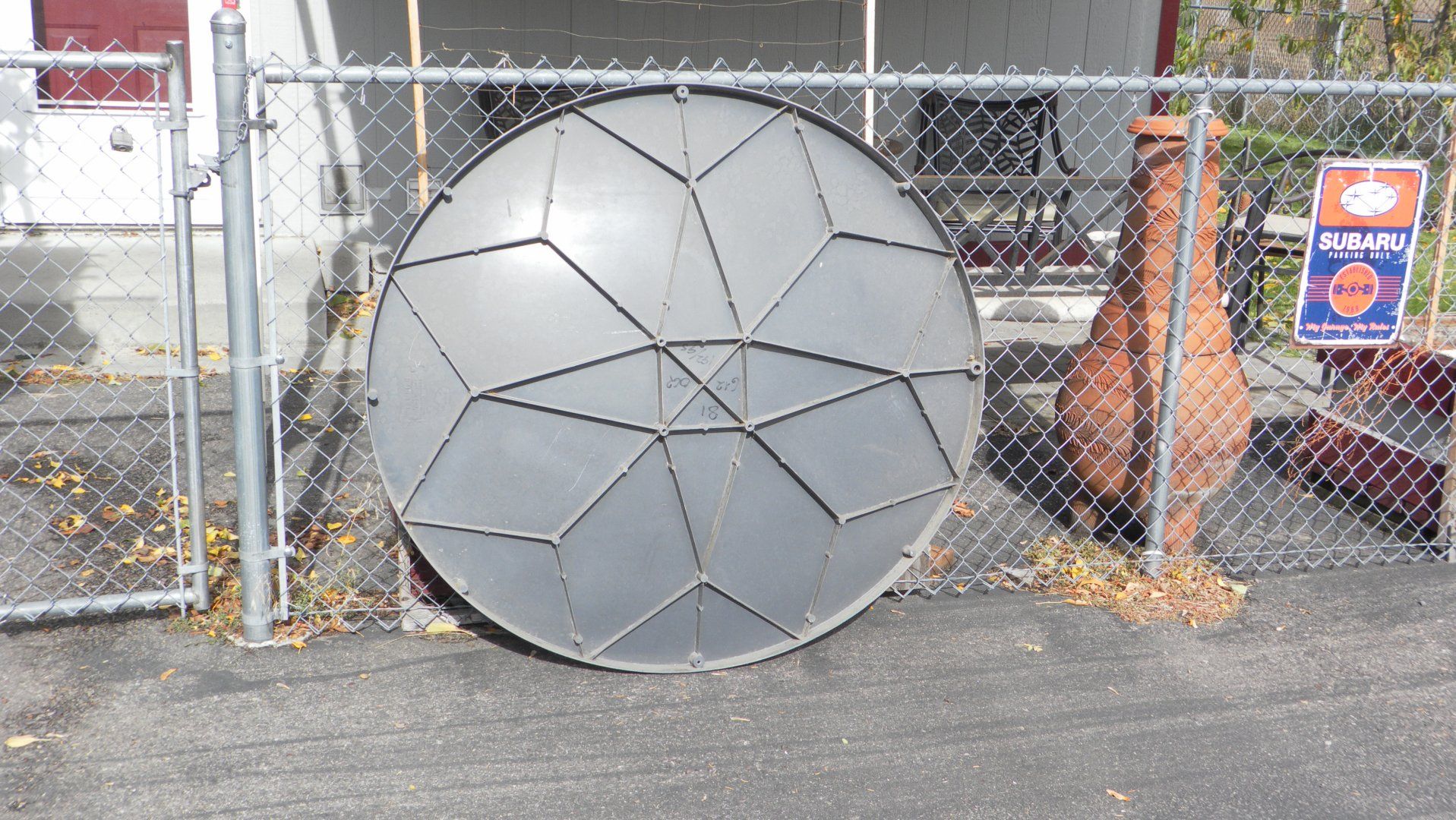

The back side of the CM

KuDishProject 004.JPG

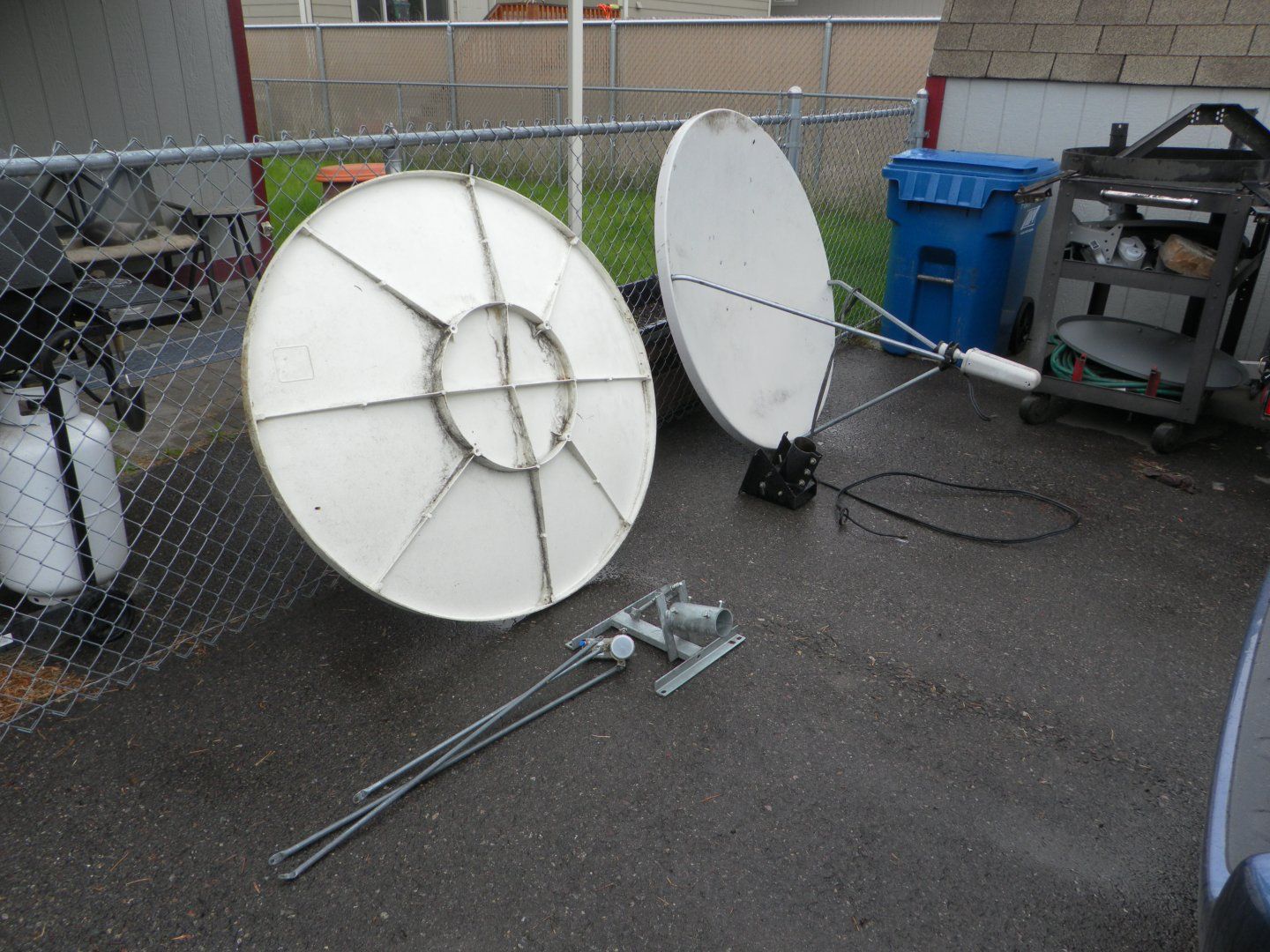

A Prodelin

1.2M 002.JPG


Cham

Thread Starter
VE4GLS
Pub Member / Supporter
Dec 19, 2008
2,318
891
Boonies

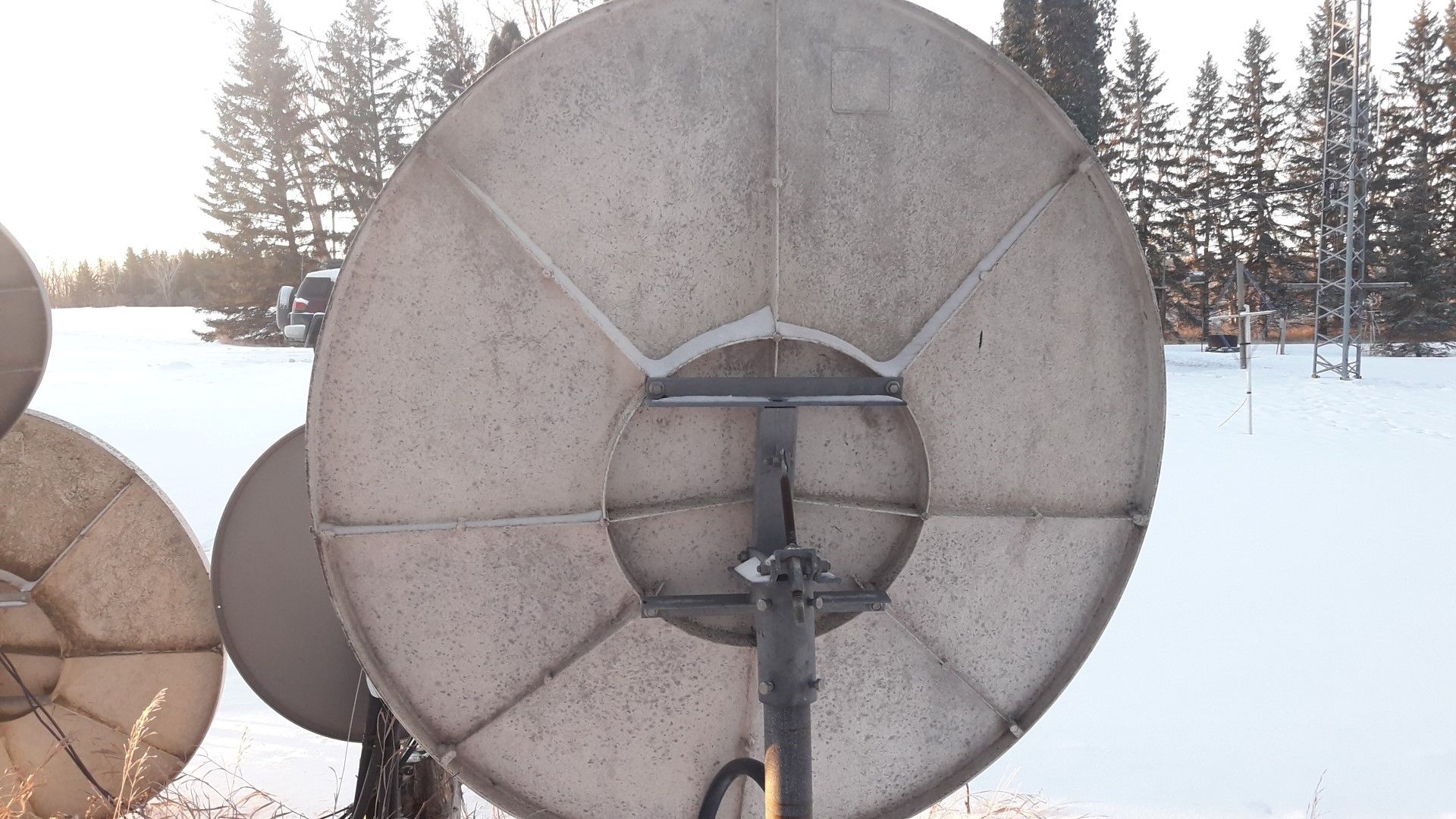

Yes I can post a picture once it warms up a bit (-30 camera won't likely work). This is a very old dish though, but does look like the second pic in Magic's post above. The two I have came from a local broadcast company.
Edit, braved the cold and used the smartphone. Can't read the model plate though it's too weathered or is gone... so I guess we can call it what ever we want. :)
Re-loaded the posts above missed the center picture for some reason, it obviously looks like the 3rd image above.


Attachments

  • backview1.2m_1.jpg
    370.7 KB · Views: 31
Last edited:
