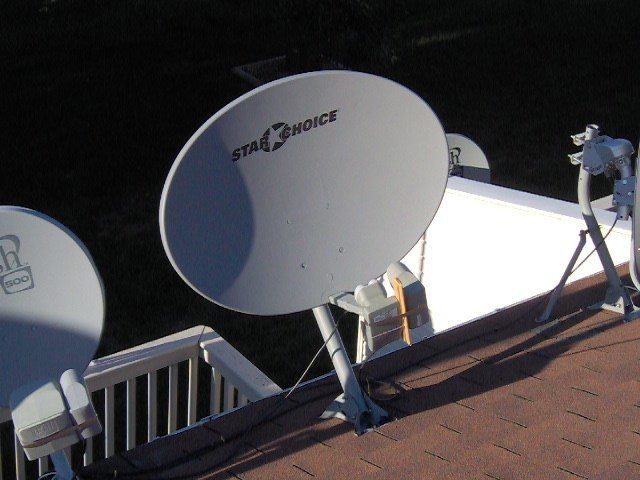

Do you want lightning finding ground through your receiver?
I think not. It is possible that if you improperly install a dish and if it causes damage to the building, your insurance may not cover it.
Here's more info than anybody needs:
c&p from articles.directorym.net
Lightning Protection System Grounding
Though unpredictable, lightning is a very common event around the world. There are more than 40,000 storms every day producing more than eight million lightning strokes. These strokes can result in fires, damage to buildings, and breakdowns to electrical, telephone and computer installations. Damage results from electromagnetic fields from the lightning stroke, voltage differentials in ground systems, and structural damage from ohmic heating or mechanical forces. Damage can be attributed to insufficient direct-strike protection, inappropriate grounding and bonding that permit lightning currents to flow near susceptible electronics, and deficient Transient Voltage Surge Suppression (TVSS) protection.
What can be done to protect personnel and capital investments? The best approach to prevention is a properly designed and installed lightning protection (LP) mitigation system (Reference
NFPA 780, UL 96 and
UL 96A for LP equipment and proper installation procedures). The foundation upon which the LP system is built is a properly designed grounding electrode system, complemented with proper bonding practices, to create an equipotential plane and the application of TVSS to all power, communication and data signal lines.
Lightning's Nature
The properties of a lightning stroke are indeed impressive, with an instantaneous power of over one Megawatt and, on average, a peak current level of 30,000 Amperes. There are three main lightning interactions that need to be considered:
- Direct lightning stroke to the facility
- Near stroke that induces large voltage impulses in metal conductors
- Ringing results that occur when a tuned cable captures similar frequencies from the radiated stroke.
Lightning Protection
The most popular methods of lightning protection have involved the use of passive Franklin air terminals, horizontal and vertical conductors or combinations thereof. The LP system is dependent on the ground electrode system to effectively dissipate lightning energy into the earth. The characteristics of a ground system under the impulse conditions of a lightning stroke are important if an effective LP ground system is to be implemented. This ensures that the grounding system provides low ground impedance and not just a low resistance. This is a central point to the philosophy of LP ground system design.
The impulse from a lightning stroke is comprised of both high- and low-frequency components. The wave shape of the impulse is characterized by a very steep rise in voltage and current followed by a long tail of excess energy content. The high frequency is associated with the fast rising front while the lower frequency component resides in the long, high-energy tail. Because of this steep rate of current rise, the inductance of the ground system becomes a central point of the design. The voltage rise, known as Ground Potential Rise (GPR), is dependent not just on the system resistance, but more importantly, the impedance (inductive reactance) of the system. The voltage rise can be expressed by the following formula, where I (A) is the instantaneous current, R (?) is the system resistance, L (µH) is the inductance of the system, and dI/dt (kA/µsec) is the current rate to peak of the impulse.
The injection point on the structure can reach hundreds of thousands or even millions of volts relative to remote earth, due to the lightning stroke. The dominant factor attributed to this large impressed voltage is the product of the inductance and the rapid rate of current from the impulse. It is this type of large voltage rise that leads to the hazard known as flashover — arcing from the LP system to an adjacent metallic conductor due to the dielectric breakdown of air between the conductors. Therefore, a low impedance ground is essential to the performance of the LP system.
A Grounding System
The ultimate goal of a LP ground system is to dissipate the energy from the lightning stroke into the earth, safely and efficiently. The efficacy of the system is one in which the potential rise of the surrounding earth is minimized and the rate of potential fall from the injection point is maximized. Step and touch potentials are maintained to safe levels and an equipotential ground plane is created to ensure the safety of equipment and personnel. Equipotential bonding is used throughout the installation to eliminate damage caused by differential ground potentials. Note that the
National Electric Code (NEC) requires that the grounds from all systems including, power, cable, telephone and LP be bonded together.
The LP grounding system must be robust and constructed from materials that will perform for the service life of the building or structure that it is protecting. Inductance and skin effects are the major considerations in selection of conductors, connectors and installation practices. Radials constructed of flat strip or cable, and typically embedded in a ground enhancement material, are the most effective electrodes in reducing GPR and directing lightning energy away from the point of injection. Other commonly used electrodes include ground rods, plates, and enhanced or electrolytic ground rods.
Exothermically welded connections provide the lowest inductance path for high frequency lightning surges while providing the highest level of reliability. They are mandatory for below-grade connections and reduce the concern of corrosive deterioration.
Soil Considerations
Knowing the resistivity of the soil is important since the resistance of a ground electrode or a complete electrode system is directly proportional to soil resistivity. The most common method utilized for measuring soil resistivity is the Four Point Method using the equally spaced Wenner Arrangement. This method is commonly referred to as the Four Pin Method. The Fall of Potential Method is most commonly used to measure the resistance of a ground electrode system, though in some situations, clamp-on style ground testers provide valuable information. The resistance of the installed systems is typically under five ohms.
Knowing the soil resistivity allows the designer to apply what is known about LP grounding conductors and electrodes. For example, if the upper layer is poorly conductive, larger radial wire or strip should be used to reduce the inductance between ground rods, and the spacing between the rods should be decreased. Changing conductor size and rod spacing is required due to the soil not shunting the radial inductance as it would if this layer were conductive. The impedance of the radial conductors can be greatly reduced by the addition of conductive ground enhancement materials around the conductors. Furthermore, high resistivity soils can cause a high concentration in the electric field around an electrode, which may cause arcing in the soil that can fuse the soil into a glass material (fulgurites). This glass material will no longer be conductive.
A periodic inspection program is needed to ensure that continuity exists throughout the ground system. Annual testing is recommended to verify that the system is operating at an optimal level. Regular inspections need to test both the electrical resistance of the system to remote earth as well as continuity within the system
:
What happens when lightning hits and you're not home?
