Does anyone know anything about this receiver? (1 Viewer)

Status
Please reply by conversation.

olliec420

Thread Starter
SatelliteGuys Pro
Jun 4, 2007
751
184
Pensacola, FL

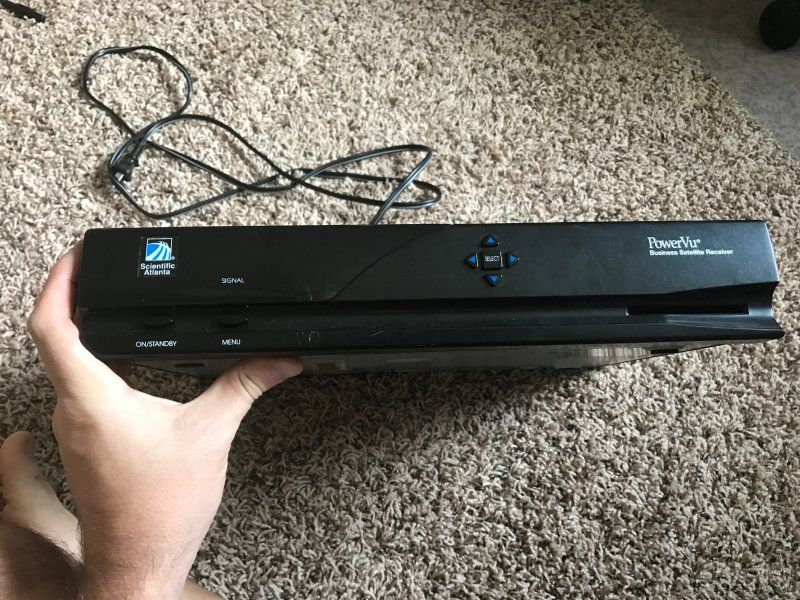

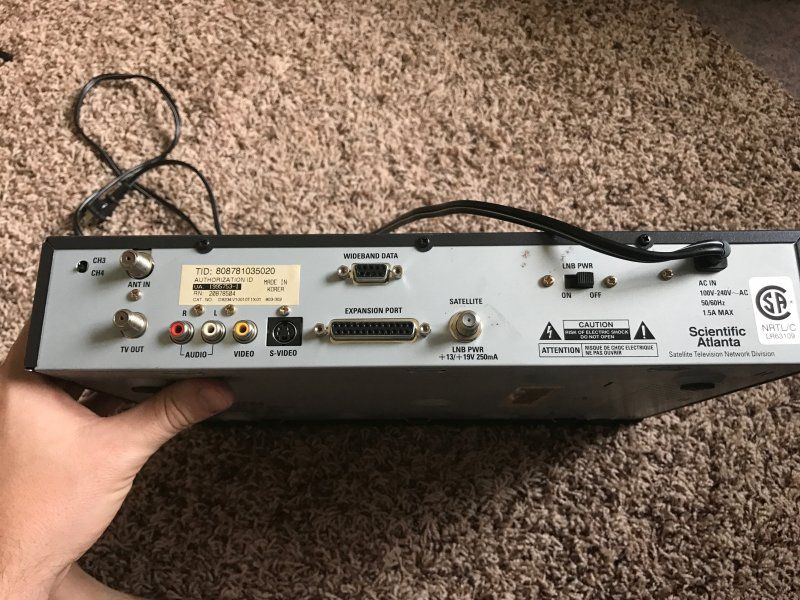

A friend gave this to me, he says he doesn't know where he got it. He was in the military, maybe from there although he said he didn't think so. Looks like its probably no good for anything but before it went in the dump thought I'd check.


Attachments

  • IMG_1212.jpg
    136.2 KB · Views: 314
  • IMG_1213.jpg
    120 KB · Views: 279

Shicks4

SatelliteGuys Pro
Aug 29, 2015
470
253
Kansas
Maybe it was a receiver used for AFN. I know you could get a tv setup over in Iraq as well as a satellite internet but i never had anything like it while i was over there. A quick look at various scientific atlanta satellite receivers say they work with fta, dvbs and mpeg2. One model i looked at claimed to do dvbs2/mpeg4 but what you have looks to be older so probably just does the latter.


MarkL@DISH

SatelliteGuys Family
Jul 8, 2015
62
53
Littleton
A friend gave this to me, he says he doesn't know where he got it. He was in the military, maybe from there although he said he didn't think so. Looks like its probably no good for anything but before it went in the dump thought I'd check.
Doesn't like DISH equipment. It's possible it could be an over seas affiliate, but we don't have access to info on out of the country equipment.


KE4EST

SatelliteGuys Is My Second Home
Staff member
HERE TO HELP YOU!
Lifetime Supporter
Aug 9, 2004
25,924
6,176
EM75xb
For sure hook it up and see what you can figure out with it. Let us know what you find out.


clucas

SatelliteGuys Pro
Sep 30, 2012
253
170
Lompoc, California
I recently checked and according to their website AFN (Armed Forces Network) is using this:
Manufacturer: CISCOPart Number: 4028651050101AFRModel Number: D9865H


Carl


Shicks4

SatelliteGuys Pro
Aug 29, 2015
470
253
Kansas
I asked my uncle last night as i know when he was deployed he had both tv and internet and he said that receiver was likely used for afn as it looked similar to what he had. I asked him if he still had the equipment and he said he sold it to another trooper that was staying in Iraq. I agree hook it up and see as it does appear it will work fta from what i have read.

  • Like
Reactions: olliec420

Martyn

SatelliteGuys Pro
Sep 25, 2005
600
224
Annandale, VA
It looks like a PowerVu D9234, used for reception of AFN TV.

It might still be authorized and you might be able to get AFN TV through it, if you can see the C-band satellite feed over the U.S. I think they were authorized for two year stretches and needed to be re-authorized to keep working. If that hasn't happened, it could work for a few minutes or hours until a satellite signal deauthorizes it.

You can find some details on tuning etc are here, although specific to a Koreasat feed:
http://myafn.dodmedia.osd.mil/satchange/PDFs/22 Apr15PowerVu9234.pdf


Martyn

SatelliteGuys Pro
Sep 25, 2005
600
224
Annandale, VA
Military personal serving overseas have to pay for TV? That just not right.

AFN TV is free for military stationed overseas, but is not free to air. The broadcasters give their programming to AFN at no cost and need to ensure it remains only viewable by servicemen and women so it continues to have commercial value in foreign markets.

This has occasionally been a problem and is one reason why AFN TV is not available over the air in many countries. In the analog days it used to be, but was always broadcast in NTSC so military personal could use their state-side TVs. That usually meant you got a garbled, or at best a black and white picture, on local PAL TVs in Europe. In South Korea it was available for years in Seoul and in Okinawa, Japan, AFN broadcast on a U.S. channel that was not assigned to local TV broadcasting so Japanese TVs couldn't pick it up.

Some bases have cable TV with additional channels available for cost.

Here, for example, is Americable's channel line up for bases in Japan. AFN and local Japanese channels are free. Everything else, you need to pay for.

http://americablejapan.net/digital_tv.php

  • Like
Reactions: stecle and N5XZS

N5XZS

SatelliteGuys Pro
Jan 23, 2005
3,579
1,483
Albuquerque, NM, USA
Used to station in Panama Canal Zone when I was a young kid back in the early 1970's used to get analog rf ch. 8 those are the good old day's!:)

Now living in the 21's century It's totally new world nowadays sadly to say.:rolleyes:

I miss AFRTS service but sadly can't get C-Band due to stupid HOA crap I am only stuck on Ku-band FTA only....:(
