DTN/Channel Master/Primestar Question (1 Viewer)

Status
Please reply by conversation.

Beef4Me

Thread Starter
Well-Known SatelliteGuys Member
Feb 22, 2009
26
0
Ohio
I got my DTN dishes set out during the break in the snow. Both are stationary and stock DTN lnb's. From what I've read from you guy's, and the set up directions for the dish show the lnb setup at vertical. On 97W I'm showing both v and h channels on my Traxis 3500.
It looks like my P* lnb is dead. What do you recommend using on the stock feedhorn?


Anole

SatelliteGuys Master
Sep 22, 2005
11,819
10
L.A., Calif.
possible LNBs

There are some surplus Hughes single-output LNBs which should bolt to your feedhorn.
V and H are selected the usual way: 13 and 18 volts.

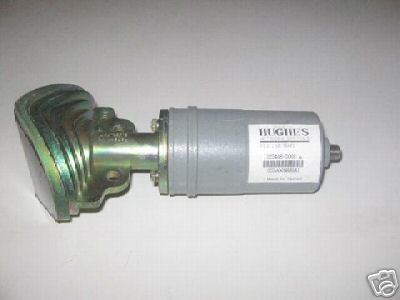

See first picture, but ignore the feed shown; it's for an elliptical dish.

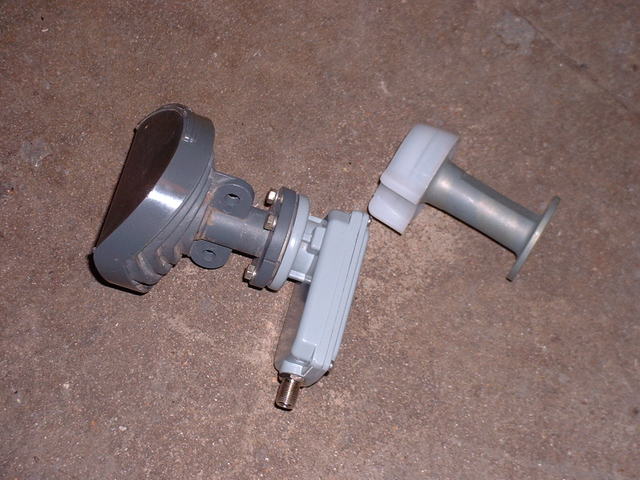

Second picture shows a DishNetwork FSS bandstacked LNB bolted to another Primestar feedhorn.
(little white one to the right is the original)
V & H both come down the cable all the time, and all you need for power is 18 volts.


I think credit for these pix goes to Tron
.


Attachments

  • PrimeStarLNBac_1.JPG
    11.3 KB · Views: 121
  • PrimestarHornDishFSSlnb.jpg
    52.3 KB · Views: 137

Beef4Me

Thread Starter
Well-Known SatelliteGuys Member
Feb 22, 2009
26
0
Ohio
Anole
I've seen some of the posts on those DN backstacked LNB's. Which dish did they use to find one in the trash?
Corrado
It is the Norsat single output


Anole

SatelliteGuys Master
Sep 22, 2005
11,819
10
L.A., Calif.
Anole
I've seen some of the posts on those DN backstacked LNB's. Which dish did they use to find one in the trash?
. . . hmmmmmm . . . it's been a while . . .
Oh, the now-obsolete SuperDish models, both for the 105° and the 121° satellites.
An identifying sticker on the back of the LNB will say: "FSS"

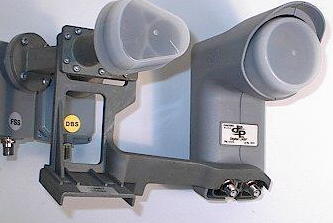

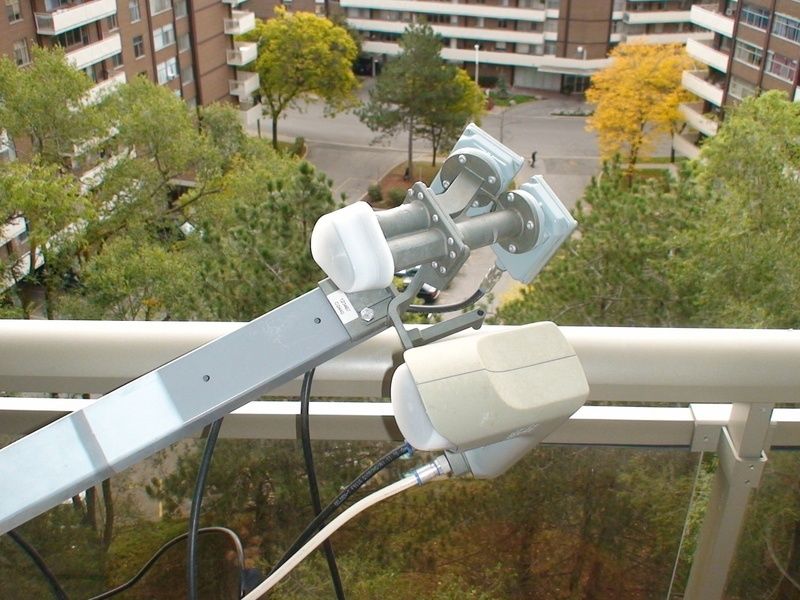

Here's a couple of pictures of the business end of a 121° dish.
The FSS LNB is the one all the way to the left. (pix 1 & 2)

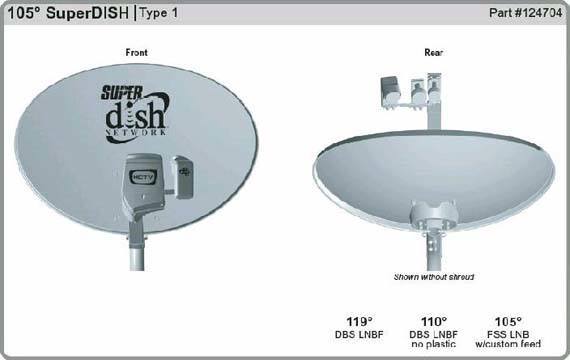

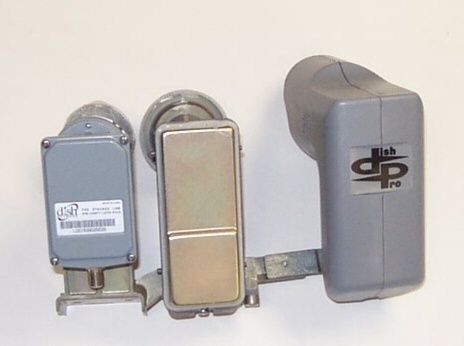

edit: found some pictures of the 105 LNB° (pix 3..6)

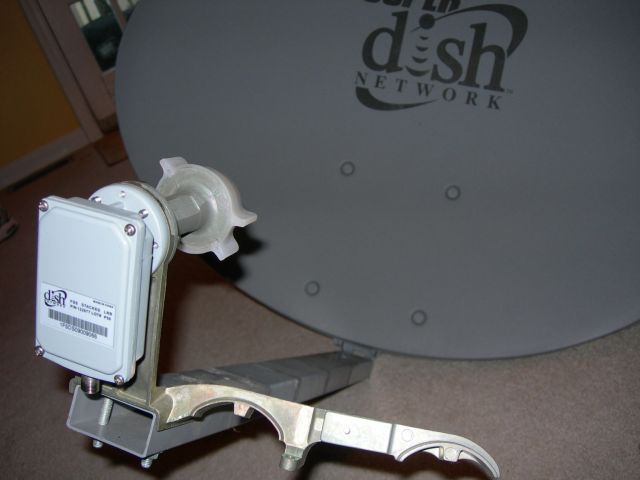

it has little nubs or maybe actual fingers sticking out (see pix)


Attachments

  • Superdish121_lnb.jpg
    13.1 KB · Views: 142
  • SuperDish121-dsc00391gn5.jpg
    90.7 KB · Views: 120
  • SuperDish36x20inch105b.jpg
    16.2 KB · Views: 137
  • 105assyFront.jpg
    18.1 KB · Views: 143
  • 105assyRear.jpg
    15.5 KB · Views: 138
  • sdmod3.jpg
    27 KB · Views: 134
Last edited:
