DVR1100c and DSR100c data sheets? (1 Viewer)

RedSavina

Thread Starter
Supporting Founder
Supporting Founder
Aug 19, 2005
710
0
Groton, CT
There are various references to these two receivers in this forum, and one even has some specs. As we approach the release of these two receivers, could you please post data sheets or something similar that has all the specs for each receiver in one place - along with photos of the front and back?

Thanks, really looking forward to the release of these machines...


elder

SatelliteGuys Pro
Apr 17, 2007
426
5
It would be nice to see some spec sheets and maybe a heads up as to any further delays. Dish took the PI channels off 61.5 except for 3ABN and two info channels (What's On Dish & Dish Info) so I am ready for a new venture.

My concern is whether (and how long) I may be waiting in the dark for something new without really knowing what I am waiting for. It would be a bummer to wait a long time only to then decide the basic package is good enough for me.


Glorystar1

SatelliteGuys Pro
Mar 28, 2007
788
0
Roseville, California
DVR1100c is estimated for delivery about May 15th, 2008 and the DSR100c approximately 45 days later. The DVR1100c will be first delivered to our product beta testers for final verification and reviews and should be available for shipment within 10 business days.

Basic Model DVR Model
Main Processor 32-bit ARM946 RISC 32-bit ARM946 RISC
MPEG-II Digital & Fully DVB Compliant YES YES
7-segment (4-digit) Type of Front Display YES YES
DiSEqC 1.0, 1.1, 1.2 & USALS Compatible YES YES
C/Ku Band control YES YES
LNB Tone Switch 22KHz mode on/off YES YES
Multi-CAS (Smart Card Reader) YES YES
CVBS Video & Audio Output via RCA YES YES
Component Y/Pb/Pr Output via RCA YES YES
S-Video Output YES YES
RF Modulator YES YES
S/PDIF Optical YES YES
S/PDIF Coaxial No No
Flash Memory & System Memory 4 Mbytes/16 Mbytes 4 Mbytes/32 Mbytes
USB 2.0 Port No YES (Rear)
Remote Control Unit with Indicator YES Yes
Batteries for RCU YES Yes
RCA A/V Cables YES Yes
Owner's Manual* YES Yes
OTA support for firmware & channel list updating YES Yes
Ability for client to provide channel & MPEG/JPEG OTA YES Yes
update internally**
USB Flash Drive*** No No

Product Features:

  • [*]Upgrade Software & Update Channel Database through USB Port, RS232 andautomatic or manual OTA-SSU (via satellite).
    [*]MPEG-II Digital & Fully DVB Compliant.
    [*]Smart Card Reader
    [*]C/KU band control for each antenna
    [*]LNB Tone Switch 22KHz mode on/off
    [*]Multi-LNB controlled by DiSeqC =>DiSEqC 1.0, 1.2 and USALS
    [*]Total 5,000 Channels Programmable
    [*]Blind Scan
    [*]Picture In Graphic (PIG)
    [*]Electronic Program Guide (EPG) for On Screen Channel Information from single transponder or individual transponder
    [*]Multi-language supported for Menu and OSD
    [*]Zoom Function variable
    [*]Glorystar Karaoke Support
    [*]GMT clock setting by single transponder
    [*]Parental Lock
    [*]Closed Caption Support
    [*]Remote Control
    [*]Dolby Digital Bitstream Out through Optical S/PDIF
    [*]CVBS Video & Audio Output via RCA
    [*]Component Y/Pb/Pr Output via RCA
    [*]S-Video Output
    [*]MP3/JPEG File Play via USB Port
    [*]7-Segment(4-digit) Type of Front Panel Display
Conditional Access Interface


  • [*]SMART CARD 1 Slot
    [*]ISO 7816, GSM11.11 and EMV (payment systems) compatibility
Tuner & Channel


  • [*]Type 1 × F Type, IEC169-24, Female
    [*]Frequency Rage 950MHz to 2150MHz
    [*]RF Impedance 75 Ohm unbalanced
    [*]Signal Level -65 to -25 dBm
    [*]LNB Power 13.5/18.5Vdc +/- 5%, 0.5Amax, Overload Protected
    [*]22KHz Tone Frequency : 22KHz +/- 2KHz, 0.6Vpp +/- 0.2V
    [*]DiSEqC Control Version1.0, 1.2, Tone burst A/B
    [*]Demodulation QPSK
    [*]Input Symbol Rate 2~45 Ms/s, SCPC/MCPC
    [*]FEC Decoder Convolution Code Rate 1/2, 2/3, 3/4, 5/6 and 7/8 With Constraint Length K = 7
System & Memory


  • [*]Main Processor 32-bit ARM946 RISC Processor
    [*]Flash Memory 4 Mbytes
    [*]System Memory 16/32 Mbytes
    [*]Channel Capacity Digital Channel: 5,000
    [*]Front 7-segment Display (4 digit)
MPEG Transport Stream & A/V Decoding


  • [*]Transport Stream MPEG-2 ISO/IEC 13818 Transport Stream Specification
    [*]Profile Level MPEG-2 MP@ML
    [*]Input Rate Max. 90Mbit/s
    [*]Aspect Ratio 4:3, 16:9, Letter Box
    [*]Frame Rate 25Hz for PAL, 30Hz for NTSC
    [*]Video Resolution 720x576(PAL), 720x480(NTSC)
    [*]Teletext Through VBI
    [*]Audio Decoding MPEG/MusiCam Layer I & II
    [*]Audio Mode Single Channel/Dual Channel Joint Stereo/Stereo
    [*]Frequency Response 20~20kHz, <+/-2dB
    [*]60Hz ~ 18kHz <+/- 0.5dB
    [*]Sampling Rate 32, 44.1, 48KHz
A/V & Date In/Out


  • [*]RCA Output CVBS, L, R Output(Yellow, White, Red Jack) with Volume Control
    [*]Component Video(YPbPr) Out
    [*]S-VHS Output 4 Pin Mini
    [*]SPDIF Dolby Digital Bitstream Out(Coaxal, Optical)
    [*]Data Interface - RS-232, Bit Rate: 115,200baud
    [*]Connector: 9-pin D-sub Male type
    [*]USB : Type A Connector on DVR1100c supporting up to 750GB HDD
RF Modulator


  • [*]RF-Connector 75 ohm F-Type
    [*]Frequency Range VHF CH3, CH4
    [*]TV Standard NTSC
    [*]Audio Output Mono with Volume Control
Power Supply


  • [*]Input Voltage AC 90V ~ 250V, 50Hz ~ 60Hz
    [*]Power Consumption Max 40W
    [*]Standby Power Consumption <= 10W
    [*]Protection Separate Internal Fuse The input shall the lighting protection
Physical Specification


  • [*]Size DVR (WxHxD) 290mm x 50mm x220mm
    [*]Weight 2.0 KG
Environmental Condition


  • [*]Operating Temperature 0 °C ~ 40 °C
    [*]Storage Temperature -10 °C ~ 50 °C
    [*]Operating Humidity Range 10~85% RH, Non-condensing
    [*]Storage Humidity Range 5~90% RH, Non-condensing


Attachments

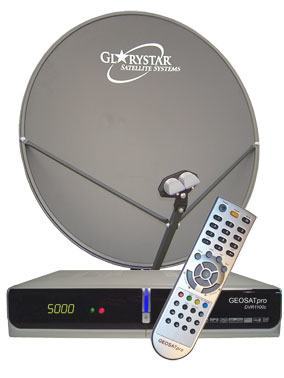

  • DVR-1100c-w-Dish.jpg
    12.9 KB · Views: 183
Last edited:

RedSavina

Thread Starter
Supporting Founder
Supporting Founder
Aug 19, 2005
710
0
Groton, CT
I noticed in the image that the satellite dish is a lighter color from those shown on your web site. Has there been a change to the dish, as well, or is this just a variation between marketing materials?


Mr Tony

SatelliteGuys Pro
Supporting Founder
Nov 17, 2003
288
35
Mankato, MN
DVR1100c is estimated for delivery about May 15th, 2008 and the DSR100c approximately 45 days later. The DVR1100c will be first delivered to our product beta testers for final verification and reviews and should be available for shipment within 10 business days.
oh to be a beta tester :rolleyes:


RedSavina

Thread Starter
Supporting Founder
Supporting Founder
Aug 19, 2005
710
0
Groton, CT
Even so, that puts the consumer release date around 25 May. Now if I could just get in in my hands in time for Memorial Day weekend! :D


elder

SatelliteGuys Pro
Apr 17, 2007
426
5
One more question please. . . when will the DVR1100C hit the GloryStar website for perusal of "one room package" cost . . . and just maybe to place an order?


Glorystar1

SatelliteGuys Pro
Mar 28, 2007
788
0
Roseville, California
When the testing is complete and our beta users give the thumbs up sign...... then we will start the sales. We originally were going to offer pre-release sales, but have decided to opt out so not to generate additional call volume from anxious purchasers.

Our office has been extremely busy with the Sky Angel satellite departure and didn't want to take our CSRs over the edge with unnecessary call volume.


elder

SatelliteGuys Pro
Apr 17, 2007
426
5
When the testing is complete and our beta users give the thumbs up sign...... then we will start the sales. We originally were going to offer pre-release sales, but have decided to opt out so not to generate additional call volume from anxious purchasers.

Our office has been extremely busy with the Sky Angel satellite departure and didn't want to take our CSRs over the edge with unnecessary call volume.
I see your point, thanks.


shibby191

SatelliteGuys Pro
Sep 7, 2007
225
1
Somewhere
I take it that it doesn't have a digital OTA tuner? How about analog OTA tuner?

I'm just thinking about my in-laws who are OTA only and it would be nice to get them a Glorystar system that integrated OTA.


Glorystar1

SatelliteGuys Pro
Mar 28, 2007
788
0
Roseville, California
DVR1100c Product Release Update:

Due to a manufacturing delay, the DVR1100c will be available for purchase and delivery on or about June 15th. This was due to a supply issue with a minor component, but it postponed the complete assembly process.

We apologize and recognize that many are patiently waiting .......


pomernman

SatelliteGuys Family
Mar 6, 2008
48
0
What are the differences between the new Glorystar receiver and one that comes with the sadoun motorized package (Mercury II)? Is one better quality (bells and whistles - Cadillac and Chevy or like the Pontiac Vibe and Toyota Matrix - about the same)?
