Help with my dish setup

Status
Please reply by conversation.

macgod79

SatelliteGuys Pro
Feb 3, 2011
305
0
Nc
Hey guys I got a wsi 6 foot special.I have got this dish put together correctly, I think.I gonna go take some pics in a bit just to make sure I built my polor mount correctly.Anyway my questions become I tried to use a 2 inch pole but relized it has to much play in it.what is a good pole size for it.I heard it used a 2 5/8 inch pole but that is a weird size.what size could I get I was thinking maybe 2 1/2 would work with maybe a rubber gasket around the pole to make it snug.
My next question is I'm lost on finding the angles. It gonna be a motorized setup so do I just try to line it up with my true south sat(78.8 my zip is 27976) or how do I start off when I get pole set.whew thanks for any help I get guys


FaT Air

HOA Free Zone
Feb 27, 2010
6,668
914
97W 48N

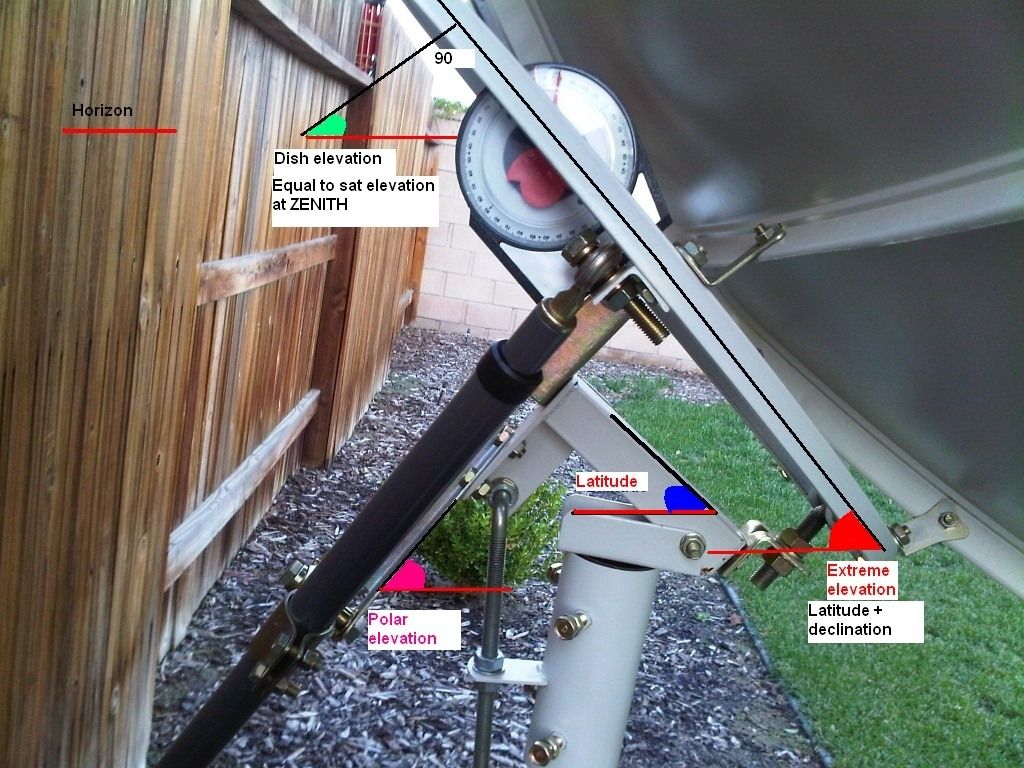

I wouldn't use rubber as a "shim". If you shim it, use something solid. A length of plastic pipe, split length-wise would be better. The attached pic should explain the angles when at zenith. Set the declination, then don't touch it again. After locating your southern sat, Adjust polar elevation(only), then find sats away from center and adjust azimuth(only). Use the Declination Offset angle in the second chart on this page, for your declination. Footprints by Dish Size - Latitude Declination Chart - C/Ku-Band Satellite Listing


Attachments

  • polar_mount_pic.jpg
    152.9 KB · Views: 354
Last edited:

Baird Mounts

Well-Known SatelliteGuys Member
Feb 11, 2011
26
0
US
What is o.d. of the cap that slides over the pole? We may be able to help you out with the correct sized pole if you have this information.


dougruss

Retired and Loving it !
Pub Member / Supporter
Hey guys I got a wsi 6 foot special.I have got this dish put together correctly, I think.I gonna go take some pics in a bit just to make sure I built my polor mount correctly.Anyway my questions become I tried to use a 2 inch pole but relized it has to much play in it.what is a good pole size for it.I heard it used a 2 5/8 inch pole but that is a weird size.what size could I get I was thinking maybe 2 1/2 would work with maybe a rubber gasket around the pole to make it snug.
My next question is I'm lost on finding the angles. It gonna be a motorized setup so do I just try to line it up with my true south sat(78.8 my zip is 27976) or how do I start off when I get pole set.whew thanks for any help I get guys

Here is what I had to do to modify it;

http://www.satelliteguys.us/free-air-fta-discussion/228237-6-foot-dish-install.html


macgod79

SatelliteGuys Pro
Feb 3, 2011
305
0
Nc
Ok I see its outside.why not use 2 1/2 or 2 3/4. I measured my inside d of my mount and it was 2 3/4. I'll do it your way as I know it works lol
