Just pictures of my 90cm

Status
Please reply by conversation.
J

jholt5638

Thread Starter
SatelliteGuys Family
Jul 10, 2017
80
49
Toledo, Ohio USA

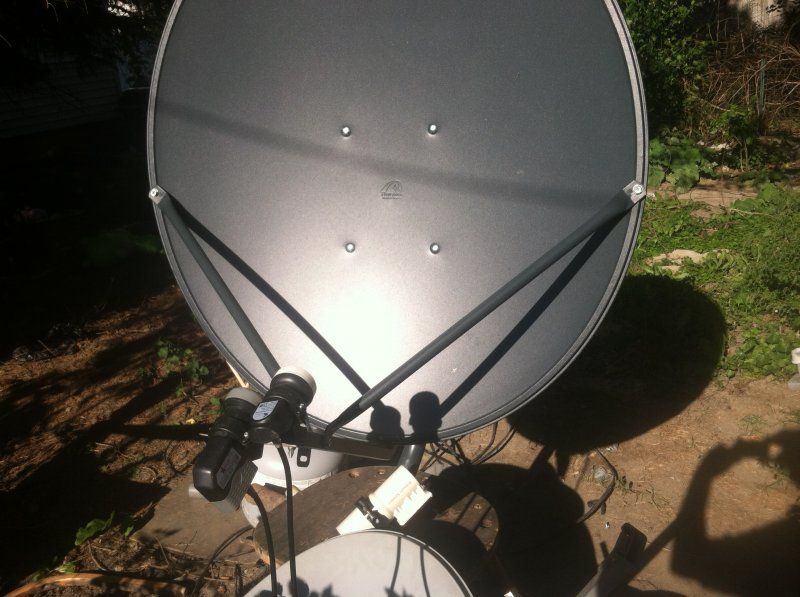

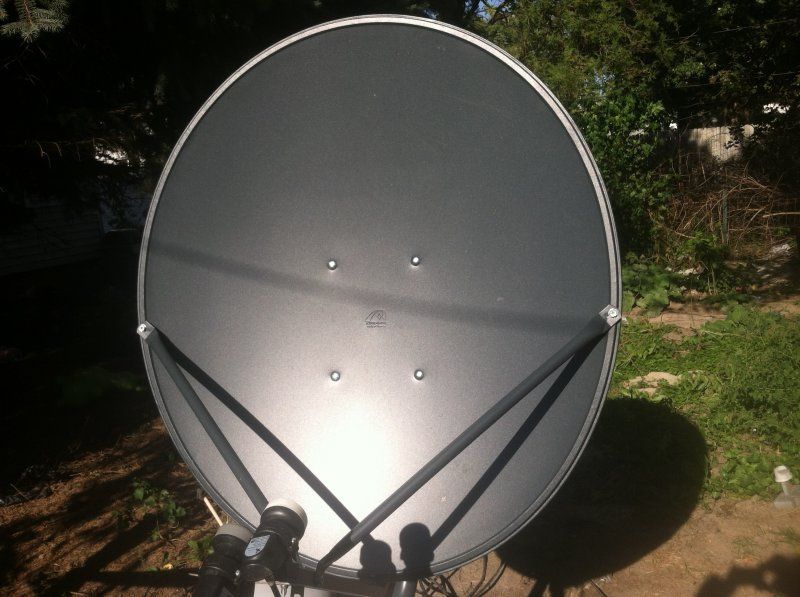

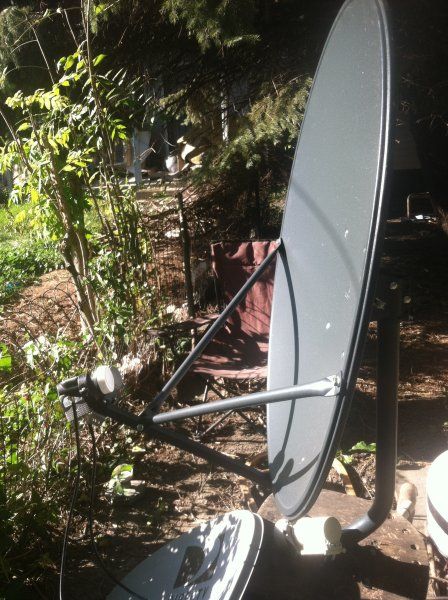

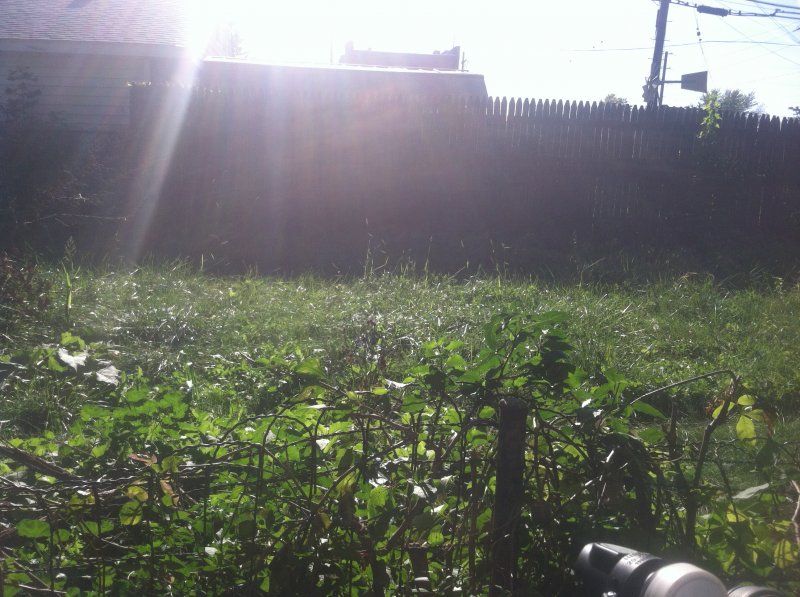

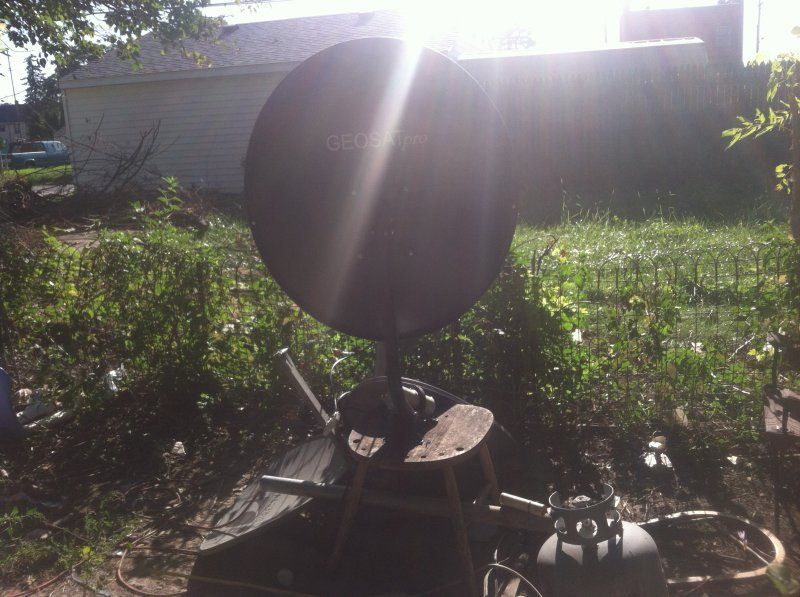

I just got around to taking some pictures for troubleshooting ( signal issues) So I thought I'd port them here Dish is aimed at 103W with second LNB aimed at 97W


Attachments

  • IMG_1419.JPG
    92 KB · Views: 232
  • IMG_1420.JPG
    79.5 KB · Views: 252
  • IMG_1421.JPG
    80.7 KB · Views: 249
  • IMG_1422.JPG
    78.1 KB · Views: 286
  • IMG_1423.JPG
    95.9 KB · Views: 232
  • IMG_1424.JPG
    45.3 KB · Views: 240
  • IMG_1425.JPG
    47.3 KB · Views: 229
  • IMG_1426.JPG
    40.1 KB · Views: 237
  • IMG_1427.JPG
    102.4 KB · Views: 234
  • IMG_1428.JPG
    46.3 KB · Views: 206
J

jholt5638

Thread Starter
SatelliteGuys Family
Jul 10, 2017
80
49
Toledo, Ohio USA

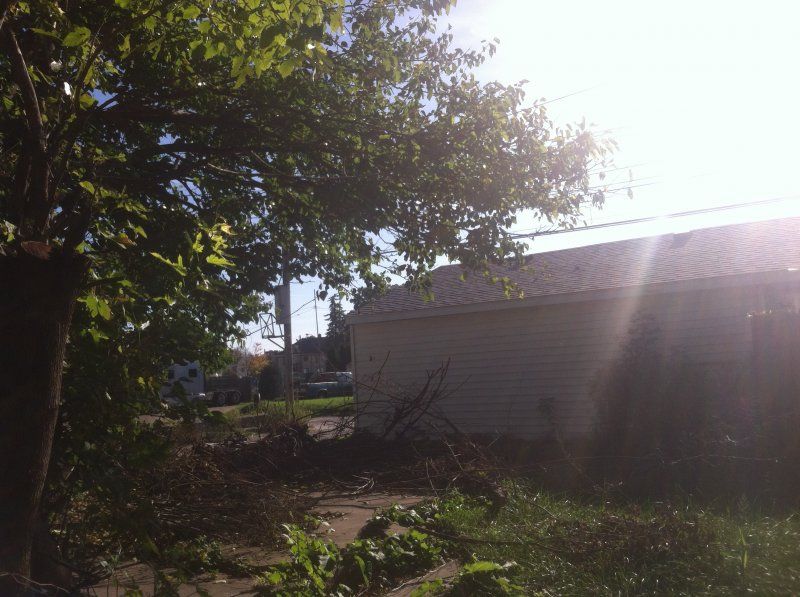

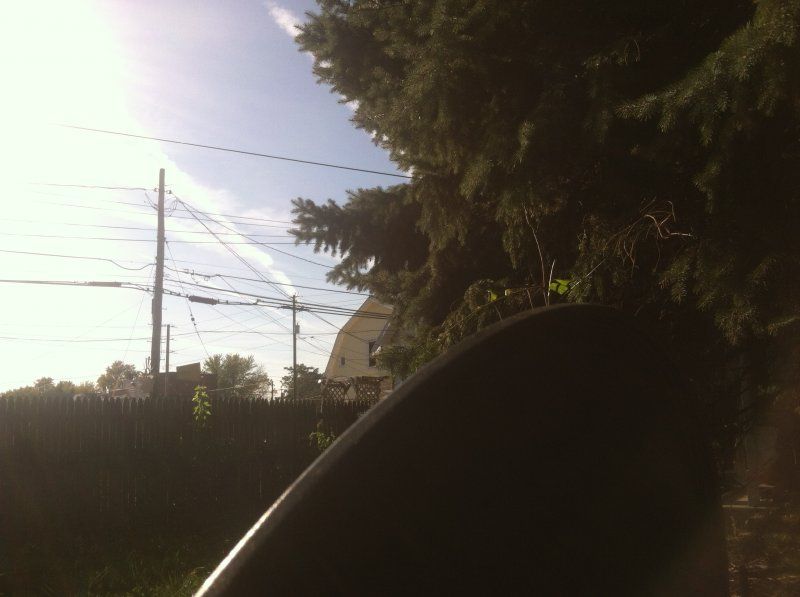

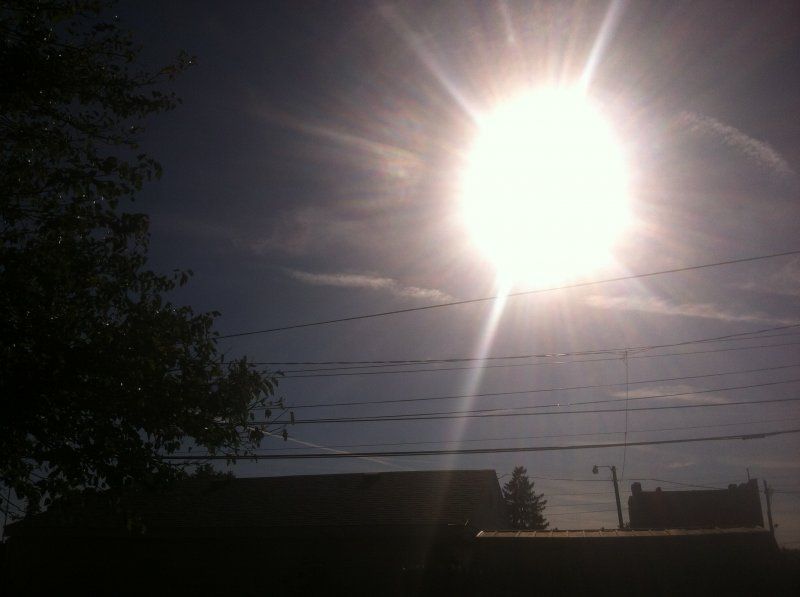

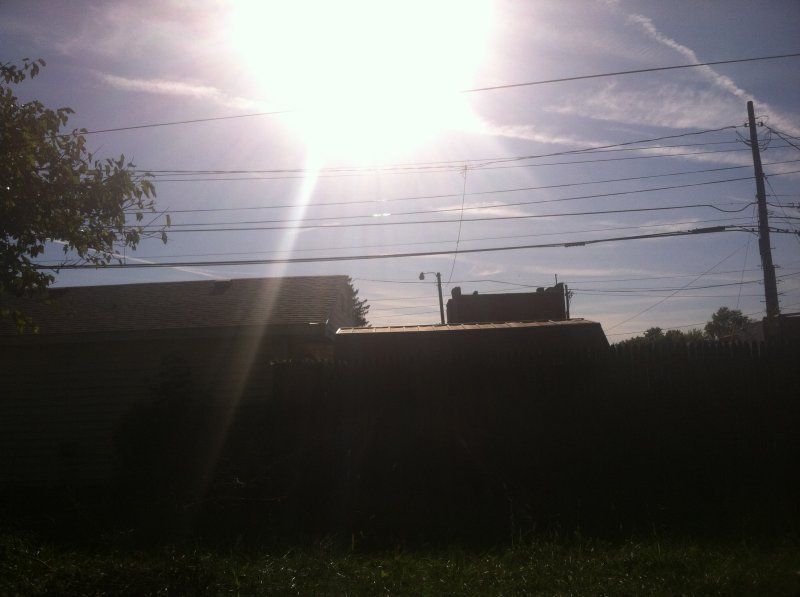

Anyone think the short fence is causing any problems. The tree blocks the arc past 87W and I've picked up as far as 123W. Currently pointed at 103W and a second LNB pointed at 97W. Trying to figure out why I can't lock in 12080 H 30000, I had it a few days ago seemed to coincide with a thread on Ricks about a power increase on that TP and disappeared again when it was posted the power was back down. Am I just out of luck till I can go up to a 1.2m+ dish? Is 12080 a weak TP or am I just not tweaking the dish enough?


Receiver is a ZGemma H5-AC connected to a 4x1 switch with a 3db noise rating
First LNB is an Avenger KSC321S2 Universal Single Linear 0.2dB Ku Current SNR by TP

11760 H 30000 11.5db
11880 H 30000 13.1db
12134 H 4600 9db
12080 H 30000 0.0db tune failed
11942 V 20000 10db
12145 V 20000 9.1db
12180 V 25000 12db

Second LNB is an Avenger KSC322-2 Universal Dual Output Ku Band LNBF and is aimed at 97W
228 Tv and Radio channels
Avg SNR 7.3db

catamount

catamount

SatelliteGuys Pro
Jun 9, 2009
627
167
maritimes
Anyone think the short fence is causing any problems. The tree blocks the arc past 87W and I've picked up as far as 123W. Currently pointed at 103W and a second LNB pointed at 97W. Trying to figure out why I can't lock in 12080 H 30000, I had it a few days ago seemed to coincide with a thread on Ricks about a power increase on that TP and disappeared again when it was posted the power was back down. Am I just out of luck till I can go up to a 1.2m+ dish? Is 12080 a weak TP or am I just not tweaking the dish enough?


Receiver is a ZGemma H5-AC connected to a 4x1 switch with a 3db noise rating
First LNB is an Avenger KSC321S2 Universal Single Linear 0.2dB Ku Current SNR by TP

11760 H 30000 11.5db 60
11880 H 30000 13.1db 57
12134 H 4600 9db 0 no lock
12080 H 30000 0.0db tune failed 0 no lock
11942 V 20000 10db 68
12145 V 20000 9.1db 68
12180 V 25000 12db 63

Second LNB is an Avenger KSC322-2 Universal Dual Output Ku Band LNBF and is aimed at 97W
228 Tv and Radio channels
Avg SNR 7.3db


Cannot provide db numbers, but put in Quality numbers from Azbox running Openatv 6.0. In Canada, the Maritimes on a 1.0 metre Wineguard. My lnbf sits a bit loose in the holder and aims a hair high I believe. Will fix it some day. A couple cedar branches could be in the way also.

Catamount

Catamount

kittyhas1000legs

kittyhas1000legs

That's a lot of claws!
Pub Member / Supporter
Aug 8, 2012
1,696
1,402
Western Slope, CO
Anyone think the short fence is causing any problems. The tree blocks the arc past 87W and I've picked up as far as 123W. Currently pointed at 103W and a second LNB pointed at 97W. Trying to figure out why I can't lock in 12080 H 30000, I had it a few days ago seemed to coincide with a thread on Ricks about a power increase on that TP and disappeared again when it was posted the power was back down. Am I just out of luck till I can go up to a 1.2m+ dish? Is 12080 a weak TP or am I just not tweaking the dish enough?


Receiver is a ZGemma H5-AC connected to a 4x1 switch with a 3db noise rating
First LNB is an Avenger KSC321S2 Universal Single Linear 0.2dB Ku Current SNR by TP

11760 H 30000 11.5db
11880 H 30000 13.1db
12134 H 4600 9db
12080 H 30000 0.0db tune failed
11942 V 20000 10db
12145 V 20000 9.1db
12180 V 25000 12db

Second LNB is an Avenger KSC322-2 Universal Dual Output Ku Band LNBF and is aimed at 97W
228 Tv and Radio channels
Avg SNR 7.3db

I have the same dish, and 12080 has always been a tough one. Just moving the dish a hair can be the difference between a good signal and nothing on the tougher 8psk muxes. I don't think I've seen that transponder since installing my motor.

iBoston

iBoston

SatelliteGuys Pro
Jul 15, 2014
2,265
1,644
North Central
I realized i had to have a 1.2 meter on 103w to get those tough muxes, and i needed a 1.2 meter on 87w to get those tough transponders. When i had a 90cm on 103w, those muxes were hit and miss. Not very reliable. Same with 87w.
