Well, all I can tell you is that I've installed many C-band dishes since 1984, NONE of them have strainless steel bolts, I'm unaware of any manufacturers that used stainless, AND galvanized bolts are all doing just fine.

  • Like
Reactions: mr3p

mr3p

Thread Starter
SatelliteGuys Pro
Pub Member / Supporter
Jan 1, 2010
1,140
147
West
Well, all I can tell you is that I've installed many C-band dishes since 1984, NONE of them have strainless steel bolts, I'm unaware of any manufacturers that used stainless, AND galvanized bolts are all doing just fine.
Thank you, this is exactly what I needed to hear. Galvanized for the new spade bolt and nut it will be. :) Regarding the square head set screws, I was going to use non-square head galvanized bolt replacements however found inexpensive square head case hardened steel and stainless square head set screws, would the case hardened steel or stainless be preferable?

Last edited:

mr3p

Thread Starter
SatelliteGuys Pro
Pub Member / Supporter
Jan 1, 2010
1,140
147
West
Spade bolt - always wondered what that elevation bolt was actually called. Now I can find one if I need to. Thanks for posting the name! :)
I wish I could report back that sourcing a suitable sized spade bolt replacement was easy however most mass produced today are too short for our needs.

  • Like
Reactions: FTA4PA

RimaNTSS

SatelliteGuys Pro
Aug 9, 2013
826
869
Riga
NONE of them have strainless steel bolts, I'm unaware of any manufacturers that used stainless

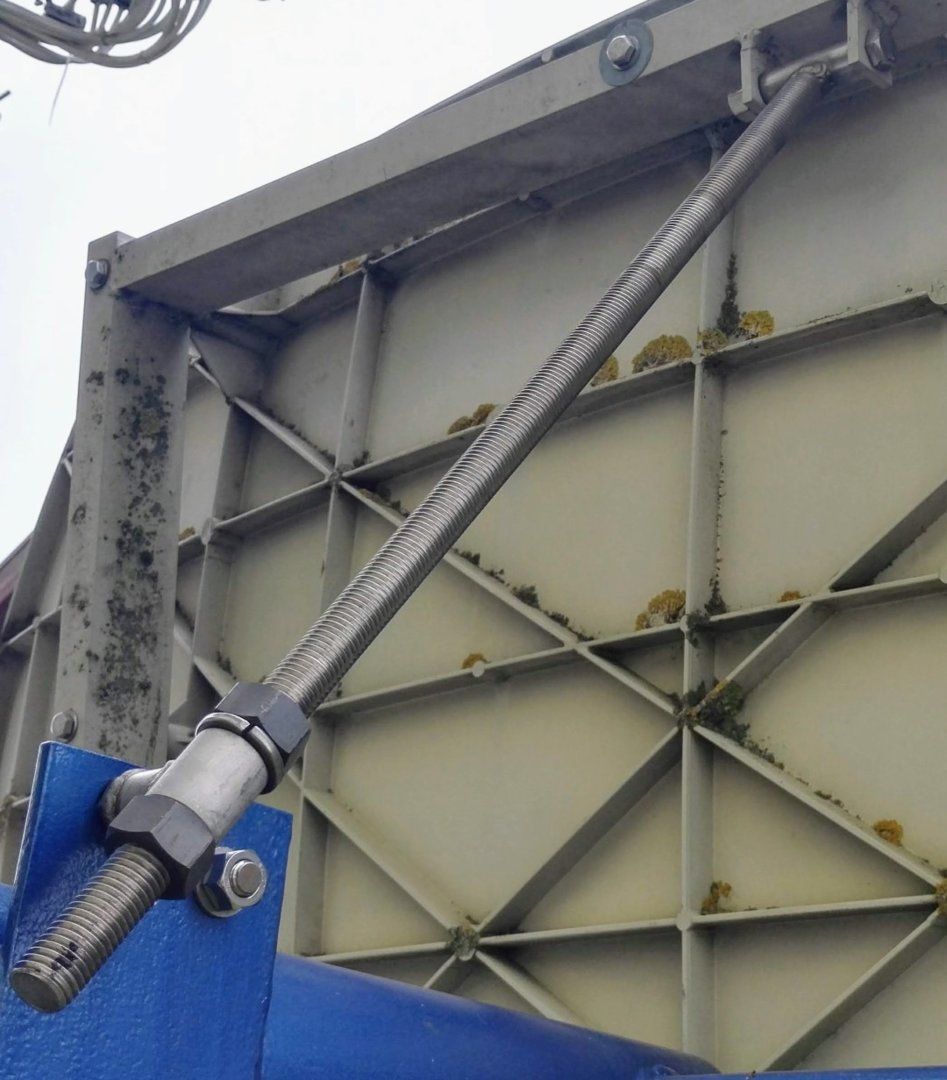

I have one "Hello from 80th, made in USA" antenna, it has all bolts&nuts made of INOX, including 3/4" threaded elevation bolt. I must say, that in last 30+ years nothing happened to them. Brass nuts are used on this elevation bolt. IMG_20200514_170708 (Large).jpg

  • Like
Reactions: mr3p

FTA4PA

Satellite Guys Family
Lifetime Supporter
Nov 13, 2013
4,488
2,368
Central Pennsylvania
I wish I could report back that sourcing a suitable sized spade bolt replacement was easy however most mass produced today are too short for our needs.
Yes, I just looked and could only find short ones. Closest I came was Bolt Depot who has eye bolts with rod sizes from 1/4 inch to 2 inches and a huge selection of lengths. Only issue with that is the size of the eye is much larger than needed so some type of bushing would probably need to be used to make up the difference. Might be an option but welding something onto a threaded rod is likely easier though.



Gray Hair

SatelliteGuys Pro
Pub Member / Supporter
Jun 9, 2012
154
72
N WV
I wish I could report back that sourcing a suitable sized spade bolt replacement was easy however most mass produced today are too short for our needs.
Possibility of adding to spade bolt, coupling nut and suitable all thread rod.
McMaster-Carr
Coupling nut

McMaster-Carr
All thread

McMaster-Carr

Spade bolts, Zinc and others available

Edited 12:30 PM

Last edited:
  • Like
Reactions: FTA4PA

RimaNTSS

SatelliteGuys Pro
Aug 9, 2013
826
869
Riga
welding something onto a threaded rod is likely easier though.

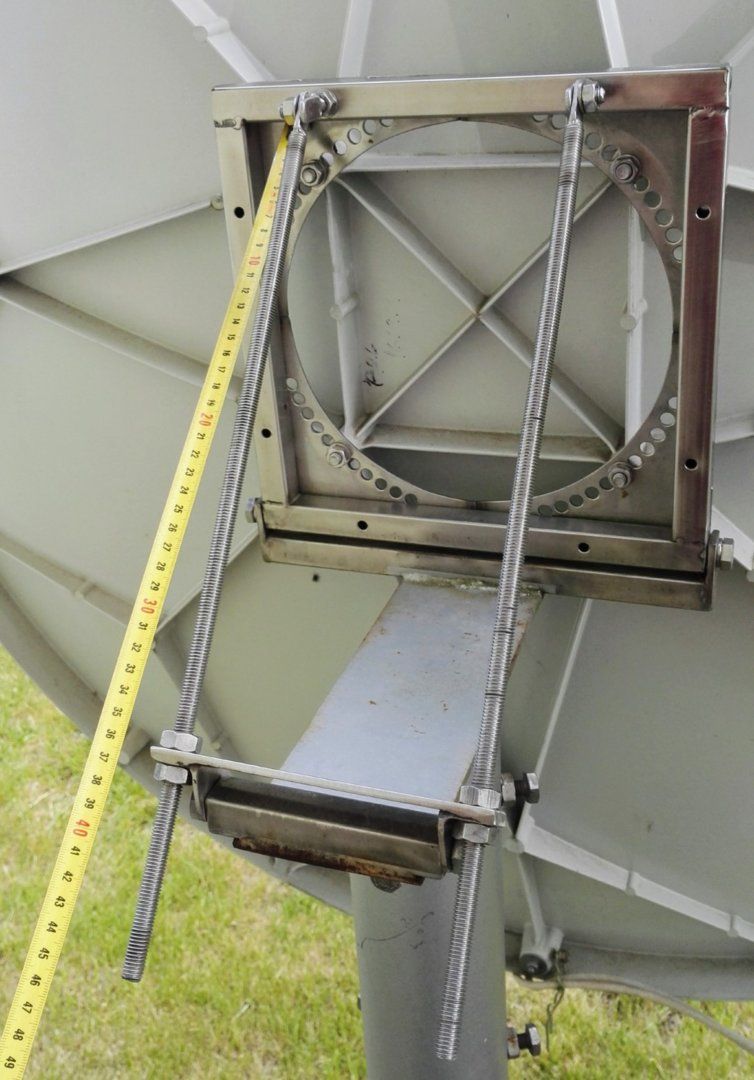

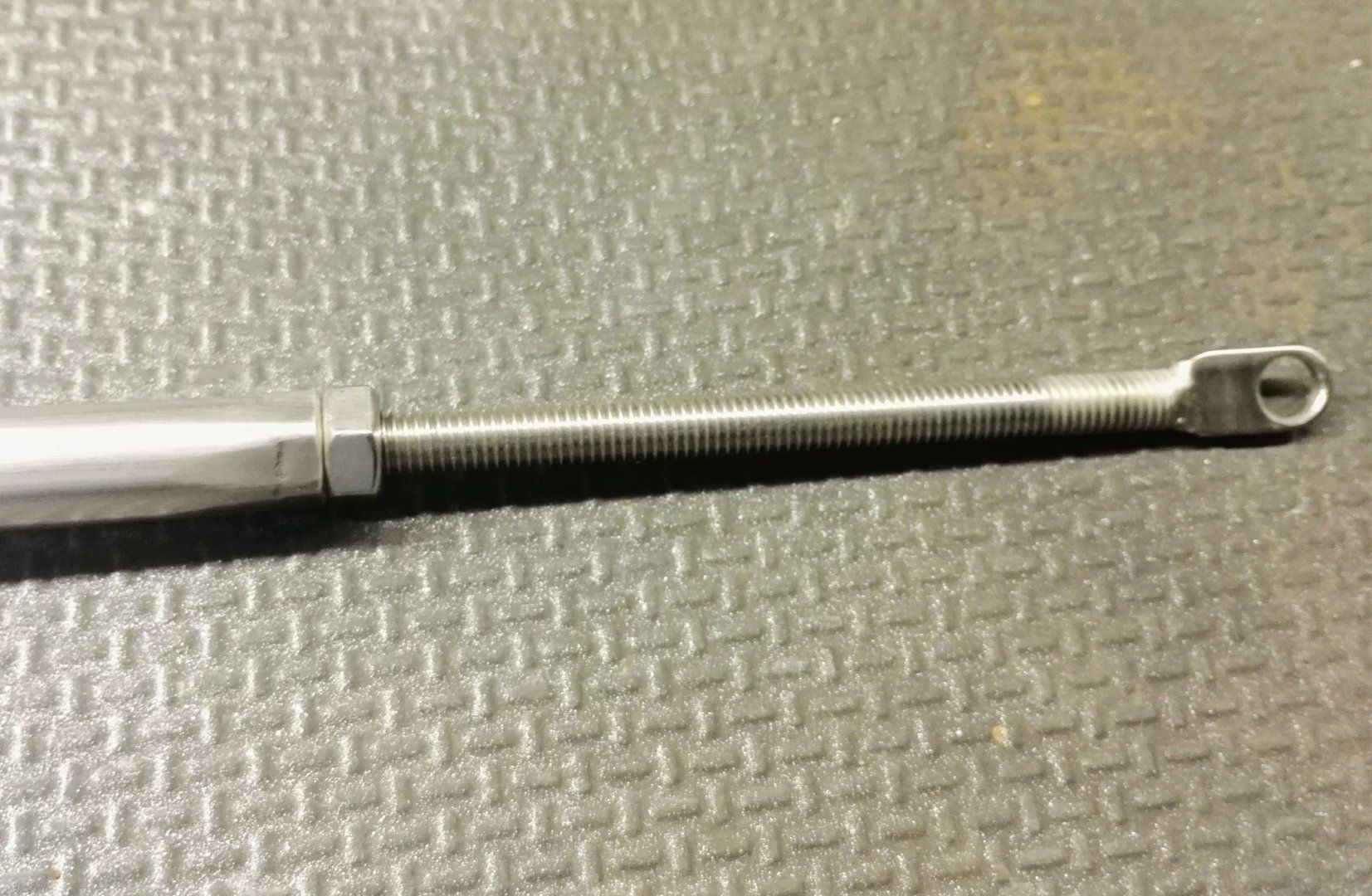

Exactly! And not only easier, but also cheaper. On the attached picture Az/El mount I've made for 1.2m CM antenna. 2 M10 eye-bolts (whatever they are called) responsible for adjusting the elevation. All INOX, of course :) IMG_20200514_184423 (Large).jpg

  • Like
Reactions: FTA4PA

mr3p

Thread Starter
SatelliteGuys Pro
Pub Member / Supporter
Jan 1, 2010
1,140
147
West
Possibility of adding to spade bolt, coupling nut and suitable all thread rod.
McMaster-Carr
Coupling nut

McMaster-Carr
All thread

McMaster-Carr

Spade bolts, Zinc and others available

Edited 12:30 PM
Agree. Cutting off the spade from an existing bolt and welding it to a threaded rod would seem like a good option if correct size spade is available.

Last edited:

mr3p

Thread Starter
SatelliteGuys Pro
Pub Member / Supporter
Jan 1, 2010
1,140
147
West
RimaNTSS - are your hex head set screws locking the mount to the pole galvanized, steel, or stainless?


RimaNTSS

SatelliteGuys Pro
Aug 9, 2013
826
869
Riga

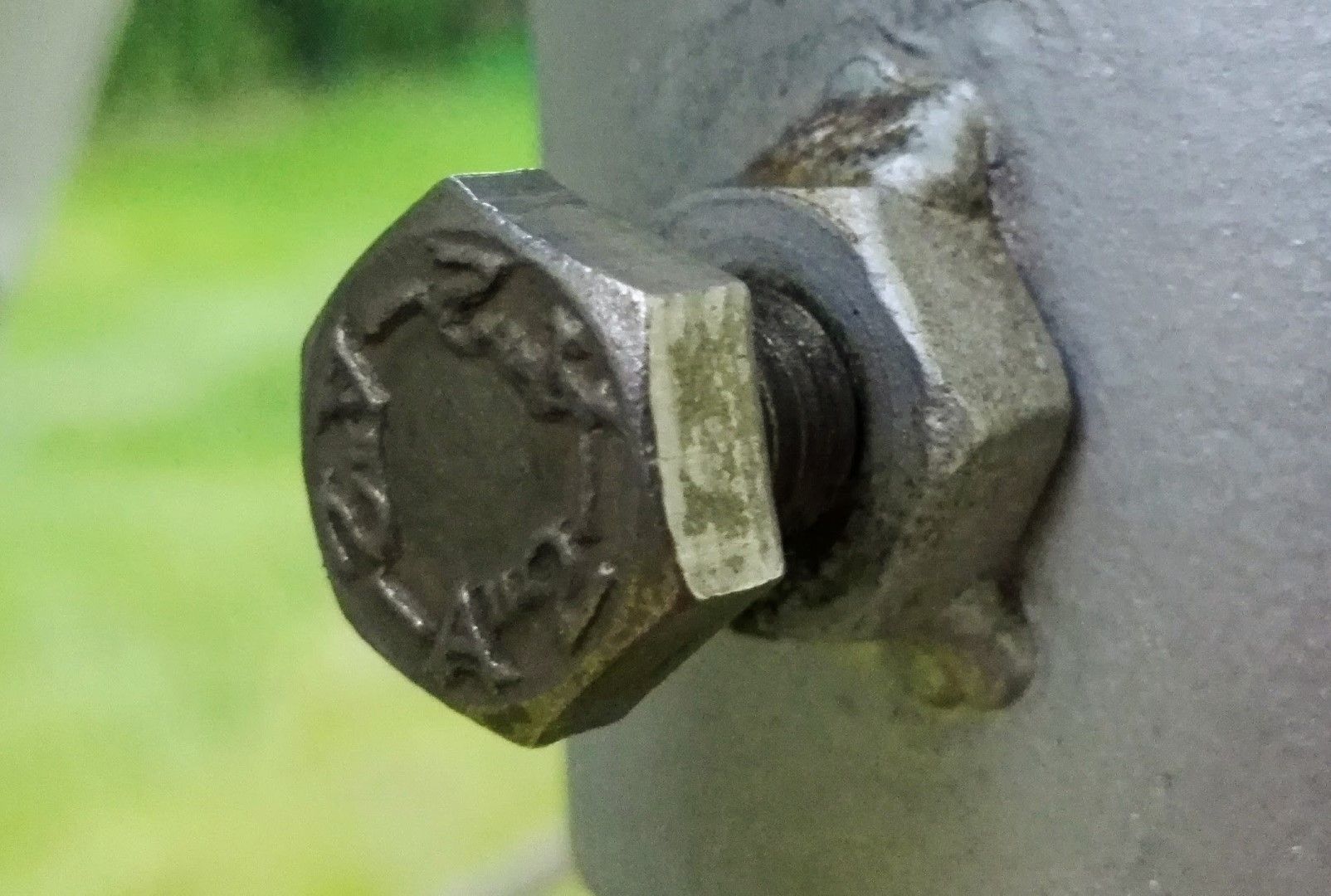

mr3p do you mean this one? IMG_20200514_211809 (Large).jpg Bolt is M10 A2 stainless, nut was galvanized but zinc was removed from welding spots.

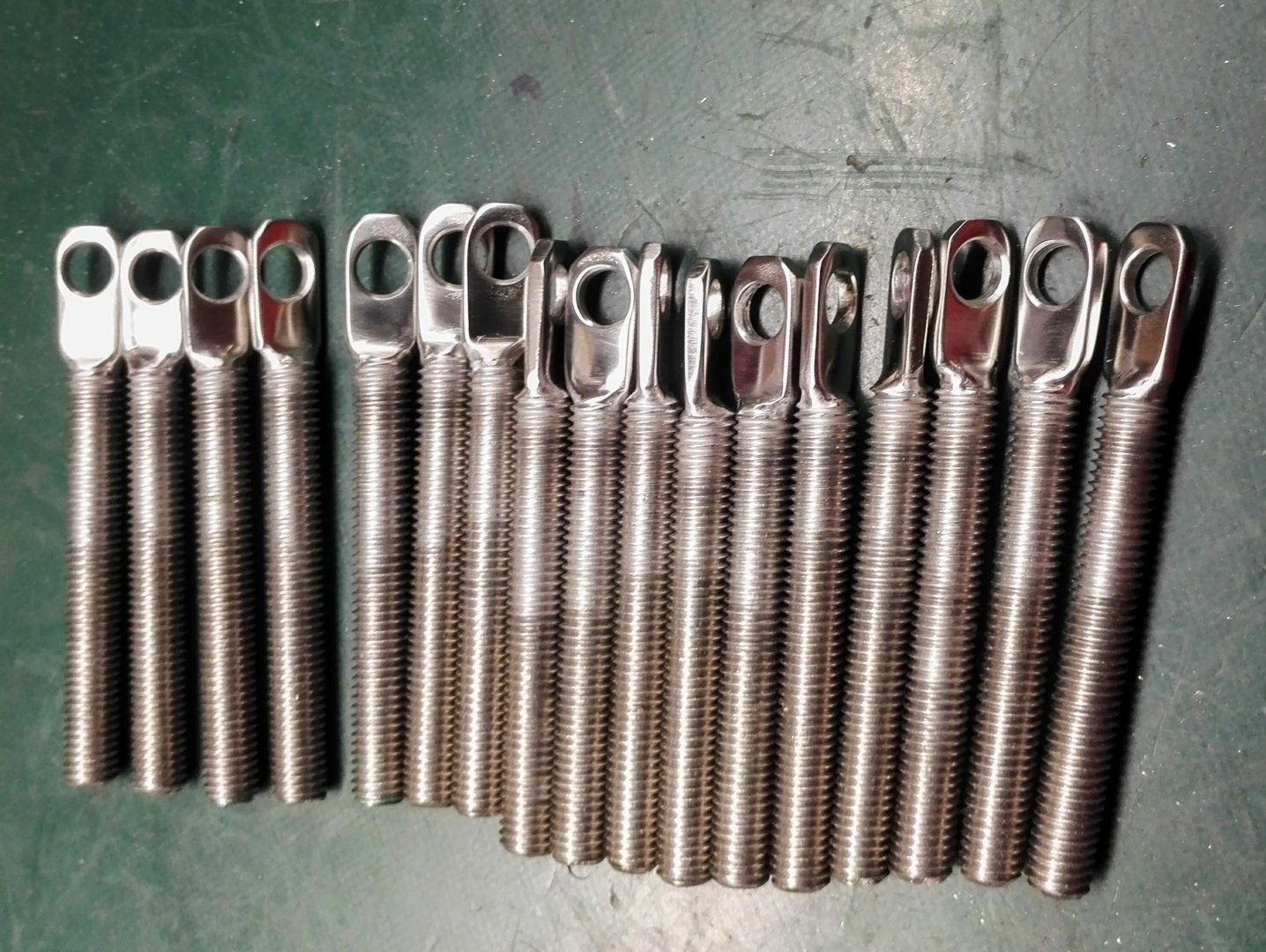

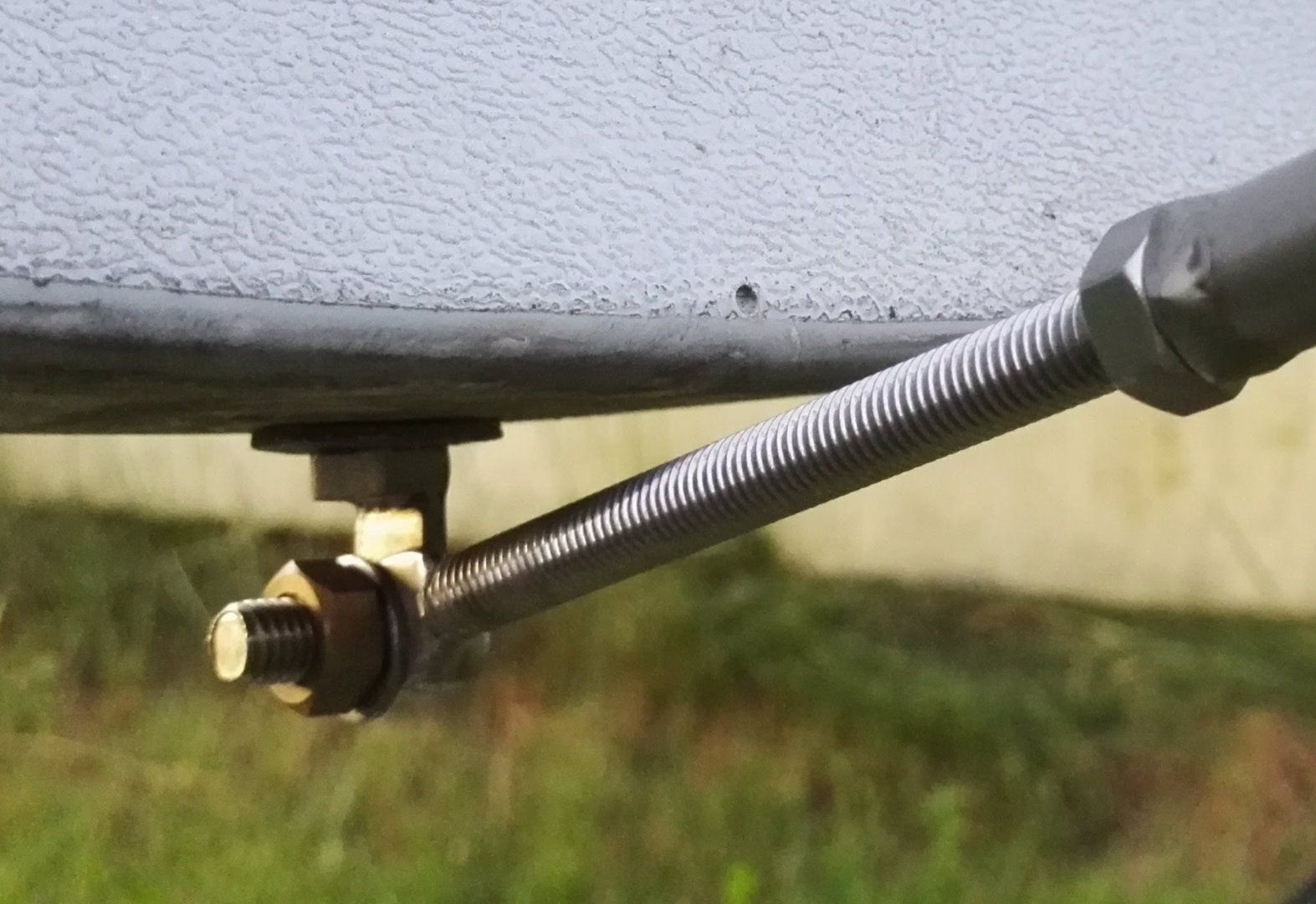

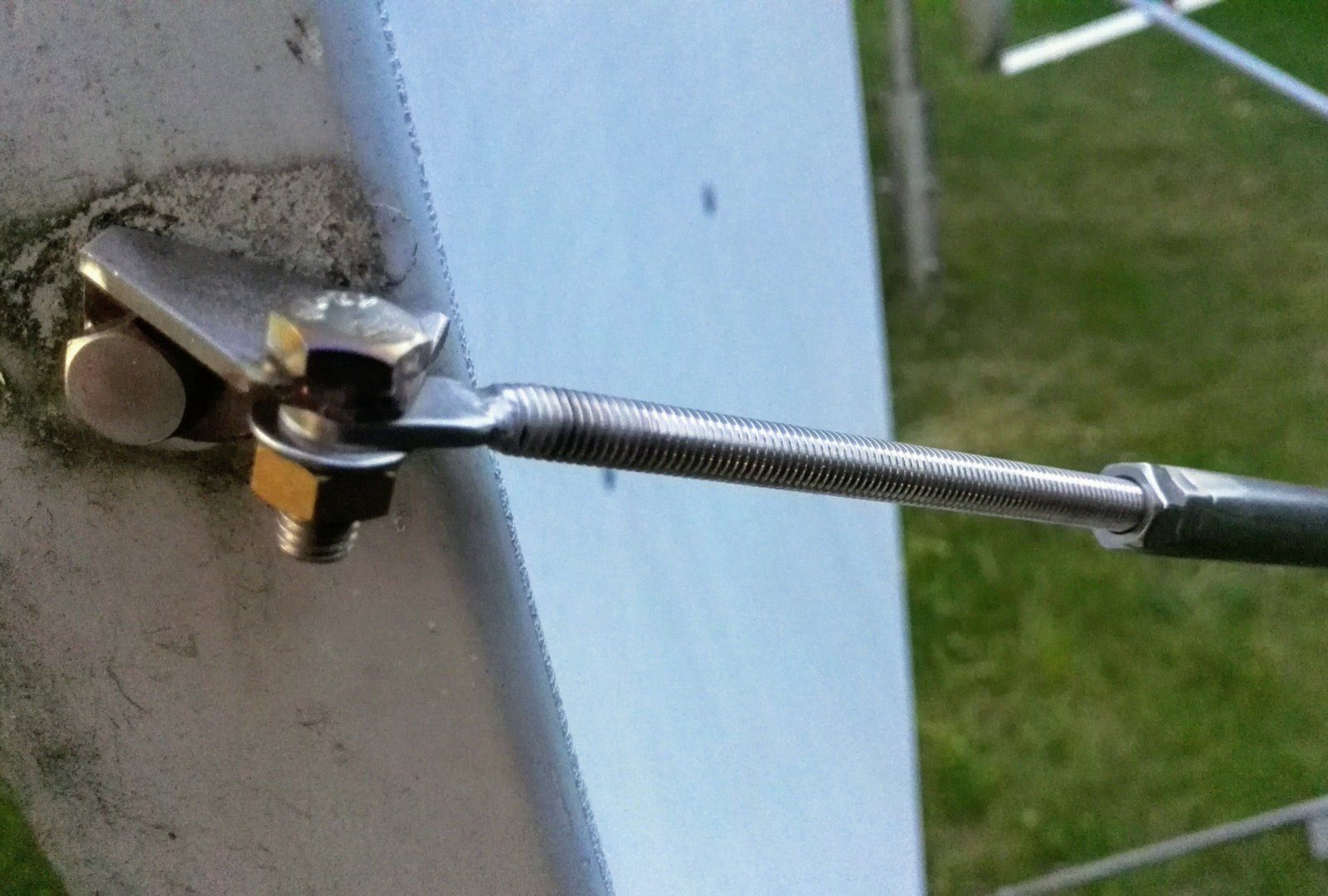

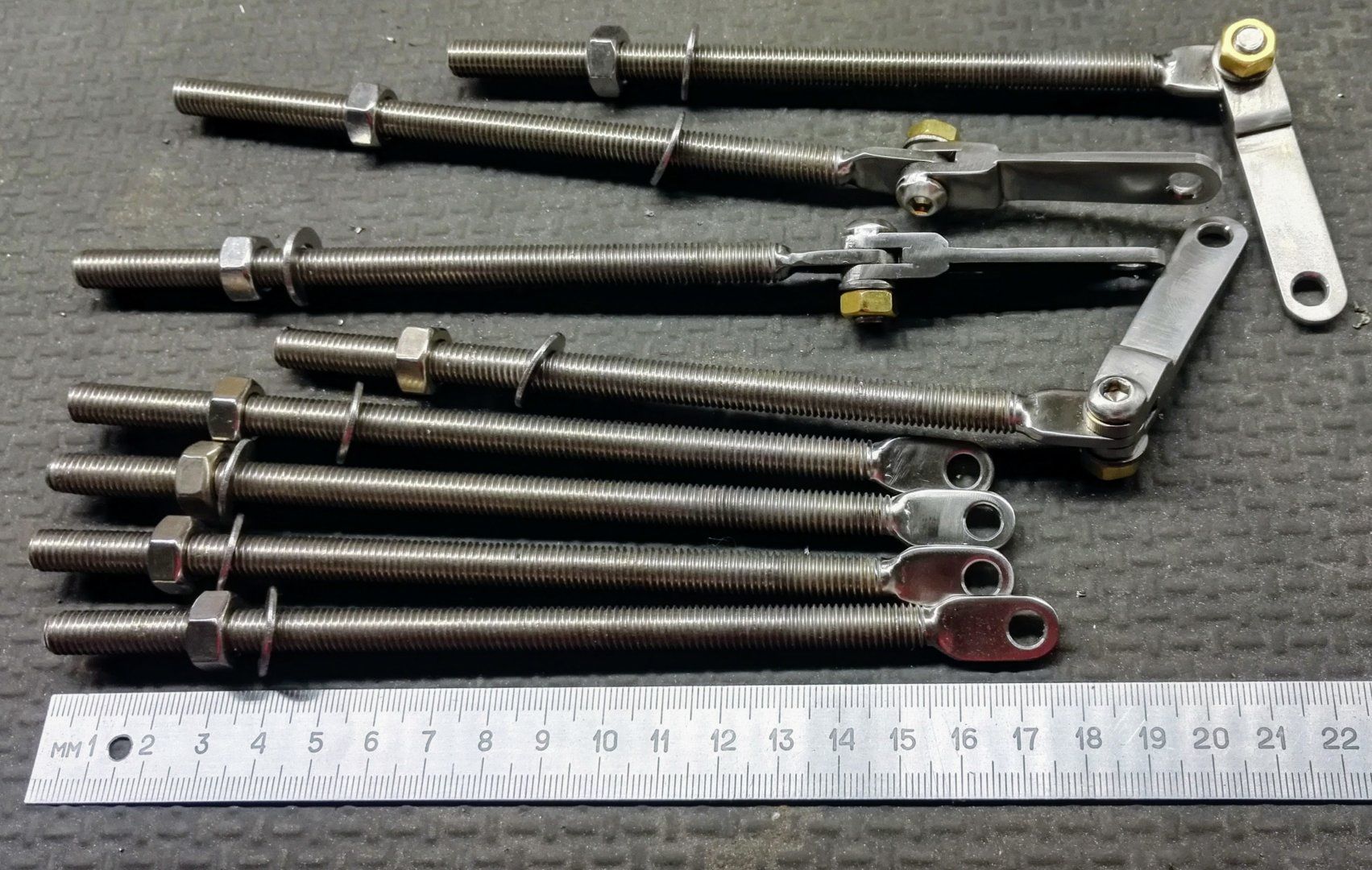

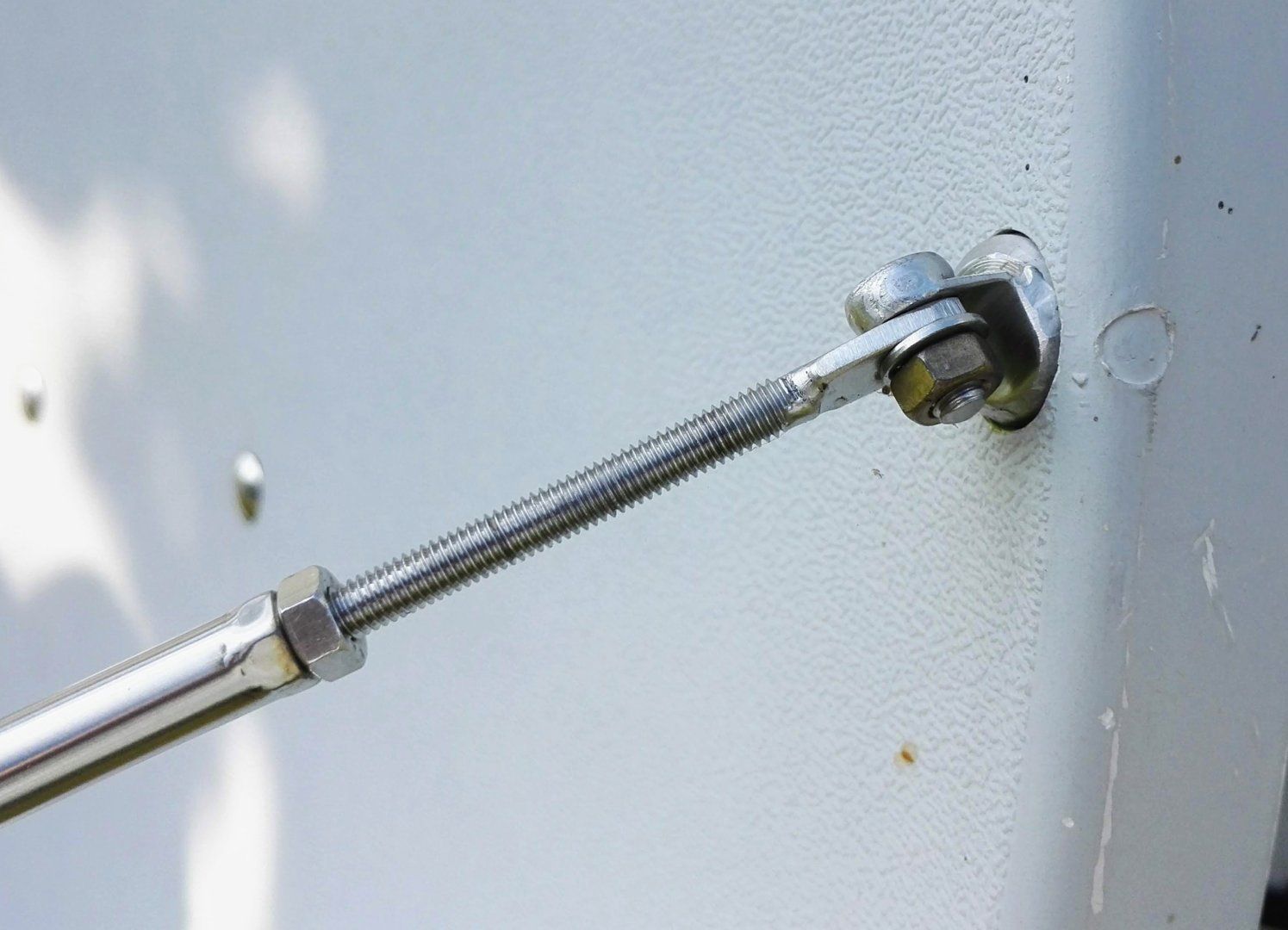

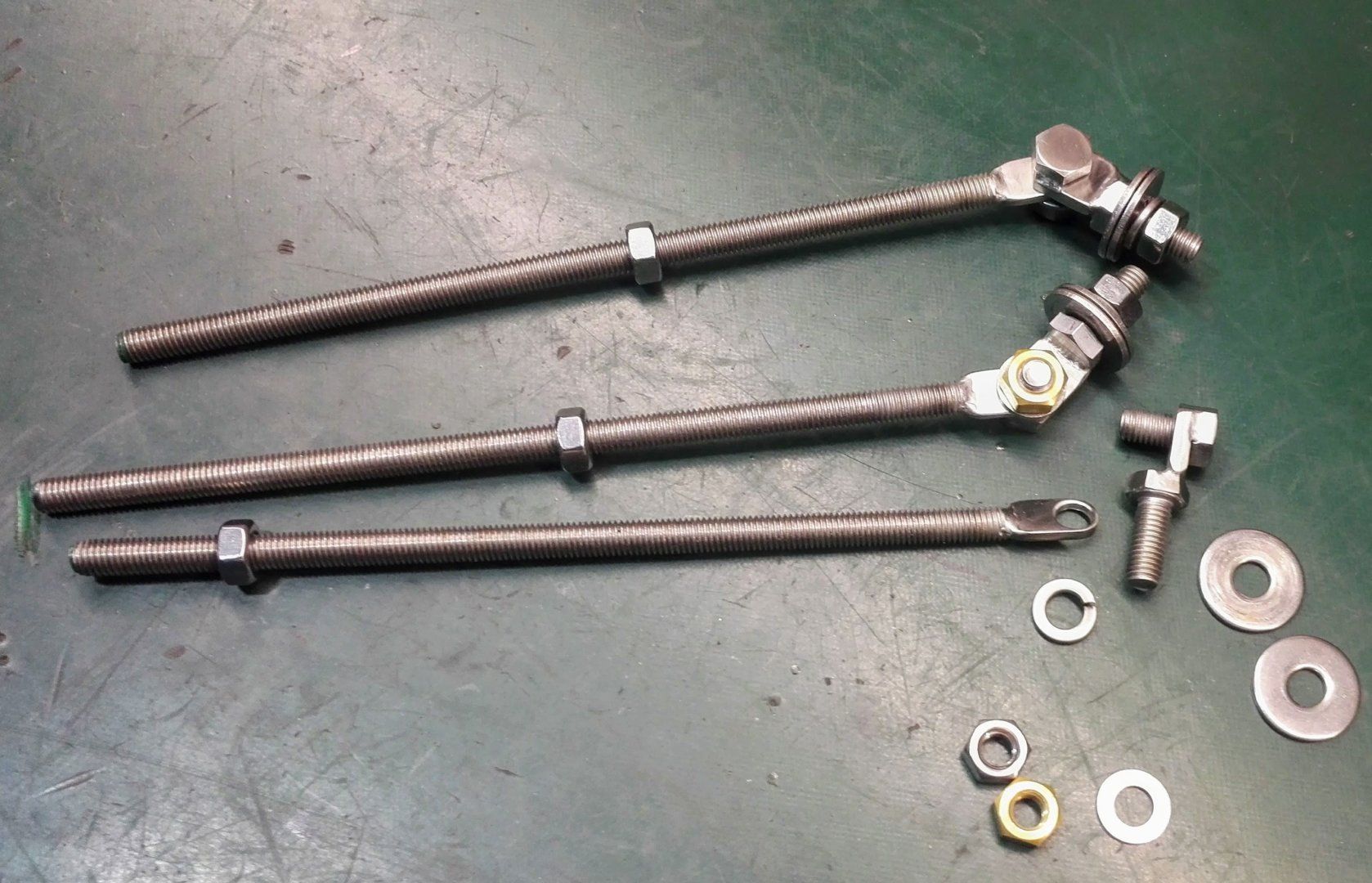

Speaking about eye-bolts.... found more pictures of them and the way I use them.


Attachments

  • Like
Reactions: FTA4PA

mr3p

Thread Starter
SatelliteGuys Pro
Pub Member / Supporter
Jan 1, 2010
1,140
147
West
Is A2 stainless equivalent to 18-8? That's a nice collection of bolts :)


RimaNTSS

SatelliteGuys Pro
Aug 9, 2013
826
869
Riga

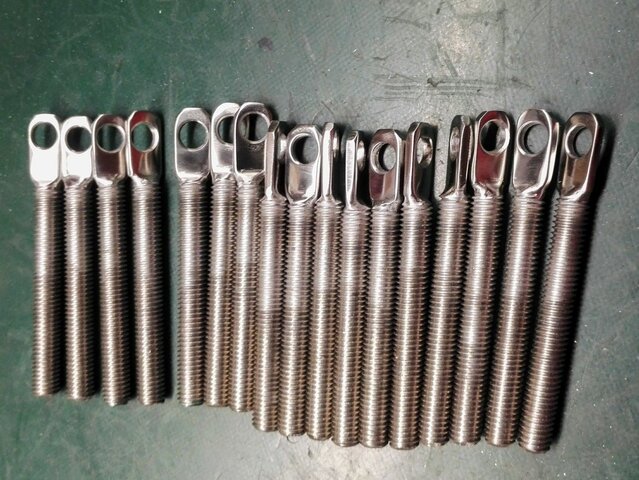

This is not a collection, I make them when there is a need :)
Difference between 18/8-304-316 here I mostly use 304 (A2), it is cheaper but good enough for my needs.


mr3p

Thread Starter
SatelliteGuys Pro
Pub Member / Supporter
Jan 1, 2010
1,140
147
West
Impressive. Do you fabricate the spade with hole and weld to threaded rod or do you have access to a press which flattens the end of the rod?


mr3p

Thread Starter
SatelliteGuys Pro
Pub Member / Supporter
Jan 1, 2010
1,140
147
West
Are you using 10mm thick 25mm wide A2 stock to create the spade end with the hole?


mr3p

Thread Starter
SatelliteGuys Pro
Pub Member / Supporter
Jan 1, 2010
1,140
147
West
Nothing ever happens overnight but made a little progress today. Sprayed down the polar mount in rust removal gel last night and its most clean although I'm going to give it a complete wash down hopefully tomorrow. I'm guessing it was originally powder coated black but Rustoleum spray paint will have to do. Had planned on using high heat black but my options were flat or glossy and the original looks like semi-gloss so I guess I'll go with the combo primer+paint in semi-gloss black. I'd like to spray the dish too but finding a nearby area large enough where I don't have to worry about overspray isn't trivial and even though its wouldn't be the end of the world, I'd rather not disassemble the dish sections.


  • Like
Reactions: JFOK and FTA4PA

mr3p

Thread Starter
SatelliteGuys Pro
Pub Member / Supporter
Jan 1, 2010
1,140
147
West

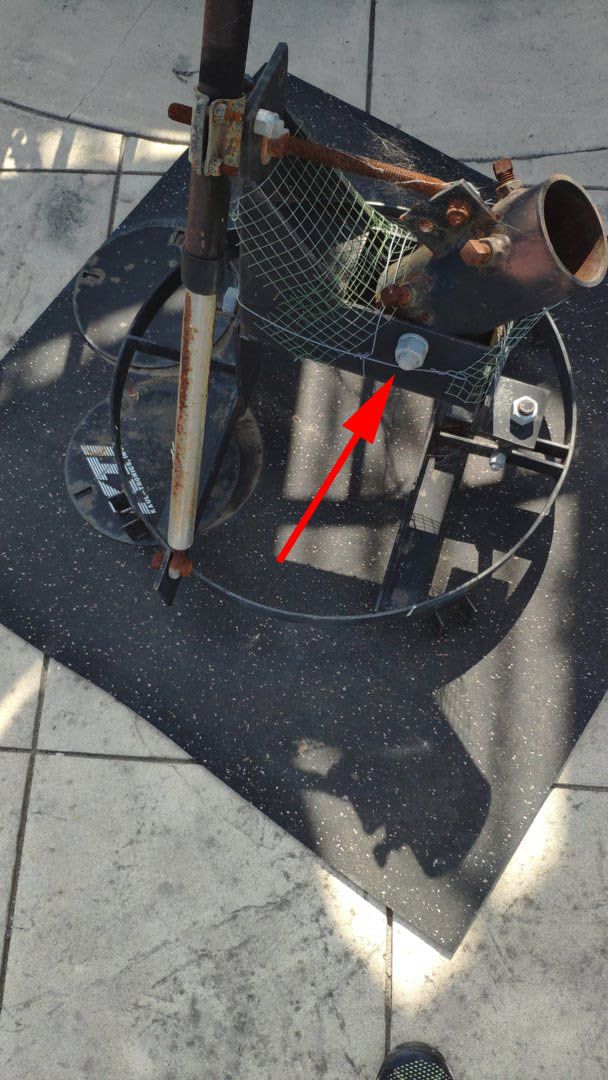

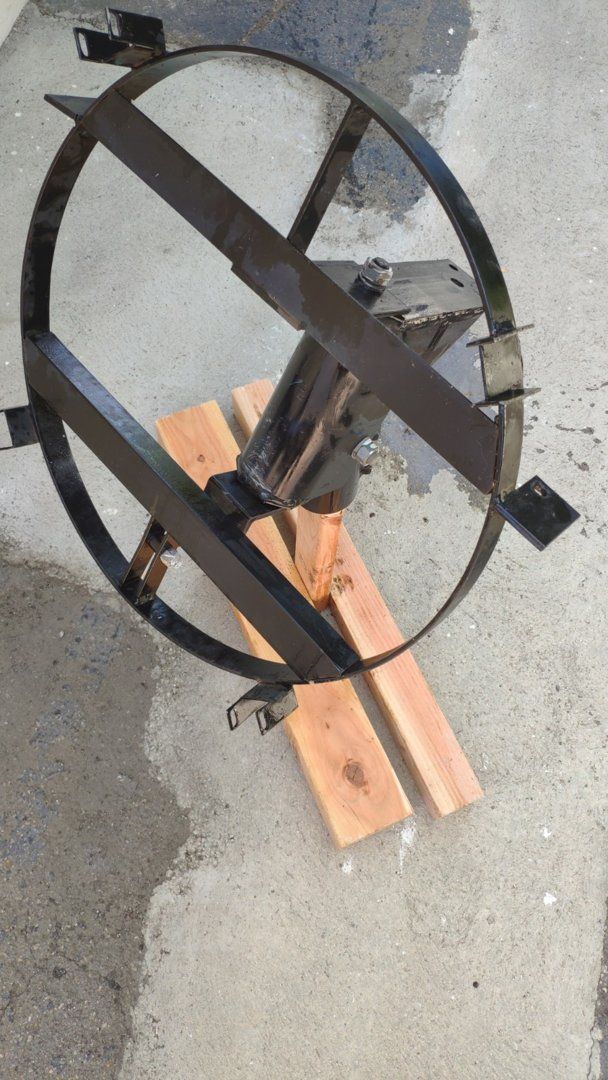

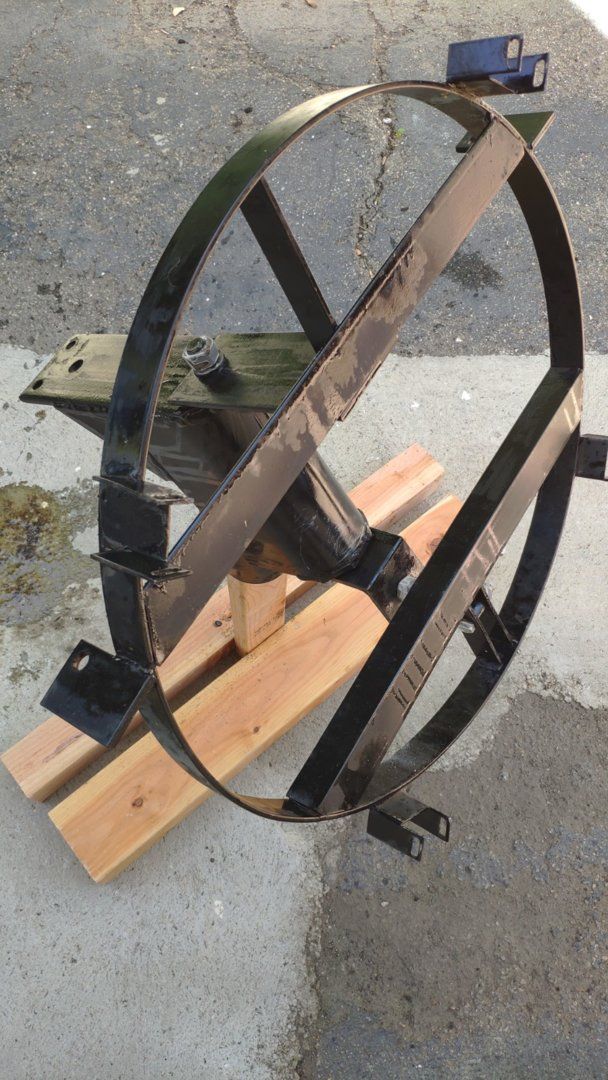

I ended up disassembling the whole mount as I wanted to replace most of the hardware and its easier to clean and prep everthing before respraying with paint. I have a question regarding remounting on pole. There is 3/4" bolt which attaches the mount to the component that sits on the pole. (see red arrow) Am I correct that when place on top of the pole the bolt should not be in contact with the pole or should the bolt "sit" directly on top of the pole? See picture
mount copy.jpg
