Im new to FTA, I got a LinkBox 9000i and am trying to get my first satellite signal. Ive noticed that no matter where i point the dish, it never moves from Signal Intensity (SI) of 49% and Signal Quality (SQ) of 10%.

Ive used Dishpointer, and various other apps to point the dish. The TV and box are right next to the dish, and i'm slowly moving the dish, L, R, U, D but the bar never moves..

Replaced the Coax with known good coax, shorter than 10 feet long

I originally thought it was the LNB, so I replaced that with a new one, still the same.

Is this normal? Ideas?

Ive ordered a signal meter, but apparently its being shipped by pack mule.. :-(

Chris

Register Today to see less ads! It's Free!

KE4EST

SatelliteGuys Is My Second Home
Staff member
HERE TO HELP YOU!
Lifetime Supporter
Aug 9, 2004
26,094
6,332
EM75xb
What dish and LNBF are you using? What satellite are you trying to hit?
Do you have a good known transponder entered in. Do you have the LO set properly to match your LNBF?

Register Today to see less ads! It's Free!

nbkhwjm

SatelliteGuys Family
Dec 20, 2016
52
18
Central Alabama, USA
Thank you for your reply..


What dish and LNBF are you using?
Its an EPS-020 by SPC Electronics.. Got it new.. I have also 2 Norsat 1209HA also that didnt work. i thought they were bad so i replaced them....


What satellite are you trying to hit?
Galaxy 19


Do you have a good known transponder entered in.
how do i know which one is known good? Im doing blind scans..


Do you have the LO set properly to match your LNBF?
from whay i can tell its 10.750, unless ive got bad info..


KE4EST

SatelliteGuys Is My Second Home
Staff member
HERE TO HELP YOU!
Lifetime Supporter
Aug 9, 2004
26,094
6,332
EM75xb
If you are not aligned properly you can blind scan all day with nothing.
You can go to Sathint.com for active transponders...but
Put this one in 12152 H 20000. Then use that one to tune with. Also make sure you go to dishpointer.com and enter your address, select G19 from the list and then go to bottom and get skew, so you can skew your LNB properly.
If the skew is not set right you will not get anything either.

  • Like
Reactions: nbkhwjm and a33

nbkhwjm

SatelliteGuys Family
Dec 20, 2016
52
18
Central Alabama, USA
If you are not aligned properly you can blind scan all day with nothing.
You can go to Sathint.com for active transponders...but
Put this one in 12152 H 20000. Then use that one to tune with. Also make sure you go to dishpointer.com and enter your address, select G19 from the list and then go to bottom and get skew, so you can skew your LNB properly.
If the skew is not set right you will not get anything either.


OK Ill check these points...


nbkhwjm

SatelliteGuys Family
Dec 20, 2016
52
18
Central Alabama, USA
an update... My external signal strength meter showed up and within 30 seconds i had a signal.. however the transponders i was looking for wasn't showing anything.. On G19 i can only get 20, 21, 22.. only then does the Linkbox show signal strength...

thanks for everyones help..

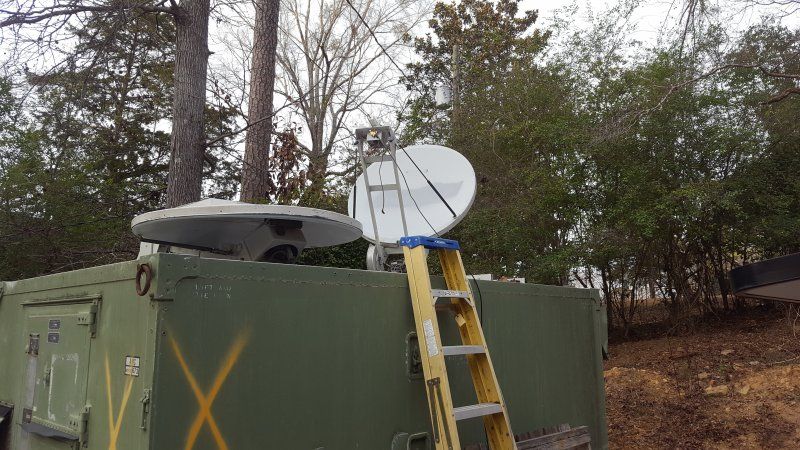

Here is an image of the Sats sitting on their soon to be home..

For the Military people, its an S-280 Shelter with workbenches and shelving, a full "shop"
Its also my soon to be Ham shack.. it gets mounted on a trailer later...


  • Like
Reactions: Titanium

nbkhwjm

SatelliteGuys Family
Dec 20, 2016
52
18
Central Alabama, USA
An update...

Ive built a simple 24vDC controller to move this thing around so i don't have to crank it.. i don't have any AZ EL feedback but i can position it.. so I can RX channels... working on the controller now...

design uses a Raspberry PI driven PWM controller with GPIO feedback on a custom board... nothing like overkill...

Chris

  • Like
Reactions: Titanium

nbkhwjm

SatelliteGuys Family
Dec 20, 2016
52
18
Central Alabama, USA
The issue with this one is that its mobile and has AZ / EL and Pol, from an unknown position... i have a GPS, Electronic Compass, Tilt sensor and Clinometer to figure in.. fortunately the hardware is all there, but plugged into a proprietary controller...

I can do the proper AZ / EL calculations from my LAT/Long via GPS and will need to factor in initial tilt, clinometer and compass to make it point correctly..

Im a bit geeked out, i write boring ass code for work, this is at least fun..

Chris
