LNB adjustment.

Status
Please reply by conversation.
beer4me

beer4me

Thread Starter
SatelliteGuys Guru
Pub Member / Supporter
Apr 3, 2009
149
12
Gowganda North Ontario
Sorry I couldn't find it. Skew and aiming is easy , but , I wondered if sliding the LNB closer or farther from the dish has any effect . If so , which is more desirable , or advantageous to the signal strength ? Thanks in advance. :)

FaT Air

FaT Air

HOA Free Zone
Feb 27, 2010
6,668
914
97W 48N
Move it in or out until you find the placement for the highest Q reading. Might have to move it, stop and wait for Q to stabilize, then move again. It's all about getting the dishes focal point just inside the throat.

R

richyrich

SatelliteGuys Pro
Sep 2, 2008
480
20
dead
Actually, moving the feedhorn in and out might only not make much difference, but if it is in the wrong place, it will change the signal enough, you might learn something is wrong...

SatelliteAV

SatelliteAV

SatelliteGuys Master
Lifetime Supporter
Sep 3, 2004
6,486
184
Roseville, CA
On some satellites or transponders you may have to move the LNBF forward or aft quite a distance to optimize, but on other satellites and transponders a 1/4" movement may result in a 10 or 20% change in Signal Quality readings.

It is quite apparent when viewing on a spectrum analyzer the effect that forward / aft LNBF placement has on optimizing the signal.

A great example of fore / aft LNBF placement into the focal sweet spot of the relector can be viewed on transponders with adjacent satellite interference. Check out satellite Galaxy 19, transponder 11842. Optimize the dish aiming using a transponder with minimal interference such as 12177. Switch over to 11842 and adjust the fore / aft placement.

beer4me

beer4me

Thread Starter
SatelliteGuys Guru
Pub Member / Supporter
Apr 3, 2009
149
12
Gowganda North Ontario
Wow ! This is great info. Thanks guys. Continued learning keeps this hobby interesting , and , informative.

Lone Gunman

Lone Gunman

SatelliteGuys Pro
Mar 19, 2010
3,131
811
southeast
So just for curiosity sake I just went to 97w and checked those two TPs with my SAMI dish using the Openbox S9. Got 73/74% Q on 12177 and 71/72% Q on 11842? So is 11842 suppose to be harder to tune than 12177? And am I suppose to be able to get the same Q reading on both?

beer4me

beer4me

Thread Starter
SatelliteGuys Guru
Pub Member / Supporter
Apr 3, 2009
149
12
Gowganda North Ontario
I don't think that's what he meant. The original question was to ask if moving the lnb toward/away from the dish had an effect on q signal level , on any given transponder. He was just giving an example to minimize adjacent signal interference.

SatelliteAV

SatelliteAV

SatelliteGuys Master
Lifetime Supporter
Sep 3, 2004
6,486
184
Roseville, CA
So just for curiosity sake I just went to 97w and checked those two TPs with my SAMI dish using the Openbox S9. Got 73/74% Q on 12177 and 71/72% Q on 11842? So is 11842 suppose to be harder to tune than 12177? And am I suppose to be able to get the same Q reading on both?

A large dish on KU band will have an extremely narrow beam, so adjacent satellite interference is attenuated. I would expect similar signal qualty readings on these two transponders using an oversized reflector nullifying the adjacent satellite interference. This has little to do with placing the feedhorn in the sweet spot.

Lone Gunman

Lone Gunman

SatelliteGuys Pro
Mar 19, 2010
3,131
811
southeast
The O. P. didn't mention dish size? From what you said I was under the impression that 11842 was harder to tune and I guess I mistakenly assumed that it would be a weaker TP? I was wondering if I needed to "tweak" on mine to see if I could get them the same?

SatelliteAV

SatelliteAV

SatelliteGuys Master
Lifetime Supporter
Sep 3, 2004
6,486
184
Roseville, CA
Lone Gunman,

My response was to you, as I had quoted your post. Your question was off-topic so I addressed it separately from the OPs question.

The link budget is similar between 12177 and 11842.

11842 suffers from adjacent satellite interference, so an LNBF mounted outside of the prime sweet spot will have considerable lower Signal Quality readings. In your case, the Sami dish with the narrower KU band beam pattern attenuates the adjacent satellite interference and you will observe very little reduction in adjacent satellite interference as you are not moving the scalar on your prime focus dish and the F/B ratio would affect both transponders similarly.

Last edited:
jscud

jscud

SatelliteGuys Pro
Dec 25, 2005
310
42
Central NH
Isn't the distance of the LNB from the dish determined by where it hits the center of the dish and the target angle (22 deg.)?
Lnb mount
I may be off base here but if this is the optium placement, moving the lnb forward would have it aimed too low on the dish. I would think that would lower the signal Q.

How important is it to maintain the proper target angle and hitting the dish at its center?

SatelliteAV

SatelliteAV

SatelliteGuys Master
Lifetime Supporter
Sep 3, 2004
6,486
184
Roseville, CA

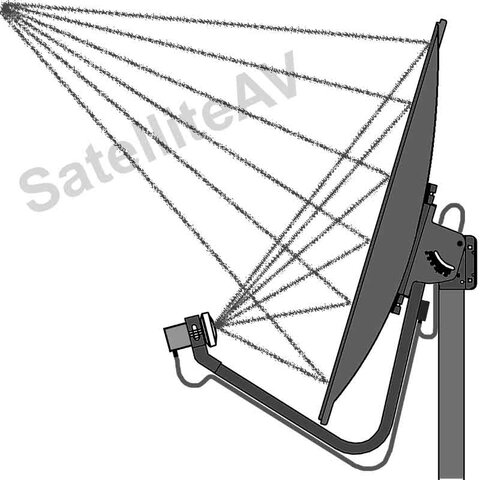

OffsetDish

Typically, the LNBF is not aimed at the center of an offset reflector.

The sweet spot for the feedhorn placement is the point of convergence of the reflected signals for the desired satellite.

Last edited:
