LNBF with Dielectric.

Status
Please reply by conversation.
Babadem

Babadem

Thread Starter
SatelliteGuys Pro
May 21, 2007
2,296
164
MA
Recently, I have come accross the word "Dielectric" being associated with LNBs. What advantage if any do LNBs with Dielectric have over those without Dielectric. What material is used to achieve Dielectric and how is it used as it applies to LNBs. Anyone with a sample picture of an LNB with Dieletric? :confused:

qwert1515

qwert1515

SatelliteGuys TheList
Sep 26, 2005
4,244
40
Los Angeles CA

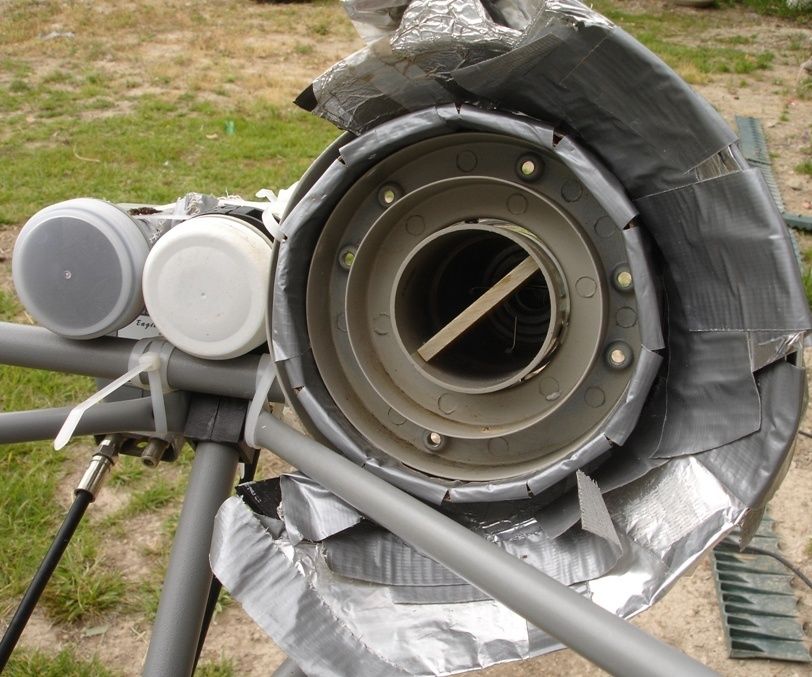

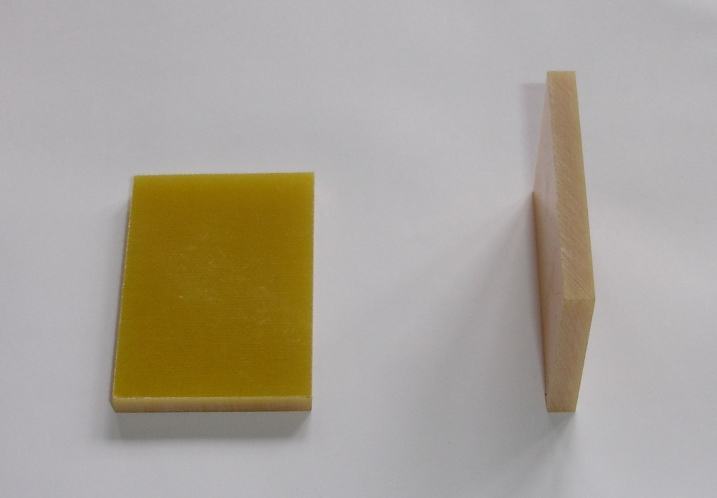

Dielectric plates are used with Linear C-Band LNBs to convert them to receive circular broadcasts. (Mainly Atlantic Satellites).

EDIT - Images in a few minutes.
EDIT - Images Added.


Attachments

  • 2.JPG
    12 KB · Views: 1,289
  • 1.JPG
    100.4 KB · Views: 1,398
Last edited:
Babadem

Babadem

Thread Starter
SatelliteGuys Pro
May 21, 2007
2,296
164
MA
Dielectric plates are used with Linear C-Band LNBs to convert them to receive circular broadcasts. (Mainly Atlantic Satellites).

EDIT - Images in a few minutes.
EDIT - Images Added.
Thanks qwert1515!!!!:D So actually, you can convert a C-band LNB to recieve circular signals? Wow!!! :up Of what material is the Dieletric made from?

jayelem

jayelem

SatelliteGuys Pro
Jan 5, 2006
1,305
0
Chicago suburbs.
Of what material is the Dieletric made from?

I believe it's made out of Teflon.

Circular C-band on the Atlantic sats are mainly Spanish Channels from South America and are located at the farthest eastern arc positions , I'm interested in them but I believe most C-banders have their buds from 72.0 - all the way west.

qwert1515

qwert1515

SatelliteGuys TheList
Sep 26, 2005
4,244
40
Los Angeles CA
I also believe it is teflon.

You can do the same with a Ku-Band LNB but the only satellite that is circular and in the same frequency range as a standard LNB (11700 - 12200) is 118.7°W Anik F3 Ku (Used by Dish Network).

The only free channel on that satellite is a channel saying that you are pointed at that satellite. :(

Post #3 shows my spectrum scan before the plate is added and after. (I cut two tennis ball can lids to make the dielectric plate :))

Circular to linear.

Babadem

Babadem

Thread Starter
SatelliteGuys Pro
May 21, 2007
2,296
164
MA
I also believe it is teflon.

You can do the same with a Ku-Band LNB but the only satellite that is circular and in the same frequency range as a standard LNB (11700 - 12200) is 118.7°W Anik F3 Ku (Used by Dish Network).

The only free channel on that satellite is a channel saying that you are pointed at that satellite. :(

Post #3 shows my spectrum scan before the plate is added and after. (I cut two tennis ball can lids to make the dielectric plate :))

Circular to linear.

Incredible! :) Is there a set proportional measurement to the size of the Teflon? How deep does the dielectric element have to go deep into the throat of the feed horn of the LNB?

qwert1515

qwert1515

SatelliteGuys TheList
Sep 26, 2005
4,244
40
Los Angeles CA
The Teflon has to be wide enough to fit tightly in the LNB, for depth the plate has to cover the dipole rods inside the LNB (One dipole rod is for H and the other is for V polarities, with the plate it converts the H to L and the V to R polarities).

Pepper

Pepper

DVR Addict~Mad Scientist
Supporting Founder
Mar 16, 2004
8,191
1,058
Satsuma, AL
Any piece of flat thick plastic cut to size (thickness of old cassette tape box cover or similar) seems to do the same job.

Babadem

Babadem

Thread Starter
SatelliteGuys Pro
May 21, 2007
2,296
164
MA
The Teflon has to be wide enough to fit tightly in the LNB, for depth the plate has to cover the dipole rods inside the LNB (One dipole rod is for H and the other is for V polarities, with the plate it converts the H to L and the V to R polarities).
Thanks!:D I have learned quite a lot in this short period of time. :up
Any piece of flat thick plastic cut to size (thickness of old cassette tape box cover or similar) seems to do the same job.
Thanks! That's incredible. :)


Question: Looking at www.lynsat.com how can you tell the FSS-Circular birds?

phlatwound

phlatwound

SatelliteGuys Pro
Lifetime Supporter
Dec 25, 2007
3,268
229
Goosapeak Junction
Question: Looking at www.lynsat.com how can you tell the FSS-Circular birds?

I'm pretty new at reading Lyngsat so there may be another way, but if you look in the "Freq. Tp" column there will be an "R" or an "L" next to the transponder frequency on the circular polarized satellites....vs. an "H" or a "V" for the linear ones....I think. :D
