making a Conical Scalar Ring?

Status
Please reply by conversation.
brentb636

brentb636

SatelliteGuys Pro
Jun 24, 2006
4,278
6
5 miles N of Saugatuck, Mi

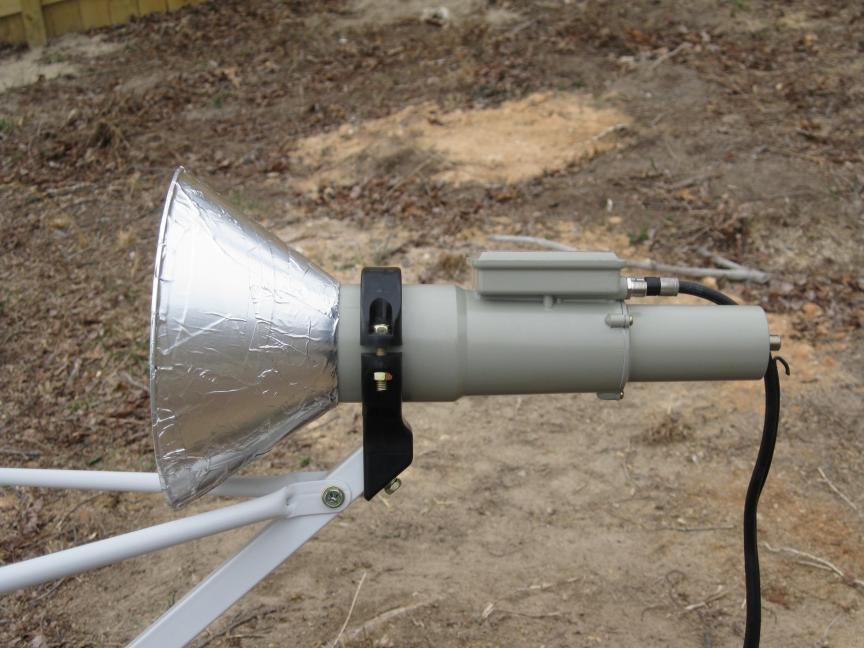

Here's a couple pic's I found by "googling". Looks like a funnel, covered with foil. :)


Attachments

  • homemade scalar2.jpg
    homemade scalar2.jpg
    76.7 KB · Views: 1,165

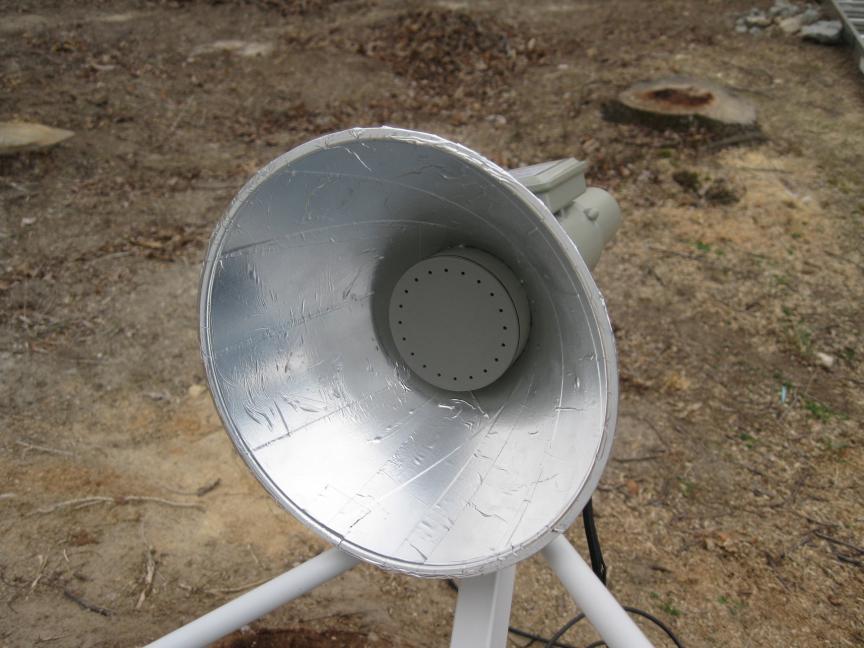

  • homemade scalar.jpg
    homemade scalar.jpg
    72.3 KB · Views: 1,466
D

DefCon4

SatelliteGuys Family
Jun 18, 2008
84
0
Northern CA
Scalar designs are normally fruits of RF Electronic Engineers, but random experimentation can yield useful results and are encouraged for the hobbyist. Walrus1957(?) an EE has posted extensively on homemade conical scalars for offset reflector applications.

1ADAM12

1ADAM12

SatelliteGuys Pro
Aug 4, 2009
576
0
10-6 Gas Pumps
Cone Scalar

You might try this.


Attachments

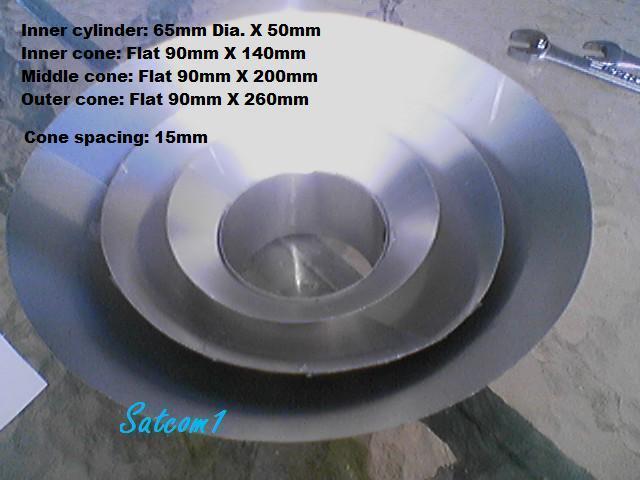

  • ConeScalarDetail.jpg
    34.9 KB · Views: 1,078

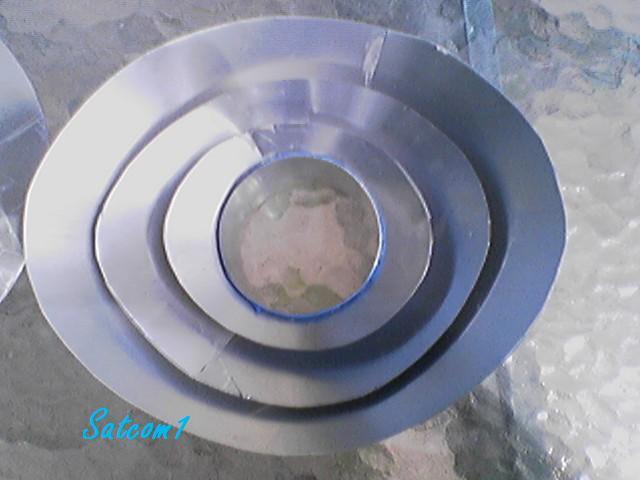

  • 665A0525.JPG
    30.1 KB · Views: 835

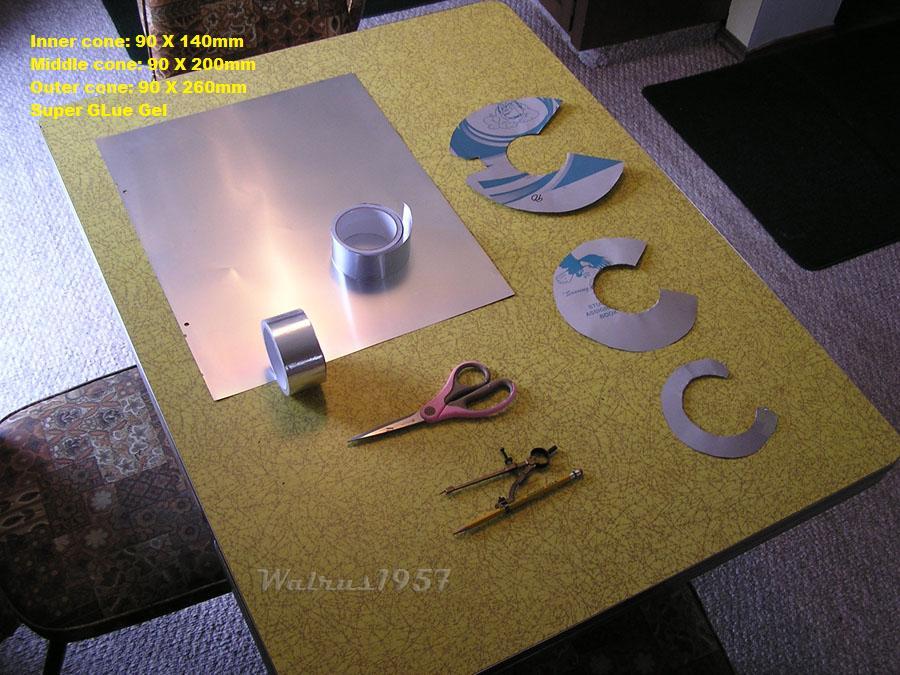

  • ConeScalarDetail1.jpg
    103.9 KB · Views: 1,006
  • th_021.jpg
    3.8 KB · Views: 808
L

lubrikator

Member
Nov 5, 2005
13
0
Here's a couple pic's I found by "googling". Looks like a funnel, covered with foil. :)

.....hehehehe, thats my home made conical scalar ring, i made that with a plastic funnel and aluminum duct tape.
