Need assistance from C-band FTA guys

Status
Please reply by conversation.
T

T134

Thread Starter
SatelliteGuys Pro
Pub Member / Supporter
Jan 27, 2011
575
238
Minnesota
FridgeFTA/Amiko Americas has been working with Micasa Network on a project. After some discussion we were wondering how strong their signal is in various parts of North America. We’d like to ask the great people in the True FTA community to help us with signal reports.

Micasa is on 121W/Galaxy 23. 3889H 13020SR 3 / 4 FEC. Micasa is running FTA so a simple transponder scan should bring it in. Only thing to note is that it is DVB-S modulation but H264 video. Old MPEG2 only boxes won’t be able to get the video.

For those willing to help here is what we need.

1. Your latitude/longitude or nearest major city.
2. Dish size.
3. STB type and Quality reading. (STB type is so I can figure relative strength between various STB’s.)
4. Any other notes on the signal you want to share.

Bonus points for PR, Caribbean Islands. Super bonus if you can give us C/N with a satellite meter.

As long as you are checking the signal be sure to watch the channel. They’ve got great content. Most if not all of it is in English too.

Thanks in advance to those willing to help.



Last edited:
qwert1515

qwert1515

SatelliteGuys TheList
Sep 26, 2005
4,244
40
Los Angeles CA
Location: Los Angeles, CA
Dish size: 1.2 Meters
STB type and Quality reading: MicroHD Q:70%, USB DVB Tuner 7.3 dB
Other notes: LNB is offset from the center of the dish so the signal is probably a little bit stronger.

Note: According to the DVB-S modulation specifications (DVB-S QPSK 3/4) requires a minimum C/N of 5.5 dB to lock.

. Raine

. Raine

SatelliteGuys Pro
Pub Member / Supporter
Aug 6, 2013
2,691
946
North America, CT.
Latitude=41.8N
Longitude=71.8W
Dish size=9' with a C1WPLL LNB
STB=MicroHD
Quality reading=76%

Last edited:
77TA

77TA

SatelliteGuys Pro
Aug 27, 2013
562
50
Arkansas
Location: Memphis, TN
Dish size: 1.8 Meters
STB type and Quality reading: HDstar USB Receiver 8.4 dB
Other notes: Currently have some tree blockage
Scan performed 4/13/14 shows 11.7 dB

Magic Static

Magic Static

FTA Geek
Lifetime Supporter
Oct 12, 2010
7,497
4,848
Montana

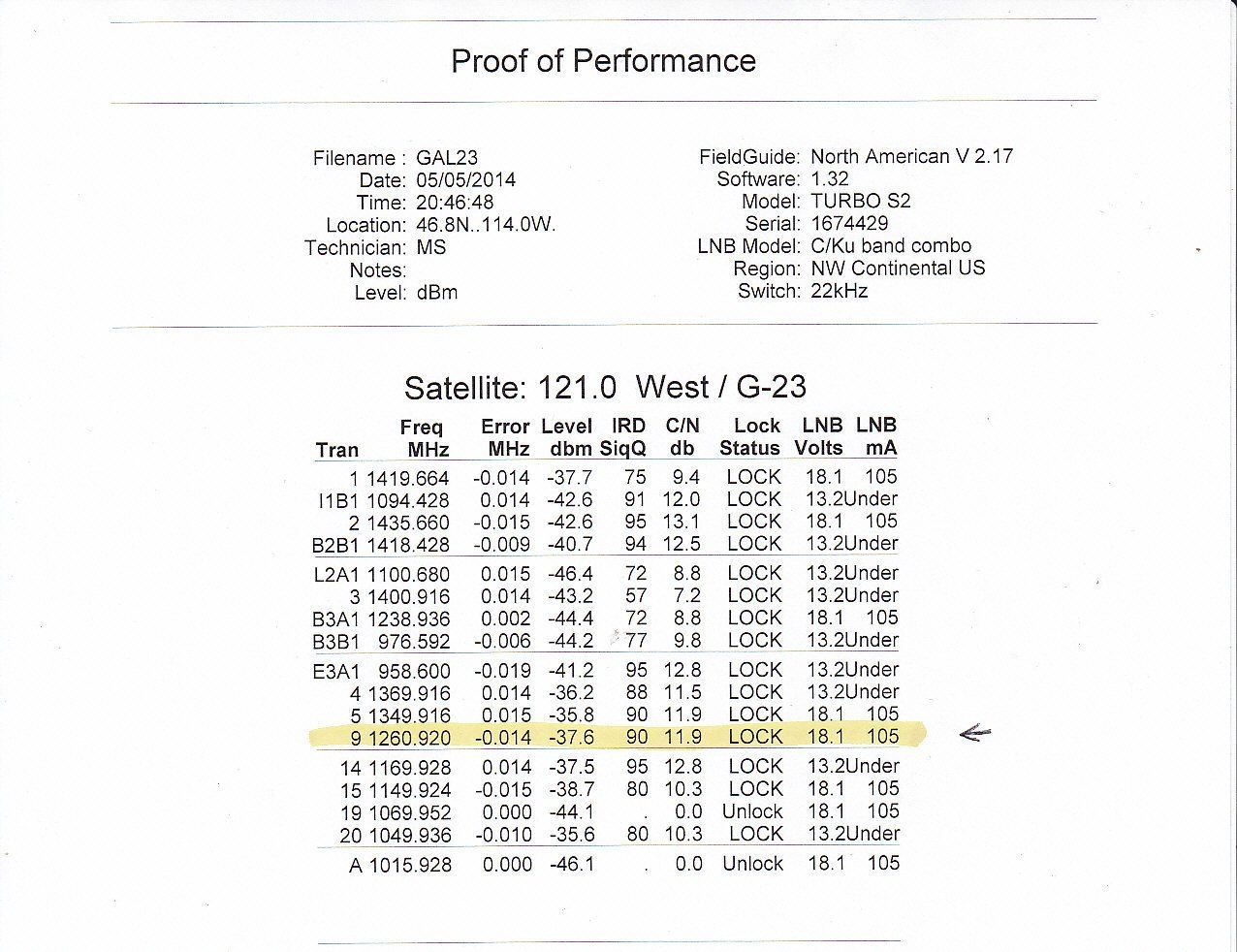

46.8N 114.0W 10' CM Perf., Norsat 3220, AI TurboS2 POP Scan attached
POP Scan

lost_mesa

lost_mesa

SatelliteGuys Pro
Oct 18, 2010
546
455
New Mexico
Location: near Santa Fe NM
Dish Size: 7.5 ft w/ older 25k LNBF
STB Type: microHD, Q of 75%

waylew

waylew

SatelliteGuys Pro
Aug 23, 2010
2,780
1,118
northern WEST new york
AZ Ultra,10' Pinnacle,BSC621 ;
S 72,Q 66 .
Note after this absolutely miserable winter,dish is in need of a serious tune up,but not until mud season goes away :rant::D.
Oh location,44.3N ,75.9W

Last edited:
B

bigg t

SatelliteGuys Pro
Jul 3, 2012
275
91
foothills N.C.
Location :near Granite Falls N.C.
10ft. with BSC-621
AZbox Me 60%

Last edited:
T4Runner

T4Runner

SatelliteGuys Pro
Pub Member / Supporter
Apr 3, 2010
1,034
57
37.0N 119.5W California
Prather, California
10 ft. Perfect Ten mesh
MicroHD

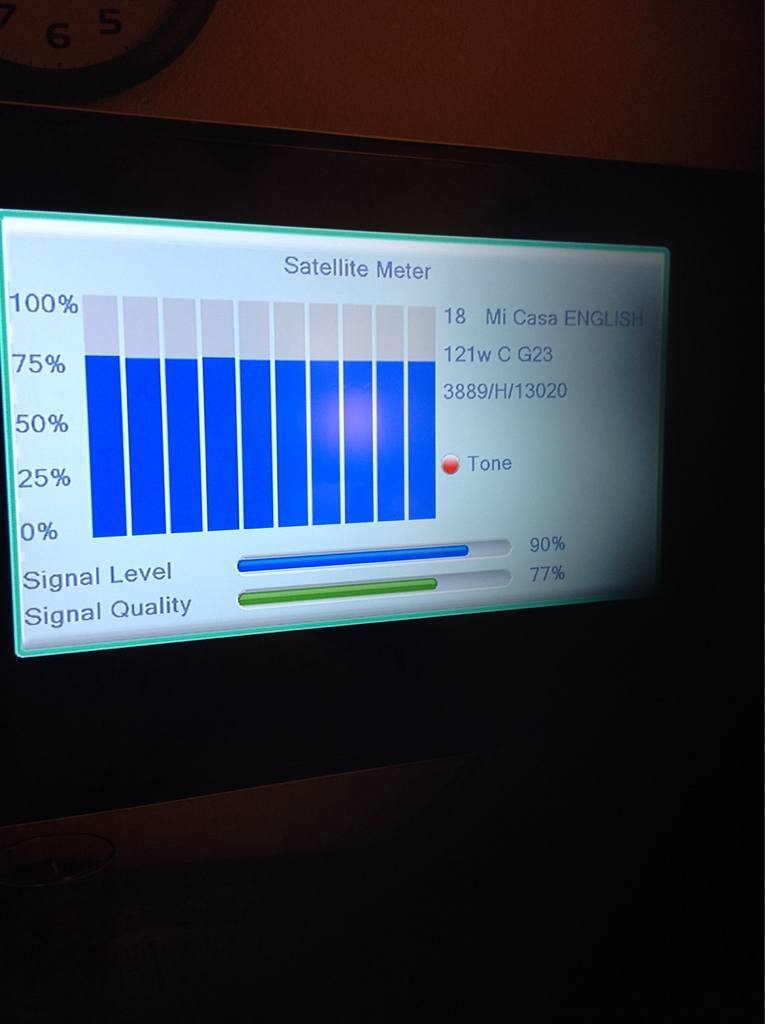

ImageUploadedBySatelliteGuys1399348901579455

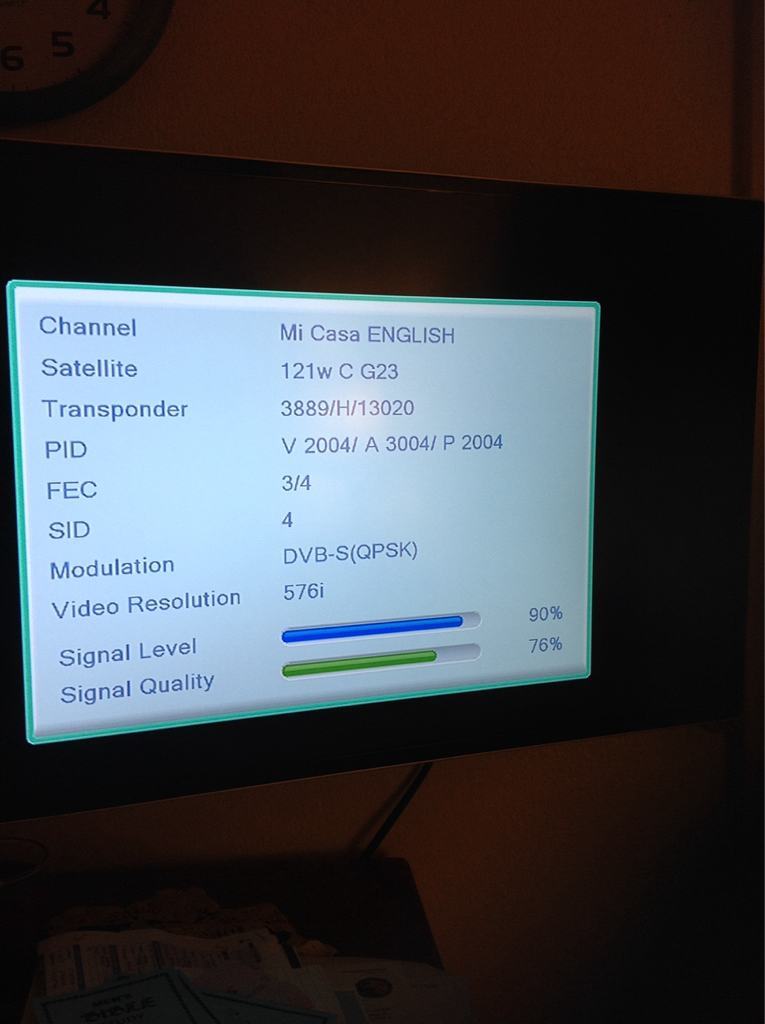

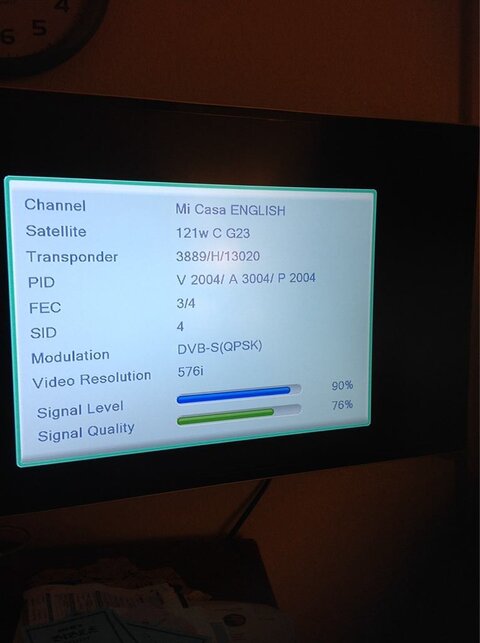

ImageUploadedBySatelliteGuys1399348933742378

Pretty solid 77% Quality


Posted Via The FREE SatelliteGuys Reader App!

C

capned

SatelliteGuys Family
Jan 31, 2009
47
11
Southeastern Arizona
31.4N, 110.2W (Southeastern Arizona)
10' perf, single OMT. Norsat 8115s
TBS 6925: -40 dBm, SNR 14.8 dB

10' perf, single OMT. EchoStar 25 deg LNBs
AZBox Elite: SQ 82

Lone Gunman

Lone Gunman

SatelliteGuys Pro
Mar 19, 2010
3,135
811
southeast
Rock solid 76%Q near Lynchburg, Va using a 10ft Winegard dish with WSI DMX741 LNBF and a Micro HD.

FaT Air

FaT Air

HOA Free Zone
Feb 27, 2010
6,668
914
97W 48N
1. 48N 97W (cold)
2. 10ft USS Steel BUD W/SatAV C2 LNBF
3. Openbox S9 (not a clone - first 'batch' in USA) Q=78 SOLID!
4. Have had their titantv listing in FAV list for quite a while now.

T

T134

Thread Starter
SatelliteGuys Pro
Pub Member / Supporter
Jan 27, 2011
575
238
Minnesota
Thanks everyone who has reported at Fridge and Satguys. Keep the reports coming please! These are going to be very helpful for Micasa Channel. As you guys know, the beam maps and EIRP's from the satellite operators don't necessarily tell what is really happening on the ground. The True FTA Community has by far the most number of C-band receive points in North America to give us a real world view of a signal.



T4Runner

T4Runner

SatelliteGuys Pro
Pub Member / Supporter
Apr 3, 2010
1,034
57
37.0N 119.5W California
Prather, California
10 ft. Perfect Ten mesh
MicroHD


Pretty solid 77% Quality


Posted Via The FREE SatelliteGuys Reader App!

Forgot to add a report on my separate C band system at same location.

Prather, California
7.5 ft. Mesh
OpenBox S9

Quality=75%

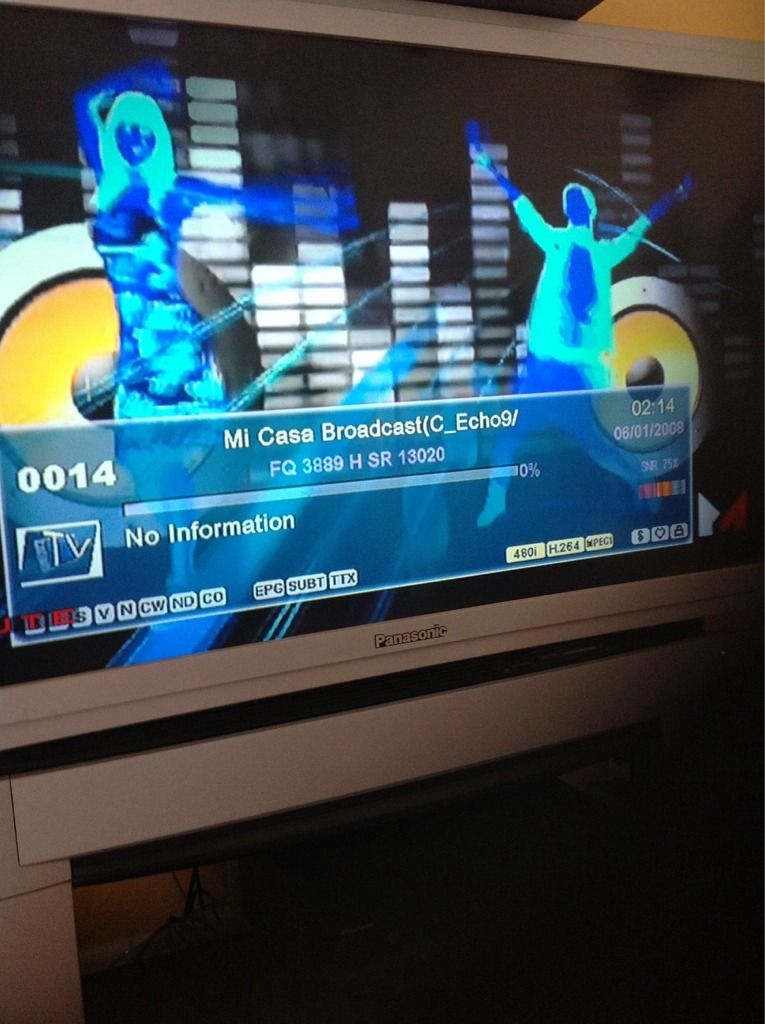

ImageUploadedBySatelliteGuys1399410220569055


Posted Via The FREE SatelliteGuys Reader App!

norman881

norman881

SatelliteGuys Pro
Pub Member / Supporter
Lifetime Supporter
Jul 26, 2009
731
233
Washington State
Spokane, Washington
10 Feet
X2 Premium HD PVR
S 76% Q 68%

L

Lak7

SatelliteGuys Master
Pub Member / Supporter
Feb 28, 2008
5,451
7
Near Chicago, Illinois
TBS 5925 - Crazyscan
10' Unimesh with Norsat 3220 LNB
41.6N - 87.9W
SN - 14.6
RF Level - -41 dBm

phlatwound

phlatwound

SatelliteGuys Pro
Lifetime Supporter
Dec 25, 2007
3,268
229
Goosapeak Junction
37N 93W
10ft Perfect 10 mesh (highly tuned but beat-to-hell) w/C2 LNBF

GeoSat microHD
Q=75%

Cham

Cham

VE4GLS
Pub Member / Supporter
Dec 19, 2008
2,469
1,019
Boonies
Hi Joe,
location: 49N 97W just north of the US/Canada border in Manitoba
Equipment: 10' reflector, Norsat 8125, AzBox Ultra (see sig below)
Signal info: Steady at 80-81%Q, although I get some breakup this morning on the picture but looks like it could be the in the broadcast video and maybe not a signal issue.

F

Frijid

SatelliteGuys Family
Aug 24, 2010
68
9
Utah
40° N, 111° W
10' Laser
Dual LNBF
Openbox S9
S 86
Q 74

No signal breakup or pixaltion.
