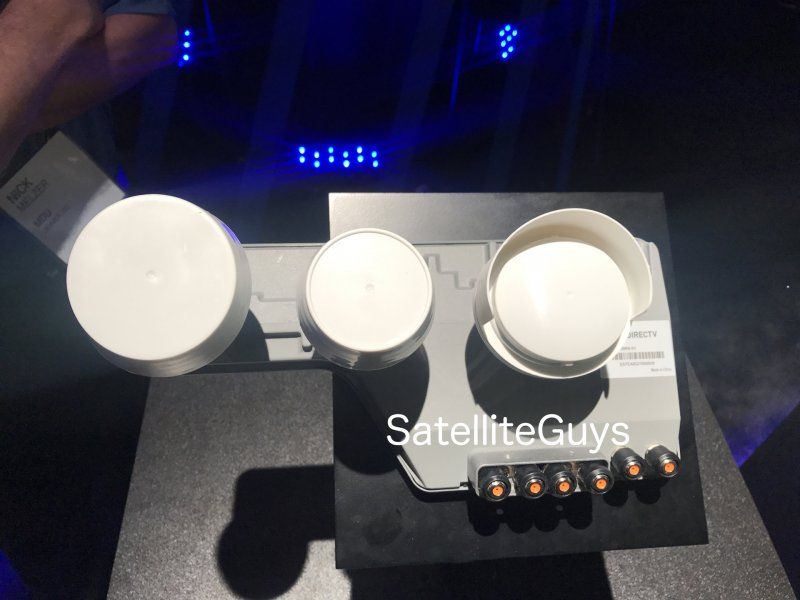

Here is a new LNB being shown at the Revolution Show...

Its a Reverse Band Legacy, which allows for you to add a dish for the internationals at 95 degrees.



Jimbo

SatelliteGuys Master
Lifetime Supporter
Jul 14, 2005
63,706
4,089
NW Ohio - Buckeye Country
Here is a new LNB being shown at the Revolution Show...

Its a Reverse Band Legacy, which allows for you to add a dish for the internationals at 95 degrees.

View attachment 125105
Add a dish for the internationals.
So it would require 2 dishes to get the 4k and internationals .... not just this newest LNB using the dish that goes with it to get it all ?


HoTat2

SatelliteGuys Pro
Jun 12, 2012
1,277
326
Los Angeles, CA.
I bet the 2 on the right are inputs.
Nah, they're undoubtedly outputs ...

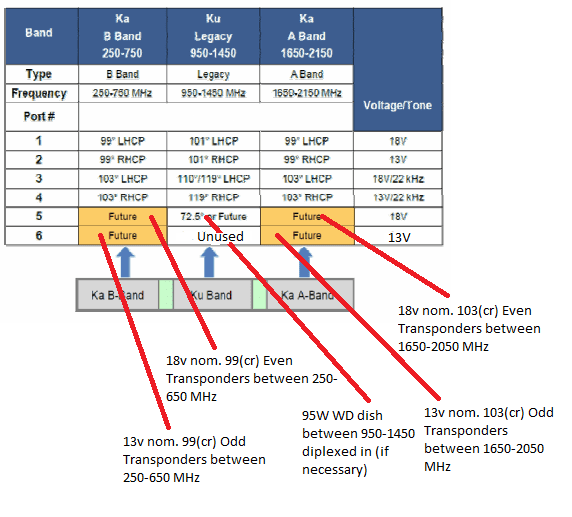

The frequency plan for the two new LNB outputs is as I posted awhile ago on another thread. Based on a transponder survey readout from an AIM meter with the latest database update which included the Reverse Band.


The tan colored cells at the bottom of the graphic ("ports 5 and 6") represent the spectrum of the two new coax outputs.

95W will have to be diplexed in on the new 18v line one as shown.

Sent from my SGH-M819N using Tapatalk


HoTat2

SatelliteGuys Pro
Jun 12, 2012
1,277
326
Los Angeles, CA.
And the next question here is ... What type of ext. multiswitch will this RB legacy LNB connect to?

Sent from my LGMS550 using Tapatalk


raoul5788

Studebaker driver
Staff member
HERE TO HELP YOU!
Supporting Founder
Lifetime Supporter
Dec 28, 2004
30,401
14,076
Cheshire CT
And the next question here is ... What type of ext. multiswitch will this RB legacy LNB connect to?

Sent from my LGMS550 using Tapatalk
I would think a swm8/16 switch, no?


slice1900

SatelliteGuys Pro
Feb 14, 2015
1,429
610
IA
Don't think the old analog SWiM switches can handle Reverse Band ...

DIRECTV showed off a digital DSWM-30 ext. multiswitch at a recent Revolution conference I think last year.

So that might be it. ...

Of course the SWM8/SWM16 can handle reverse band. It leaves the LNB at the exact same frequency range as Ka A & B bands, and the internal multiswitch is connected to all six inputs.


HoTat2

SatelliteGuys Pro
Jun 12, 2012
1,277
326
Los Angeles, CA.
Of course the SWM8/SWM16 can handle reverse band. It leaves the LNB at the exact same frequency range as Ka A & B bands, and the internal multiswitch is connected to all six inputs.
Oh, great then;

As it sure would help matters with the seemlessness of installing this LNB if the current installed base of legacy analog SWiM multiswitches could be used by just re-tasking the two flexports.

Though running now six or two more coax lines in addition to an already existing four (or three coax pairs in all) would be a cumbersome and unsightly mess, I see this LNB mainly for MDU single dish solutions.

Now DIRECTV just needs something like this on steroids for the AK-HI dish and they'll be all set I guess. ...

Sent from my LGMS550 using Tapatalk

  • Like
Reactions: Tecnicoloco

goaliebob99

SatelliteGuys Master
Supporting Founder
Aug 5, 2004
14,481
517
-.-. .... .. -.-. .- --. ---
Don't think the old analog SWiM switches can handle Reverse Band ...

DIRECTV showed off a digital DSWM-30 ext. multiswitch at a recent Revolution conference I think last year.

So that might be it. ...

Sent from my LGMS550 using Tapatalk

Yep it looks like that DSWIM30 will be a part of international integration and 4k reverse band setups. Legacy reverse band LNB w/ DSWIM30 switch and a world direct diplexer. The diplexer will run into port 5 of the switch with both the RB and world direct dish connecting to the diplexer. Super happy to finally see a solution.


Claude Greiner

SatelliteGuys Master
Supporting Founder
Sep 8, 2003
13,225
3,769
Detroit - The Paris of the Midwest
Yep it looks like that DSWIM30 will be a part of international integration and 4k reverse band setups. Legacy reverse band LNB w/ DSWIM30 switch and a world direct diplexer. The diplexer will run into port 5 of the switch with both the RB and world direct dish connecting to the diplexer. Super happy to finally see a solution.

You are correct


HoTat2

SatelliteGuys Pro
Jun 12, 2012
1,277
326
Los Angeles, CA.
DSWM 30 for those who havent seen one.
Thanks for posting this photo ...

Humm ...

Guess I need to correct that graphic a bit, as I assumed earlier at the time that the new outlet for the odd RB transponders would naturally use 13v as a continuation of the old 2-level 18v/13v legacy voltage signaling.

But now I see both even and odd RB tps. ports on the DSWM-30 multiswitch are labeled as "18v."
