Mounted the dish

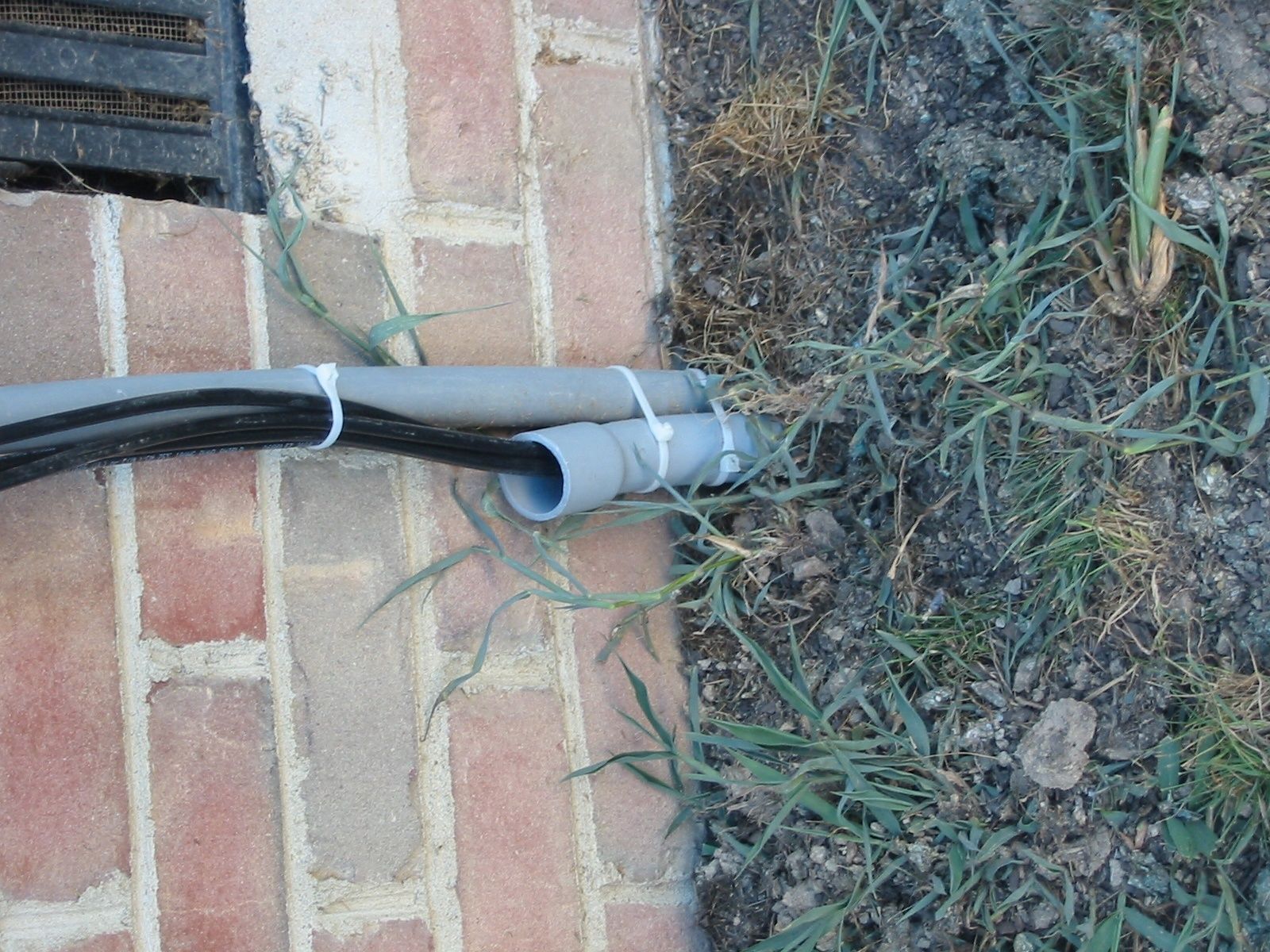

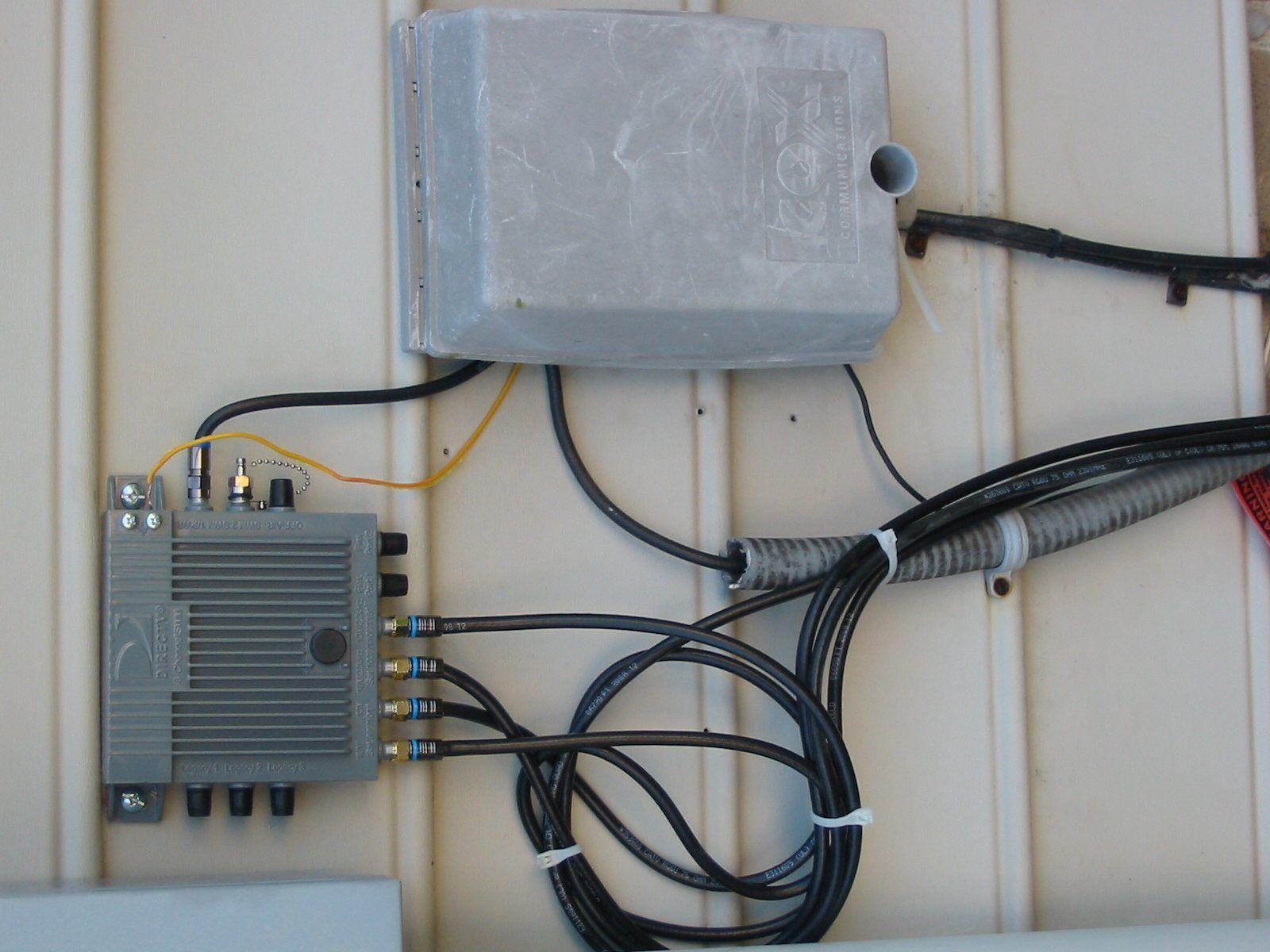

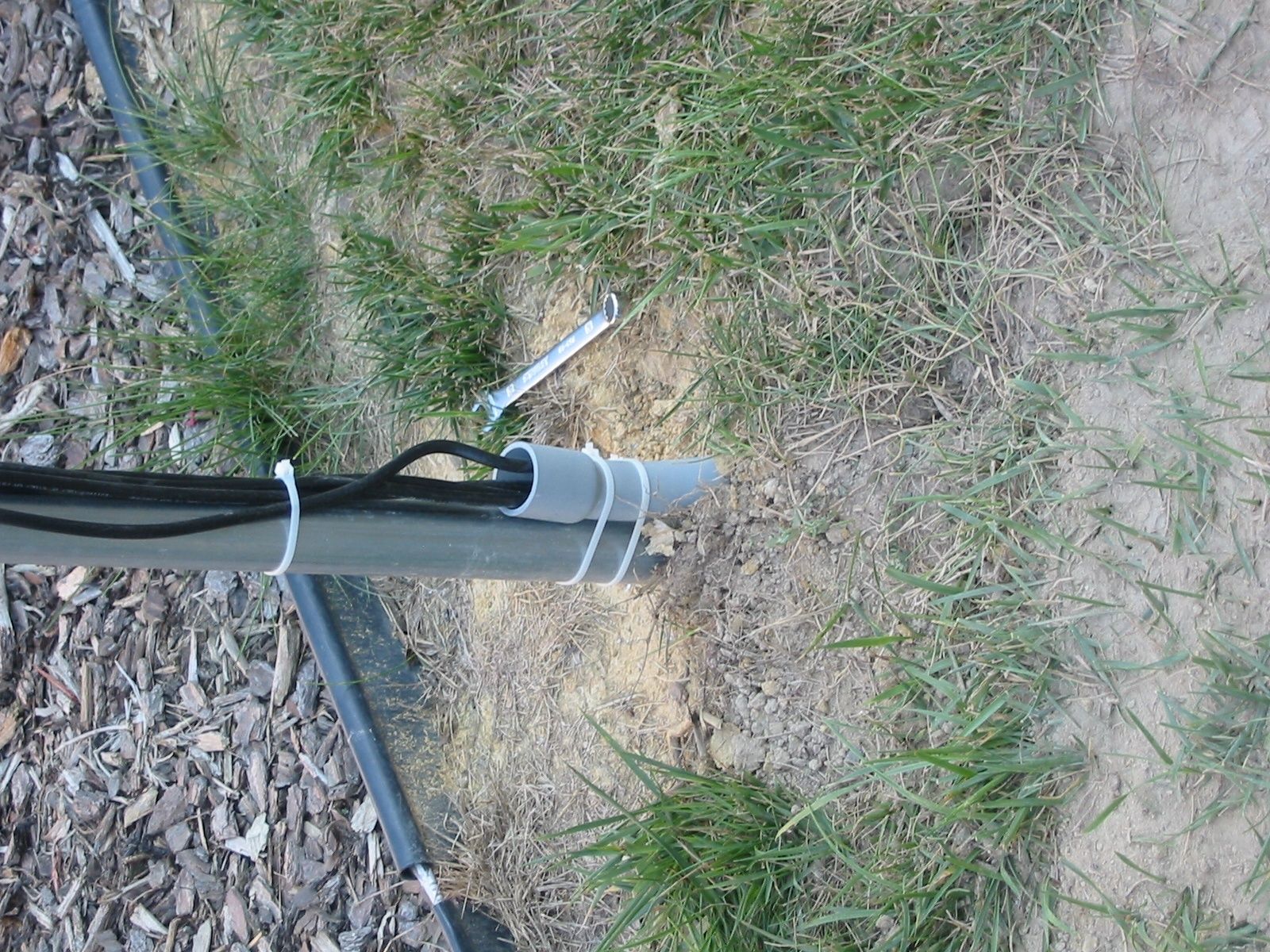

Ran 4 wires underground to the SMW8
One wire tied into the Cox Cable box outside to feed my living room

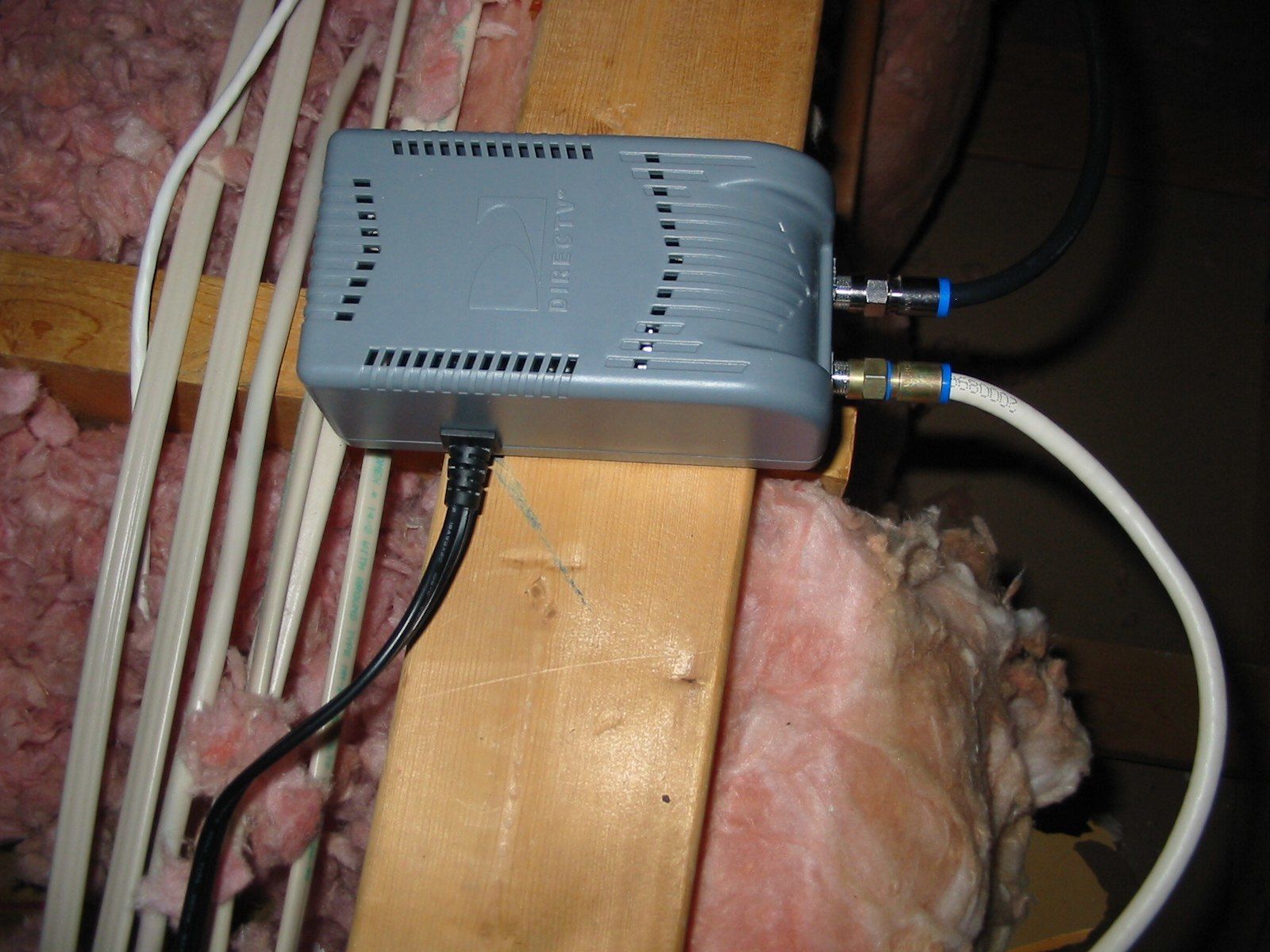

Runs up into attic to Power Inserter

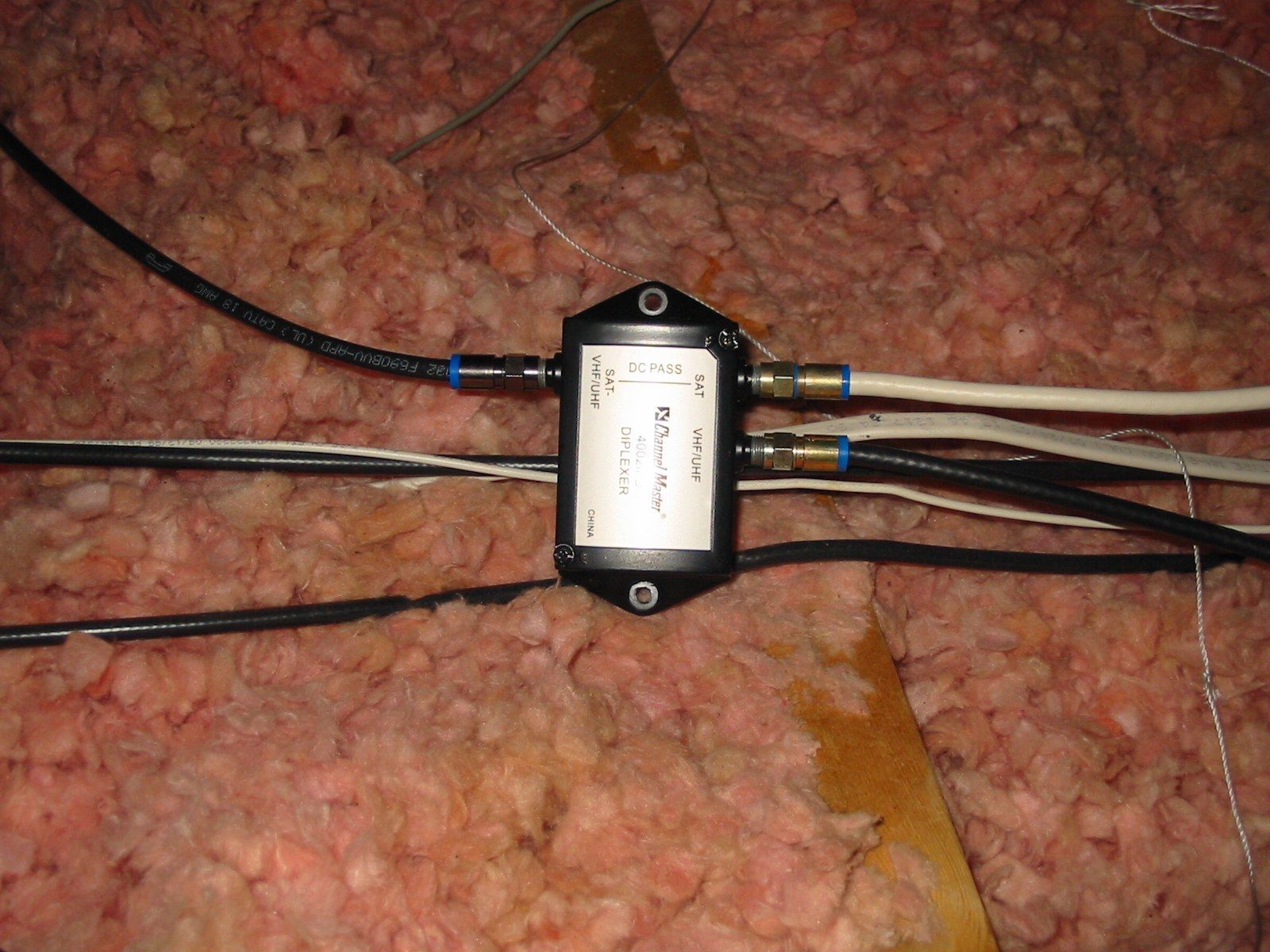

Power Inserter out to Diplexer
Diplexed OTA and Sat feed down the wall

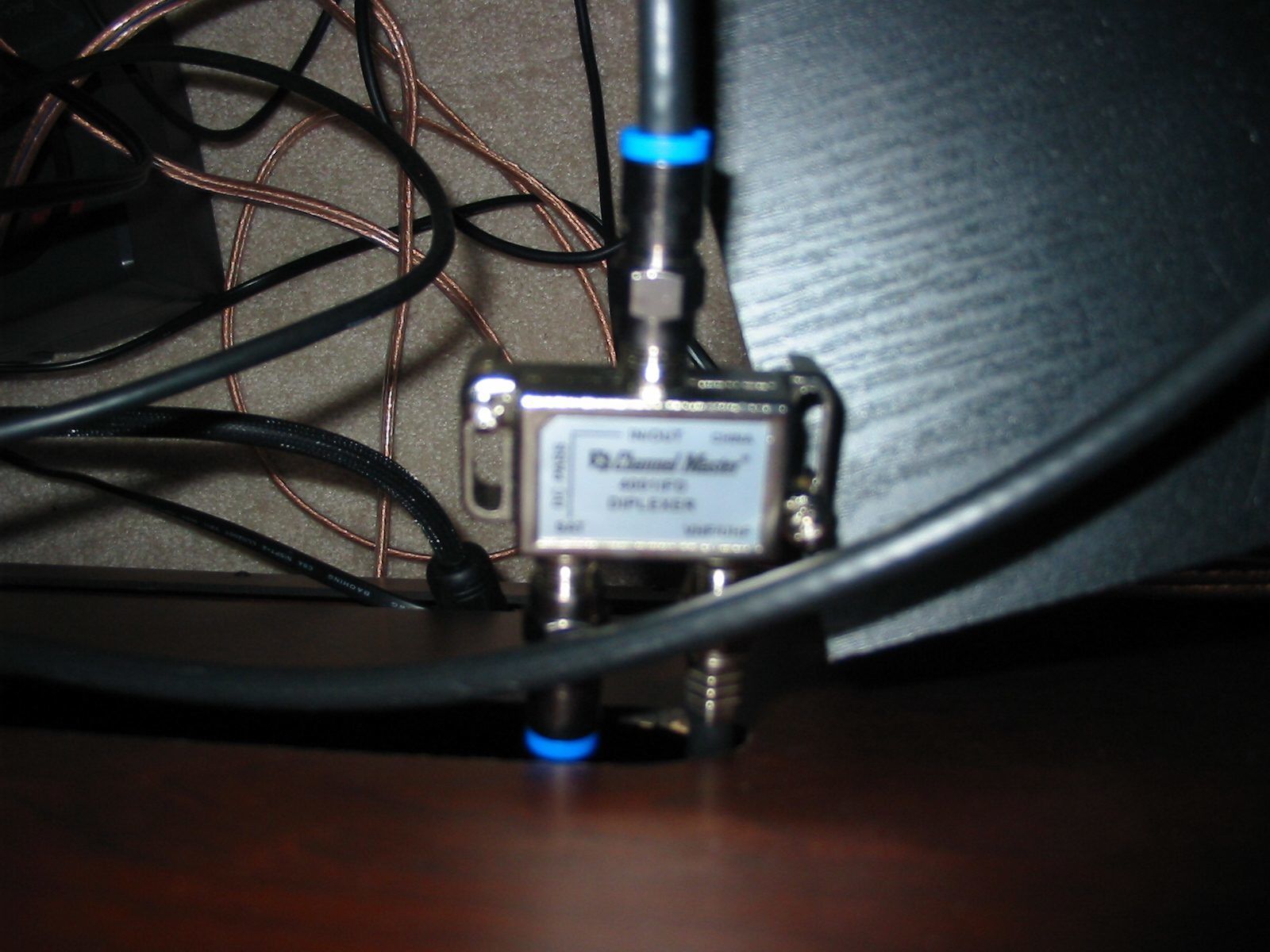

Diplexer on back of HR20, one feed to Tuner 1, other to OTA Tuner


Attachments

  • 1.JPG
    262.4 KB · Views: 1,073
  • 2.JPG
    406 KB · Views: 813
  • 3.JPG
    457.1 KB · Views: 737
  • 4.JPG
    554.4 KB · Views: 614
  • 5.JPG
    369 KB · Views: 709
  • 6.JPG
    182 KB · Views: 1,369
  • 7.JPG
    231.8 KB · Views: 1,047
  • 8.JPG
    260.2 KB · Views: 1,103
  • 9.JPG
    178 KB · Views: 1,149
Register Today to see less ads! It's Free!

rad

Supporting Founder
Supporting Founder
Lifetime Supporter
Sep 7, 2003
10,540
4,142
Dripping Springs, TX
Nice. I was thinking of putting the PI in the attic but then it wouldn't be on a UPS. I was also worried about attic temps down here, it gets a tad warm up there.

BTW, I think you need to update your sig to reflect the D* stuff, assuming this is your setup.


vurbano

On Double Secret Probation
Supporting Founder
Apr 1, 2004
23,813
104
Newport News, VA
your conduit is going to fill up with water unless those are just small pieces for weedwacker protection.


gadgtfreek

SatelliteGuys Master
May 29, 2006
22,105
862
Lower Alabama
your conduit is going to fill up with water unless those are just small pieces for weedwacker protection.

Small pcs for weed wacker protection :)

My wife gets happy with it when she uses it.



Im a little worried about the attic temp because the PI states 125. We'll see how it goes.


Zynergi

SatelliteGuys Pro
Aug 20, 2007
938
0
NC
Looks good, Although I would suggest adding weather boots to all your outside connections. Might as well protect your investment from the rain.


gadgtfreek

SatelliteGuys Master
May 29, 2006
22,105
862
Lower Alabama
Ill take that criticism. The guys at DBS are reaming me right now for all my "QC Failures".

Looks like jackass's even rule their D* forum now. Time to go back to being a lurker.


grydlok

Vuvuzela Horns
Pub Member / Supporter
Aug 11, 2004
2,519
0
Richmond,VA
Ill take that criticism. The guys at DBS are reaming me right now for all my "QC Failures".

Looks like jackass's even rule their D* forum now. Time to go back to being a lurker.

It wasn't that bad. The next time I'm around Toano I'll shoot you a PM. I'll give you the correct Pole and some weather boots.


gadgtfreek

SatelliteGuys Master
May 29, 2006
22,105
862
Lower Alabama
You da man.

I learned that pole trick from someone else moved from Dish to D* about a year and a half ago. I used it in SC like that for 9 mo's worked fine.


gadgtfreek

SatelliteGuys Master
May 29, 2006
22,105
862
Lower Alabama
Some pics after the satellite fairy showed up with some stuff (thanks again man). Also sealed the openings on the 90's protecting the ground cable.

New ends and weather boots:


Pole to be installed:


R.I.P.


gadgtfreek

SatelliteGuys Master
May 29, 2006
22,105
862
Lower Alabama
As far as the ground goes, I just need to go out from the SWM8 to the Slimline, right? I already have a grounding block and whole house ground connected inside the gray Cox box.

I dont need a grounding block before the SWM8 for all 4 cables do I?


Rey

@ your service
Supporting Founder
Feb 8, 2008
26,896
560
Florida
Small pcs for weed wacker protection :)

My wife gets happy with it when she uses it.



Im a little worried about the attic temp because the PI states 125. We'll see how it goes.

just use some clear silicone to seal the ends of the conduits. if it rains the water is going to mess up the cables underground. by the way you didn't do a bad job at all. some people have to always say something about anything, looks good:up

Register Today to see less ads! It's Free!

grydlok

Vuvuzela Horns
Pub Member / Supporter
Aug 11, 2004
2,519
0
Richmond,VA
As far as the ground goes, I just need to go out from the SWM8 to the Slimline, right? I already have a grounding block and whole house ground connected inside the gray Cox box.

I dont need a grounding block before the SWM8 for all 4 cables do I?

Technically you should but don't have to.
