Hello and thanks for reading my post. Could someone please ID this 10' Bud for me. I think it's a Top Ten. We used the Top Ten Manual to set up the Elevation and Declination angles, but we weren't able to lock on to our True South Sat Anik F3 (118.8)(we're in Socal). To set True South, we were using a Ku Band LNBF. Thanks in advance for any suggestions you might have.

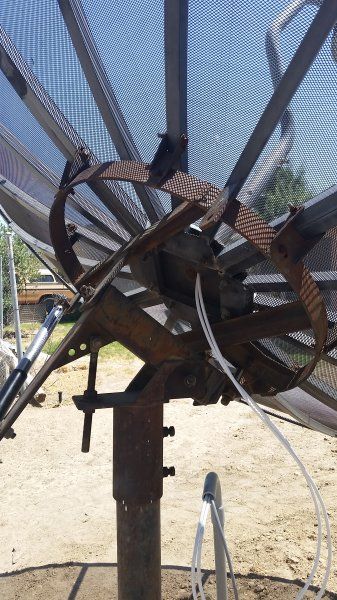

BUD 1.jpg

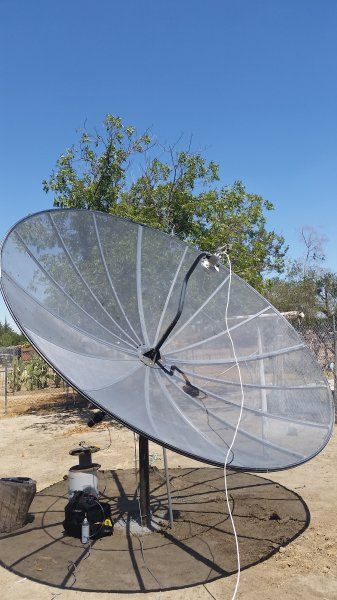

BUD 2.jpg


wvman

SatelliteGuys Pro
Lifetime Supporter
Sep 19, 2014
2,716
1,282
N. Central WV
Hello and thanks for reading my post. Could someone please ID this 10' Bud for me. I think it's a Top Ten. We used the Top Ten Manual to set up the Elevation and Declination angles, but we weren't able to lock on to our True South Sat Anik F3 (118.8)(we're in Socal). To set True South, we were using a Ku Band LNBF. Thanks in advance for any suggestions you might have. View attachment 127829 View attachment 127830

It kind of resembles a Unimesh in some ways, but I'm not sure. Does the wire mesh slide into channel on each rib? There was a couple dishes that did that. Great idea until they installed the ring around the outside edge of the dish that prevents you from removing the screws on one crossbar and sliding the mesh out of the channel. It makes it very difficult to put the mesh back in the channel when it gets popped out. Nice looking dish though.


KJ6EO

Thread Starter
SatelliteGuys Pro
Apr 16, 2013
374
72
118.3W 34.3N
It kind of resembles a Unimesh in some ways, but I'm not sure. Does the wire mesh slide into channel on each rib? There was a couple dishes that did that. Great idea until they installed the ring around the outside edge of the dish that prevents you from removing the screws on one crossbar and sliding the mesh out of the channel. It makes it very difficult to put the mesh back in the channel when it gets popped out. Nice looking dish though.

Thanks for your reply. Well, the dish isn't at my house so I can't go out and take a look at it. It is a nice dish. We got it for free. I guy down the street had it and he just wanted it out of his yard. A major problem we ran into was with the linear actuator. It wasn't counting the pulses correctly. So every time we moved the dish, it wouldn't repeat and go back to the same place. My friend ordered another actuator for it, so that will resolve that problem. We're not getting anything, so we're way off. I'm gonna take my OLM meter with me the next time we go out. Once we can lock on the true south sat, then we'll be going in the right direction. The dish is located in Littlerock out in the Desert E of Palmdale. We're starting a heatwave right now so we won't work on it again until it cools off. I'll send an answer to your question after we get back from our next visit. Thanks for your reply!


wvman

SatelliteGuys Pro
Lifetime Supporter
Sep 19, 2014
2,716
1,282
N. Central WV
Thanks for your reply. Well, the dish isn't at my house so I can't go out and take a look at it. It is a nice dish. We got it for free. I guy down the street had it and he just wanted it out of his yard. A major problem we ran into was with the linear actuator. It wasn't counting the pulses correctly. So every time we moved the dish, it wouldn't repeat and go back to the same place. My friend ordered another actuator for it, so that will resolve that problem. We're not getting anything, so we're way off. I'm gonna take my OLM meter with me the next time we go out. Once we can lock on the true south sat, then we'll be going in the right direction. The dish is located in Littlerock out in the Desert E of Palmdale. We're starting a heatwave right now so we won't work on it again until it cools off. I'll send an answer to your question after we get back from our next visit. Thanks for your reply!

Question: When you moved the dish, did you just loosen the bolts holding it on the pole, or did you disassemble the mount? I never take the mount apart, but I always leave the dish together and transport it on my pickup with a flat bed. If it's a few miles away, the offset and elevation won't change enough to keep you from getting it back on track. It's easier to take a receiver that's already programmed to align the dish. Saves a lot of searching when you're looking for a satellite.

If the motor arm was in good shape other than not counting properly, he may have got by with a new sensor. I have a couple old arms I use to tweak my dishes, just long enough to make a lock down bar and park it on one satellite. I used a double pole, double throw switch hooked to a lawn tractor battery to move the dish up and down until I get it tweaked. You can make a lock down bar out of two pieces of 3 inch angle iron, 4 inches long, drilled to accept a piece of 3/4 inch all thread.

Only one of my dishes move so I can look for new channels. Looking at your pictures, it does look like a nice dish and well worth putting back in service. Good luck getting it up and working.
