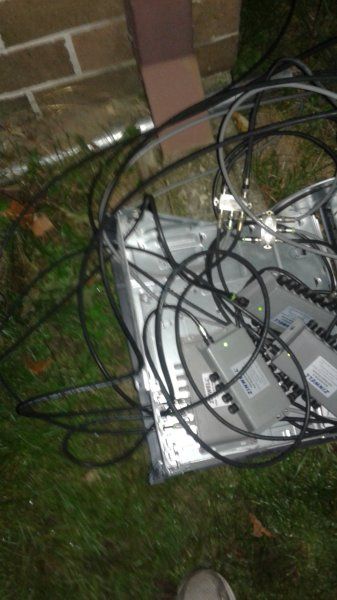

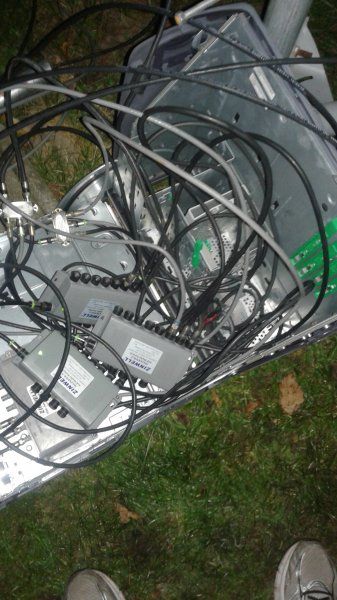

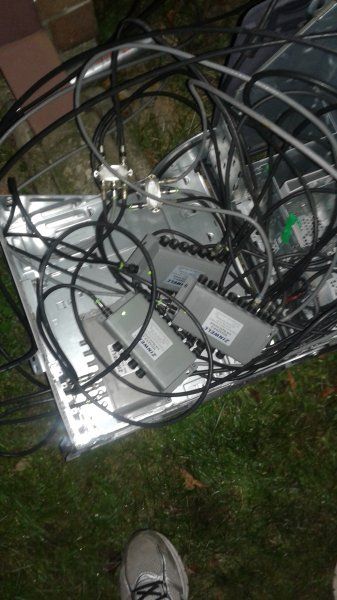

Tonight I started to work on my dish again get things cleaned up before the snow files so tonight I am putting these nice powered zinwell switches in the box. I got these from Hank123 thank you bud. I am 2/3 of the way through already wired up the old computer tower with switches no just wiring up lnb's to the switches in the box. few more hours worth of work. I got some pics here also to show.


Attachments

  • 20161116_222554[1].jpg
    47.1 KB · Views: 239
  • 20161116_222559[1].jpg
    53 KB · Views: 231
  • 20161116_222604[1].jpg
    40.6 KB · Views: 210

Cham

VE4GLS
Pub Member / Supporter
Dec 19, 2008
2,487
1,041
Boonies
I use three of those Zinwell switches. Work very well. Using a 10A 24vdc power supply to run all three, and room for a 4th. Takes a lot of load from the receivers, and very little signal loss from adding them in (replaces 22KHz switches). I use 3-4 receivers. Need more dual LNBFs and dishes! :)


danristheman

Thread Starter
SatelliteGuys Pro
Jan 25, 2011
3,146
1,135
85w

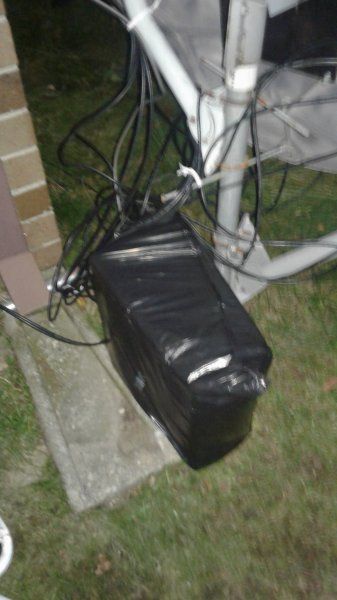

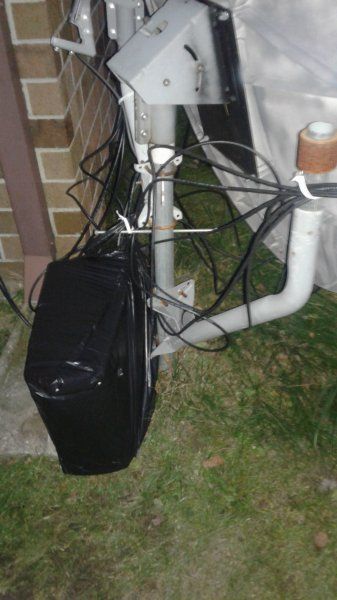

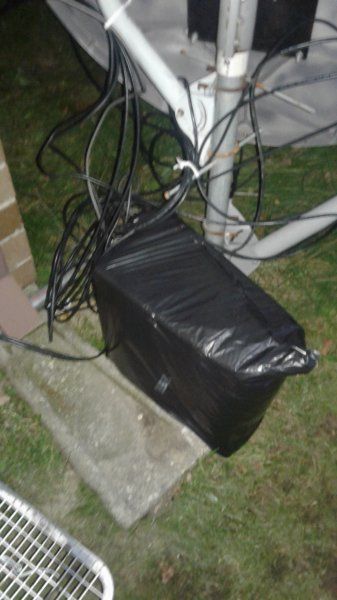

I got it wrapped up took overall 4 hours it was a pain but not what i expected but looks better now. i put a trash bag overall the box to keep the water out. all of the lnbs are working now going to 3 rooms.


Attachments

  • 20161117_174122.jpg
    33.9 KB · Views: 191
  • 20161117_174131.jpg
    36.4 KB · Views: 173
  • 20161117_174140.jpg
    38.6 KB · Views: 177

hank123

COLORADO CONNOISSEUR BUD HUNTER
Lifetime Supporter
May 8, 2016
543
288
N. Colorado
Good to see you're getting this setup. I got so pissed off with my diseqc I had to find a different solution that works.


fred555

Pub Member
Lifetime Supporter
Sep 18, 2014
7,976
6,909
77W
I got it wrapped up took overall 4 hours it was a pain but not what i expected but looks better now. i put a trash bag overall the box to keep the water out. all of the lnbs are working now going to 3 rooms.

A while back, the phone company started putting thick orange plastic bags over all the pedestals everywhere out here along the country roads too.


iBoston

SatelliteGuys Pro
Jul 15, 2014
2,309
1,718
North Central
My units are exposed to the elements. I had another one that survived the elements from the prior year so i am hopeful. Covering yours couldn't hurt unless there is a over heating issue during the summer??? But, good job!!!


fred555

Pub Member
Lifetime Supporter
Sep 18, 2014
7,976
6,909
77W
My units are exposed to the elements. I had another one that survived the elements from the prior year so i am hopeful. Covering yours couldn't hurt unless there is a over heating issue during the summer??? But, good job!!!

I have four of those switches jammed in an enclosure, that is in the shade,
it gets hot inside but have had no issues. Power supplies are in a separate enclosure.

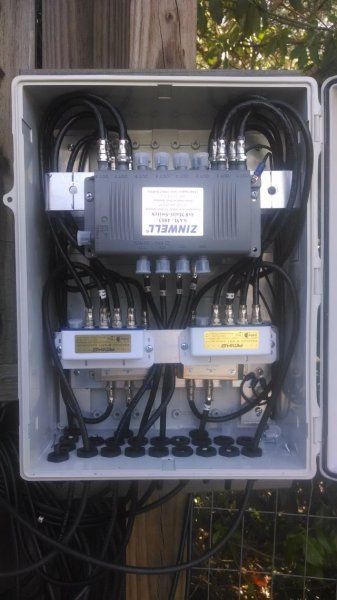

Picture shown has three inside, and I have added a fourth since:



fred555

Pub Member
Lifetime Supporter
Sep 18, 2014
7,976
6,909
77W
Need more dual LNBFs

I use some of the single output LNBFs I had lying around with the Zinwell,
If a sat has only single polarity transponders that you are interested in.
On my 95W Ku dish, a converted pay dish, CCTV is H and goes on an H input,
on the adjacent V input I have a single output Chaparral LNB for the
125W Ku 12180 V and 11917 V Transponders for PBS.
It conserves inputs and lets you use single output LNBFs you may already have.
And yes these sats will be viewable on all TVs.
