FIELD TEST REVIEW of

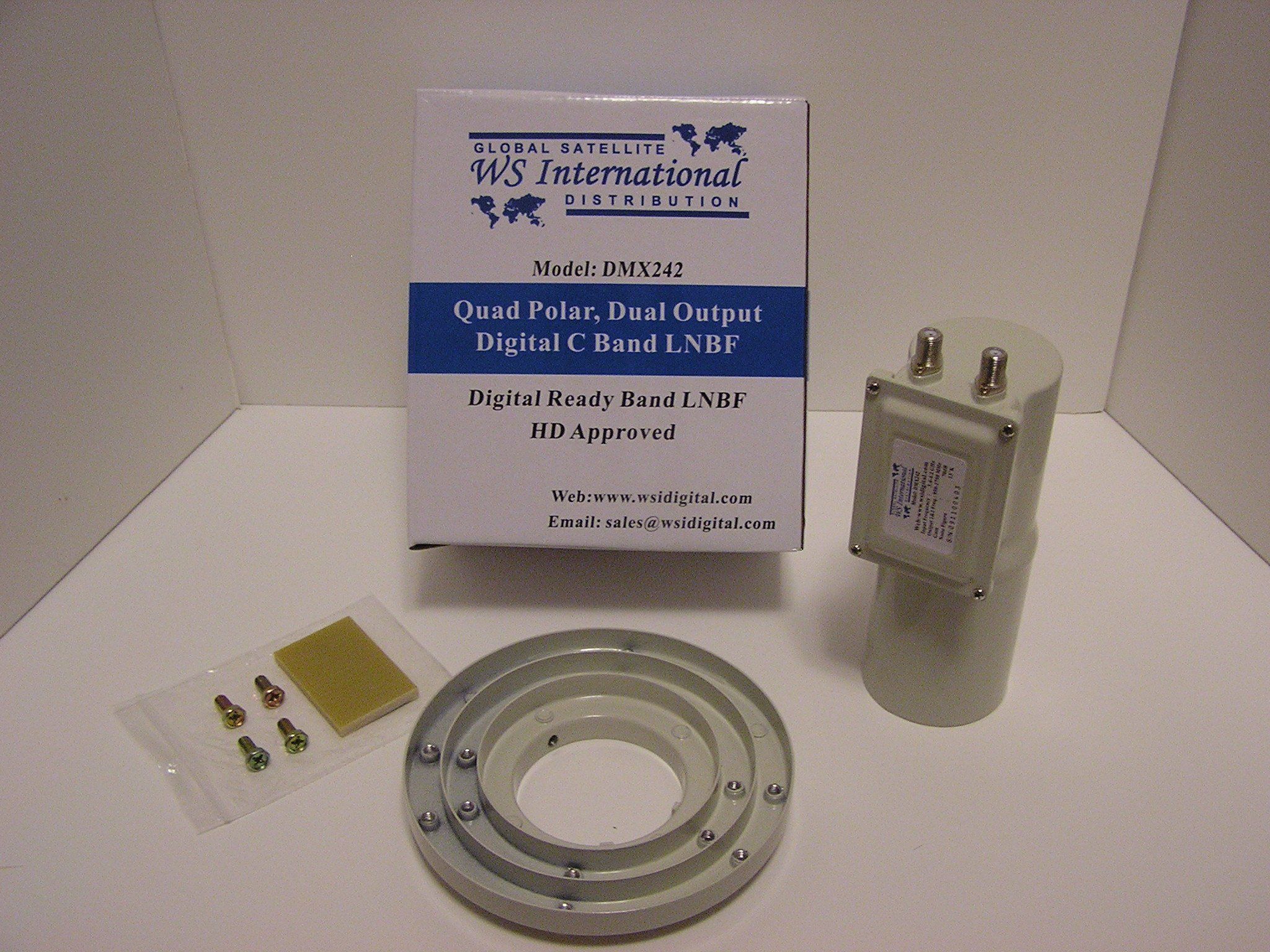

WS International Model: DMX242 Quad Polar, Dual Output, Digital C-Band LNBF
I Have field tested several C-Band LNBF’s on a motorized 1.2 meter offset dish. Robby Dosetareh was kind enough to send me a DMX242 LNBF to field test and share the results with you.

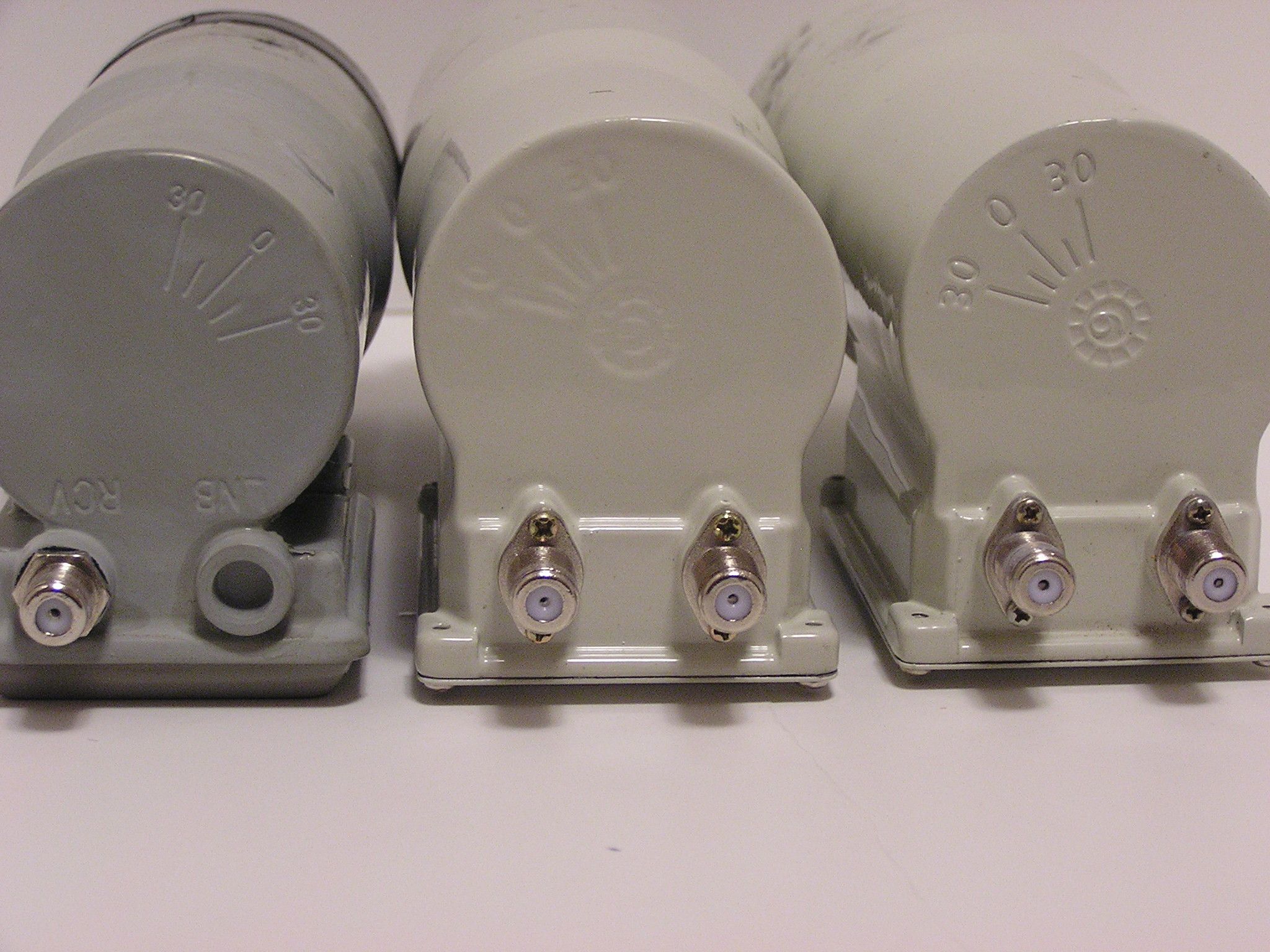

The DMX242 is a well built LNBF and the coax connectors are firmly mounted to the tube using screws. No need for an additional 7/16 inch wrench to tighten and loosen the connectors. The tube and scalar ring are protected with quality powder coat paint. Included is a Dielectric plate that can be inserted in the throat of the tube to receive circular broadcasts.


I will be using the GeoSatPro C2 and the DMX241 for honest comparisons of the DMX242 performance. I began testing C-Band reception on an offset dish a few years back using the BSC621-2 LNBF. I had fair results using the BSC621-2 but could not receive reliable signals for several desired C-Band channels. When the GeoSatPro dual C2 became available I rushed out to buy a couple, I loved the idea that two receivers could be connected to a single LNBF to feed broadcasts to my TV in the Living Room and TV in the Den. The GeoSatPro dual C2 performed almost identically to the BSC621-2. But I still had difficulties with several desired channels for quality reception. I began to experiment with different types of scalars and eventually ended up using the flat scalar that came with the LNB with a slight modification of attaching a metal socket to the inner ring which bumped the quality an additional 10 to 15%. When WS International came out with the DMX241 model LNBF, boasting a 70db gain and 13K noise figure I immediately purchased one. To my surprise it out performed the GeoSatPro C2, increasing signal quality levels roughly 5 to 10% across the board on all the C Band channels. Thus my dilemma; Use the dual C2 and feed C-Band broadcasts for two TV sets, or keep the DMX241 on the dish- use only the TV in the Living room but almost double my C-band reception.


Now the test results using the DMX242; Initially I had to weather the cold and snow to re-align the dish and install the DMX242 LNBF. I again tried different scalars, a commercially purchased conical scalar, my home made version of a scalar and the flat scalar that came with the LNB. I found the best results using the scalar ring that came with the LNB with the small modification of attaching a 9/16 inch metal socket to the inner ring. The DMX242 performed identical to the GeoSatPro dual C2 for the amount of C Band channels that I could receive. I documented the signal quality levels between the DMX242 and the GeoSatPro dual C2, there were no appreciable differences.

One thing for everyone to keep in mind is that the DMX242 was tested on a motorized 1.2 meter offset dish located near Omaha NE. The receivers I used during the tests were the Pansat 2700A and Coolsat 5000 stb. This is a marginal setup for testing DVB SD C-Band signals. I am still impressed with the results using the DMX242, and can only imagine the results using a larger prime focus dish.


Another thing I found during testing is that the Coolsat 5000 would pull in a few more C-Band channels without pixilation. But I used the Pansat 2700A when I took photos of the TV due to the fact that it created a better display illustrating the signal qualities. I took photos of signal quality levels for one channel off every C-Band satellite from 55.5W through 131W. I am attaching a few of them that I think would be of interest to everyone.

I wanted to test the DMX242 using my Motorola 4DTV receiver but have not been able to get to my cabin lot to retrieve it due to all the snow on the cabin road. I also wanted to test the dielectric plate for circular C-band broadcasts but it has been much too cold for any further testing. I noticed that I could pull in some signal on transponders off satellites further east of 55.5W and there is a circular transponder off 53W that I should be able to pick up. Where my dish is positioned in the yard it does not allow line of site of satellites further east of 45W due to tree obstructions. It would appear that the weather will not improve for many weeks so I am going ahead and posting what I have for test results. The circular transponder tests and tests using the 4DTV box will just have to wait.


I will not be able to attach all the photos in a single post so I will add posts to this thread and get in as many as I can. The first group of photos will be of the DMX242, the side by side photo of the three LNB’s I used (DMX241, DMX24, GeoSatPro dual C2), my dish setup with the DMX242 installed (note that the skew markings of the DMX242 are 90 degrees off and align with the horizontal axis), and the scalar ring with the 9/16 inch socket taped to the inner ring.


I will also try to attach a C-band channel list (.ndf file) that I had created using the DMX241, and had edited out the channels that did not come in or pixilated to much using the DMX242. I used Channel Master to do the editing and I am not 100% sure that all the appropriate channels where deleted. The list is still pretty impressive using the small offset dish with the wide beam width. I believe using this marginal setup really shows the subtle differences between LNBs especially on weaker transponders.


I believe the DMX242 to be a quality LNBF and recommend it to everyone.


I also believe pictures are worth a thousand words so the photos in the following posts will say it all.


Attachments

  • 2- LNBs side by side.JPG
    2- LNBs side by side.JPG
    434.8 KB · Views: 749

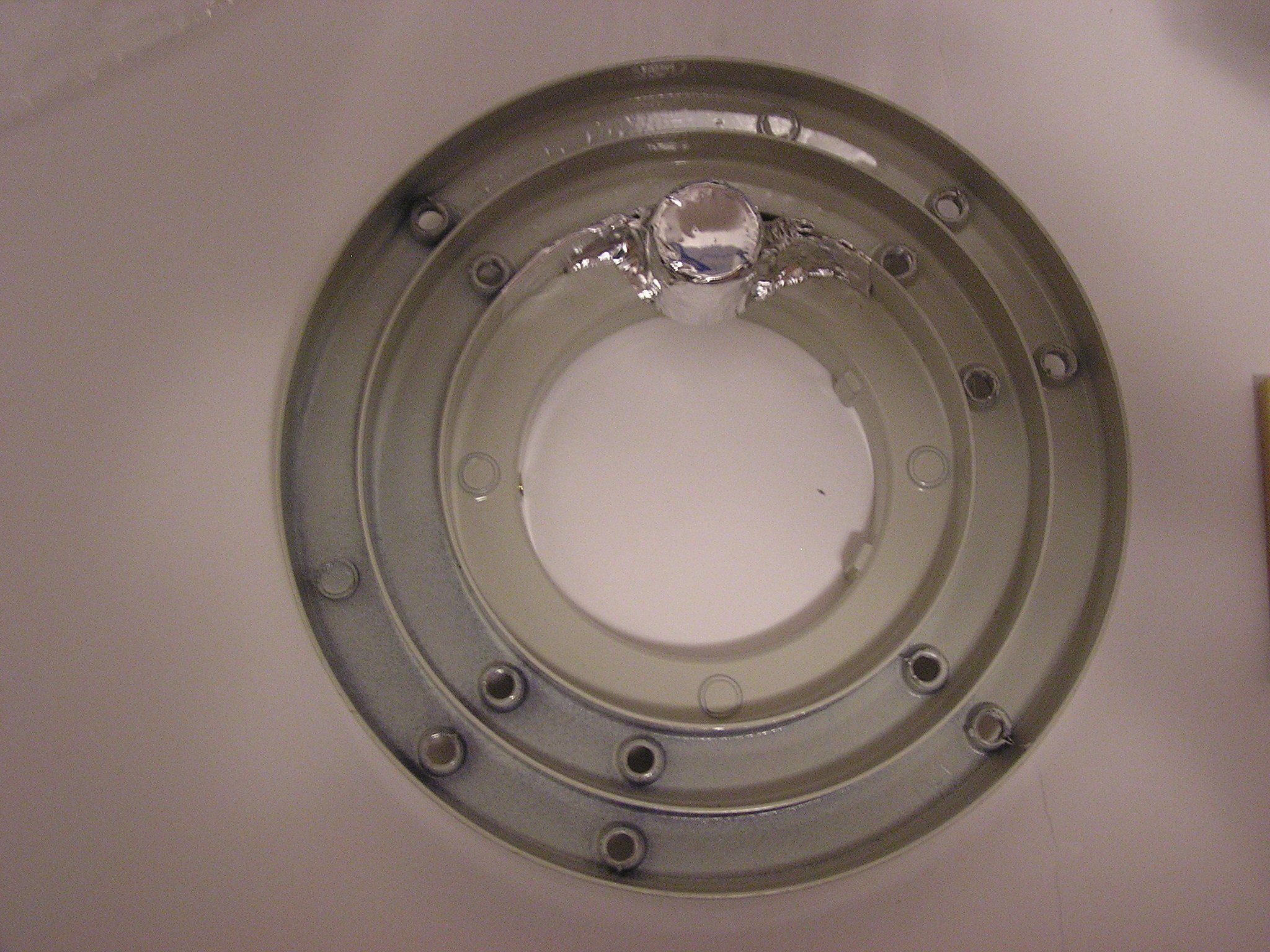

  • 3- DMX242 scalar with socket modification.JPG
    3- DMX242 scalar with socket modification.JPG
    494.6 KB · Views: 746

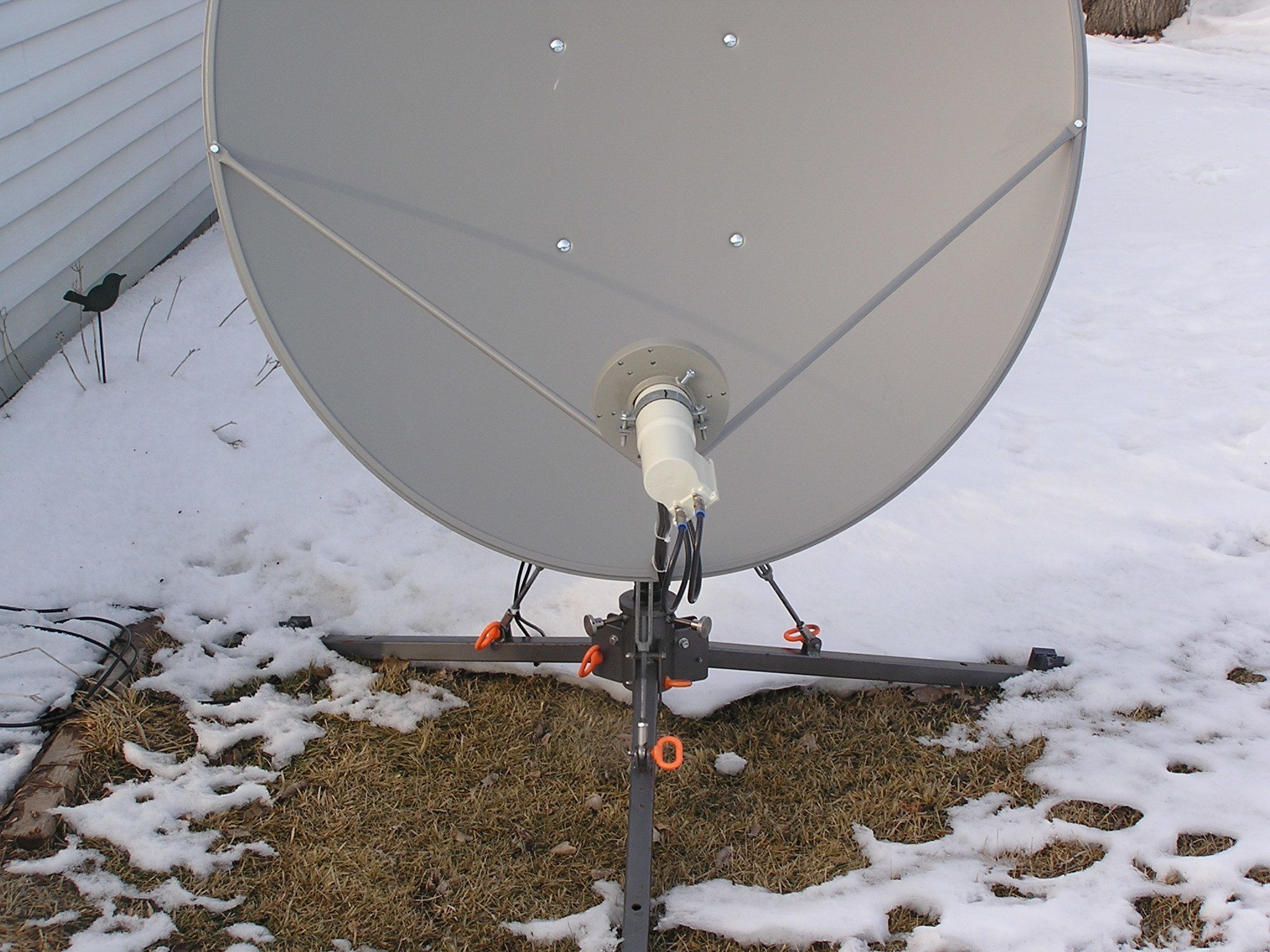

  • 4- DMX242 mounted on dish.JPG
    4- DMX242 mounted on dish.JPG
    427.2 KB · Views: 715

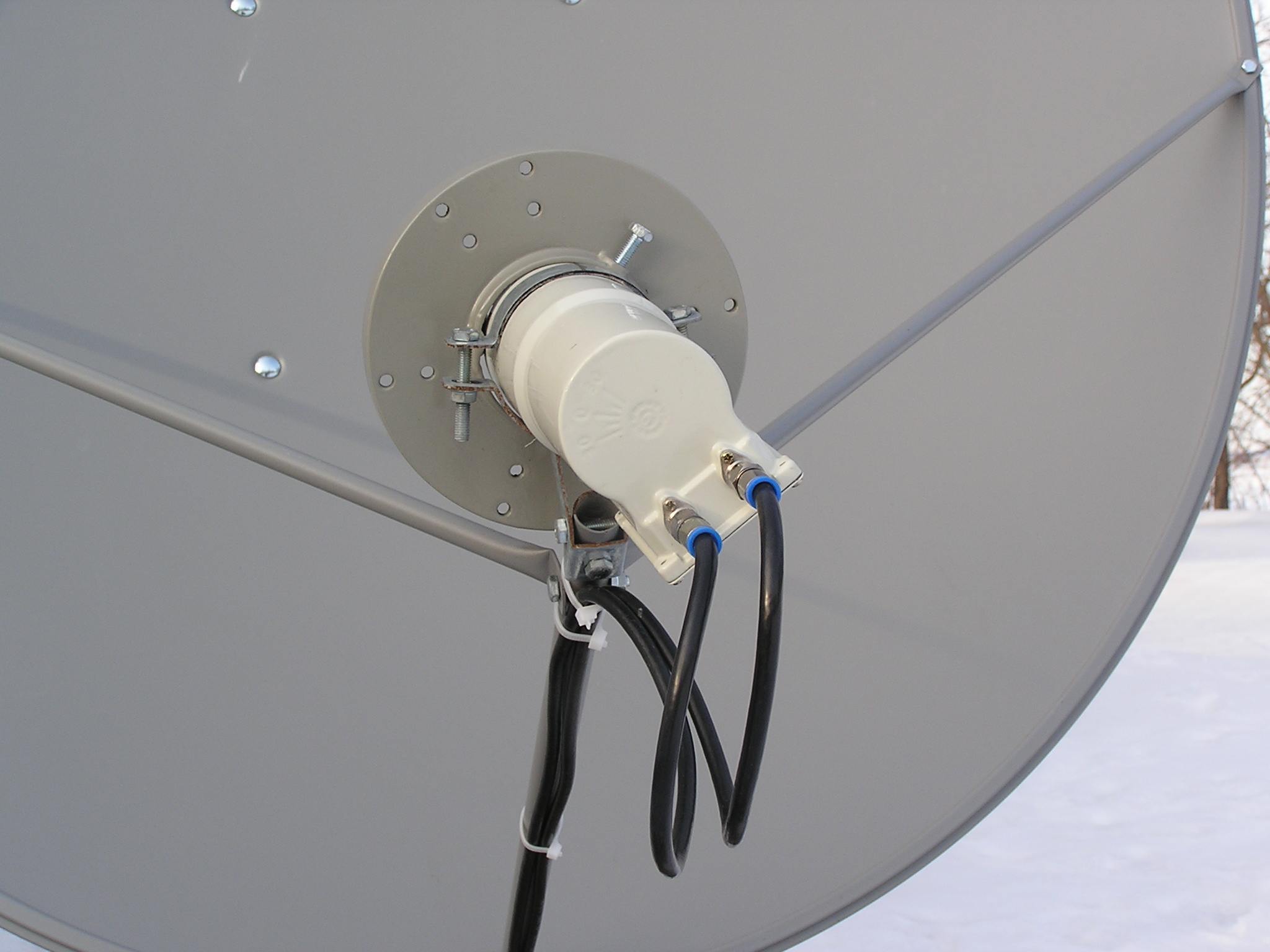

  • 5- Close up of DMX242 orientation on dish.JPG
    5- Close up of DMX242 orientation on dish.JPG
    111.1 KB · Views: 768

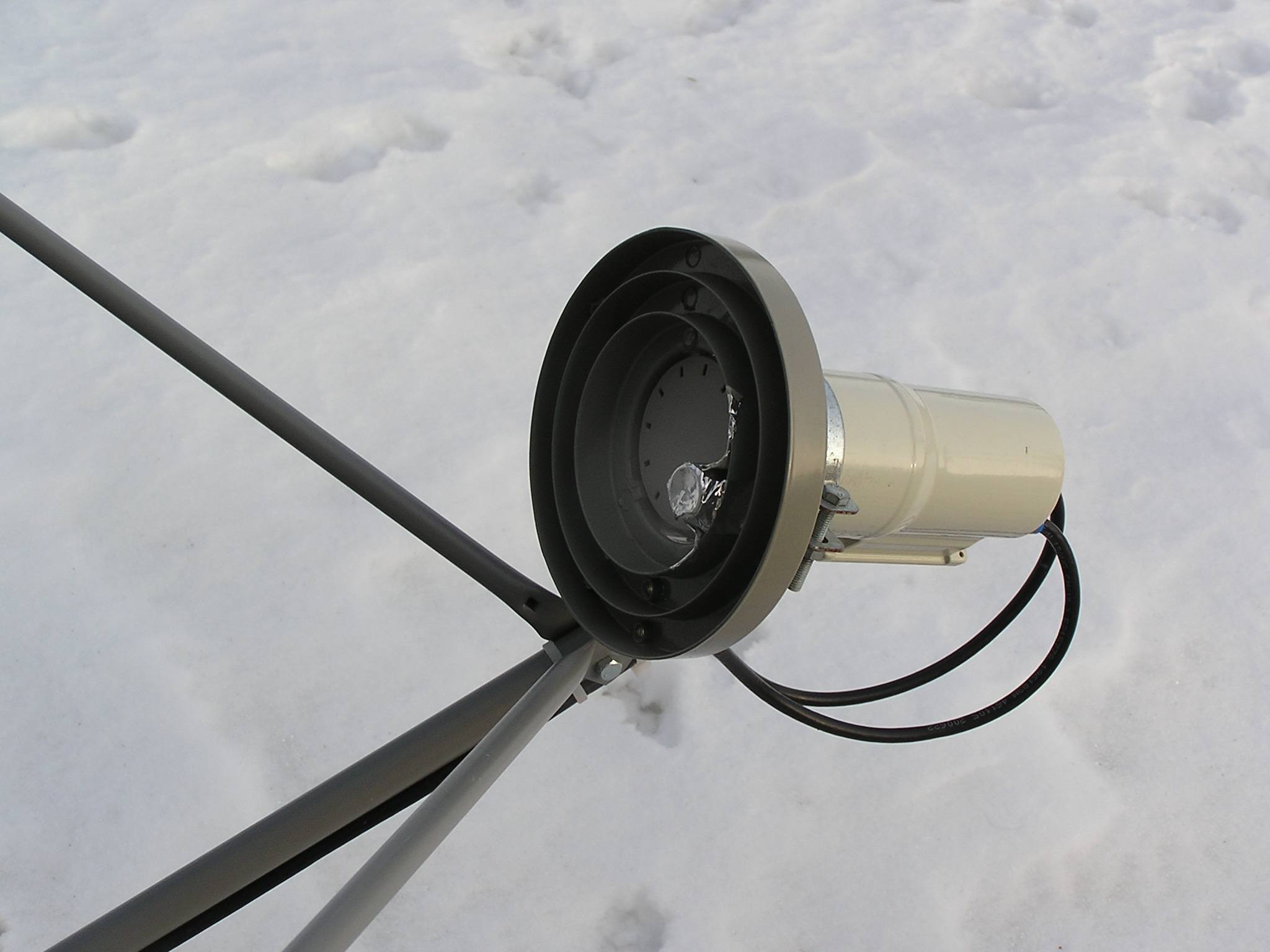

  • 6- Illustrating socket modified scalar on dish.JPG
    6- Illustrating socket modified scalar on dish.JPG
    129.7 KB · Views: 743
  • 7- 1.2 meter dish setup in the yard.JPG
    7- 1.2 meter dish setup in the yard.JPG
    500.9 KB · Views: 640
  • 1- DMX242 LNBF.JPG
    1- DMX242 LNBF.JPG
    498.1 KB · Views: 752
walrus1957

walrus1957

Thread Starter
SatelliteGuys Pro
Sep 24, 2008
280
0
40 miles west of Omaha
Photos taken of channels and signal level quality

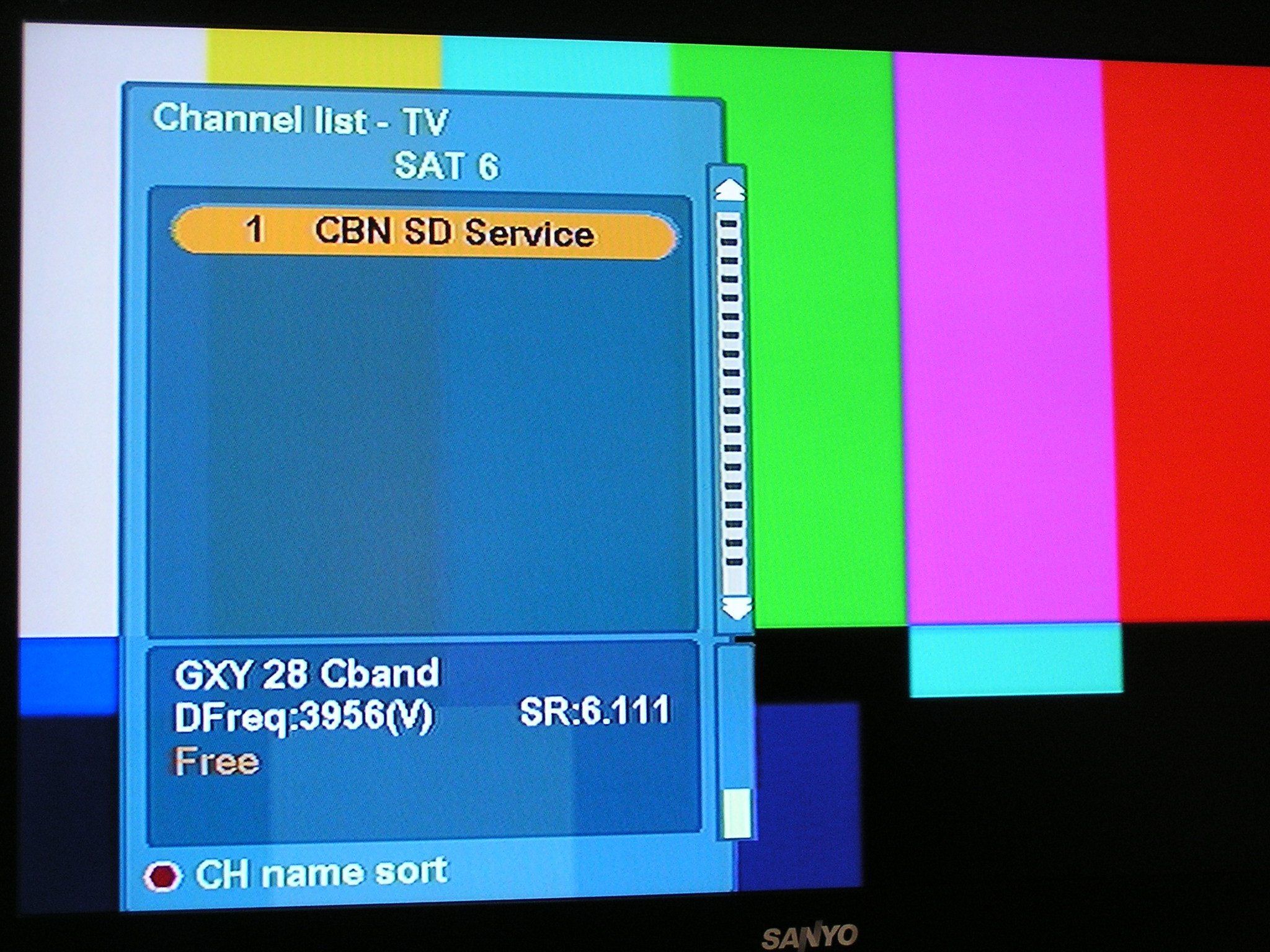

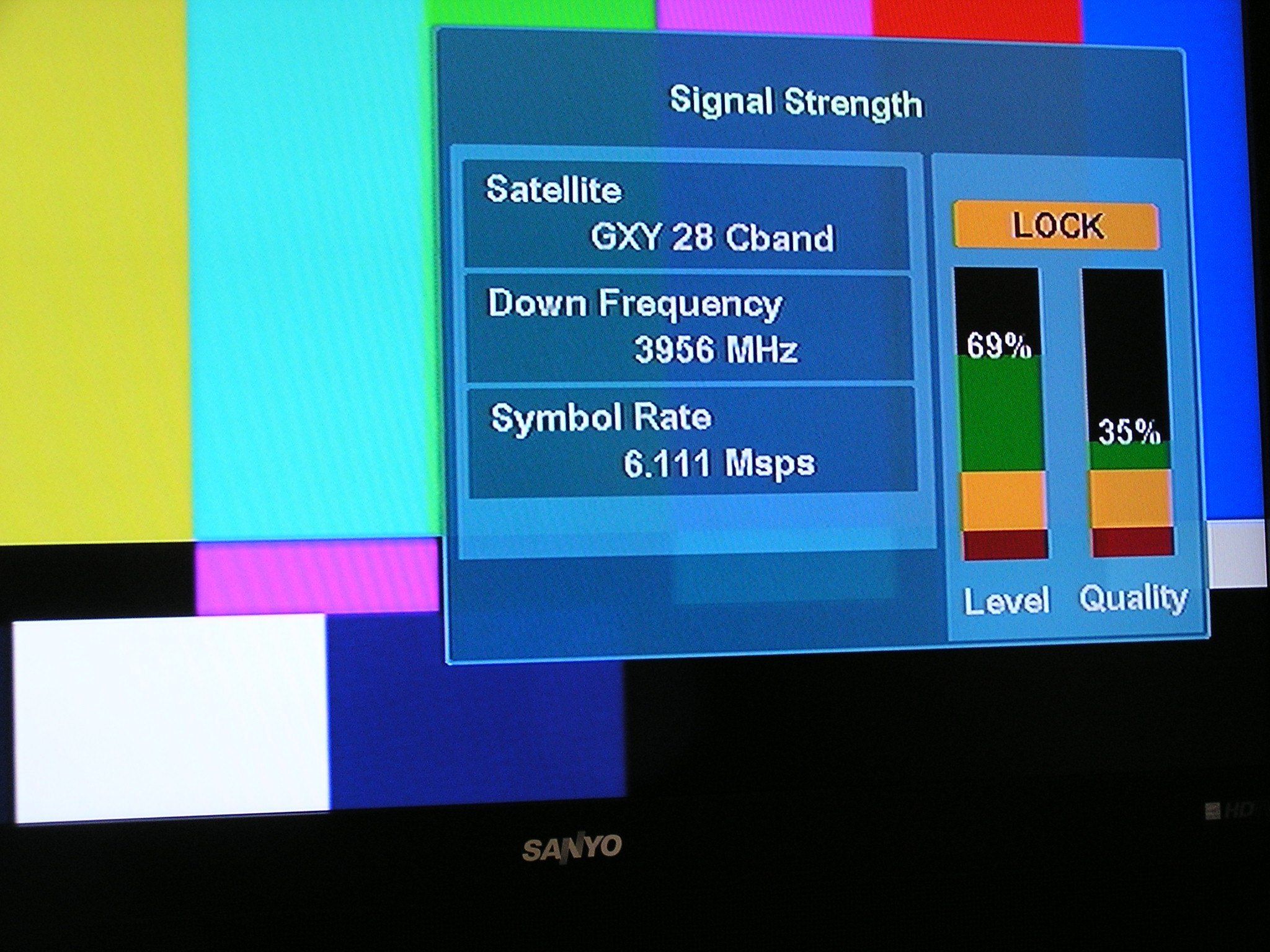

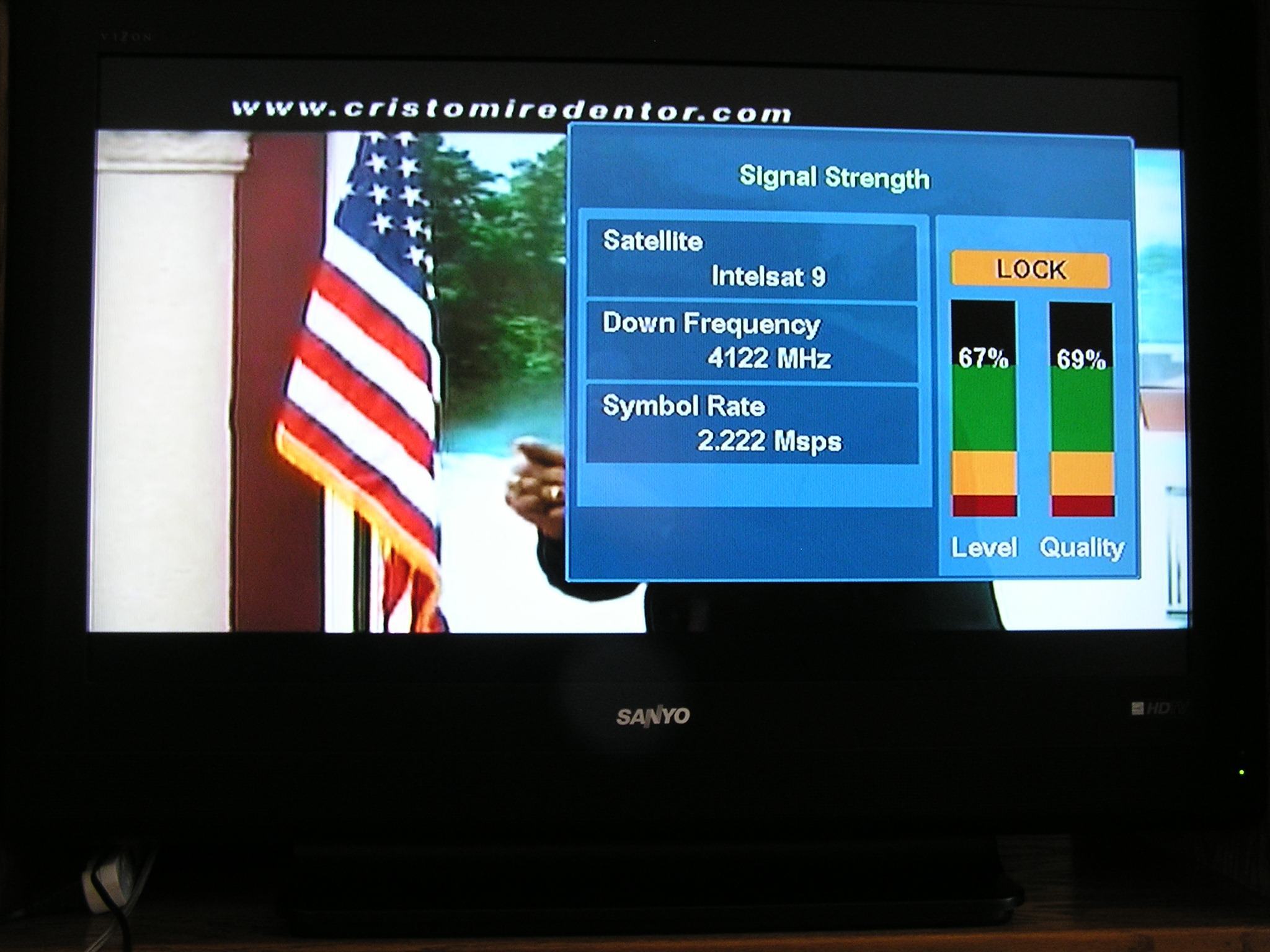

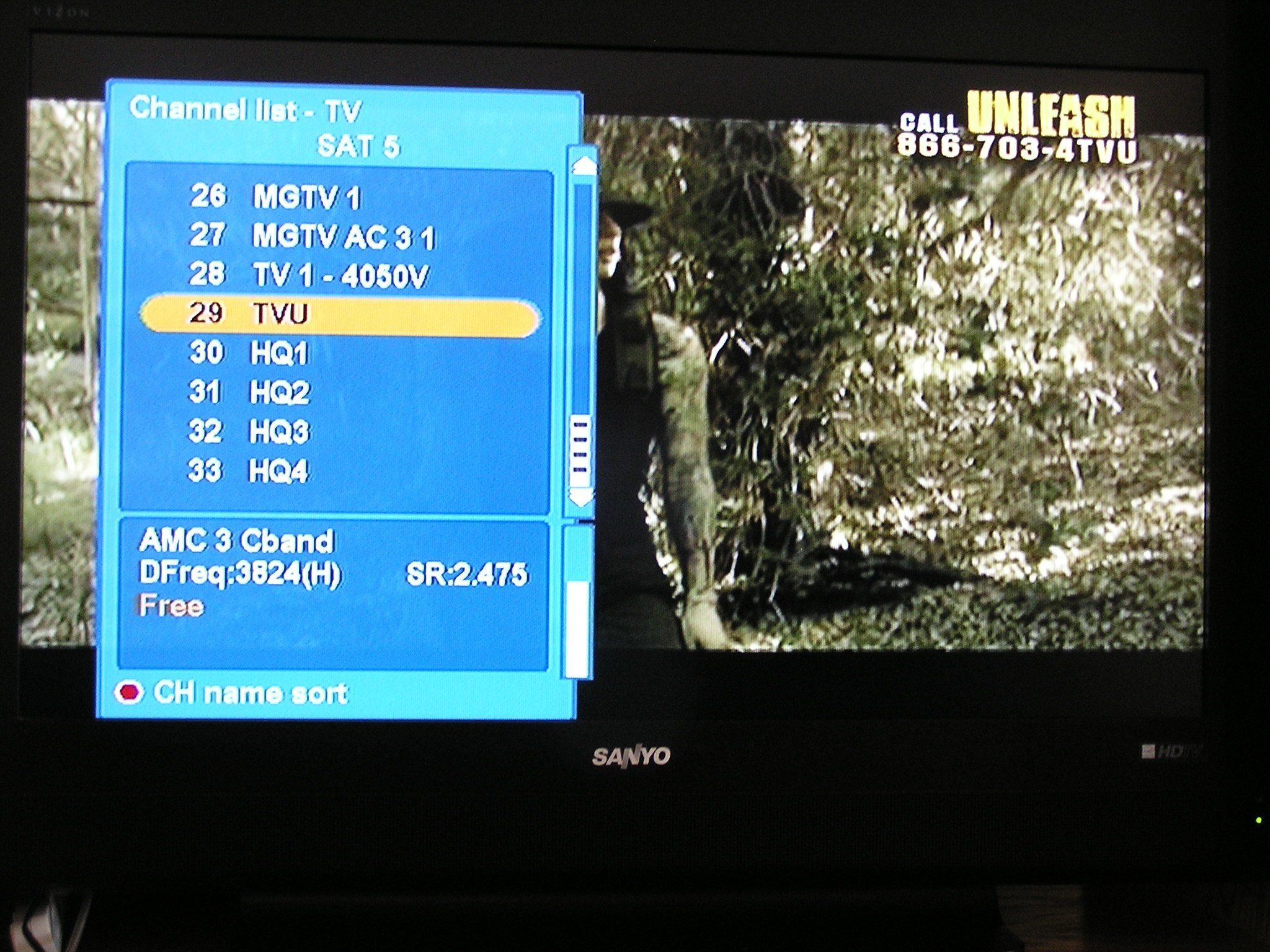

These are photos of channels off a 55.5W, 58W, 72W, 87W and 89W C-band satellites.


Attachments

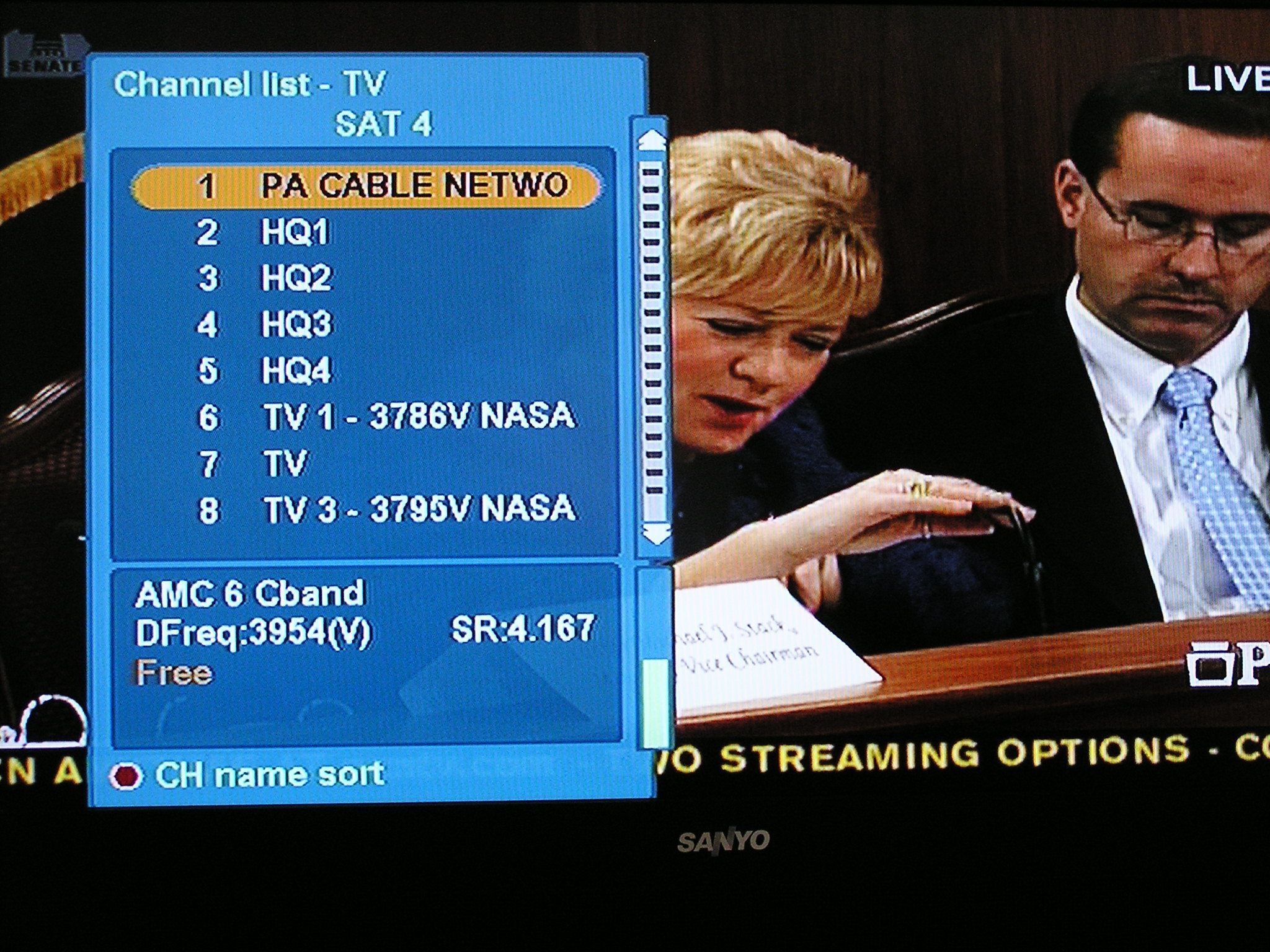

  • 5- AMC6 at 72.0W.JPG
    5- AMC6 at 72.0W.JPG
    515.9 KB · Views: 500
  • 10- Galaxy 28 at 89.0W.JPG
    10- Galaxy 28 at 89.0W.JPG
    424.1 KB · Views: 506
  • 9- Galaxy 28 at 89.0W.JPG
    9- Galaxy 28 at 89.0W.JPG
    461.2 KB · Views: 483

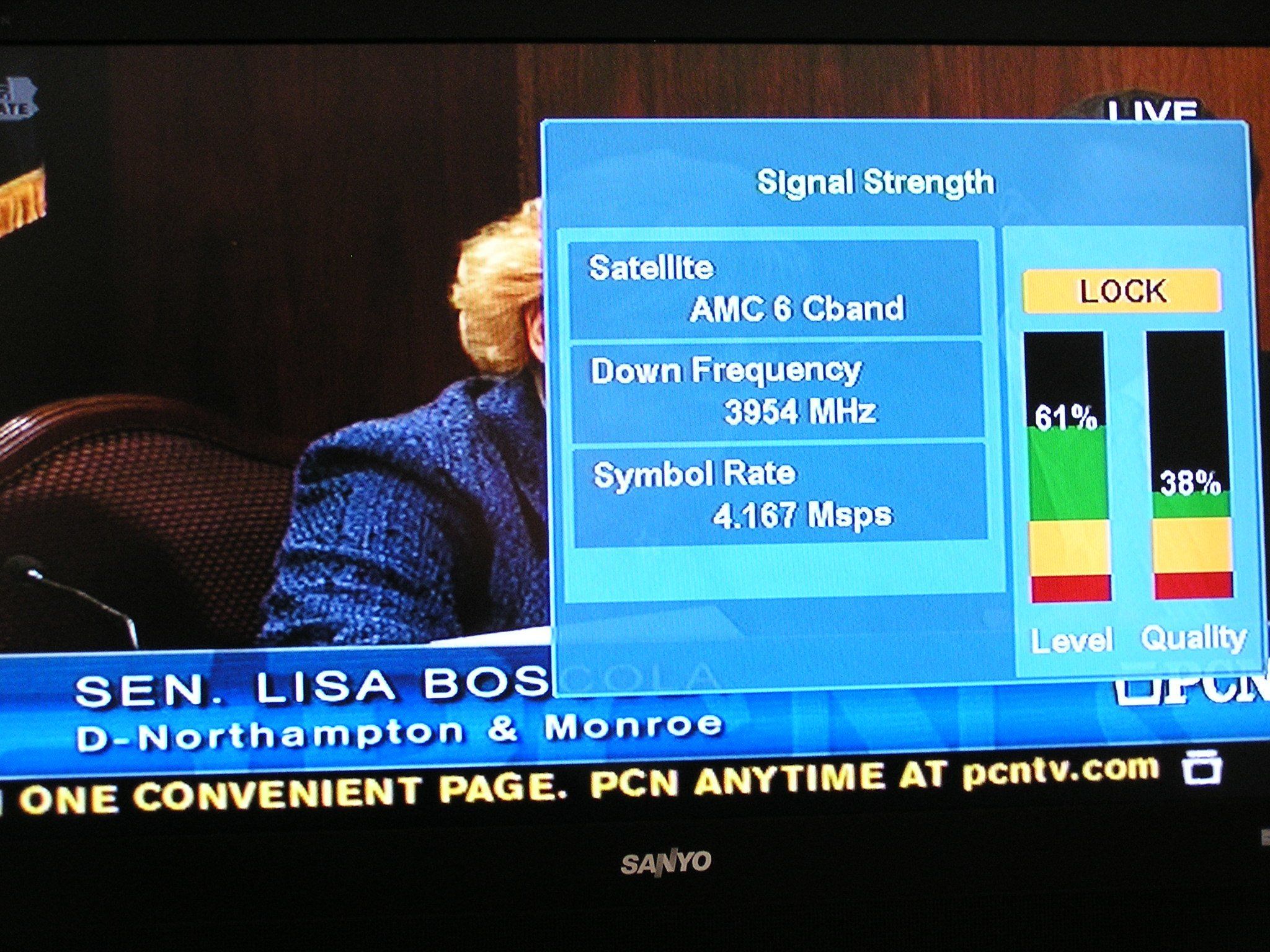

  • 6- AMC6 at 72.0W.JPG
    6- AMC6 at 72.0W.JPG
    500.4 KB · Views: 513
  • 4- Intelsat 9 at 58.0W.JPG
    4- Intelsat 9 at 58.0W.JPG
    222.3 KB · Views: 548

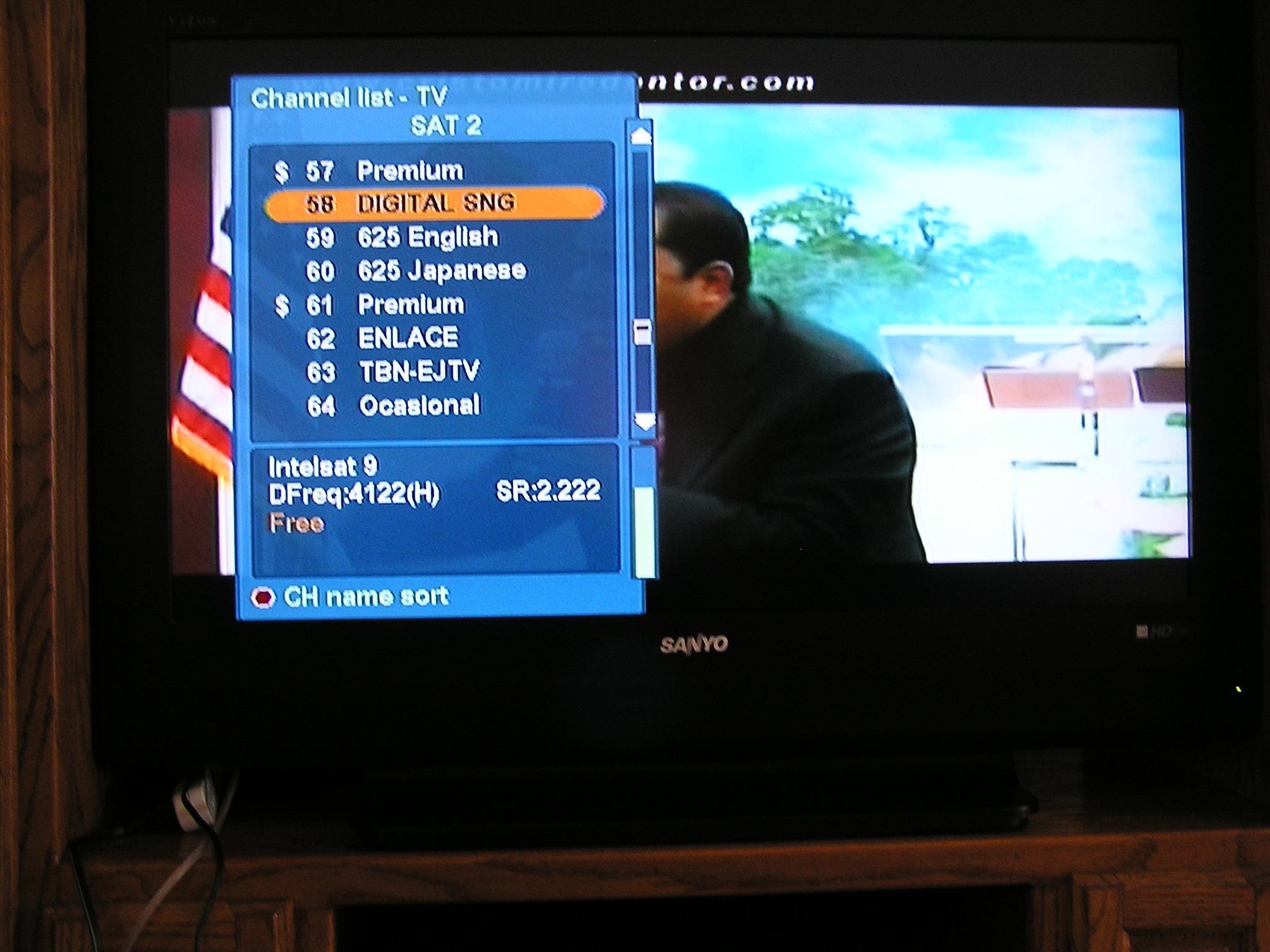

  • 3- Intelsat 9 at 58.0W.JPG
    3- Intelsat 9 at 58.0W.JPG
    230.7 KB · Views: 554

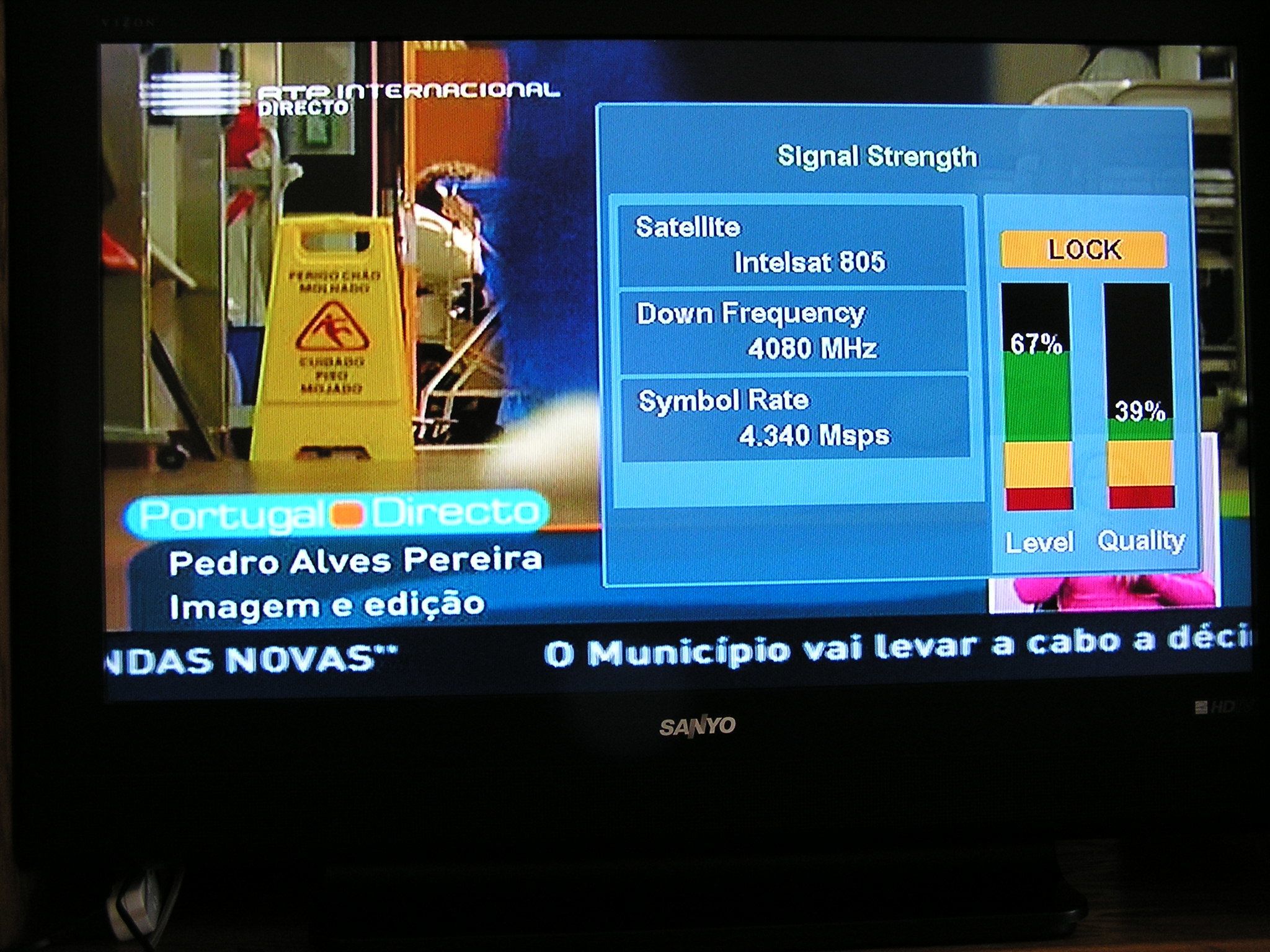

  • 2- Intelsat 805 at 55.5W.JPG
    2- Intelsat 805 at 55.5W.JPG
    447.9 KB · Views: 584

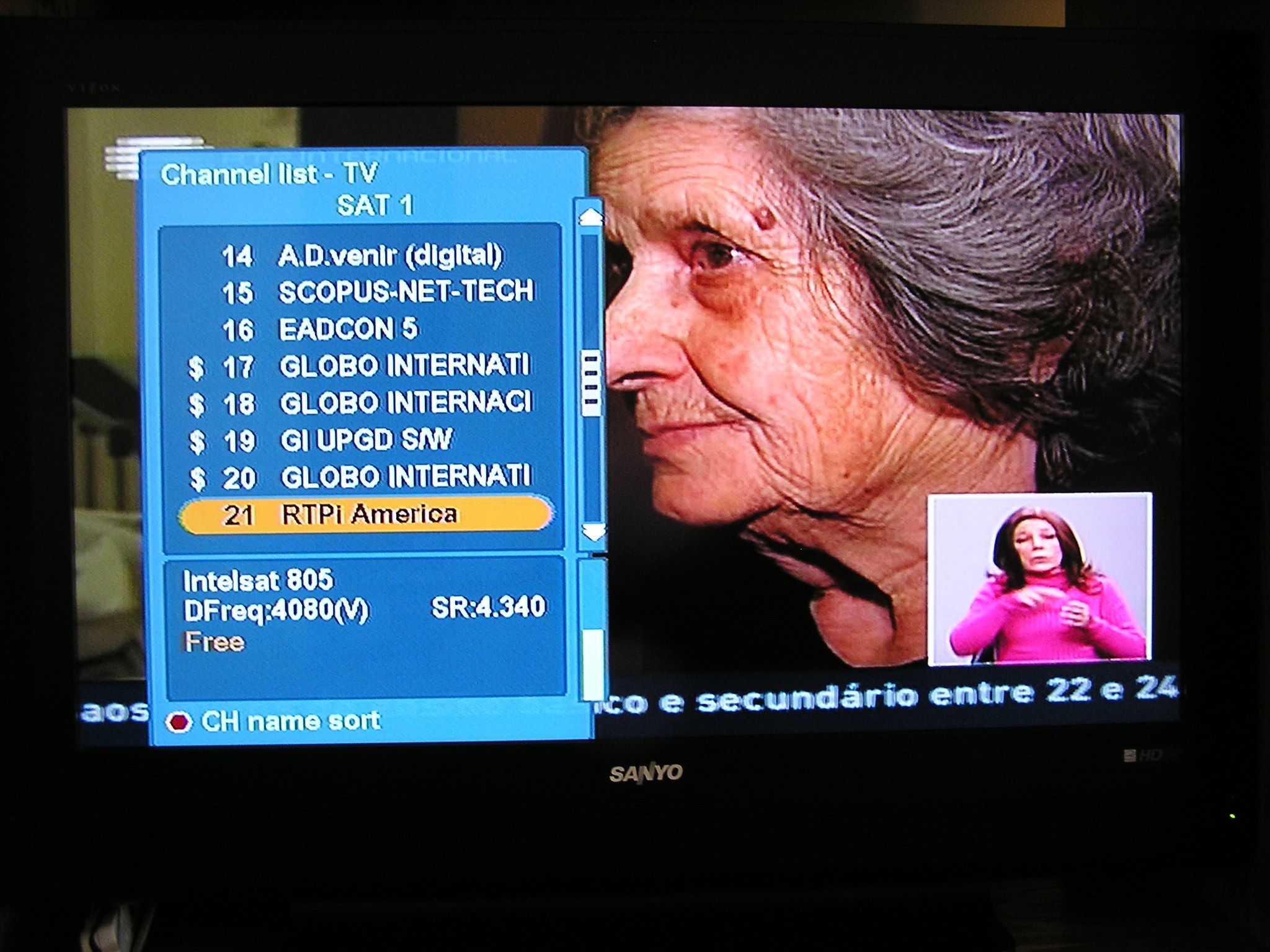

  • 1- Intelsat 805 at 55.5W.JPG
    1- Intelsat 805 at 55.5W.JPG
    402.9 KB · Views: 606

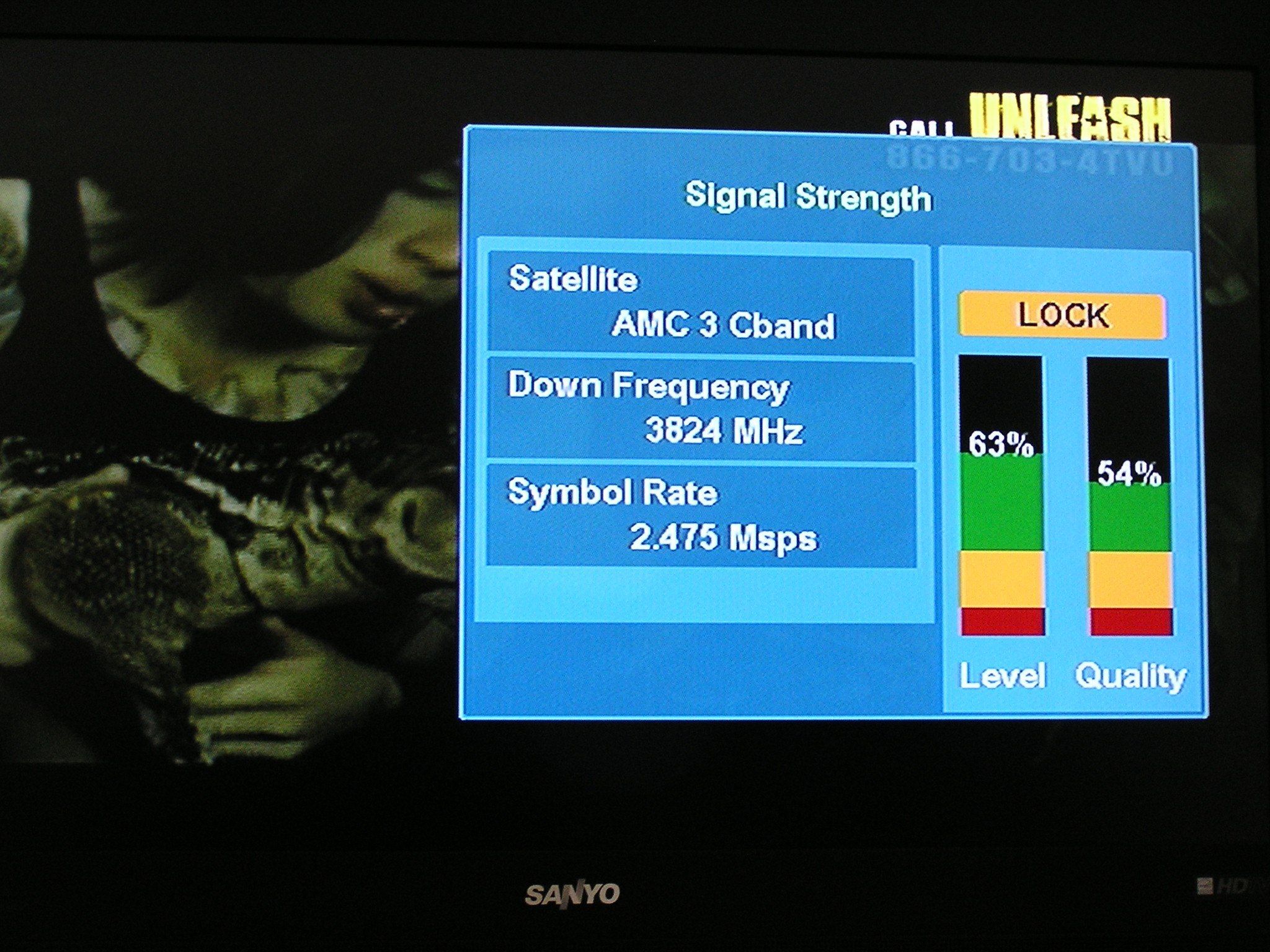

  • 8- AMC3 at 87.0W.JPG
    8- AMC3 at 87.0W.JPG
    437.9 KB · Views: 483
  • 7- AMC3 at 87.0W.JPG
    7- AMC3 at 87.0W.JPG
    485.7 KB · Views: 478
walrus1957

walrus1957

Thread Starter
SatelliteGuys Pro
Sep 24, 2008
280
0
40 miles west of Omaha
More photos of signal quality levels

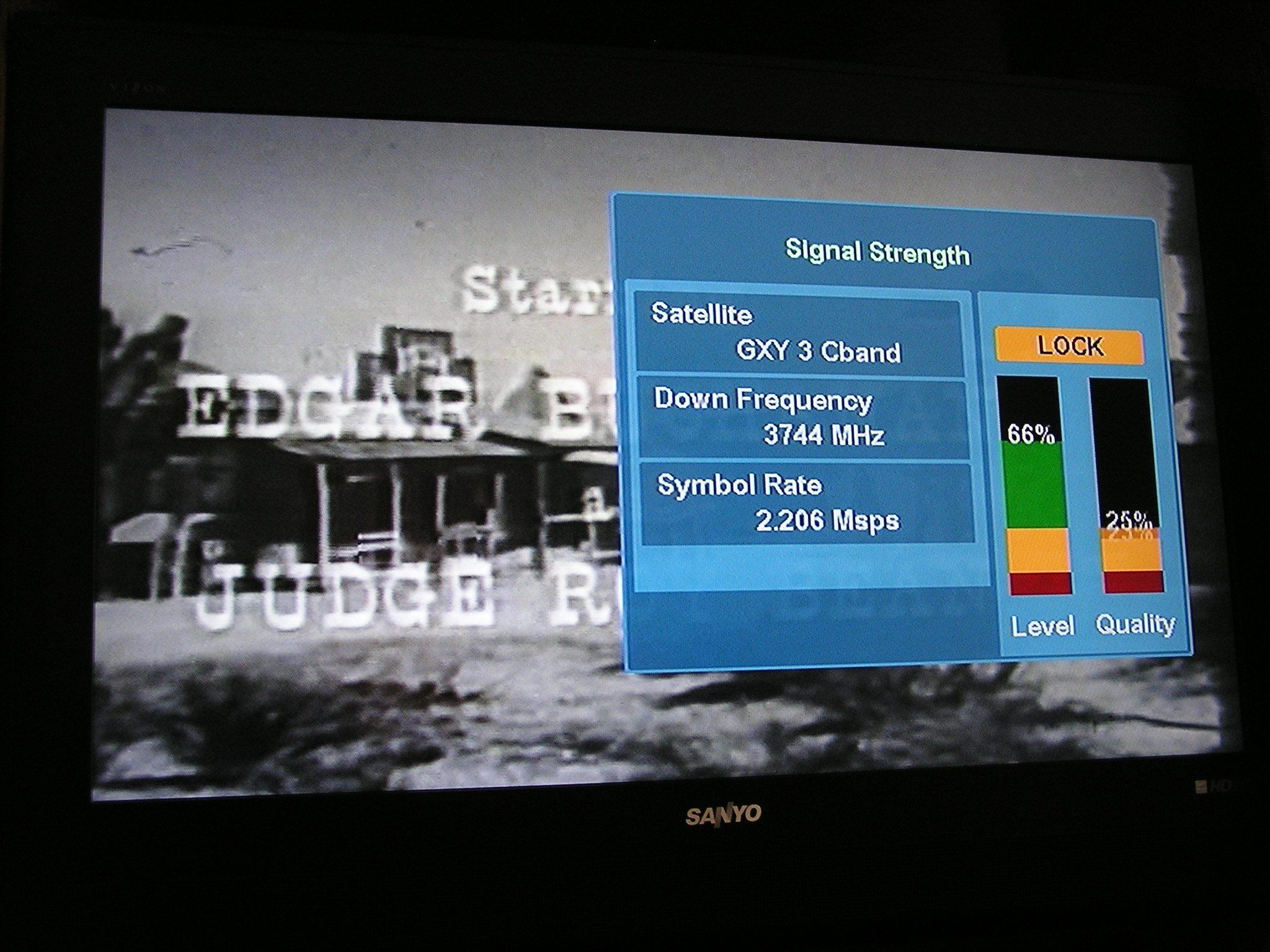

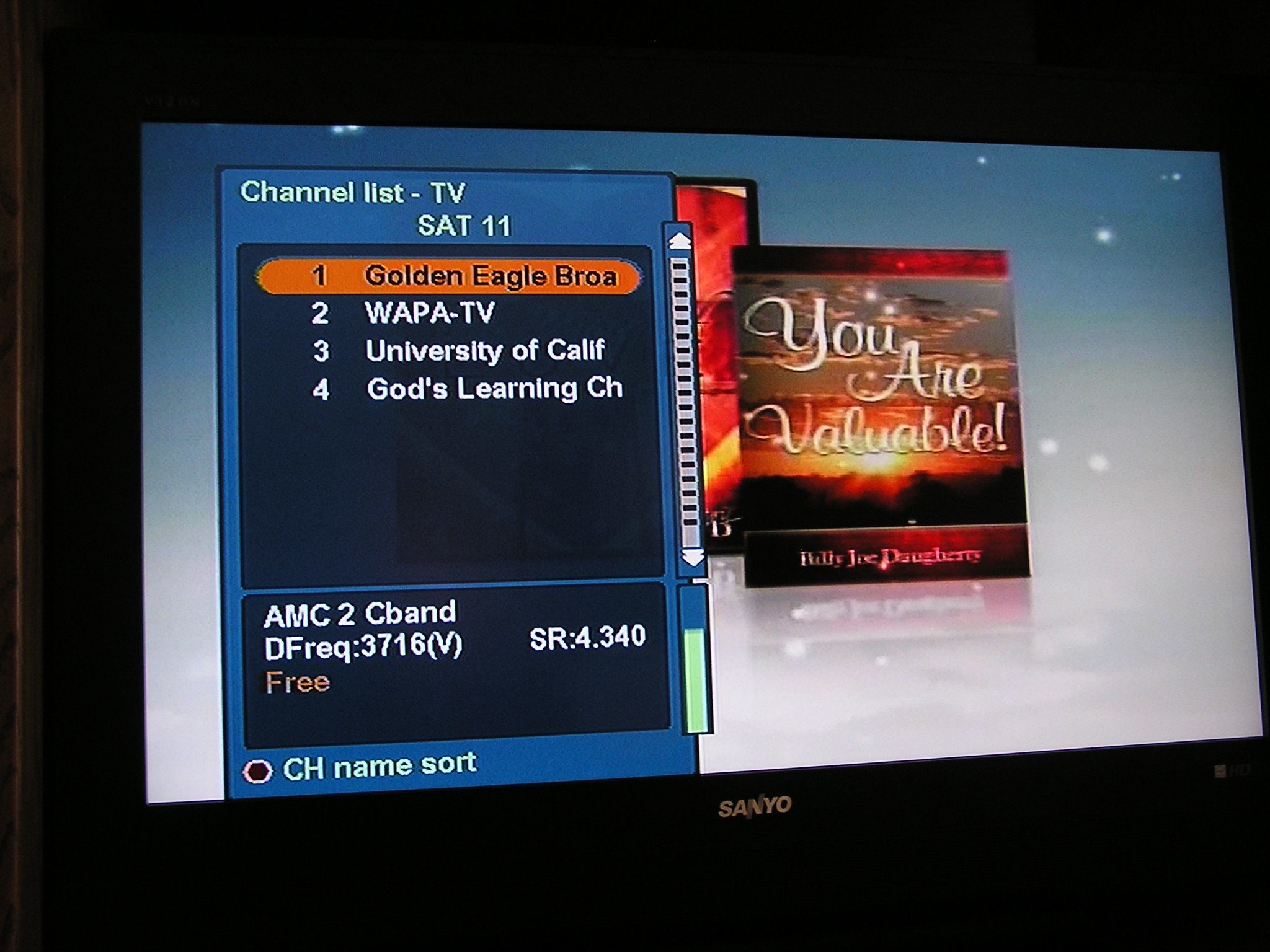

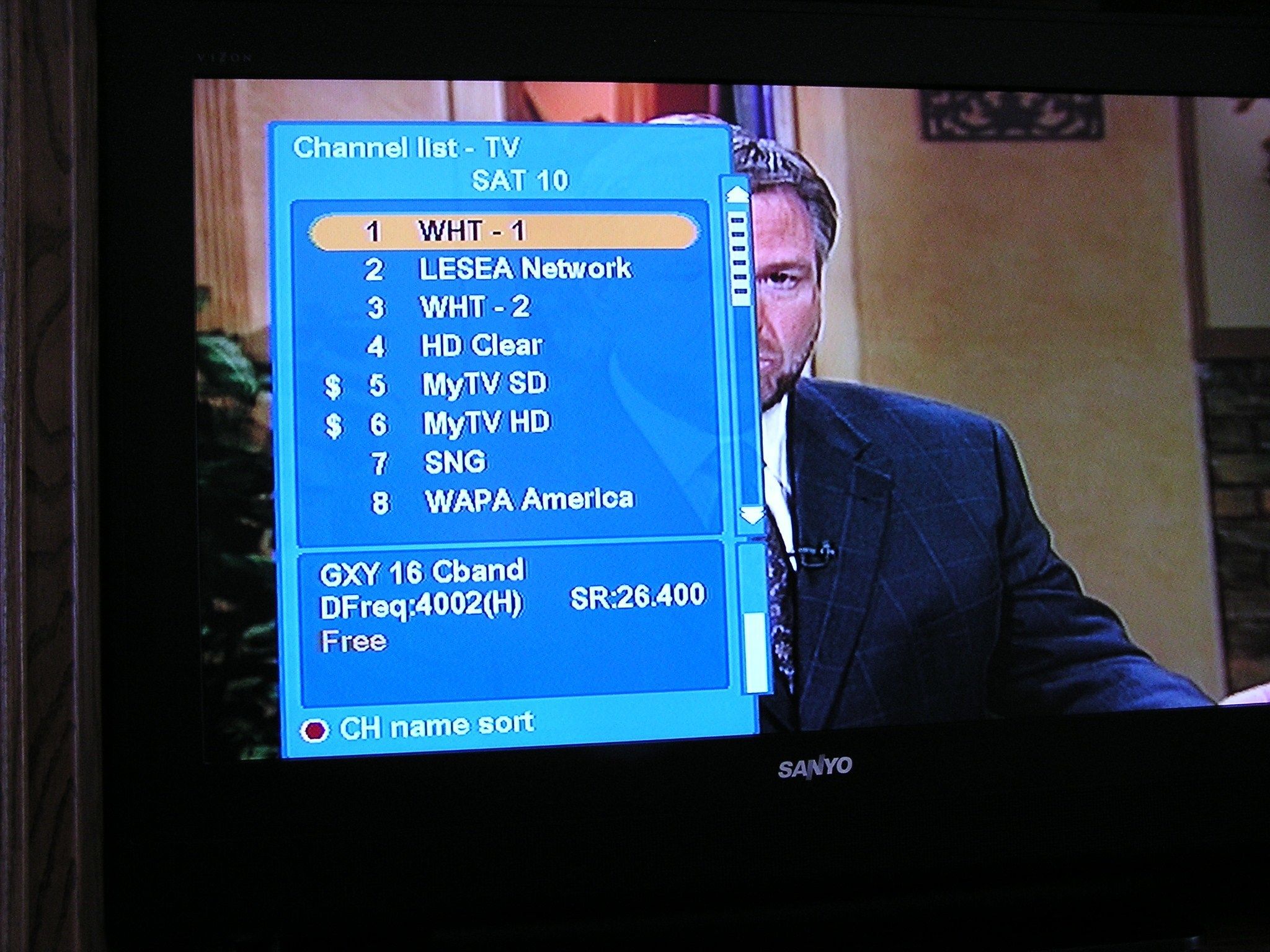

These channels are off of 91W, 95W, 99W, and 101W satellites.


Attachments

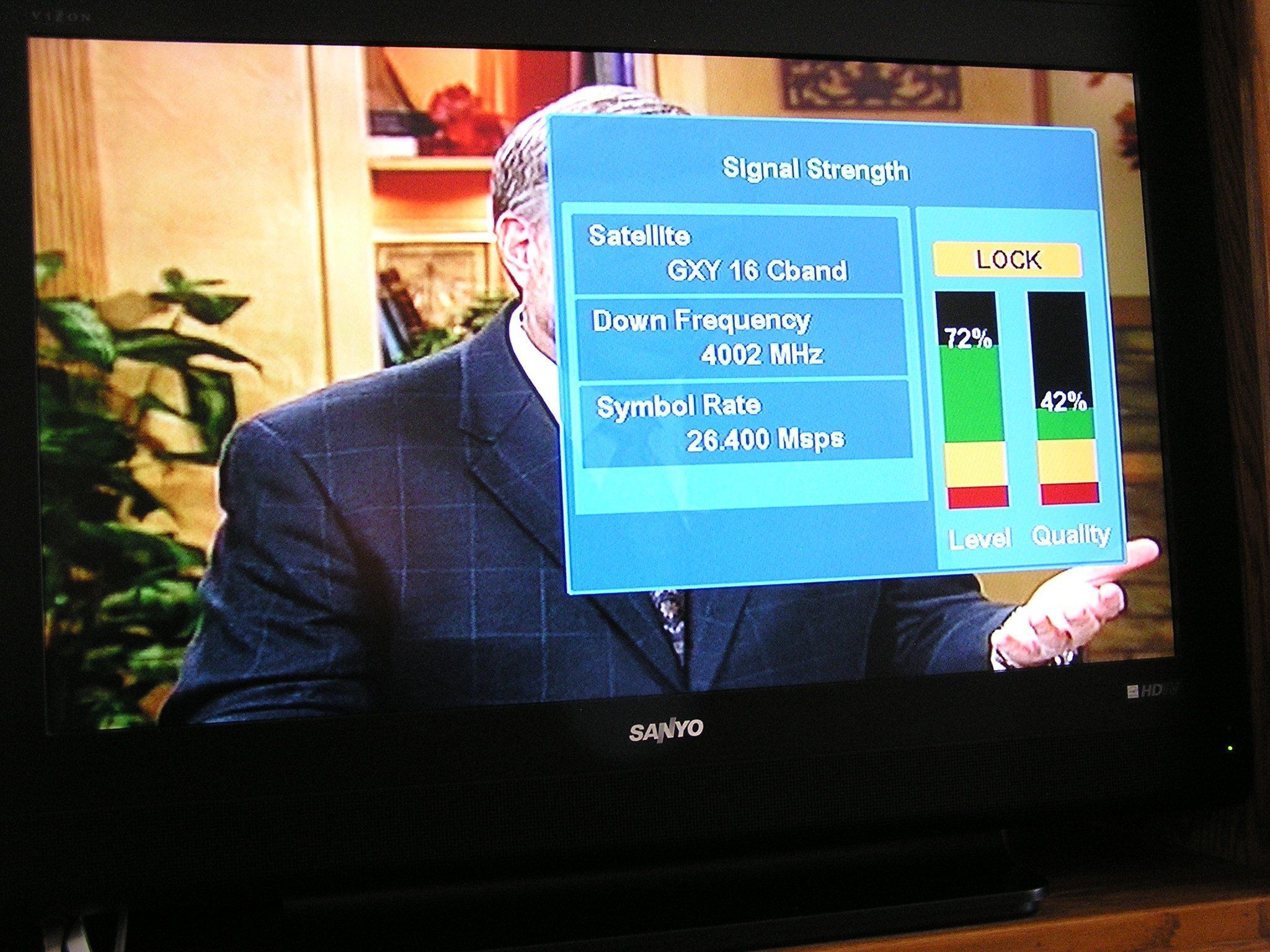

  • 18- Galaxy 16 at 99W.JPG
    18- Galaxy 16 at 99W.JPG
    464.6 KB · Views: 429

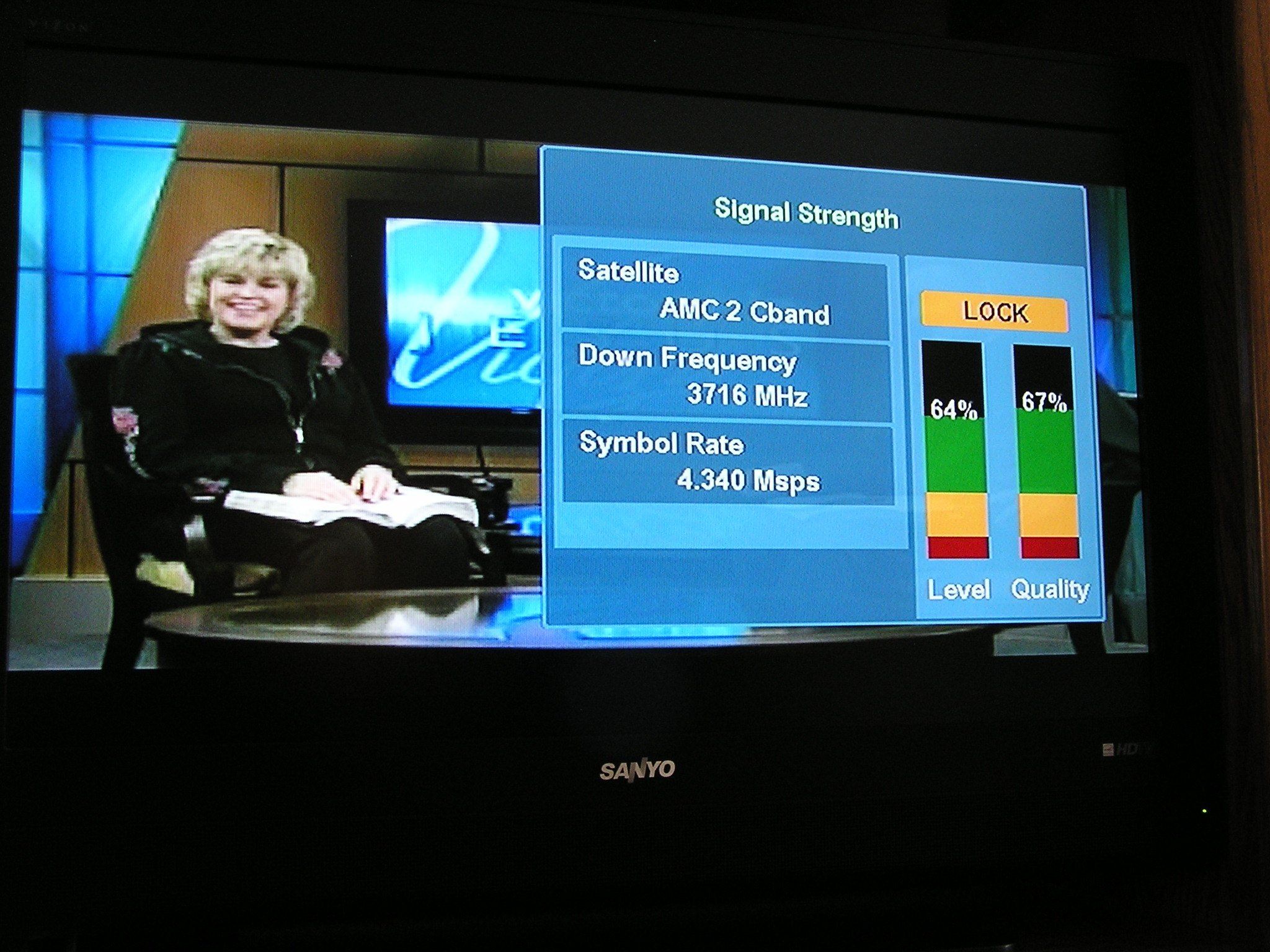

  • 20- AMC2 at 101W.JPG
    20- AMC2 at 101W.JPG
    399.7 KB · Views: 449
  • 19- AMC2 at 101W.JPG
    19- AMC2 at 101W.JPG
    298.7 KB · Views: 418
  • 17- Galaxy 16 at 99W.JPG
    17- Galaxy 16 at 99W.JPG
    411.4 KB · Views: 484
  • 16- Galaxy 3 at 95W.JPG
    16- Galaxy 3 at 95W.JPG
    414.6 KB · Views: 425

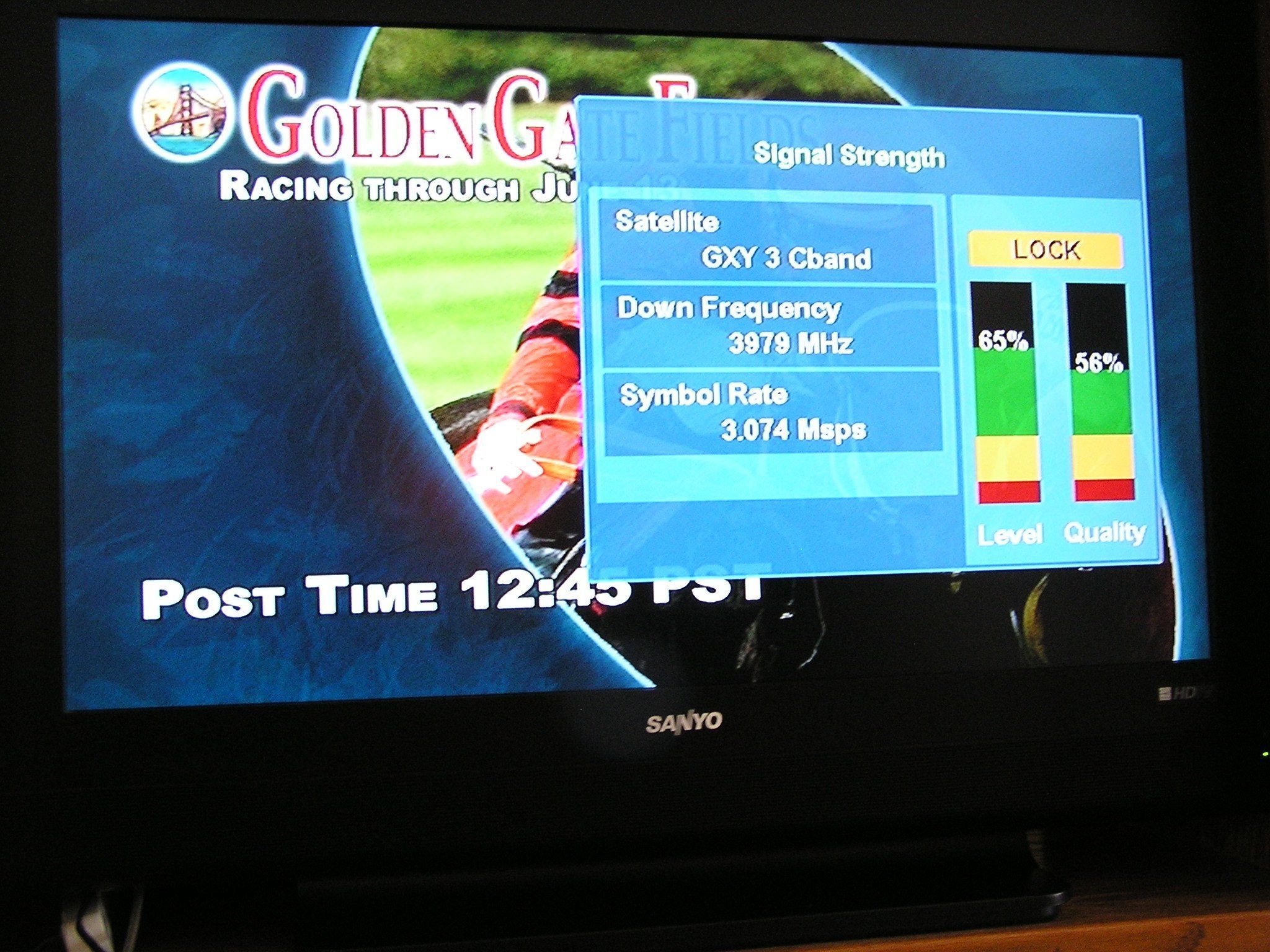

  • 14- Galaxy 17 at 95W.JPG
    14- Galaxy 17 at 95W.JPG
    449.2 KB · Views: 454

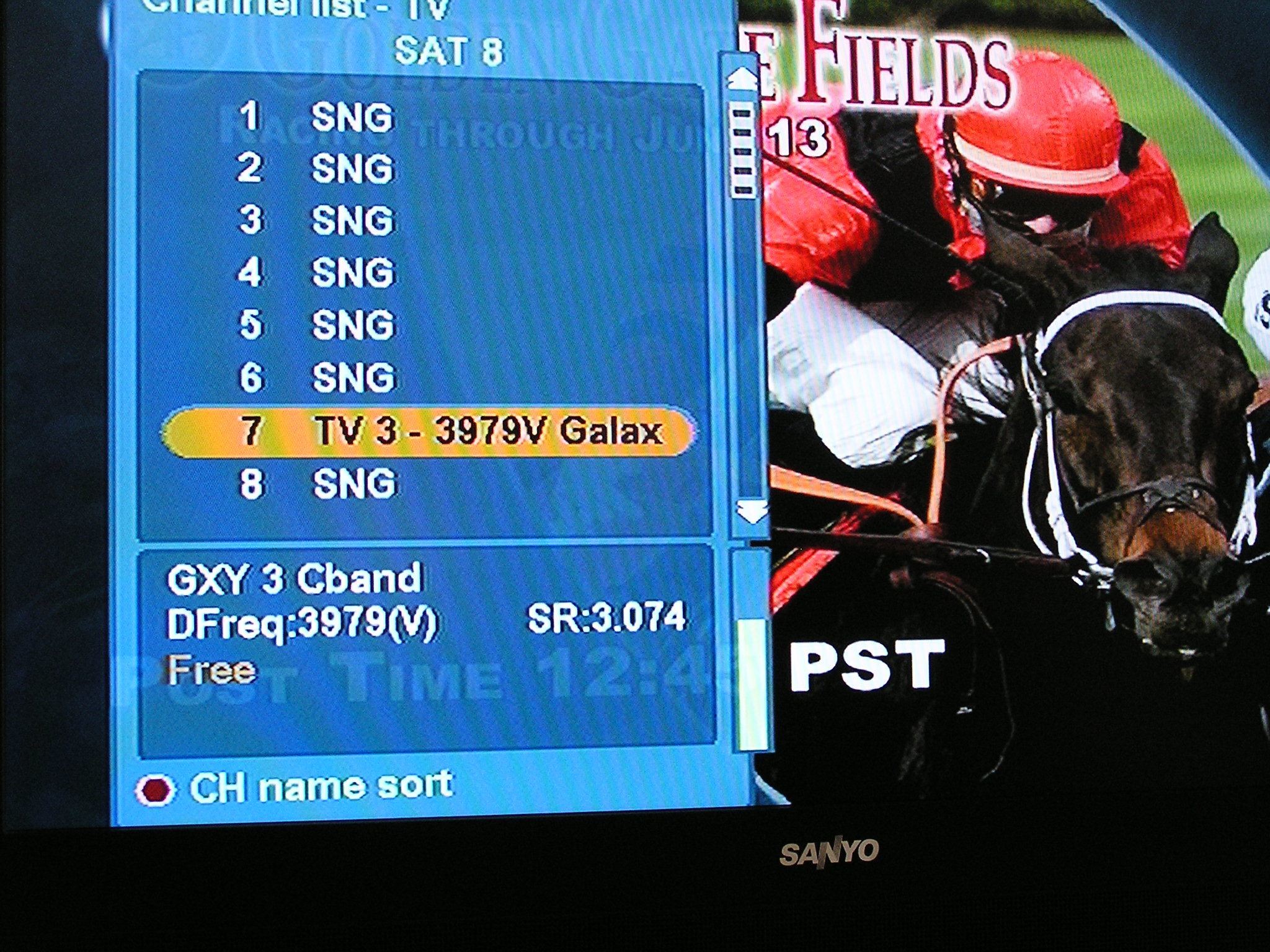

  • 13- Galaxy 17 at 95W.JPG
    13- Galaxy 17 at 95W.JPG
    525.8 KB · Views: 451

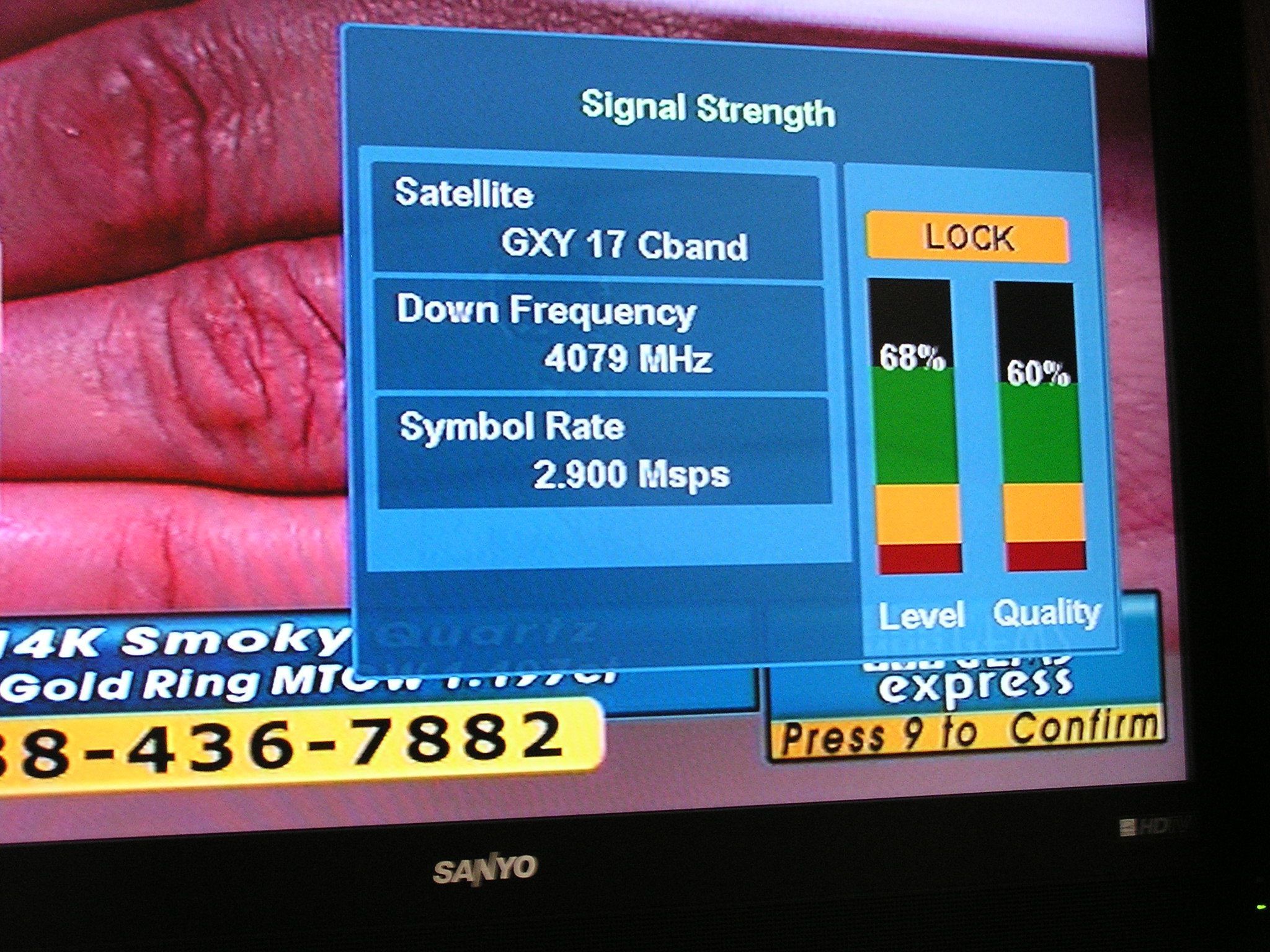

  • 12- Galaxy 28 at 91W.JPG
    12- Galaxy 28 at 91W.JPG
    504.9 KB · Views: 467

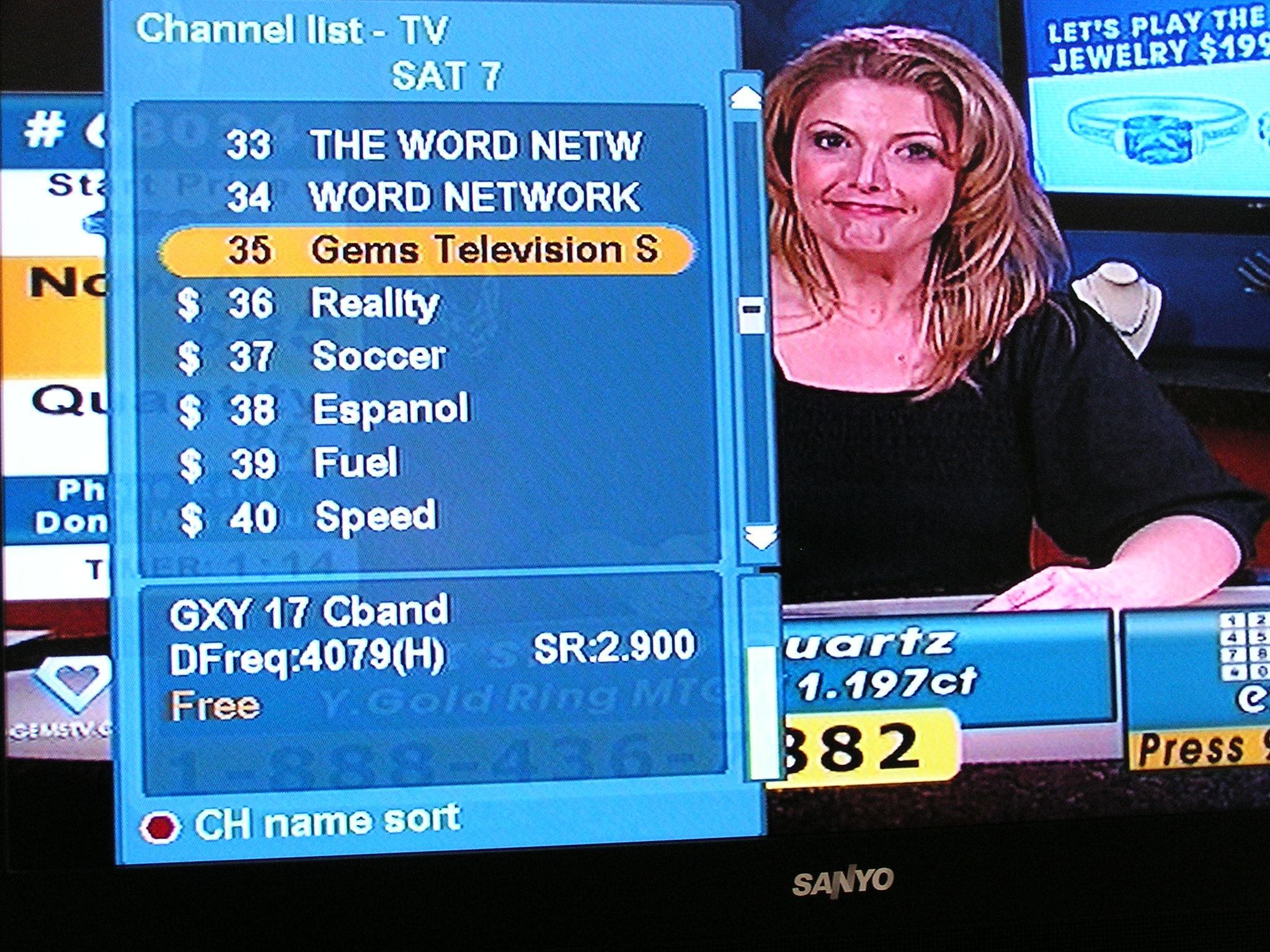

  • 11- Galaxy 28 at 91W.JPG
    11- Galaxy 28 at 91W.JPG
    524.5 KB · Views: 504

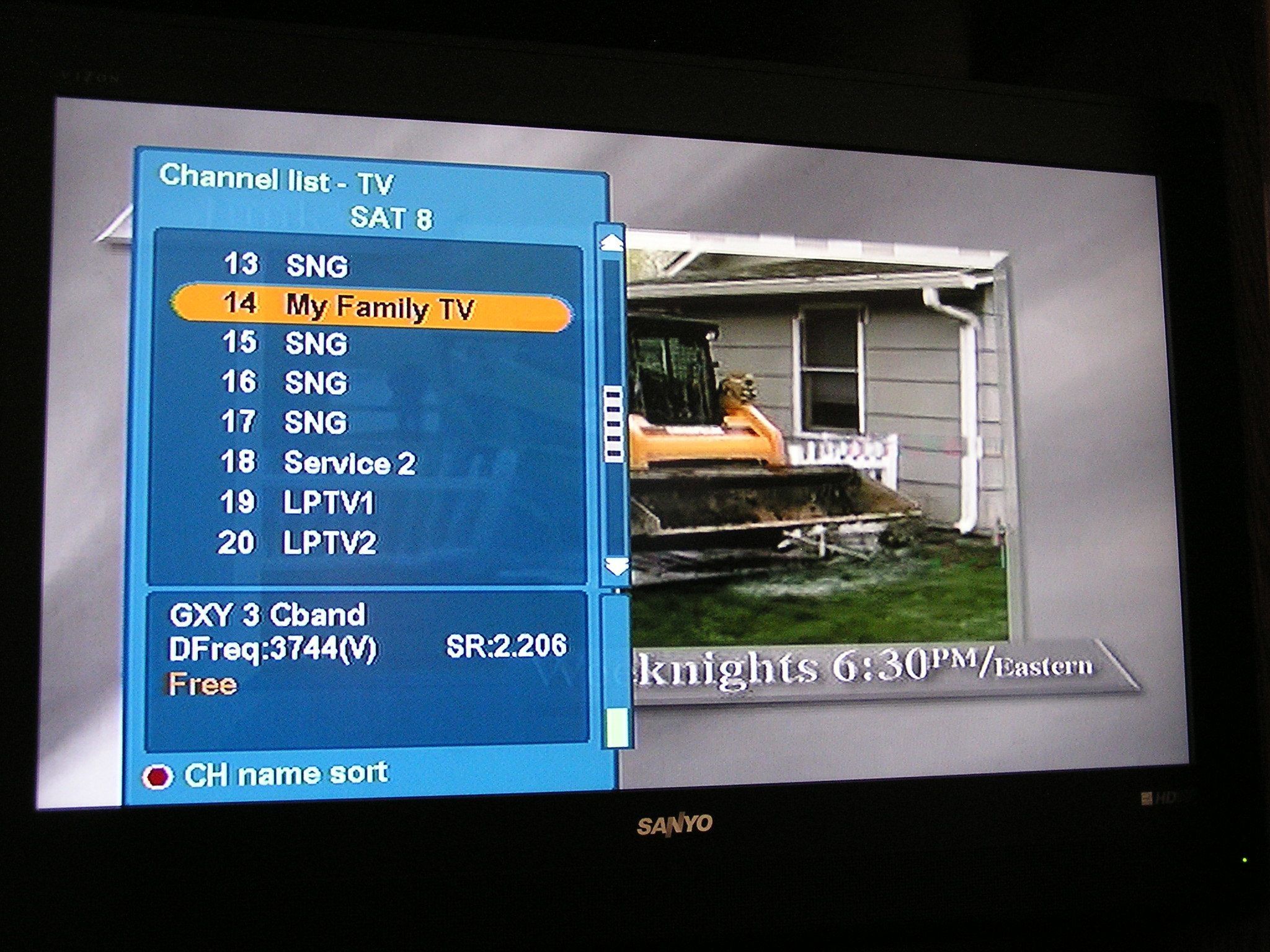

  • 15- Galaxy 3 at 95W.JPG
    15- Galaxy 3 at 95W.JPG
    459.9 KB · Views: 470
walrus1957

walrus1957

Thread Starter
SatelliteGuys Pro
Sep 24, 2008
280
0
40 miles west of Omaha
Channel photos continued

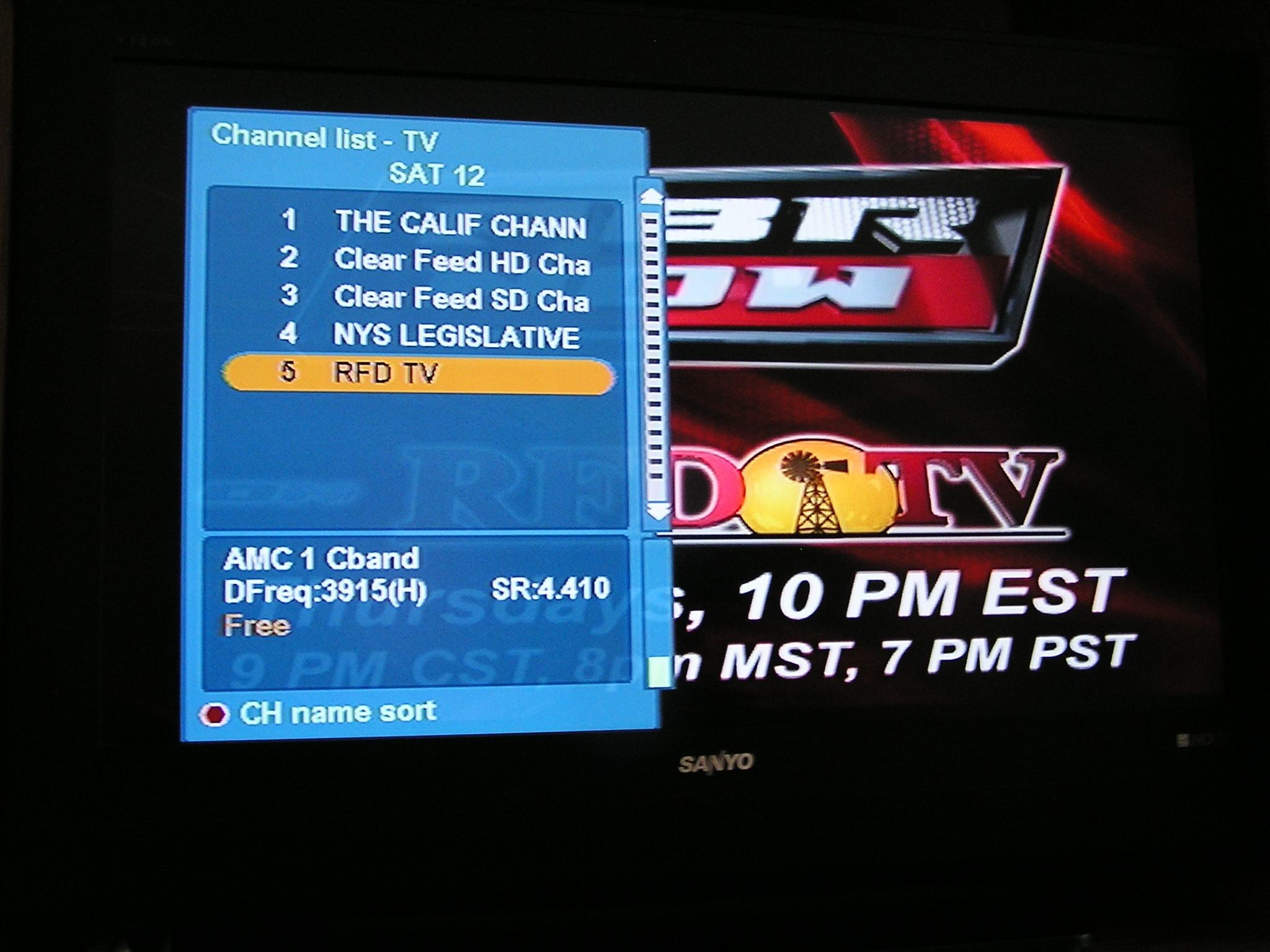

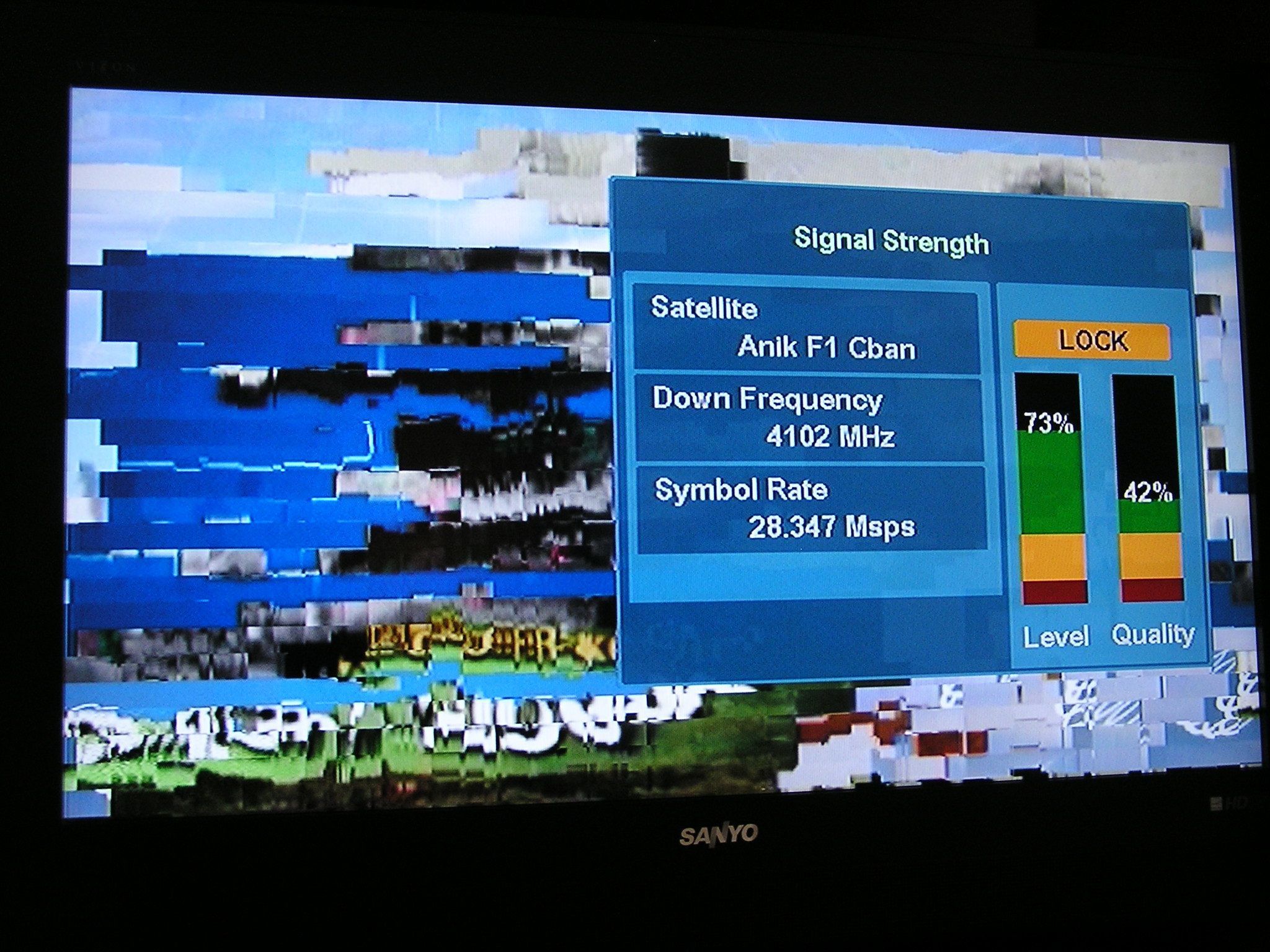

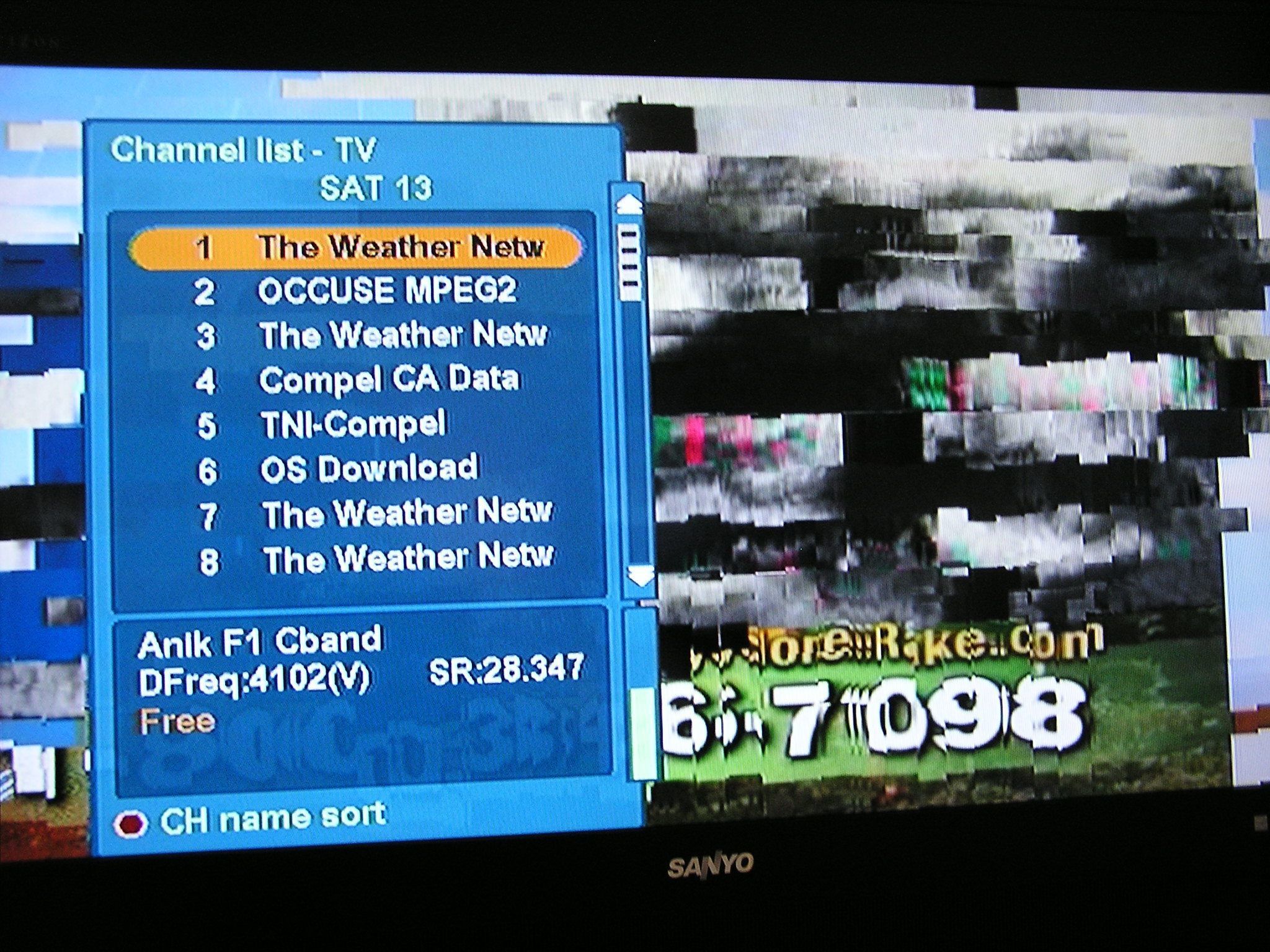

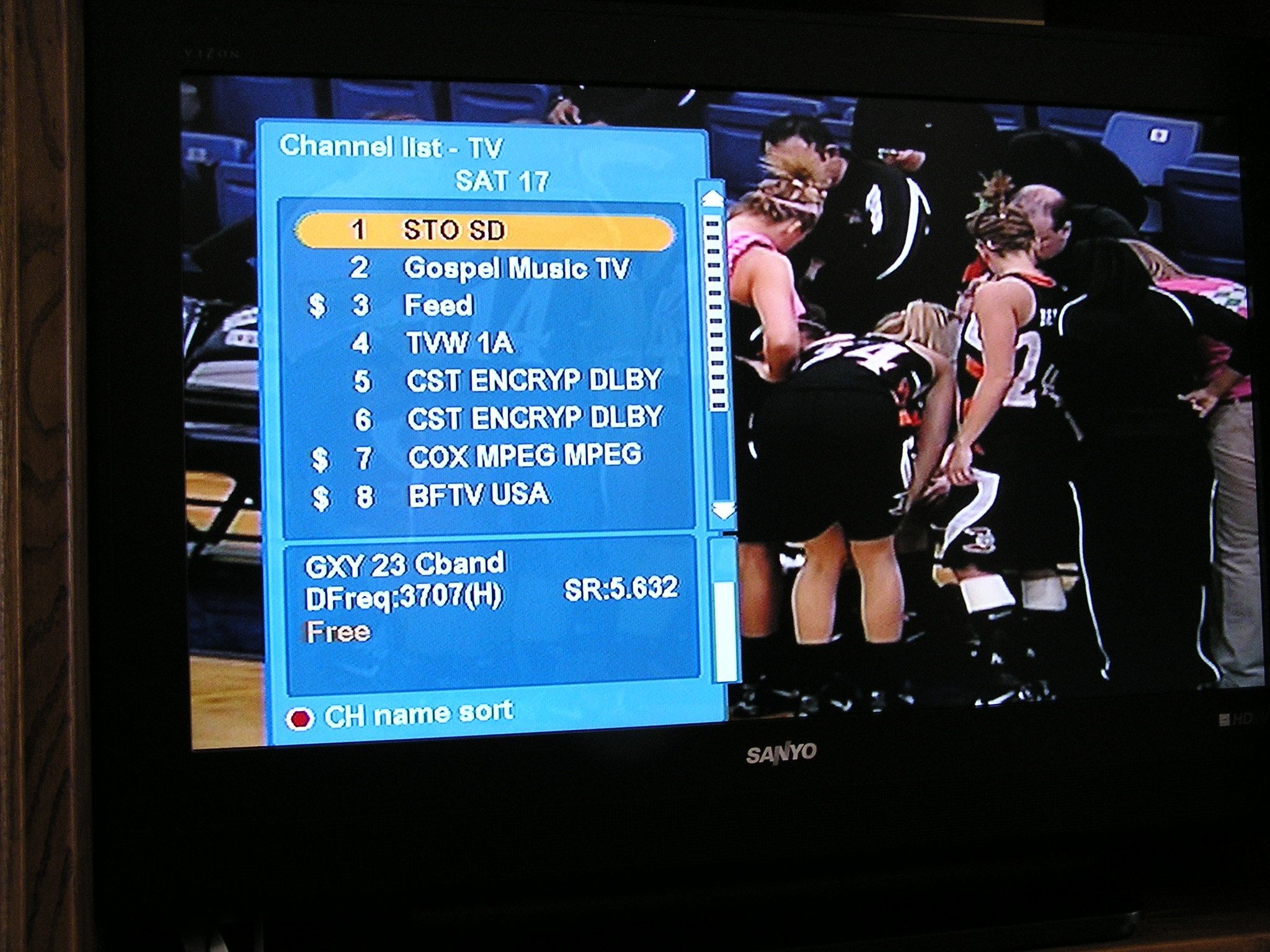

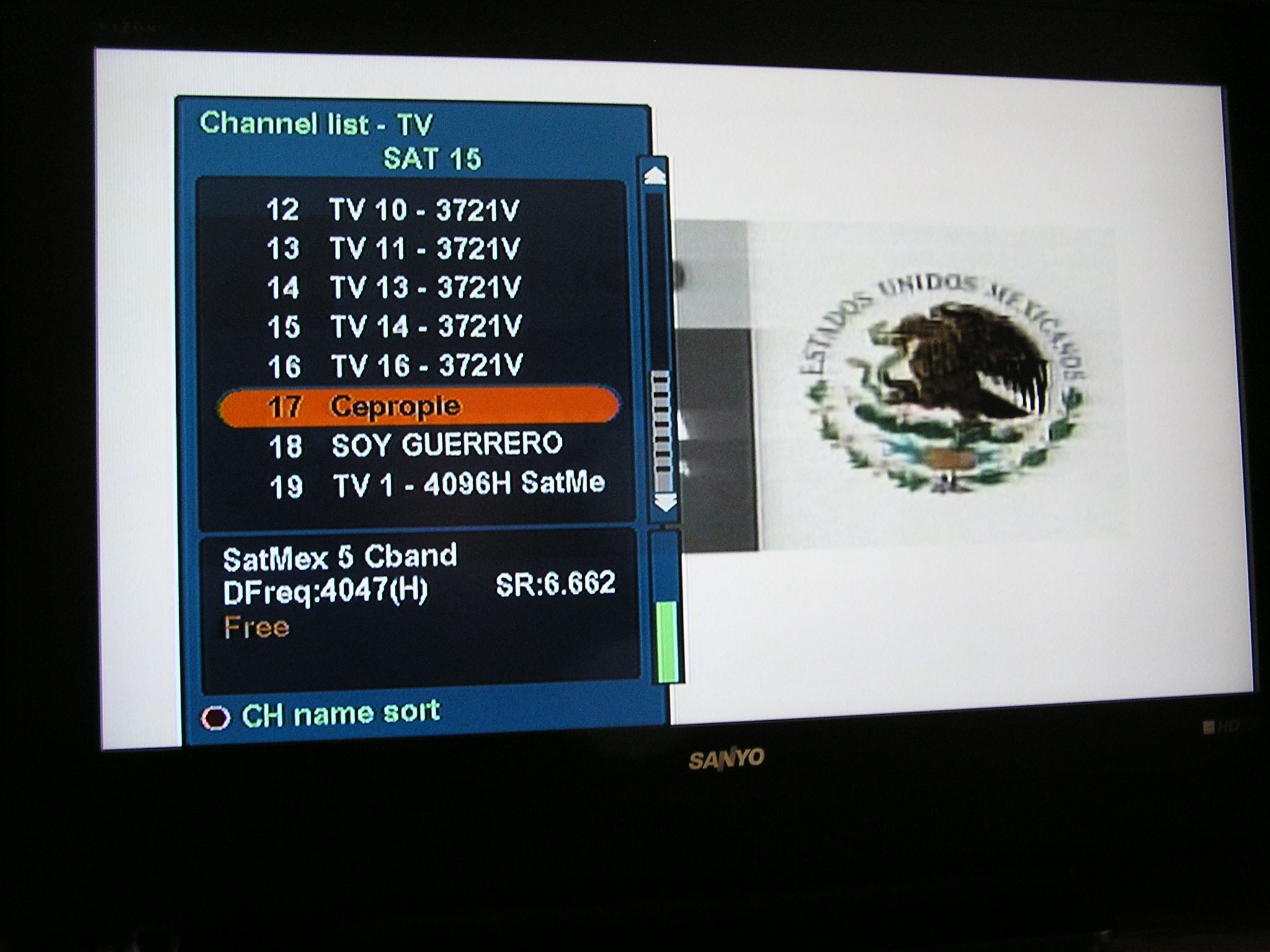

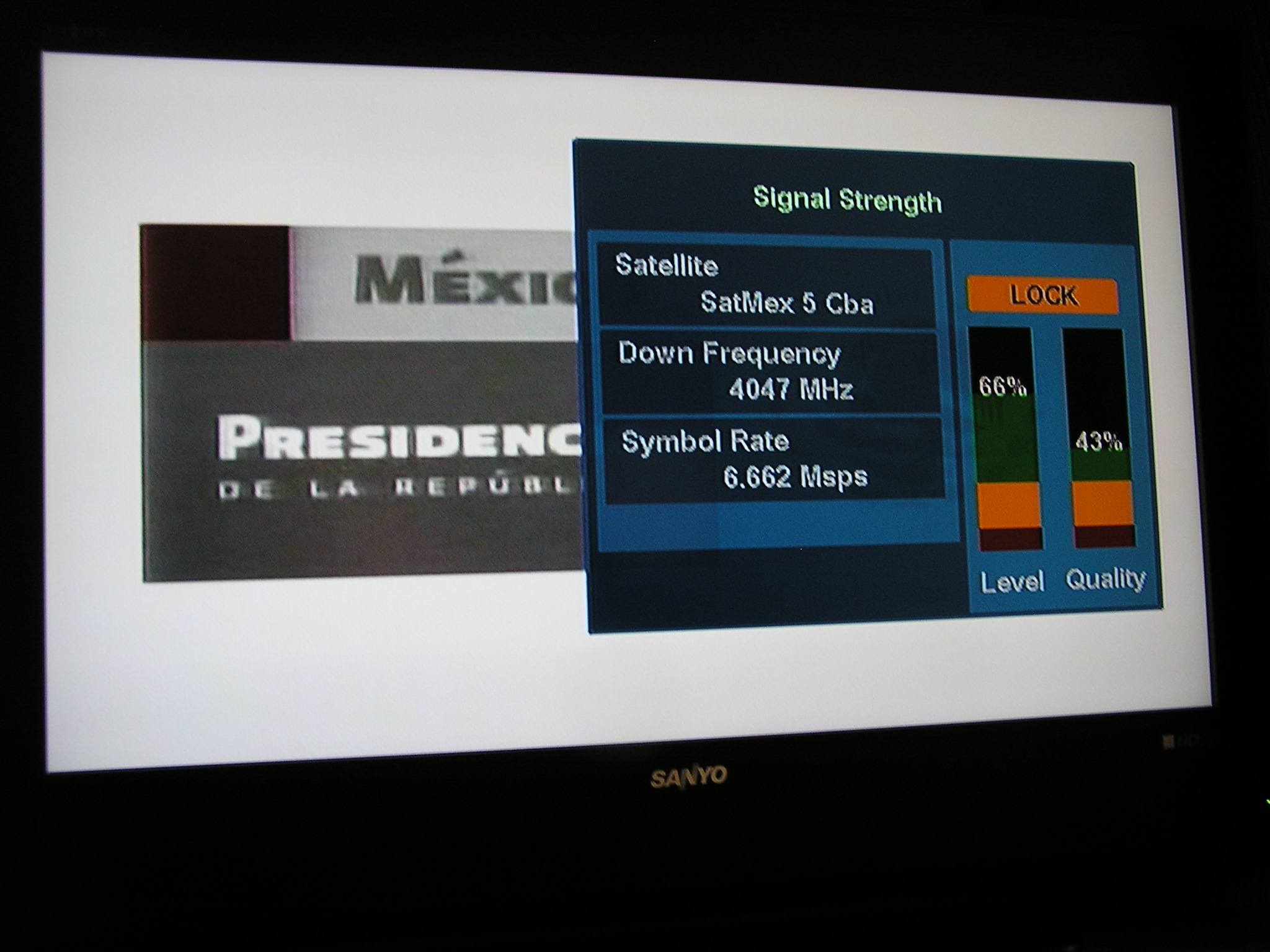

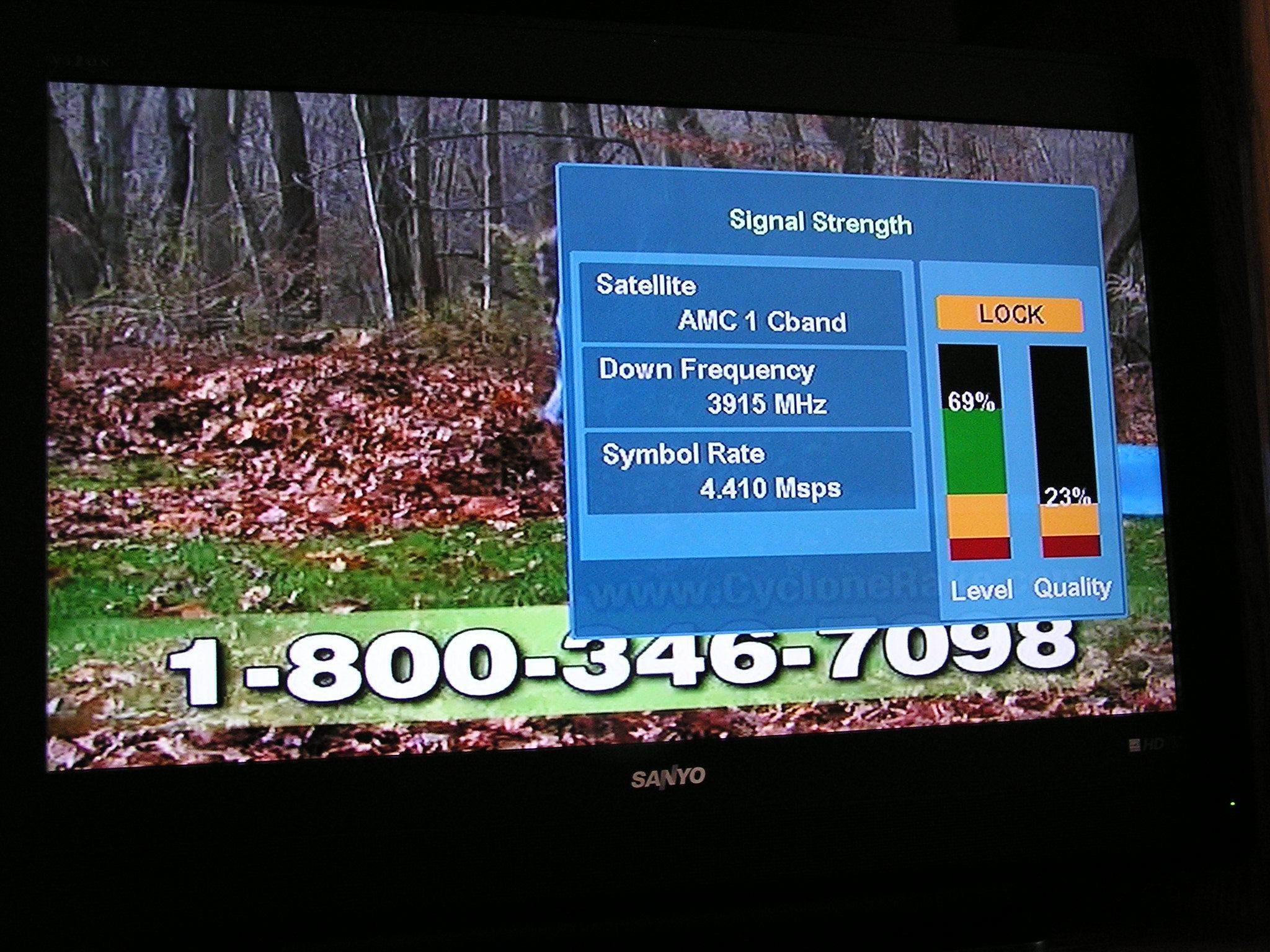

These are photos of channels off satellites 103W, 107.3W, 113W, 116.8W and 121W C-band sats.


Attachments

  • 29- Galaxy 23 at 121.0W.JPG
    29- Galaxy 23 at 121.0W.JPG
    425.8 KB · Views: 410

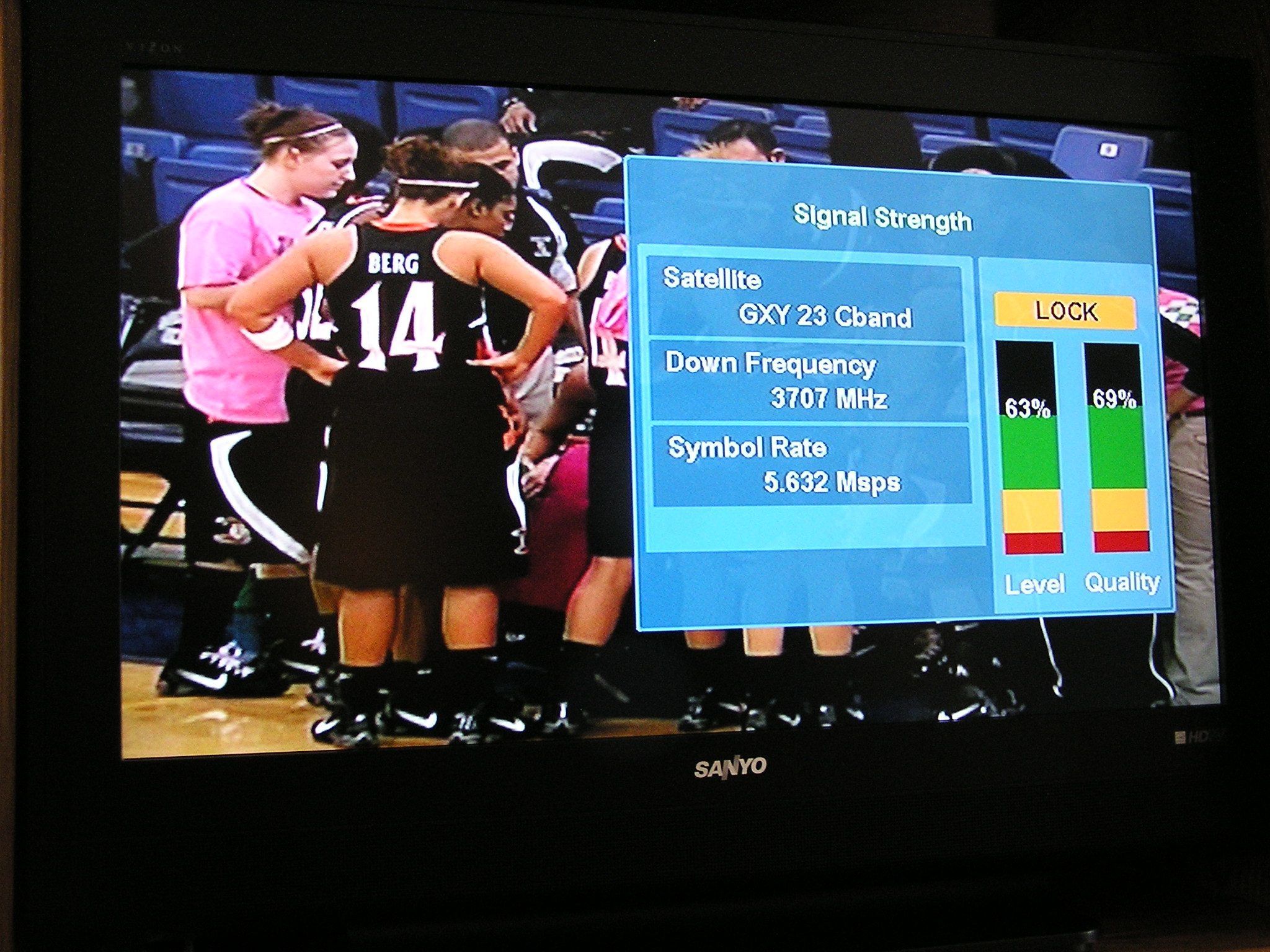

  • 30- Galaxy 23 at 121.0W.JPG
    30- Galaxy 23 at 121.0W.JPG
    455.2 KB · Views: 441
  • 28- SatMex5 at 116.8W.JPG
    28- SatMex5 at 116.8W.JPG
    148.1 KB · Views: 401
  • 27- SatMex5 at 116.8W.JPG
    27- SatMex5 at 116.8W.JPG
    270.7 KB · Views: 404

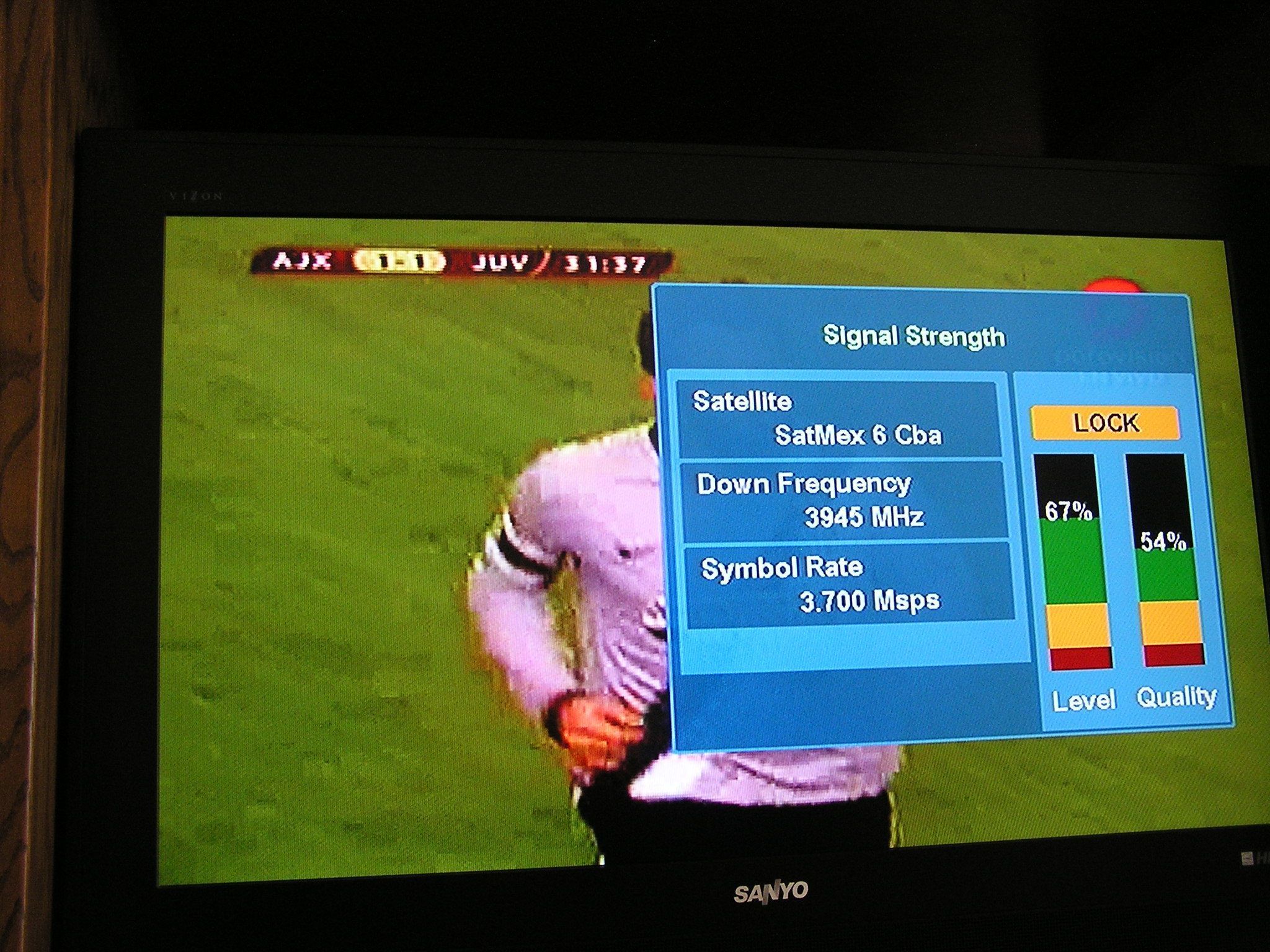

  • 26- SatMex6 at 113.0W.JPG
    26- SatMex6 at 113.0W.JPG
    484.5 KB · Views: 448

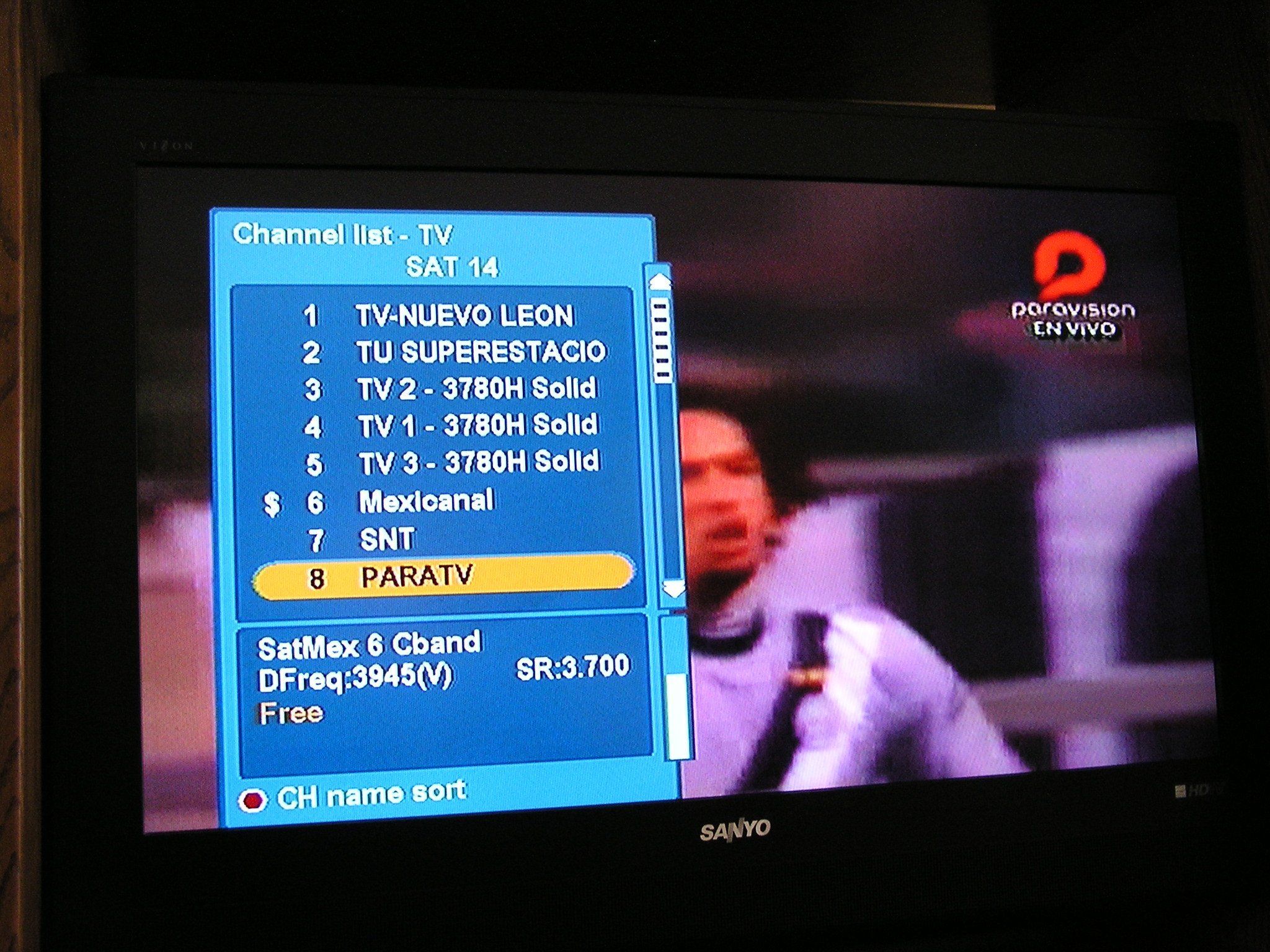

  • 25- SatMex6 at 113.0W.JPG
    25- SatMex6 at 113.0W.JPG
    466.2 KB · Views: 428
  • 24- Anik F1 at 107.3W.JPG
    24- Anik F1 at 107.3W.JPG
    426.2 KB · Views: 468
  • 23- Anik F1 at 107.3W.JPG
    23- Anik F1 at 107.3W.JPG
    523.2 KB · Views: 417
  • 22- AMC1 at 103W.JPG
    22- AMC1 at 103W.JPG
    438.6 KB · Views: 463
  • 21- AMC1 at 103W.JPG
    21- AMC1 at 103W.JPG
    258.4 KB · Views: 414
M

Mr Tony

SatelliteGuys Pro
Supporting Founder
Nov 17, 2003
324
75
Mankato, MN
very nice review. I moved it to the review area :)

I wish some of the signal qualities were that good for me in MN. I guess being in the centre of the footprint helps ;)

walrus1957

walrus1957

Thread Starter
SatelliteGuys Pro
Sep 24, 2008
280
0
40 miles west of Omaha
Photos continued

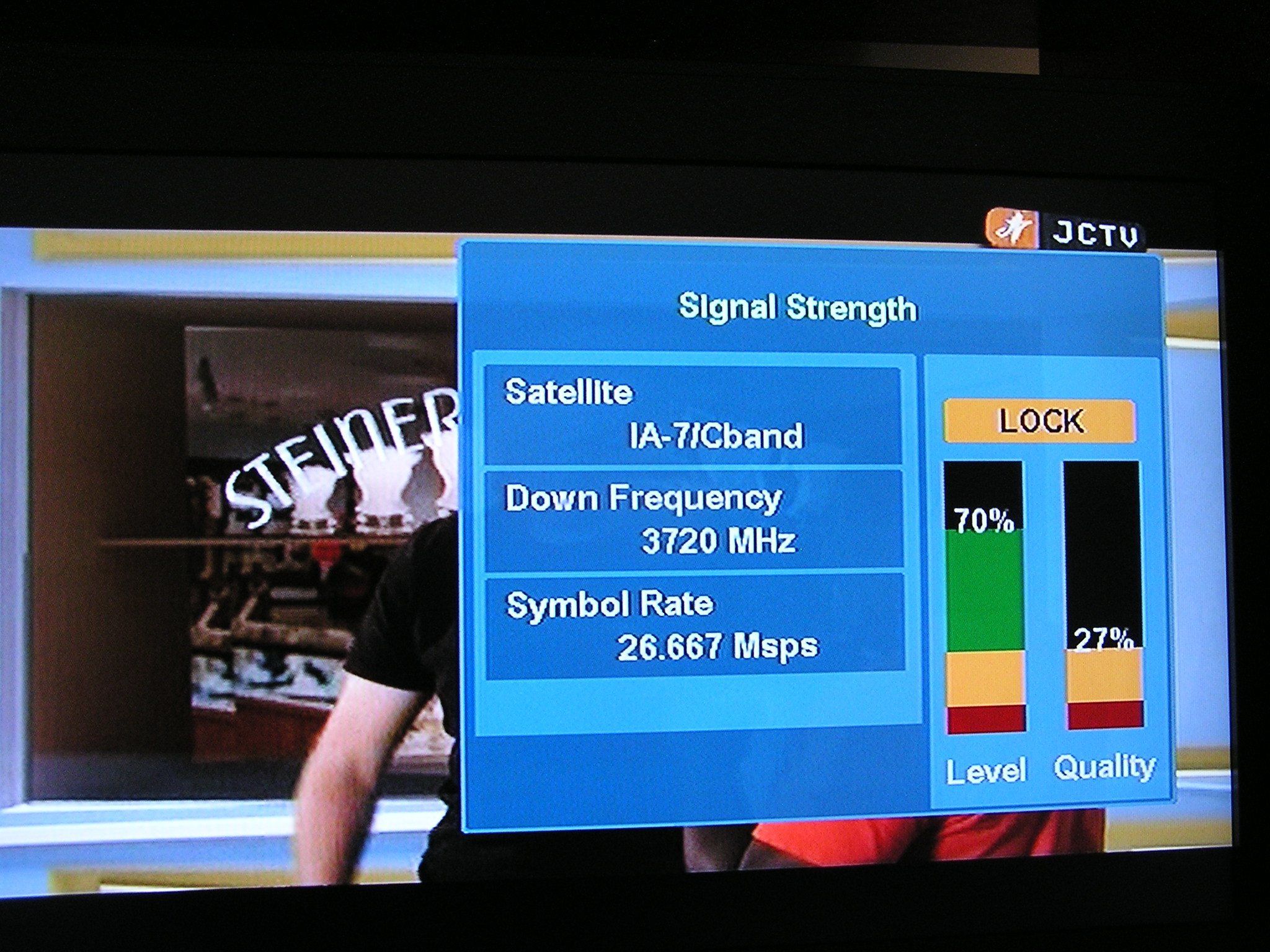

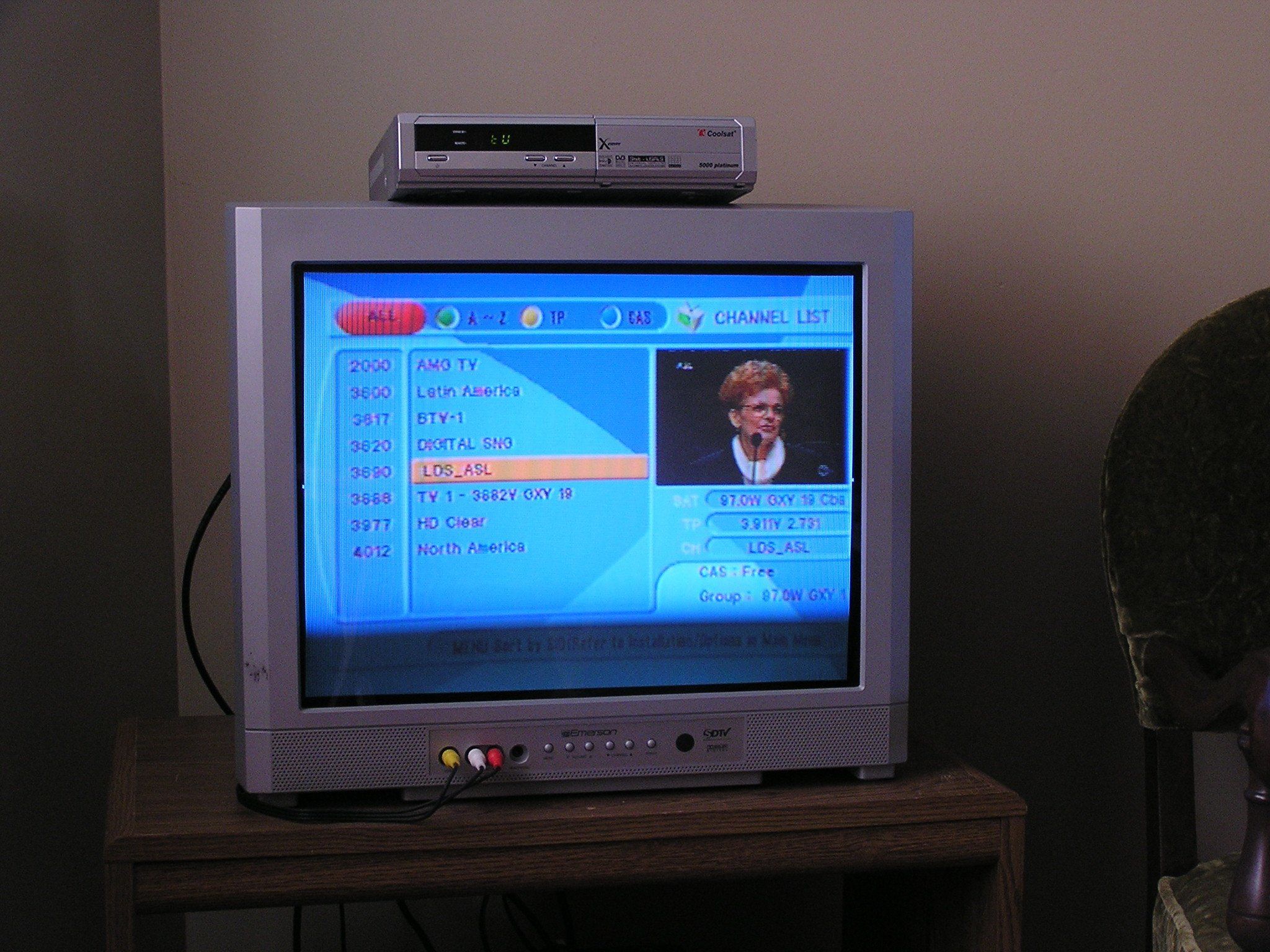

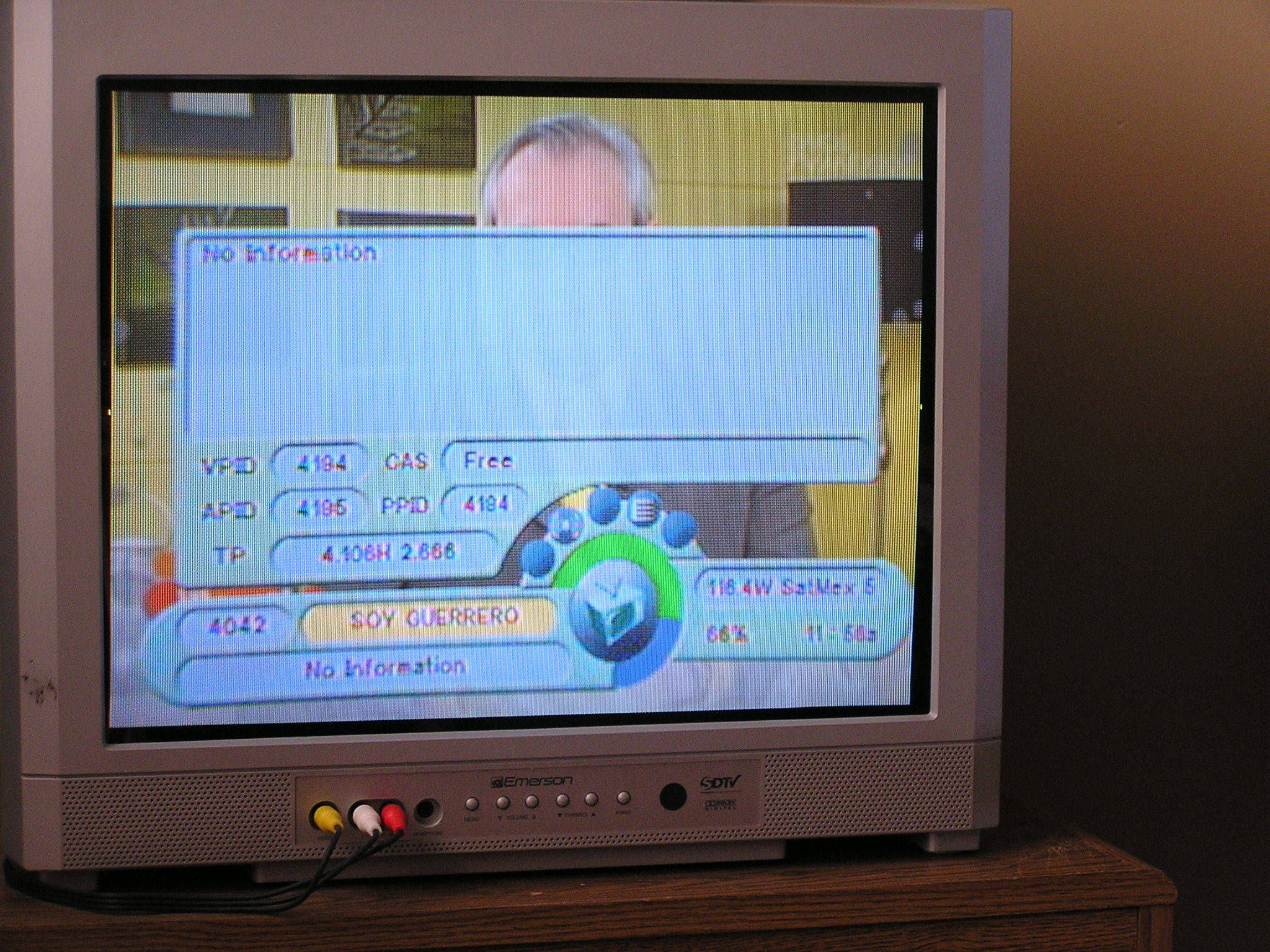

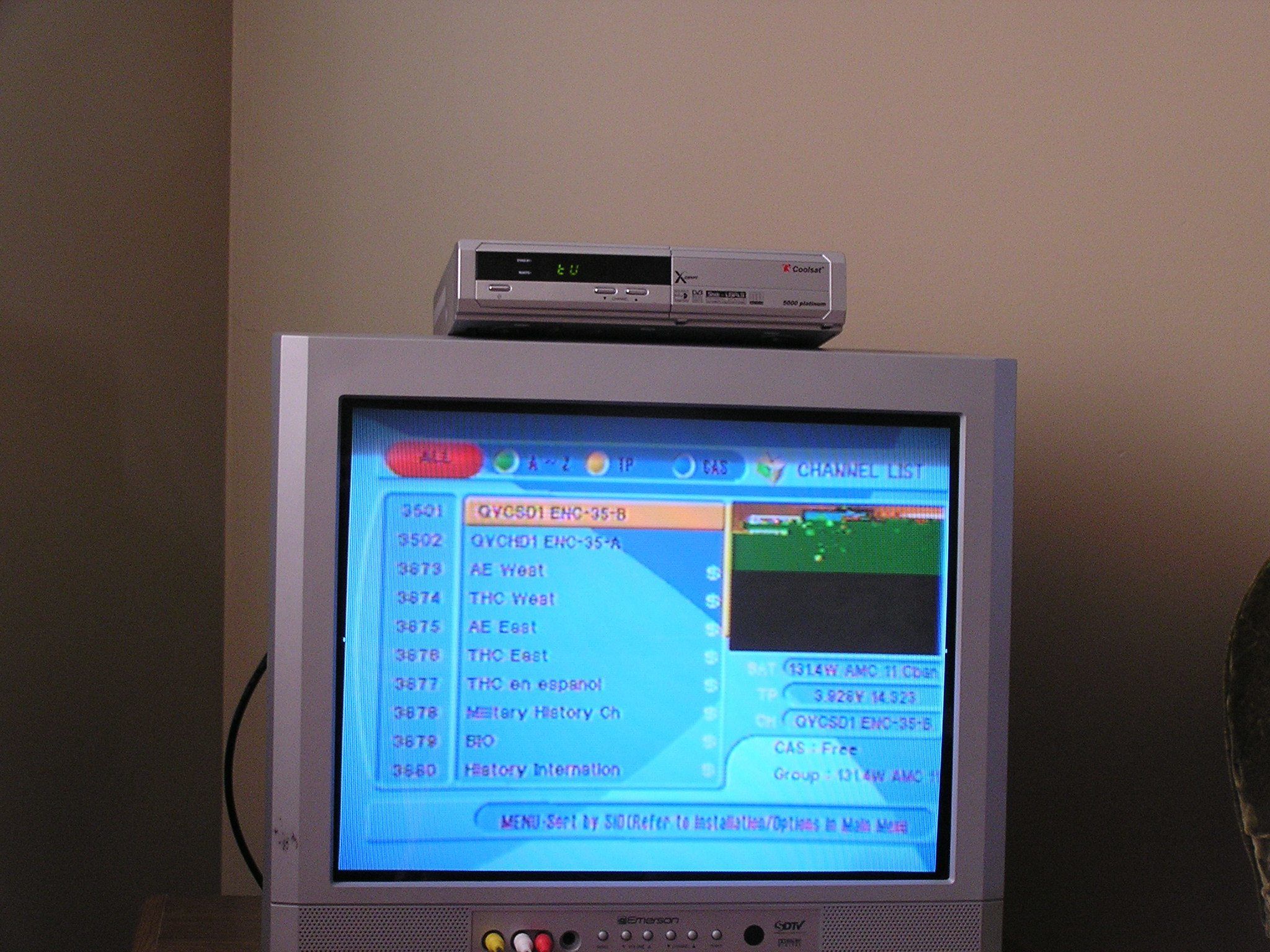

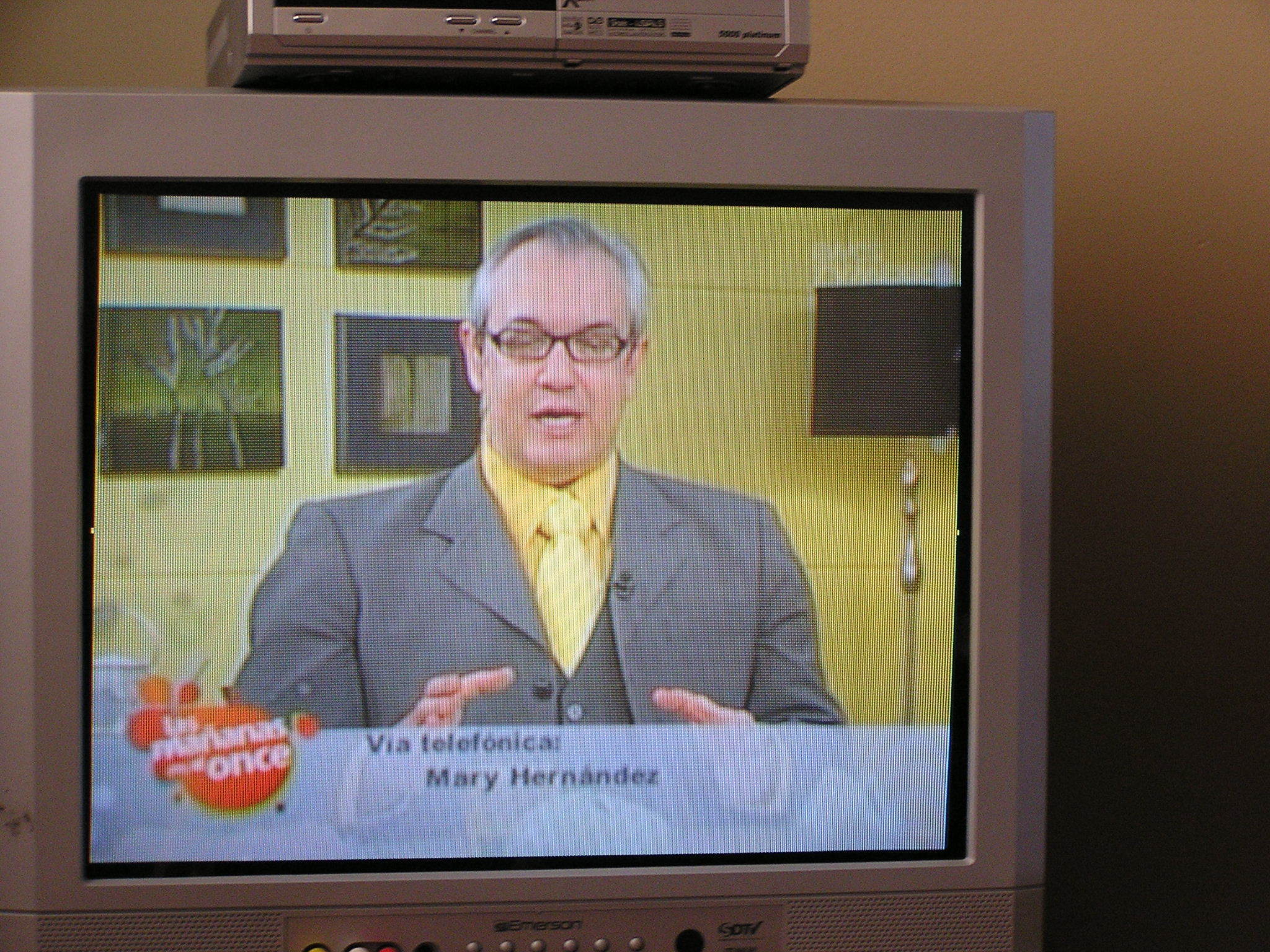

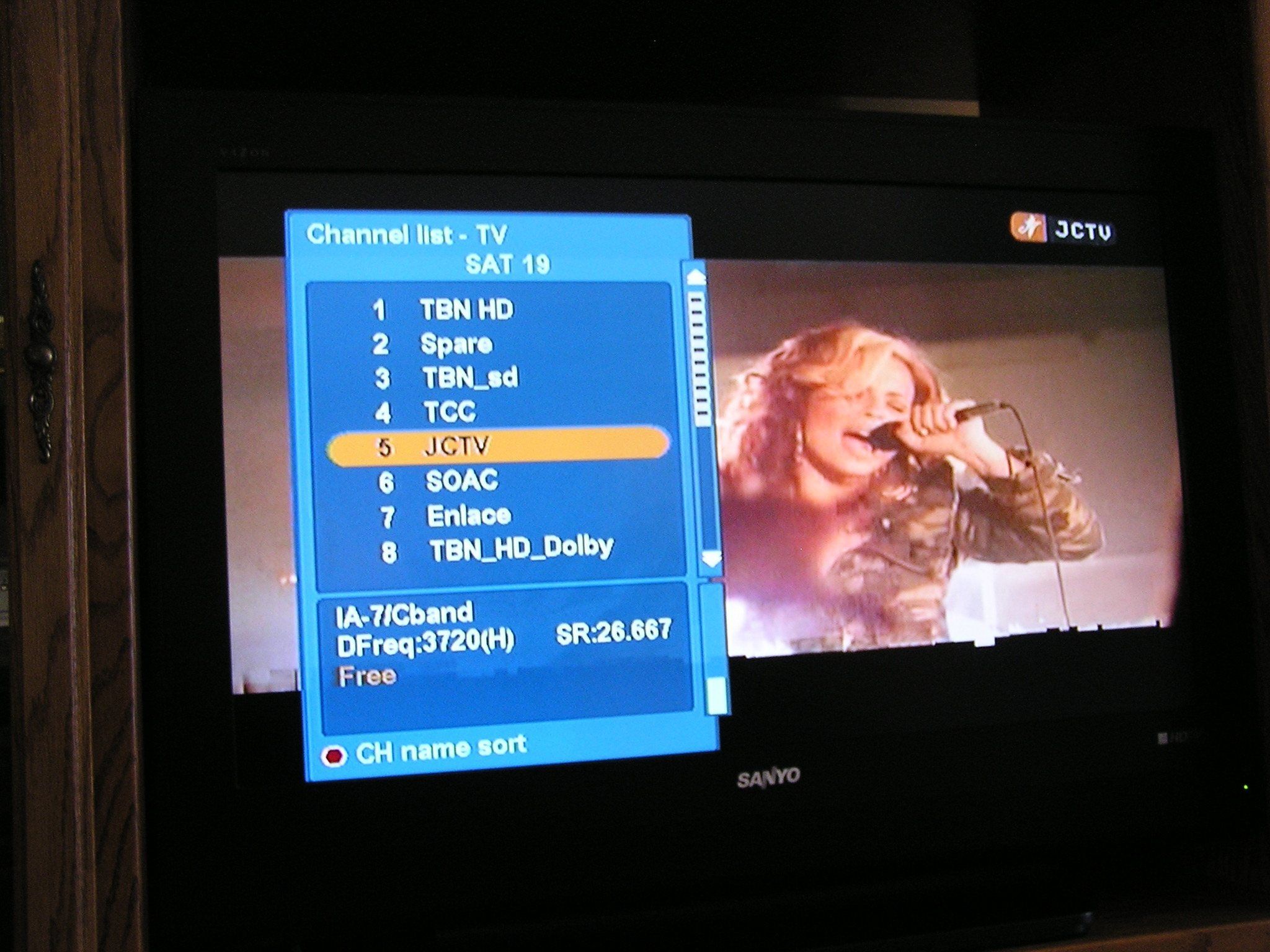

The first two photos are taken using the Pansat 2700A stb on my LCD TV in the living room and are off of satellite 125W. The Pansat is slaving the dish and all photos so far are taken on the LCD screen. I thought I should take some pictures today of the TV set in the Den and the Coolsat receiver that is hooked up to the second output of the DMX242. I had to run downstairs to slave the dish to the satellite, then run back up to the Den to take these screen shots. The TV in the Den is a tube type and doesn't take good photos as you can sometimes see the refresh lines. I chose "My Family TV" off 95W for a comparision to the one I took earlier of this channel, I also picked a channel off 131W just to show that I am getting a little pixilation (comes in strong using the DMX241), I also including another channel off of 116.8W and a channel from 97W.

As you can see the DMX242 has it advantage of supplying signal for two receivers.

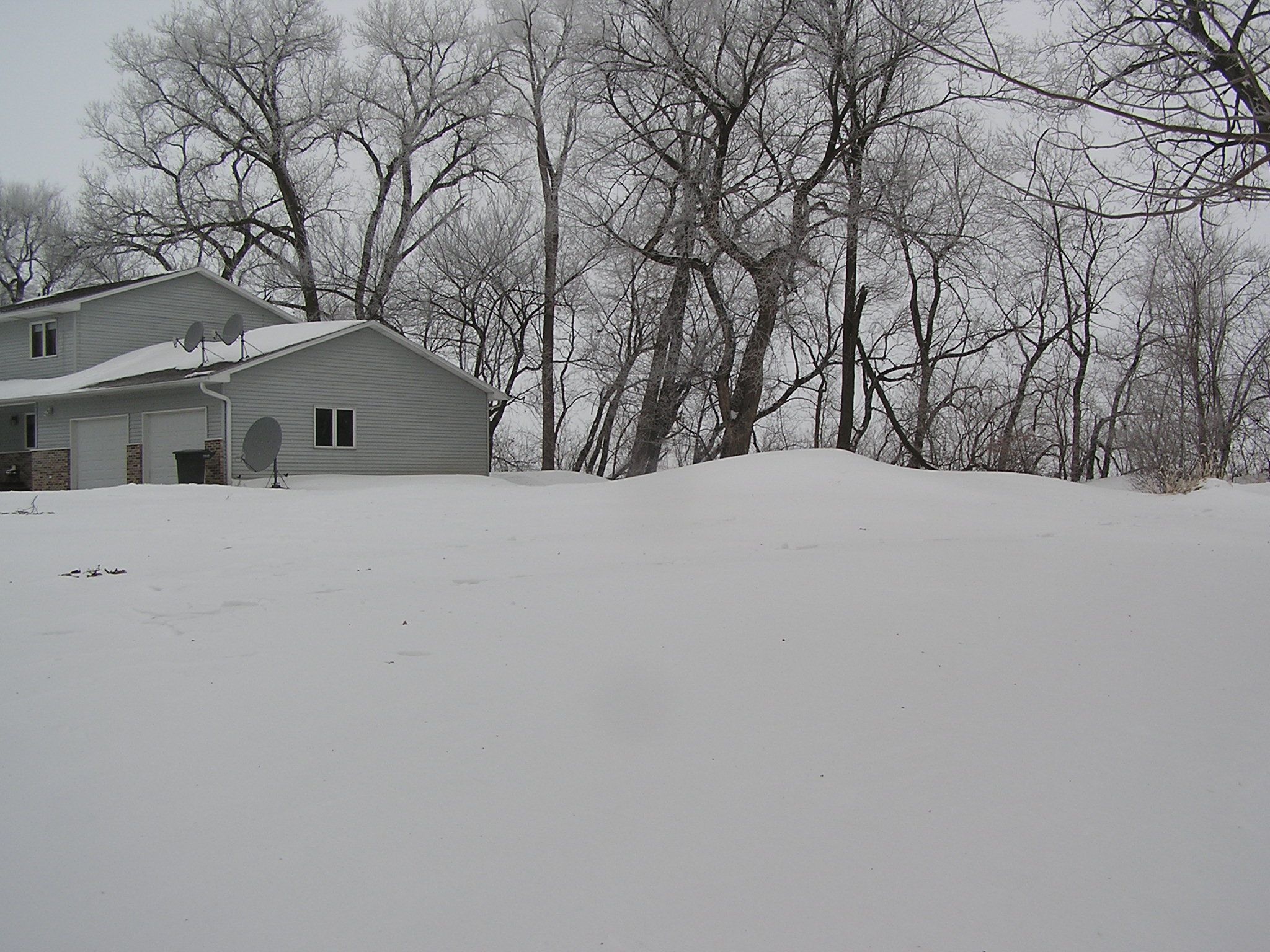

Oh yes! The last photo is of my yard and the dish. Just had to add that so you know why I gave up further testing untill the weather changes.

That should be enough information to share for now, and from the photos it gives you a pretty good idea of the signal reception using the DMX242. I am having a little difficulty attaching my channel list, I will try and zip it first and then attach and see if it sticks.


Attachments

  • 31- IA7 at 1252W.JPG
    31- IA7 at 1252W.JPG
    367.6 KB · Views: 375
  • 32- IA7 at 125W.JPG
    32- IA7 at 125W.JPG
    454.7 KB · Views: 414

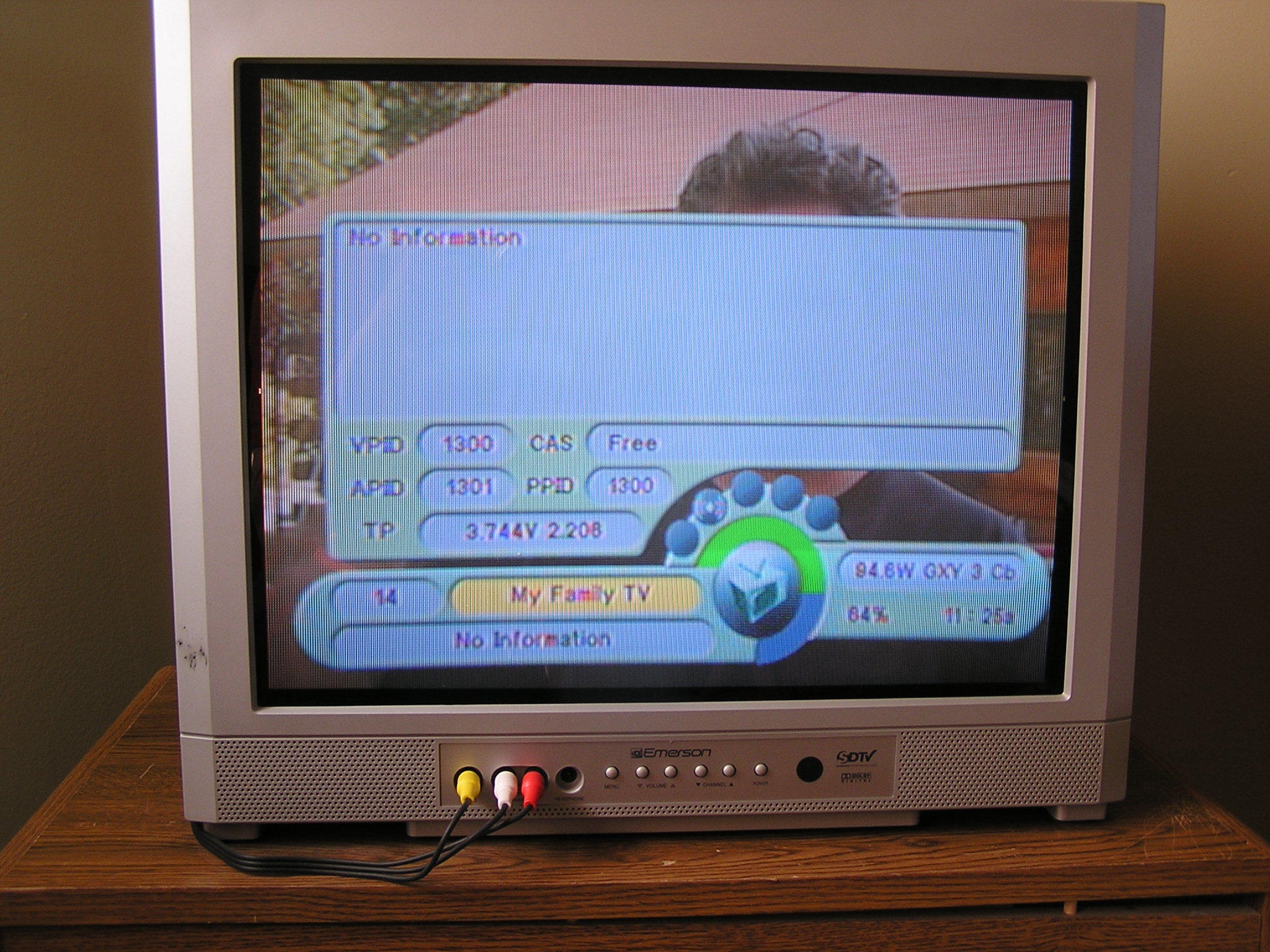

  • 33- My Family TV using Coolsat in the Den.JPG
    33- My Family TV using Coolsat in the Den.JPG
    533 KB · Views: 456
  • 34- AMC11 at 131W.JPG
    34- AMC11 at 131W.JPG
    491 KB · Views: 408

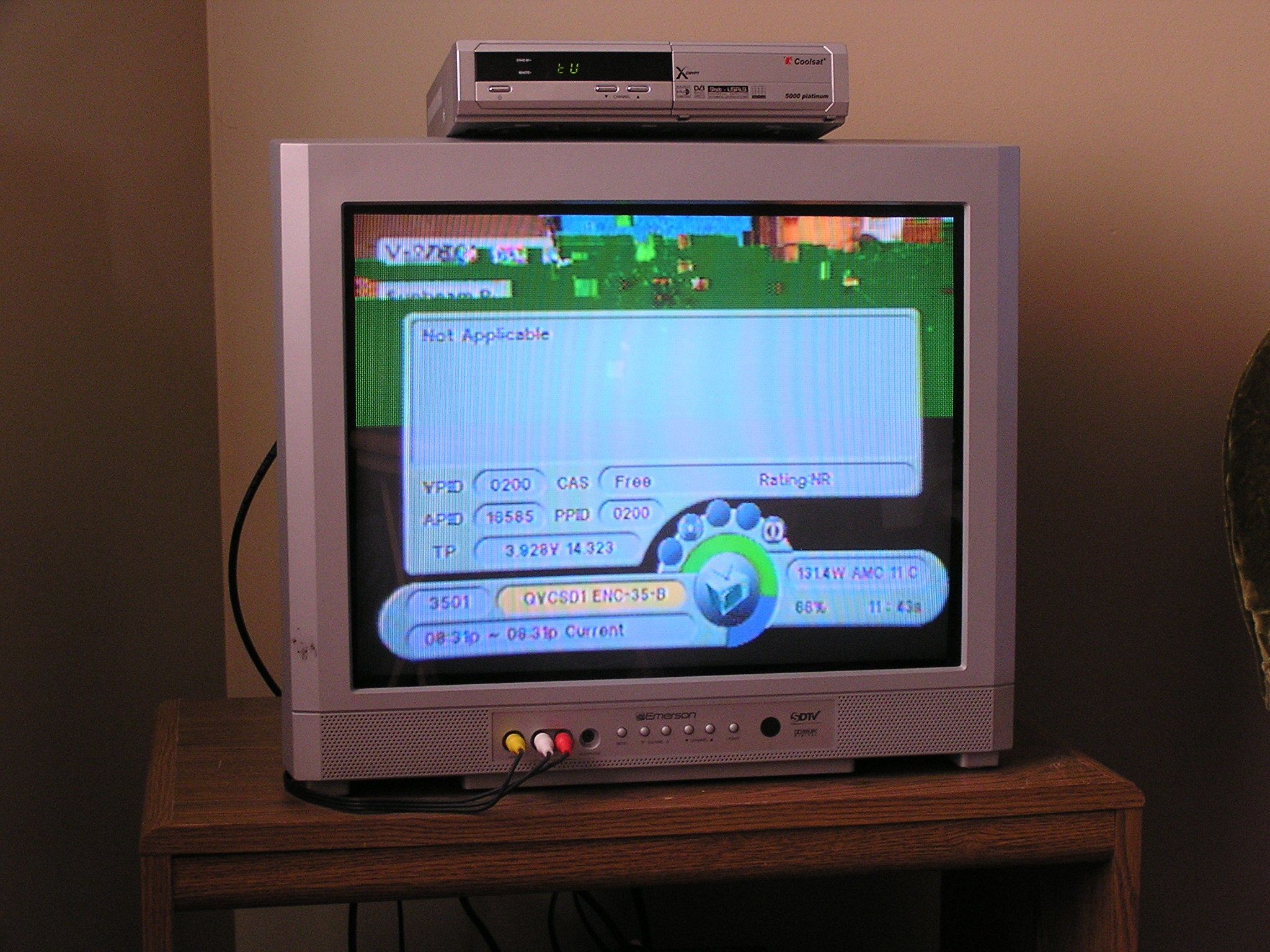

  • 35- AMC11 at 131W.JPG
    35- AMC11 at 131W.JPG
    488.3 KB · Views: 424
  • 36- SatMex5 at 116.8W.JPG
    36- SatMex5 at 116.8W.JPG
    572.7 KB · Views: 409
  • 37- SatMex 5 at 116.8W.JPG
    37- SatMex 5 at 116.8W.JPG
    582.8 KB · Views: 404
  • 38- Galaxy 19 at 97W.JPG
    38- Galaxy 19 at 97W.JPG
    461.4 KB · Views: 431

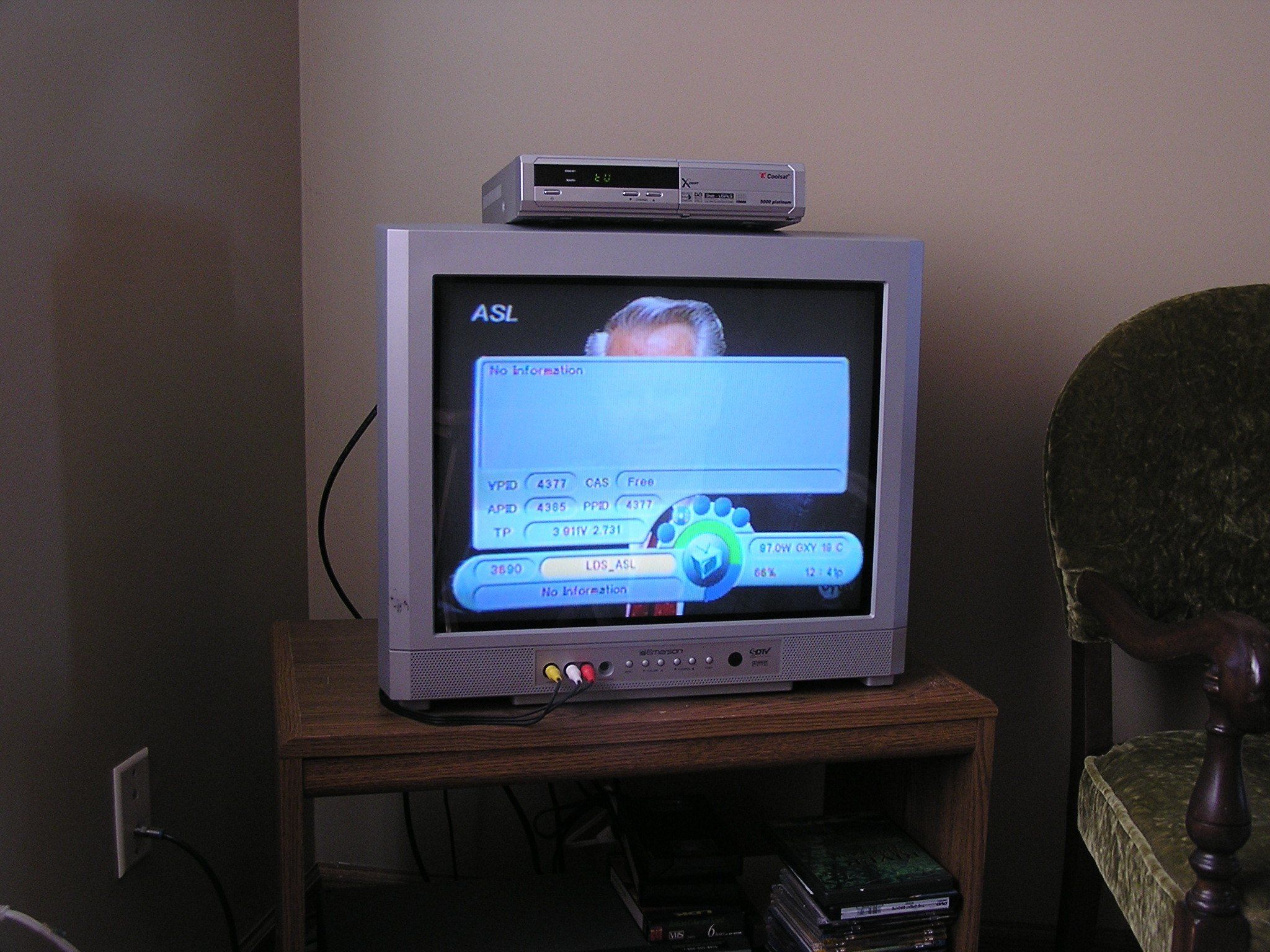

  • 39- Galaxy 19 at 97W.JPG
    39- Galaxy 19 at 97W.JPG
    440.8 KB · Views: 424

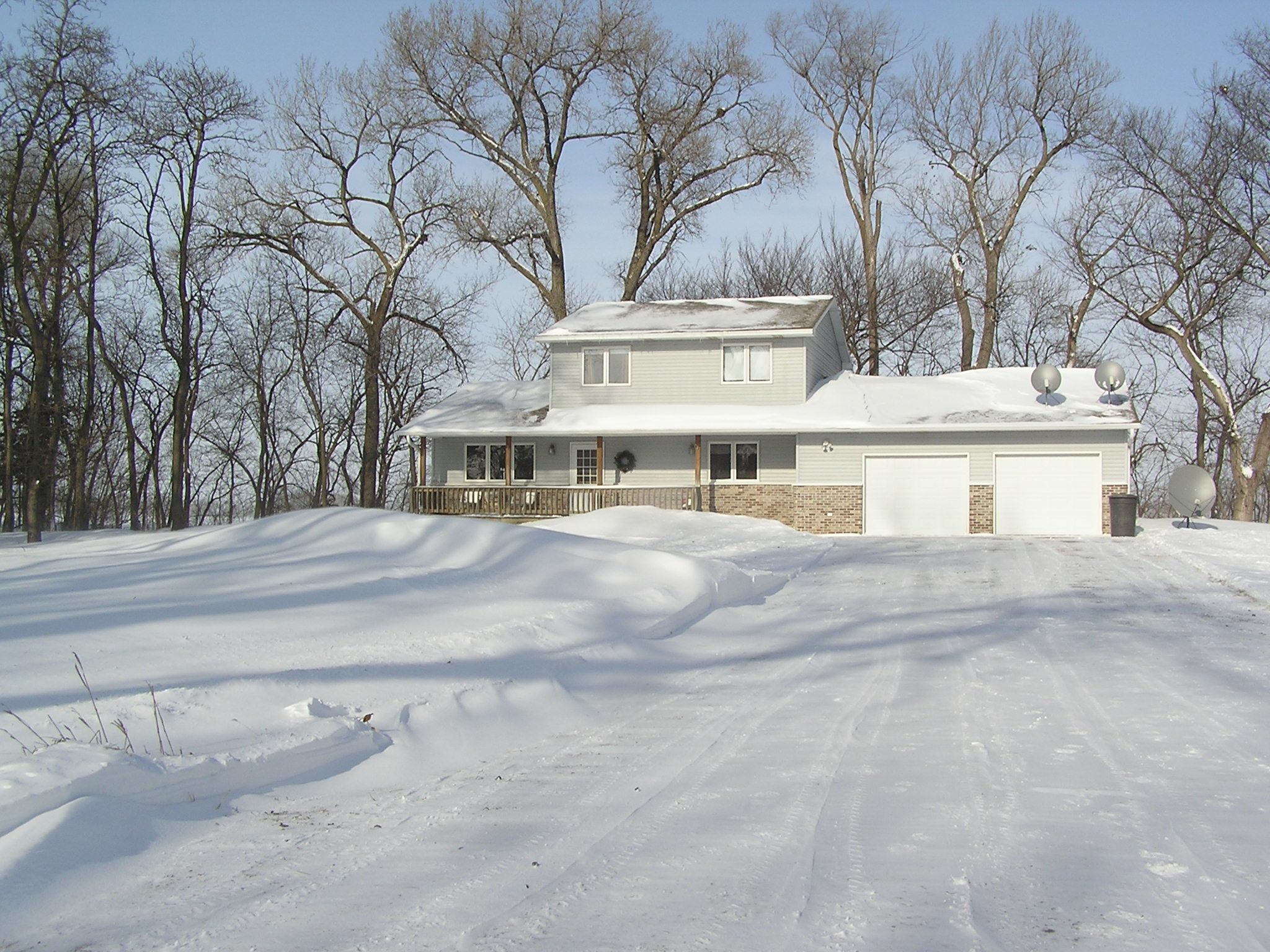

  • 40- The reason I am not outside playing with the dish!.JPG
    40- The reason I am not outside playing with the dish!.JPG
    513.4 KB · Views: 393
walrus1957

walrus1957

Thread Starter
SatelliteGuys Pro
Sep 24, 2008
280
0
40 miles west of Omaha
.ndf C-band channel list using the DMX242 LNBF

Attached is a zipped .ndf file of channels that I can receive using the DMX242 LNBF. If you have Channel Master program on your computer you can open the list and view the channels on each of the C-band satellites from 55.5W through 139W.

This is further testomony to the performance of the DMX242, its a great C-band LNBF!

I have edited this channel list using Channel Master, removing the channels that I received using the DMX241 but could not using the DMX242. There maybe a few that come in with pixilation at times but can be cured by changing motor control from USALs to Diseqc to fine tune the transponders. I also want to note that I did not edit out the encrypted channels.


Attachments

  • DMX242 LNBF and Pansat 2700A.zip
    13.2 KB · Views: 330
AcWxRadar

AcWxRadar

SatelliteGuys Pro
Apr 26, 2006
4,575
4
40 miles NW of Omaha. Omaha?
Great review Walrus!

When the weather warms up and we get shed of this snow, you and I will have to test this out at the farm where we can have a full LOS for all the satellites across the horizon. Then, we can see how it performs with my AZBox Premium and (hopefully) Premium Plus receivers as well.

RADAR

U

uvbnhd

Member
Aug 14, 2010
13
0
md
hi i just bought the dmx242 can you tell me if i use the Dielectric plate does that allow me to get both linier and circular or does it switch it to circular only. Thanks

Last edited by a moderator:
U

uvbnhd

Member
Aug 14, 2010
13
0
md
wonder if you could help with another problem. I have my c band setup and am getting a great lock on sat 91w on my first strike meter but when i scan for channels i am getting no channels. I thought it could be the diseqc switch so i connected it straight to the reciever and still cant hit any channels. Any ideas. Done sat scan and and blind scan and Tp scan but it is not hitting anything. On the metter i have a solid lock on 91w with settings.

F: 3720
sr : 26700
Lo: 5150
Lnb:13
22khz: off
I went up and tested again and still locking on so i then kept the same settings except i changed lnb to 18 and i was not getting a lock. But when i rotated the lnb 180 degrees i then got a strong lock on the meter. shouldnt i be hitting both 13 and 18 from the same location with out needing to rotate it

Babadem

Babadem

SatelliteGuys Pro
May 21, 2007
2,294
163
MA
wonder if you could help with another problem. I have my c band setup and am getting a great lock on sat 91w on my first strike meter but when i scan for channels i am getting no channels. I thought it could be the diseqc switch so i connected it straight to the reciever and still cant hit any channels. Any ideas. Done sat scan and and blind scan and Tp scan but it is not hitting anything. On the metter i have a solid lock on 91w with settings.

F: 3720
sr : 26700
Lo: 5150
Lnb:13
22khz: off
I went up and tested again and still locking on so i then kept the same settings except i changed lnb to 18 and i was not getting a lock. But when i rotated the lnb 180 degrees i then got a strong lock on the meter. shouldnt i be hitting both 13 and 18 from the same location with out needing to rotate it
I don't know the receiver that you're using, but here is your solution.
